vGit

A powerful VS Code extension (formerly "Git Staging View") that provides an Eclipse EGit-style staging view with advanced commit graph visualization for managing Git changes across multiple repositories.

This extension is inspired by the excellent Git Graph extension, incorporating its graph visualization approach while adding a comprehensive staging interface.

Screenshots

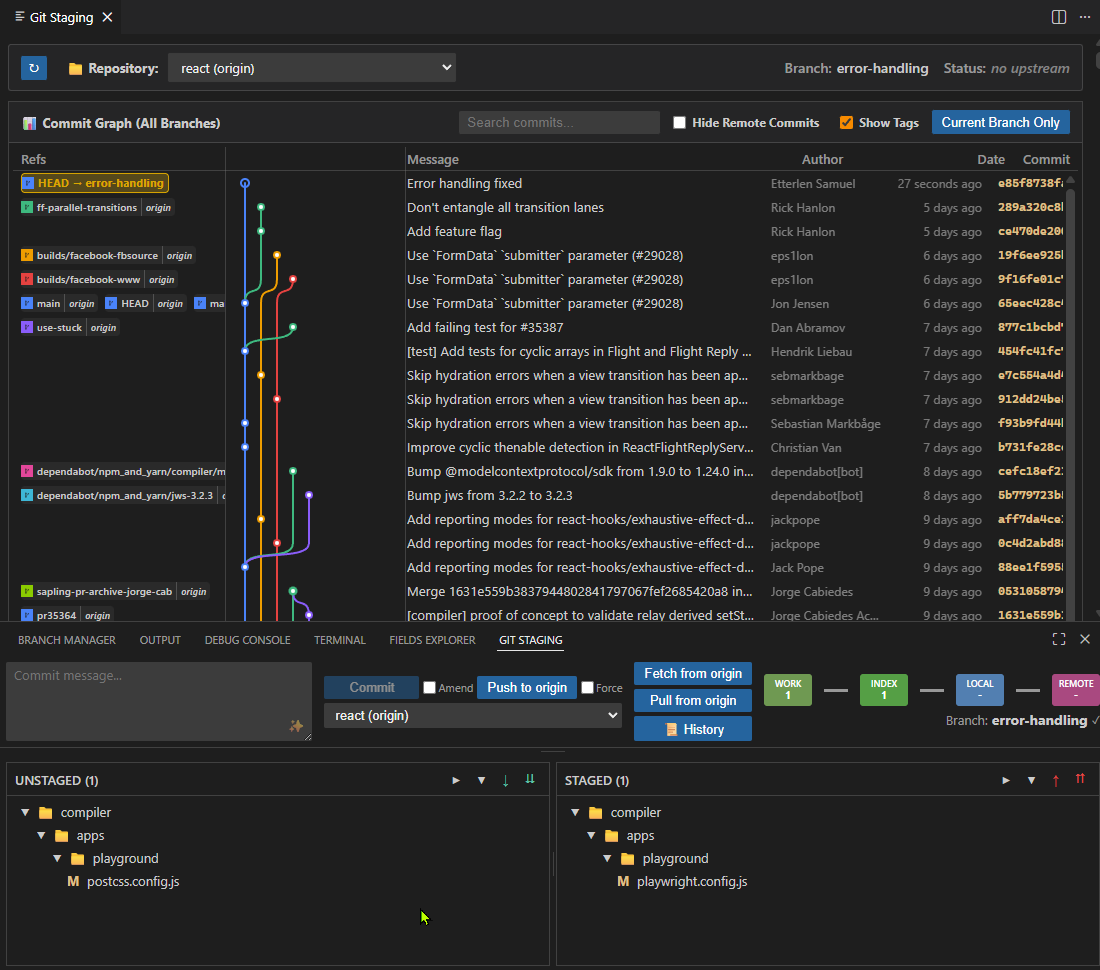

Main View

Main Staging View Dual-panel layout with file staging on the left and interactive commit graph on the right

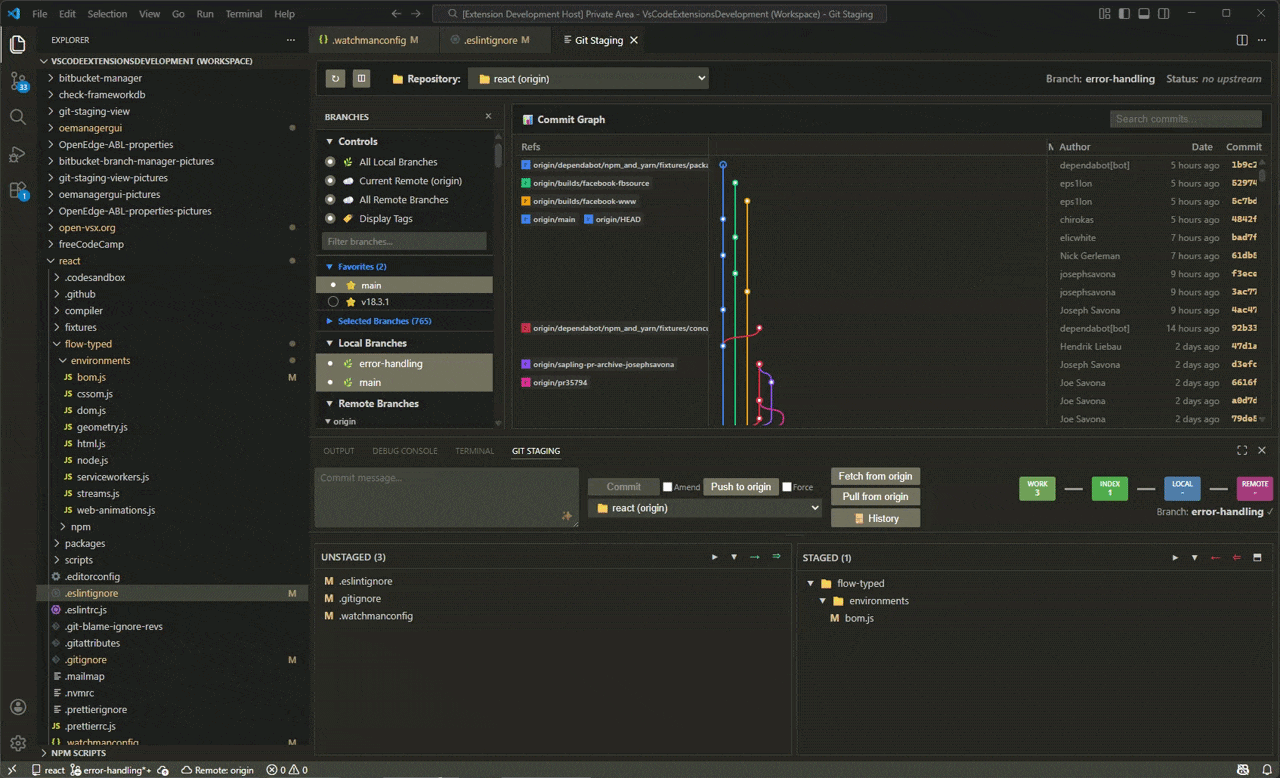

Staging Panel in Action

Staging Panel Demo Stage, unstage, and stash files with inline buttons, drag-and-drop, and the dedicated Stashes panel

Context Menus

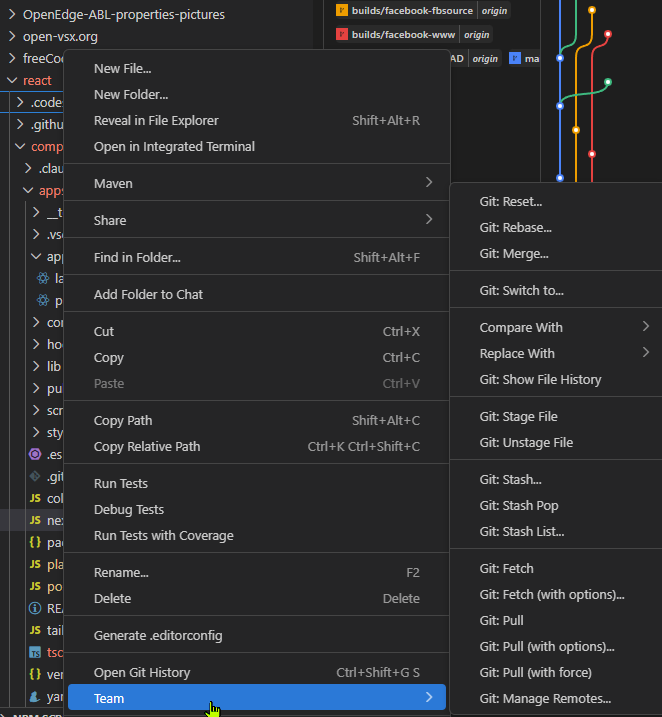

File Operations

Right-click files to compare, stage/unstage, or replace with different revisions

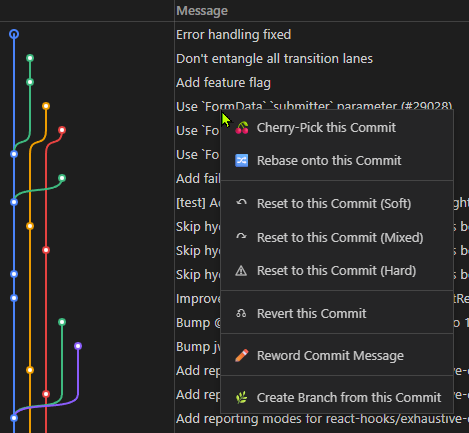

Commit Operations

Right-click commits to cherry-pick, reset, revert, or create branches

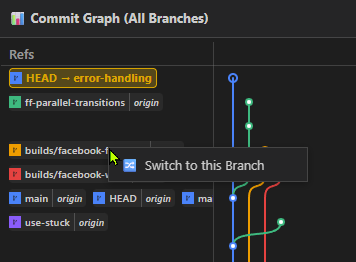

Branch Operations

Right-click branch names in the commit history to switch branches

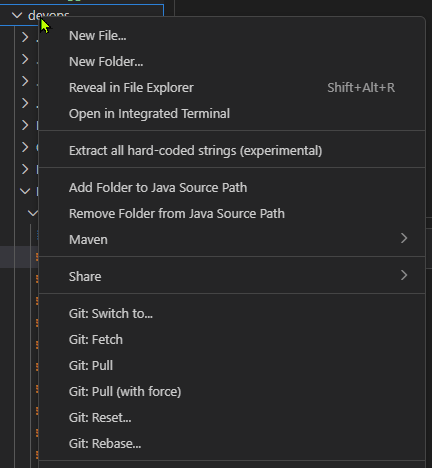

Repository Operations

Right-click repository to switch branches, fetch, pull, reset, or rebase

Features

Layout

Main Panel: Interactive commit graph with branch selection sidebar
Bottom Panel: Unstaged/staged changes with tree view, commit message area, and action buttons
Resizable Sidebar: Drag the sidebar edge to resize the branch selection panel
Resizable Graph Column: Drag the resize handle in the graph header or any row to adjust graph width

Advanced Commit Graph

The history lanes display is inspired by the excellent vscode-git-graph extension.

SVG-Based Visualization: Beautiful colored branch lanes with curved merge lines
Compact Layout: Optimized lane assignment with longest branches on the left
Sticky Column Headers: Graph, Message, Author, Date, and Commit headers stay visible when scrolling
EGit-Style Display:
- Commit hash in rightmost column
- Visual graph lanes in leftmost column
- Commit message starting right after the graph
- Author and date columns
- Consistent 13px font size
Infinite Scroll: Automatically loads more commits as you scroll
Search & Filter:
- Search by commit hash, message, branch name, tag, or author
- Clear button (×) for quick search reset
- Press Enter to execute search
Branch Selection Panel:
- Interactive sidebar to filter the commit graph by specific branches
- Toggle local branches, individual remote branches, and tags
- Group controls for selecting/deselecting all local or remote branches at once
- Filter input to quickly find branches by name
- Context menu on branches for checkout and delete
- Selected branch HEAD highlighting: commits at the tip of individually selected branches are highlighted with a dark red background
- Resizable sidebar: Drag the right edge to resize (150px–600px), width persists across refreshes
Favorite Branches:
- Mark frequently used branches as favorites for quick access
- Right-click any branch → "Add to Favorites" to pin it to the Favorites section
- Right-click a favorite → "Remove from Favorites" to unpin it
- Favorites appear between Controls and Selected Branches in the sidebar
- Select/deselect favorites with checkboxes, just like regular branches
- Favorites are stored per repository and persist across sessions
- Stale favorites are automatically removed when branches are deleted from the repo
Branch Views:
- Toggle between current branch and all branches
- Hide remote commits option (checked by default)
- Show Tags toggle (unchecked by default) - displays tag names in graph
Tag Tooltip: Hover over displayed tag at top to see all repository tags
Commit Selection: Select multiple commits using checkboxes
- Visual highlighting of selected commits
- Selection state persists during graph updates
Context Menu: Right-click any commit for:
- Squash Selected Commits (when 2+ commits selected)
- Cherry-pick
- Reset (soft/mixed/hard)
- Revert
- Reword Commit Message (HEAD commit only)
- Create branch from commit

Multi-Repository Support

Automatic detection of all Git repositories in workspace
Dropdown selector to switch between repositories
Repository-specific state tracking
Real-time branch, tag, and ahead/behind status
Separate Git Directory Support: Detect repositories initialized with --separate-git-dir
- Configure repositoryScanDepth to scan nested folders
- Use additionalRepositoryPaths to specify folders containing git repositories outside workspace folders

Performance & Architecture

Webpack-bundled extension and webview for fast loading
External CSS files and loading screen to prevent FOUC

File Management

Tree View: Files organized by folder structure
Click to Stage/Unstage: Single-click operation
Batch Operations:
- Stage All / Unstage All (Eclipse-style colored arrow icons)
- Collapse All / Expand All folders
Visual Status Indicators:
- A - Added
- M - Modified
- D - Deleted
- R - Renamed
- U - Unmerged/Conflict

Staging Panel (Bottom Panel)

Commit Message Area: Multi-line textarea with AI-generate button (bottom-right)
Actions Row: Commit + Amend + Push + Force buttons with repository dropdown
Push Button: Dynamically shows remote name (e.g., "Push to origin")
Repository Dropdown: Shows remote in parenthesis (e.g., "my-repo (origin)")
Fetch/Pull Buttons: Quick access to fetch and pull operations
Git Flow Animation: Visual workflow indicator (Working Directory → Index → Local → Remote)
Branch Display: Current branch name with ahead/behind status

Git Operations

Commit: Commit staged changes with message validation
Amend Commit: Checkbox to amend the last commit with new changes and/or message
Reword Commit: Edit the message of the most recent commit
- Right-click the HEAD commit in the graph
- Select "Reword Commit Message"
- Edit the message in the modal dialog
- Auto-selects existing text for quick editing
- Only works on HEAD commit for safety
Squash Commits: Combine multiple commits into one
- Select contiguous commits using checkboxes (must include HEAD)
- Right-click and choose "Squash Selected Commits"
- Confirm the selection
- Edit the combined commit message in the modal
- Creates a single commit with all changes
- Must start from HEAD for safety
Push: Push commits to remote with formatted response modal
- Remote selection dropdown when multiple remotes are configured
- Force Push checkbox for explicit git push --force (unchecked by default)
- Smart credential prompting for remotes requiring authentication
- Response displayed in modal with clickable URLs (e.g., pull request links)
- Color-coded messages and hints section
- Automatically refreshes view after successful push
Fetch: Fetch updates from remote with remote selection
- "Git: Fetch" for quick fetch from default remote
- "Git: Fetch (with options)" for remote selection dropdown
- Fetches all branches from selected remote
Pull: Pull with remote and branch selection
- Auto-stash support for uncommitted changes
- Automatically stashes and restores local changes during pull
Refresh View: Manually refresh all repository data
Compare Operations:
- Compare with HEAD
- Compare with previous revision
- Compare with any branch, tag, or reference
- Compare with specific commit
Replace Operations:
- Replace with HEAD revision
- Replace with previous revision
- Replace with any branch, tag, or reference
- Replace with specific commit
Repository Operations:
- Switch to branch/tag/commit
- Create new branch from branch/commit
- Rebase onto branch
- Create tag (lightweight or annotated)
- Fetch
- Pull / Pull (force)
- Reset
- Rebase
- Merge
Rebase Conflict Handling: Automatic conflict detection and resolution workflow
- View automatically refreshes when conflicts are detected
- Conflicted files appear immediately in Unstaged Changes section
- Action buttons (Continue Rebase, Abort Rebase, Skip Commit) for resolving conflicts
Cherry-Pick Conflict Handling: Same conflict resolution workflow for cherry-pick operations
- Detects when a cherry-pick encounters conflicts
- Action buttons (Continue, Skip, Abort) for resolving cherry-pick conflicts
- Consistent user experience across rebase and cherry-pick operations
Stash Management: Complete stash workflow support
- Stash Changes: Save uncommitted changes with optional message
- Pop Stash: Apply and remove the most recent stash
- Apply Stash: Apply stash without removing it
- Drop Stash: Delete a specific stash entry
- View Stash: Preview stash contents in diff view
- Stashes Panel: Dedicated panel to the right of Staged changes, toggled via the ⬒ button in the Staged header
  - Displays all stashes with index, message, originating branch, and date
  - Each stash entry has Pop, Apply, and Drop action buttons
  - Badge on the toggle button shows the stash count when stashes exist
  - Resizable via drag handle between Staged and Stashes panels
- Drag and Drop to Stash: Drag files or folders from the Unstaged view onto the Stashes panel
  - Drop on empty area to create a new stash with the selected files
  - Drop on an existing stash entry to add the files to that stash
- Stash from Context Menu: Right-click unstaged files to stash directly with options
Remote Management: Full CRUD operations for Git remotes
- View all remotes with their URLs
- Add, rename, change URL, or remove remotes
- Command Palette: "Git: Manage Remotes..."
Refresh Repository Lists: Manually refresh dropdown lists when needed
- Command Palette: "Git: Refresh Repository Lists"
- Updates remote lists, repository lists, and all cached data
File/Folder History: View commit history filtered to a specific file or folder
- Right-click any file or folder in Explorer → Team → "vGit: Show File History"
- Opens staging view with commit graph filtered to the selected path
- Works with both individual files and entire folders
Enhanced Error Display: Push and revert errors shown in formatted modal with hints

Performance

Efficient Graph Rendering: Handles 500+ commits smoothly
Smart Lane Calculation: Optimized algorithm for clean graph layout
Incremental Loading: Loads 100 more commits per scroll
Git-Level Filtering: Efficient remote commit exclusion
Smart Refresh: File watcher distinguishes history vs. staging events — operations like staging, unstaging, and stashing no longer trigger unnecessary git log calls

Usage

Opening the Staging View

Command Palette (Ctrl+Shift+P):

vGit: Show Staging View

Keyboard Shortcut (when Explorer is focused):

Ctrl+Shift+G S

Context Menu:

Right-click any file in Explorer → vGit submenu

Working with Files

Staging Files:
- Click any file in Unstaged Changes to stage it
- Or use Stage All button
Unstaging Files:
- Click any file in Staged Changes to unstage it
- Or use Unstage All button
Comparing Files:
- Right-click a file → vGit → Compare with...
- Choose HEAD, previous revision, reference, or specific commit
Replacing File Content:
- Right-click a file → vGit → Replace with...
- Reverts file to selected revision

Using the Commit Graph

Navigation:
- Scroll to view commit history
- Automatically loads more commits at bottom
- Use search box to find specific commits
Branch Visibility:
- Click Show All Branches to see all branches
- Check Hide Remote Commits to exclude remote tracking branches (default)
Commit Operations:
- Right-click any commit for context menu
- Squash Selected Commits: Combine multiple commits (requires 2+ selected)
  - Check boxes next to commits you want to squash
  - Must include HEAD (the topmost commit)
  - Commits must be contiguous (adjacent in history)
  - Confirm selection, then edit the combined message in a modal
- Reword Commit Message: Edit the most recent commit's message
  - Only available for HEAD commit
  - Opens modal dialog with existing message auto-selected
  - Edit and save to update the commit
- Cherry-Pick: Apply commit to current branch
- Reset: Move branch pointer (soft/mixed/hard)
- Revert: Create new commit that undoes changes
- Create Branch: Create new branch from commit
Search:
- Type in search box and press Enter
- Searches: hash, short hash, message, refs, author
- Click × to clear search

Committing Changes

Enter commit message in the text area
Amend Checkbox (optional):
- Check to amend the last commit
- Automatically loads the previous commit message
- Combine new staged changes with the previous commit
Commit button: Creates commit locally (or amends if checkbox is checked)

Pushing Changes

Push button: Push commits to remote
- Displays response in a formatted modal window
- Shows remote messages with clickable URLs (pull request links)
- Automatically refreshes view on success
Force Push (use with caution):
- Check the "Force Push" checkbox next to Push button
- Required for git push --force operations
- Prevents accidental force pushes

Repository Management

Repository Header Controls:

Repository dropdown: Switch between detected Git repositories
Refresh View: Manually refresh all data
Fetch: Fetch updates from remote and refresh view

For Files (right-click in Explorer):

vGit submenu with all file operations

For Folders (right-click repository root):

Switch to... (branch/tag/commit)
Fetch, Pull, Pull (force)
Reset, Rebase, Merge

Resolving Rebase Conflicts

When a rebase encounters conflicts:

Automatic Detection:
- View automatically opens and displays rebase indicator
- Conflicted files appear in Unstaged Changes with conflict markers (U)
- View refreshes automatically to show all conflict files
Resolve Conflicts:
- Click conflicted files to open and edit them
- Resolve conflicts by choosing which changes to keep
- Stage the resolved files (click to move to Staged Changes)
Complete Rebase:
- Continue Rebase: Once all conflicts are resolved and staged, click to continue
- Skip Commit: Skip the current commit that caused conflicts
- Abort Rebase: Cancel the rebase and return to original state

The view monitors Git's rebase state files and updates automatically throughout the process.

Resolving Cherry-Pick Conflicts

When a cherry-pick encounters conflicts, the same workflow applies:

Automatic Detection:
- View displays a cherry-pick indicator (🍒 CHERRY-PICK IN PROGRESS)
- Conflicted files appear in Unstaged Changes with conflict markers (U)
Resolve Conflicts:
- Edit conflicted files to resolve the conflicts
- Stage the resolved files
Complete Cherry-Pick:
- Continue: Once all conflicts are resolved and staged, click to continue
- Skip: Skip the current commit
- Abort: Cancel the cherry-pick and return to original state

Viewing File/Folder History

Right-click any file or folder in the Explorer
Select Team → vGit: Show File History
The staging view opens with the commit graph filtered to only show commits that affected the selected file or folder
All standard graph features remain available (search, branch views, context menus)

Graph Visualization Details

Color Scheme

Blue (#3b82f6) - Primary branch
Green (#10b981) - Feature branches
Orange (#f59e0b) - Warning/HEAD commits
Red (#ef4444) - Hotfix branches
Purple (#8b5cf6) - Release branches
Pink (#ec4899) - Experimental branches

Layout

Row Height: 24px per commit
Column Width: 16px per lane
Commit Hash: 65px fixed width
Author Column: 110px fixed width
Date Column: 85px right-aligned

Features

Curved lines for merge commits
Continuous lanes through commit list
Branch lanes sorted by usage (longest left)
Visual distinction for HEAD commits (orange dot)

Ref Badges

HEAD: Green badge for current HEAD pointer
Local Branches: Blue badges for local branch names
Remote Branches: Cyan badges for remote tracking branches (hidden when "Hide Remote Commits" is checked)
Tags: Yellow badges (shown only when "Show Tags" is enabled)

Configuration

Settings

Setting	Type	Default	Description
`gitStagingView.showSubmodules`	boolean	`true`	Show git submodules in repository dropdown lists
`gitStagingView.submoduleDisplayStyle`	string	`"hierarchical"`	How to display submodules: `"hierarchical"` or `"grouped"`
`gitStagingView.repositoryScanDepth`	integer	`1`	Maximum depth to scan for git repositories (1-5)
`gitStagingView.additionalRepositoryPaths`	array	`[]`	Additional folders to scan for git repositories
`gitStagingView.favoriteBranches`	object	`{}`	Favorite branches per repository (managed via context menu)

Separate Git Directory Support

For repositories created with git init --separate-git-dir, the .git folders are stored in a separate location from the working directories. This is common in enterprise environments where git repositories are organized in a dedicated folder structure.

Example workspace structure:

workspaceroot/
├── myproject.code-workspace
├── git/                          ← Contains .git directories
│   ├── framework/.git
│   ├── common/.git
│   └── application/.git
├── framework/                    ← Working directory (in .code-workspace)
├── common/                       ← Working directory (in .code-workspace)
└── application/                  ← Working directory (in .code-workspace)

Configuration for this setup:

{
    "gitStagingView.repositoryScanDepth": 1,
    "gitStagingView.additionalRepositoryPaths": ["git"]
}

How it works:

The extension scans only the workspace folders defined in your .code-workspace file
Additional paths are resolved relative to the workspace root (where the .code-workspace file is located)
Each additional path is scanned up to the configured repositoryScanDepth
Repositories discovered in additional paths appear in the repository dropdown

Session State

The following settings are maintained per session:

Panel resize ratio
Branch visibility preference
Remote commits visibility
Tag visibility preference
Commit message (persists when navigating away)
Current repository selection
Sidebar width
Force push preference (always defaults to unchecked for safety)

Requirements

Git: Must be installed and available in system PATH
VS Code: Version 1.74.0 or higher
Workspace: At least one Git repository

Keyboard Shortcuts

Shortcut	Command	Context
`Ctrl+Shift+G S`	vGit: Show Staging View	Explorer focused

Known Limitations

Graph rendering optimized for up to ~1000 commits
Context menu requires right-click (no keyboard access yet)

Tips & Tricks

Quick Staging: Click files in tree view for fastest staging
Batch Operations: Use collapse/expand for better tree navigation
Search Efficiency: Search by short hash (7 chars) for quick commit lookup
Panel Layout: Resize panels to focus on graph or file list as needed
Remote Filtering: Keep "Hide Remote Commits" checked for cleaner local view
Branch Selection: Use the branch panel sidebar to filter the graph to specific branches of interest
Favorite Branches: Right-click branches you use often and add them to Favorites for quick access
Branch Head Highlight: Select individual branches (not via group toggles) to see their HEAD commits highlighted in the graph
Branch Navigation: Use commit graph context menu to create branches from any commit
Safe Push: Always review the push response modal before closing it
Force Push Safety: Force Push checkbox prevents accidental force pushes - only check when absolutely necessary
Fetch Before Push: Use the Fetch button to update remote tracking before pushing
Squash Commits: Clean up your commit history by squashing multiple related commits:
- Select consecutive commits starting from HEAD using checkboxes
- Right-click and choose "Squash Selected Commits"
- Edit the combined message to create a clean, descriptive commit
- Useful for combining "WIP" commits or cleanup commits before pushing
Reword Commits: Quick fix for commit message typos:
- Only works on the most recent commit (HEAD)
- Right-click HEAD and select "Reword Commit Message"
- The existing message is auto-selected for easy replacement
Rebase Conflict Resolution: Handle rebase conflicts efficiently:
- View automatically refreshes when conflicts are detected
- Resolve conflicts in each file, then stage them
- Use Continue/Skip/Abort buttons to proceed
- The view monitors rebase state and updates in real-time
Cherry-Pick Conflict Resolution: Same workflow as rebase - resolve, stage, then Continue/Skip/Abort
File/Folder History: Right-click any file or folder → Team → vGit: Show File History to see filtered commit graph

Other Extensions by diabolo-68

Check out my other VS Code extensions:

Extension	Description
Apache Ant Manager	Manage and run Apache Ant build tasks directly from VS Code
OE Manager GUI	GUI for managing OpenEdge AppServer agents and connections
OpenEdge ABL Properties	Enhanced property file support for OpenEdge ABL development
Bitbucket Manager	Manage Bitbucket pull requests, branches, and repositories from VS Code

Enjoy a more powerful Git workflow in VS Code with vGit!

vGit

Samuel Etterlen

vGit

Screenshots

Main View

Staging Panel in Action

Context Menus

File Operations

Commit Operations

Branch Operations

Repository Operations

Features

Layout

Advanced Commit Graph

Multi-Repository Support

Performance & Architecture

File Management

Staging Panel (Bottom Panel)

Git Operations

Performance

Usage

Opening the Staging View

Working with Files

Using the Commit Graph

Committing Changes

Pushing Changes

Repository Management

Resolving Rebase Conflicts

Resolving Cherry-Pick Conflicts

Viewing File/Folder History

Graph Visualization Details

Color Scheme

Layout

Features

Ref Badges

Configuration

Settings

Separate Git Directory Support

Session State

Requirements

Keyboard Shortcuts

Known Limitations

Tips & Tricks

Other Extensions by diabolo-68
