OpenEdge ABL - Project Manager

A comprehensive VS Code extension for managing OpenEdge/ABL project configurations directly from the editor. This extension provides a centralized properties panel where you can:

Manage workspace-level databases - Define available databases once at the workspace level, share them across all projects
Select databases per project - Toggle which databases each project uses, configure client-specific parameters
Monitor ABL status - View Language Server health by project and the state of every enabled database, then start, restart, stop, inspect logs, or launch PROMON
Use the bottom-panel status view - Monitor and operate databases beside VS Code's Output and Terminal panels without opening Properties
Open multiple properties panels - View and edit settings for multiple projects simultaneously
Deferred saving with confirmation - Changes are applied locally and only saved to disk when you click "Save"
Autostart databases when VS Code opens and automatically stop them when it closes
Configure the PROPATH with drag-and-drop reordering and file watcher on openedge-project.json for external changes
Edit project settings from openedge-project.json including version, charset, working directory, and runtime options
Generate schema files automatically by dumping database definitions to .df files
Sync with openedge-project.json to keep database settings in sync with your ABL Language Server configuration

The extension integrates seamlessly with the OpenEdge ABL extension and uses your configured DLC runtimes to start/stop databases and perform schema dumps.

Requirements

Visual Studio Code 1.85.0 or higher
OpenEdge ABL extension with runtimes configured in abl.configuration.runtimes
Works with both single folders and multi-root workspaces. For multi-root setups, a .code-workspace file is recommended so shared database definitions are stored next to it. See Multi-root Workspaces.
OpenEdge installation

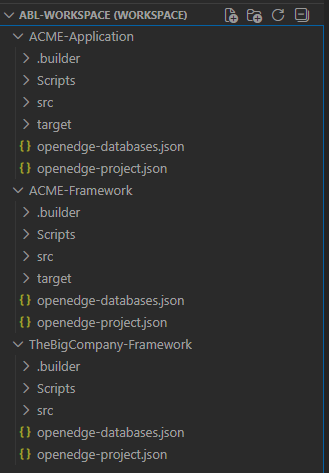

Workspace Example

Here's an example of a multi-root workspace following a Maven-like folder layout:

Workspace Example

Features

Database Management (Two-Level Architecture)

The extension uses a workspace/project split for database management:

Workspace Databases Tab

Manage available databases at the workspace level (stored in a configurable location, default: .vscode/openedge-workspace-databases.json):

Server-side settings: Database path, server, port, startup parameters
DLC runtime selection: Choose which OpenEdge runtime to use
Autostart configuration: Databases start when VS Code opens
Schema file settings: Path for automatic schema dump
Configurable file location: Move the file into a project folder for version control (see Extension Settings)

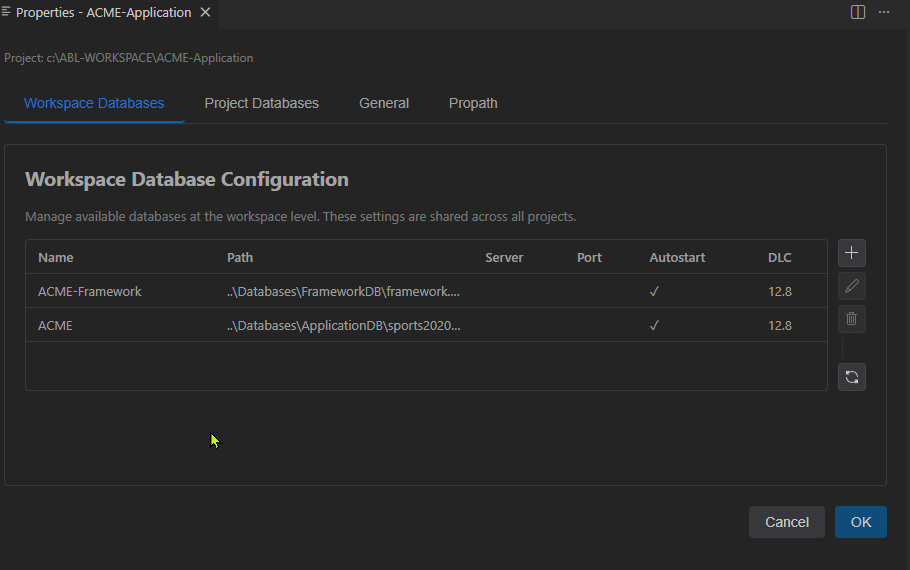

Workspace Database Settings Form:

Workspace Database Settings Form

Project Databases Tab

Select which databases to use in each project (stored in openedge-databases.json per project):

Toggle selection: Enable/disable databases for the project with checkbox
Client parameters: Connection-specific parameters per project
Logical name and aliases: Configure how the database appears to ABL code

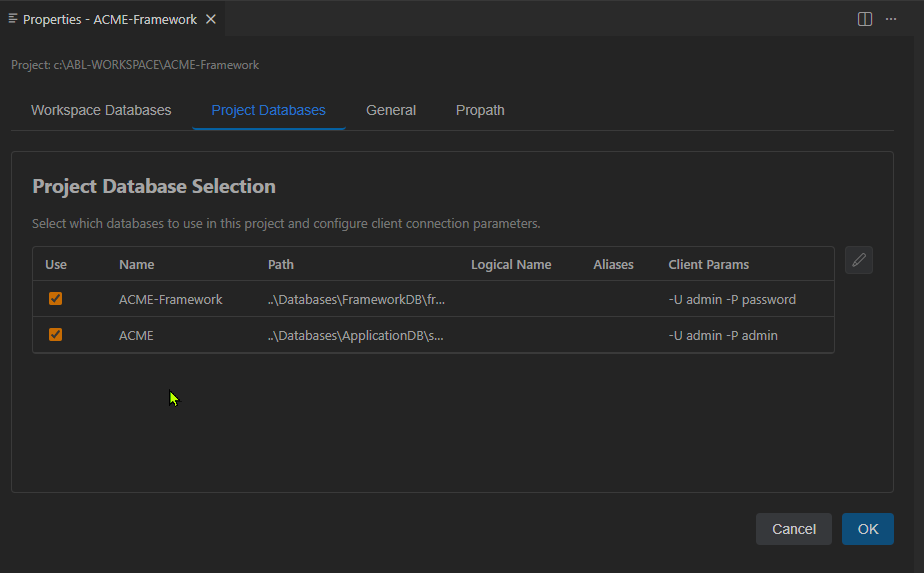

Project Databases View

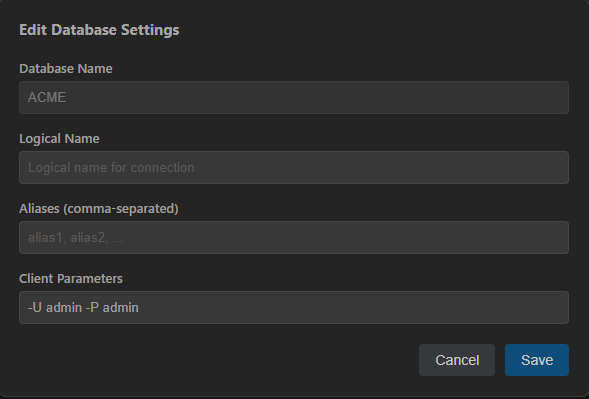

Client Connection Settings Form:

Database Client Settings Form

This architecture prevents conflicts when multiple projects share the same databases - server-side settings are defined once, while each project only configures its client connection parameters.

ABL Status Tab

Database Client Settings Form

The ABL Status tab lists every workspace database enabled by at least one project once, in a shared Databases table with a Used by column naming those projects. Below it, each OpenEdge project shows its databases as status chips; clicking a chip highlights the matching row in the table. The tab shows:

The matching ABL Language Server project information beside each project's database chips: name, initialized state, worker count, source tasks, and r-code tasks
A project-specific Language Server state: initializing while the project is not initialized, busy while source or r-code tasks are pending, ready otherwise, or unavailable when status cannot be retrieved
The live database server state (running, stopped, or unknown), checked with proutil -C holder
Server, port, database path, and per-database operational controls
Start, restart, stop, open logfile, and launch PROMON actions

Status is refreshed when the tab is opened, becomes visible, when Refresh is clicked, and after lifecycle actions. Language Server data refreshes automatically every 10 seconds by default; configure openedge-abl-properties.languageServerRefreshThreshold to change the interval. A shared database is checked once per full refresh and the result is reused across projects. Language Server request failures and timeouts are displayed in each project section without hiding database status. On narrow panels, the Language Server information moves below the database chips.

The logfile action opens the conventional .lg file beside the database (for example, sports.db → sports.lg). PROMON opens in a new integrated terminal using the database's configured DLC and is available only while the database is running.

Bottom-Panel ABL Status View

The same operational status is also available as a standalone ABL Status view in VS Code's bottom Panel, alongside Output and Terminal. This view works independently of the Properties panel and reloads saved workspace/project database configuration when opened, refreshed, or after a lifecycle action.

Use the bottom-panel view for ongoing monitoring and operations. Use the ABL Status tab in Properties when reviewing status while editing project configuration.

Automatic Database Startup

Workspaces containing openedge-project.json activate the extension early; onStartupFinished remains as a fallback
Databases configured with "Autostart" are automatically started when VS Code opens
Checks if each database is already running and confirms startup with proutil -C holder
Restarts the ABL Language Server after at least one autostart database becomes ready, so it can reconnect if it initialized first
Automatic shutdown when VS Code closes: Databases are gracefully stopped using _mprshut -by
Uses workspace-level settings to avoid restart conflicts between projects

General Settings Tab

Project Configuration: Edit openedge-project.json settings directly
- Project Name and Version
- OpenEdge Version (dropdown from configured runtimes)
- Graphical Mode toggle (prowin vs _progres)
- Charset configuration
- Working Directory and Number of Threads
- Extra Parameters for runtime

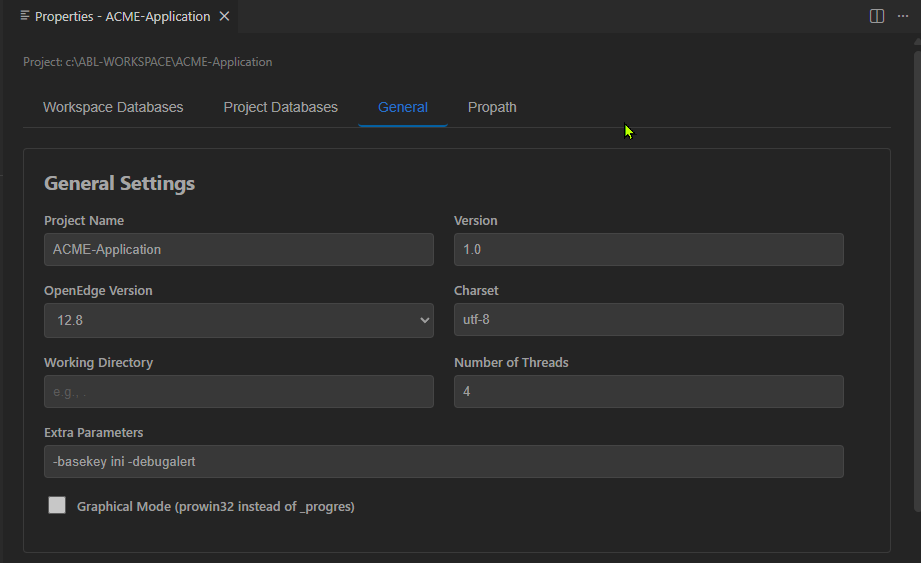

General Settings View

Propath Configuration Tab

BuildPath Management: View and edit buildPath entries from openedge-project.json
- Grid view with Type, Path, Build, and Xref columns
- Add, Edit, and Delete buildPath entries
- Reorder entries using Up/Down buttons
- File watcher detects external changes with reload prompt

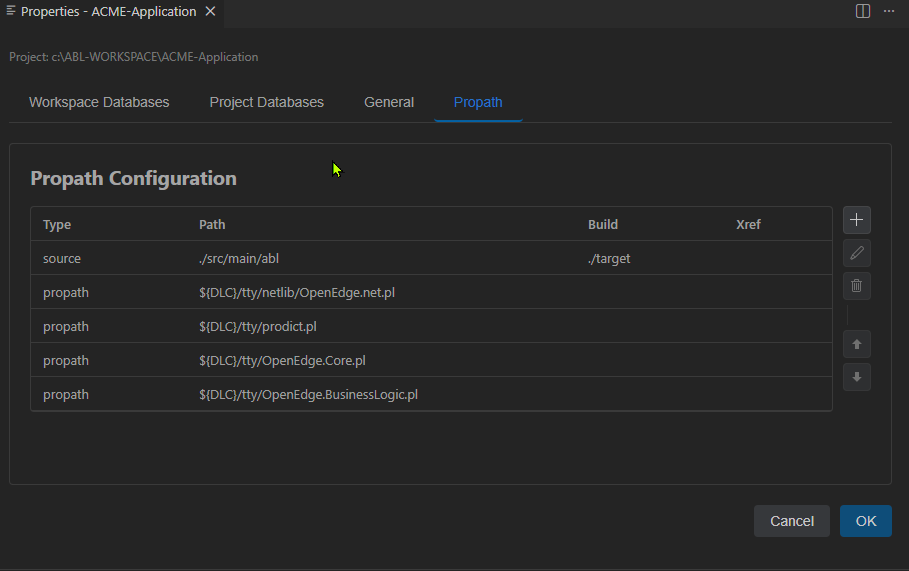

Propath View

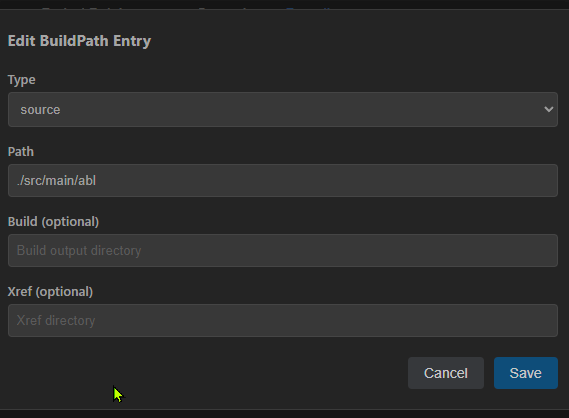

BuildPath Entry Form:

BuildPath Entry Form

DLC Runtime Integration

DLC dropdown populated from abl.configuration.runtimes settings
Automatically sets up environment variables (DLC, PROPATH, PATH) for database operations
ABL Language Server automatically restarts after saving changes

Database Connection Sync

Enabled project databases sync with dbConnections in openedge-project.json
Combines workspace database path/server with project client parameters
Supports aliases array and schema file per database

Automatic Schema Dump

Automatically dump database schema to .df files when configured
Schema files are generated at extension startup for databases with schemaFile defined
Schema is re-dumped when database settings are added or updated
Uses prodict/dump_df.p via a wrapper procedure for reliable parameter handling
Generate Schema Flag: Control automatic schema generation per database
Ensures database is running before attempting schema dump

Database Status Bar

Shows DB running/total in the status bar; click it to open the ABL Status view
Turns yellow when an autostart database is not running and red when a database stopped without the extension stopping it (a notification offers to open the log or start it again)
The tooltip lists every database and the active database profile
Polls every 30 seconds by default; configure or disable it with openedge-abl-properties.statusBarRefreshInterval

Database Tasks

The extension provides openedge-db tasks (start, stop, restart, backup) for every workspace database. Use them in tasks.json and as preLaunchTask in launch.json:

{
  "version": "2.0.0",
  "tasks": [
    { "type": "openedge-db", "action": "start", "database": "sports", "label": "start sports" }
  ]
}

Database Logs

New errors in a database .lg file (fatal messages, abnormal shutdowns, lock table overflow, full disk...) raise a notification; disable with openedge-abl-properties.logMonitoring
.lg files open with syntax highlighting for timestamps, severities and message numbers
ABL: Follow Database Log (also from the notification and the ⋯ database actions) opens the Database Log viewer, modelled on the oemanagergui Logfiles Analyzer:
- Table with line number, timestamp, PID, TID, severity, process, message number and message; fatal and critical lines in red, warnings in orange
- Follow mode keeps the newest entries in view; when scrolled away, a badge counts new entries. Only appended bytes are read, and the file is reloaded when it is truncated or recreated
- Filters: level (errors, warnings & errors), process type, PID, message number and free text (plain or regex). Click a message number to filter by it
- Click a row for its details (filter by its message number or PID); double-click or Open in Editor opens the .lg at that line
- Highlights: rules with match text or regex, background and text colors, matched text or whole line, ordered by priority (same dialog as oemanagergui)
- Columns (show, hide, reorder, resize), Compact and Font; rules and layout are remembered
- Switch databases from the toolbar; logs over 50 MB load their last 50 MB with exact line numbers

Database Maintenance

Open the ⋯ button of a database in the ABL Status view, or run ABL: Database Actions...:

Action	Tool	Database state
Backup	`probkup` (to `openedge-abl-properties.backupDirectory`)	online or offline
Restore	`prorest` in a terminal	offline (offers to stop it)
Connected users / disconnect	`proshut -C list` / `-C disconnect`	online
Analyze	`proutil -C dbanalys`, shown as a sortable table	online or offline
Check indexes	`proutil -C idxcheck all` in a terminal	online or offline
Rebuild indexes	`proutil -C idxbuild all` in a terminal	offline
Truncate BI	`proutil -C truncate bi` in a terminal	offline

New Database Wizard

ABL: Create New Database... runs prodb from the empty database, sports2000 or an existing database, optionally loads a .df file, and registers the result in the workspace databases file.

Incremental .df

ABL: Generate Incremental .df... uses prodict/dump_inc.p to create a delta .df:

Upgrade a database to a .df file: statements that bring the database to the schema in the .df
Capture database changes since a .df file: statements that bring the .df schema to the database
Compare two databases: statements that upgrade the second database to the first

A .df file is loaded into a temporary empty database for the comparison, which is deleted afterwards.

Database Profiles

ABL: Switch Database Profile... saves and restores named sets of database paths, servers, ports and startup parameters (e.g. dev, test, prod-copy). Switching saves the current settings into the active profile, applies the new one, updates dbConnections in every project and offers to restart the ABL Language Server. Profiles are stored in the workspace databases file.

.pf Export

ABL: Export Database Connections as .pf File (Command Palette or project folder context menu) writes a .pf file with -db, -ld, -H, -S and client parameters for every enabled project database, using absolute paths.

PROPATH Tools

ABL: Resolve File in PROPATH (ABL file context menu, or type a path or class name such as com.acme.Customer) lists every PROPATH entry containing the file; the first one is used, the others are shadowed
ABL: Find Shadowed Files in PROPATH scans all PROPATH directories for .p, .w, .cls, .i and .r files present more than once
The Propath tab marks entries that do not exist (red) or are empty (yellow)
Procedure libraries (.pl) are not searched

Getting Started Walkthrough

Help → Welcome → Walkthroughs → Get Started with OpenEdge ABL - Project Manager guides through runtimes, databases, status, tasks and PROPATH tools.

Explorer Context Menu: Right-click on project folders to access "ABL: Open OpenEdge Properties" (appears at bottom of menu)
Command Palette: Use ABL: Open OpenEdge Properties - shows project picker when multiple projects exist
View Title Button: Quick access button in the Explorer view title bar (single-folder workspaces)
Smart Visibility: Menu items only appear for projects containing openedge-project.json

Output Logging

Dedicated "OpenEdge ABL - Project Manager" output channel
Debug Mode: Enable verbose logging via openedge-abl-properties.debugMode setting
- When disabled (default): Only essential messages (errors, start/stop confirmations)
- When enabled: Detailed logging of all operations for troubleshooting
Helpful for troubleshooting startup and connection issues

Extension Settings

This extension contributes the following settings:

Setting	Default	Description
`openedge-abl-properties.debugMode`	`false`	Enable verbose logging in the output channel
`openedge-abl-properties.languageServerRefreshThreshold`	`10`	Refresh interval in seconds for ABL Status Language Server data. Minimum: `1`.
`openedge-abl-properties.statusBarRefreshInterval`	`30`	Seconds between database status checks for the status bar item. `0` hides the item.
`openedge-abl-properties.logMonitoring`	`true`	Notify when new errors appear in database `.lg` files
`openedge-abl-properties.backupDirectory`	`.vscode/backups`	Directory for database backups, relative to the workspace root
`openedge-abl-properties.workspaceDatabasesFile`	`.vscode/openedge-workspace-databases.json`	Path to the workspace databases configuration file. Relative paths are resolved from the workspace root (directory of the active `.code-workspace` file, when available).

By default, the workspace databases file is stored in .vscode/openedge-workspace-databases.json, which is typically not part of any project and cannot be committed to SCM.

To share database configuration with your team:

Open VS Code settings (File → Preferences → Settings)
Search for workspaceDatabasesFile
Set it to a path inside your main project, e.g., my-main-project/openedge-workspace-databases.json
The file will be created in that location and can be committed to version control
Other developers will automatically use the same database settings after pulling the changes

Example in .code-workspace file:

{
  "folders": [
    { "path": "my-main-project" },
    { "path": "my-other-project" }
  ],
  "settings": {
    "openedge-abl-properties.workspaceDatabasesFile": "my-main-project/openedge-workspace-databases.json"
  }
}

Configuration Files

Workspace Level: `openedge-workspace-databases.json`

By default, this file is stored in .vscode/openedge-workspace-databases.json relative to your workspace root. In multi-root setups, this is the directory of the active .code-workspace file (when available). You can customize this location using the openedge-abl-properties.workspaceDatabasesFile setting to include it in version control (see Extension Settings).

{
  "databases": [
    {
      "name": "sports",
      "path": "../databases/sports.db",
      "server": "",
      "port": "",
      "parameters": "-n 10",
      "autostart": true,
      "dlc": "12.8",
      "schemaFile": ".vscode/.schema/sports.df",
      "generateSchema": true
    }
  ]
}

Project Level: `openedge-databases.json`

{
  "databases": [
    {
      "name": "sports",
      "enabled": true,
      "logicalName": "sports",
      "aliases": ["sp"],
      "clientParameters": "-Mm 8192"
    }
  ]
}

Installation

Install the extension from the VS Code Marketplace (or install the .vsix file manually)
Configure your OpenEdge runtimes in VS Code settings:

{
  "abl.configuration.runtimes": [
    {
      "name": "12.8",
      "path": "C:/Progress/OpenEdge128"
    },
    {
      "name": "12.2",
      "path": "C:/Progress/OpenEdge122"
    }
  ]
}

Usage

Opening the Properties Panel

Open a workspace containing an ABL project with an openedge-project.json file
Right-click on the project folder in the Explorer → Select "OpenEdge Properties"

Managing Databases

In the Properties panel, go to the Databases tab
Click the + button to add a new database
Fill in the database details:
- Name: Display name for the database
- Path: Full path to the database file (use browse icon to select)
- Logical Name: Logical name used in ABL code
- Server: Hostname for network access (optional)
- Port: Port number for network access (optional)
- Parameters: Additional _mprosrv parameters (optional)
- Autostart: Check to start database automatically when VS Code opens
- DLC: Select the OpenEdge runtime to use
Click Save to add the database
Click OK to save all changes to openedge-databases.json

Restarting Databases

Click the restart icon (circular arrows) to restart all configured databases
Databases are automatically restarted when their settings are modified

Configuration Files

openedge-project.json

This file must exist in the project root for the extension to recognize the folder as an OpenEdge project.

openedge-databases.json

Created by this extension to store database configurations:

{
  "databases": [
    {
      "name": "Sports",
      "path": "C:/databases/sports.db",
      "logicalName": "sports",
      "server": "localhost",
      "port": "3000",
      "parameters": "-B 1000 -spin 10000",
      "autostart": true,
      "dlc": "12.8"
    }
  ]
}

OpenEdge Commands Used

Command	Purpose
`_mprosrv`	Start database server
`_mproshut -by`	Stop database server
`proutil -C holder`	Check database status
`prodict/dump_df.p`	Dump database schema to .df file
`probkup` / `prorest`	Back up and restore databases
`prodb`	Create databases
`prodict/load_df.p`	Load a .df file into a new or temporary database
`prodict/dump_inc.p`	Generate incremental .df files
`proshut -C list` / `-C disconnect`	List and disconnect users
`proutil -C dbanalys` / `idxcheck` / `idxbuild` / `truncate bi`	Database maintenance

Contributing

Contributions are welcome! Please feel free to submit issues and pull requests on the GitHub repository.

License

This extension is licensed under the MIT License.

Release Notes

See CHANGELOG.md for detailed release notes.

Development

Building

npm install
npm run compile

Running in Development

Open this folder in VS Code
Press F5 to launch a new VS Code window with the extension loaded
Open a folder containing openedge-project.json
Right-click on the folder and select "Properties"

Linting

npm run lint

Testing

npm run test
npm run test:ui

Playwright UI tests require a local browser install:

npx playwright install chromium

License

MIT

OpenEdge ABL - Project Manager

Samuel Etterlen

OpenEdge ABL - Project Manager

Requirements

Workspace Example

Features

Database Management (Two-Level Architecture)

Workspace Databases Tab

Project Databases Tab

ABL Status Tab

Bottom-Panel ABL Status View

Automatic Database Startup

General Settings Tab

Propath Configuration Tab

DLC Runtime Integration

Database Connection Sync

Automatic Schema Dump

Database Status Bar

Database Tasks

Database Logs

Database Maintenance

New Database Wizard

Incremental .df

Database Profiles

.pf Export

PROPATH Tools

Getting Started Walkthrough

Context Menu Integration

Output Logging

Extension Settings

Sharing Database Configuration via Version Control

Configuration Files

Workspace Level: openedge-workspace-databases.json

Project Level: openedge-databases.json

Installation

Usage

Opening the Properties Panel

Managing Databases

Restarting Databases

Configuration Files

openedge-project.json

openedge-databases.json

OpenEdge Commands Used

Contributing

License

Release Notes

Development

Building

Running in Development

Linting

Testing

License

Workspace Level: `openedge-workspace-databases.json`

Project Level: `openedge-databases.json`
