C++ DebugMate
English | 中文
A Visual Studio Code extension for visualizing 1/2/3D data structures during C++ debugging.
Inspired by Image Watch for Visual Studio.
🚀 Try It Now!
📂 Example Project: test_cpp/
Complete demo with ALL supported types! Build and debug to see C++ DebugMate in action.
⚠️ Dependencies Required to Build the Demo:
- OpenCV (Required):
brew install opencv / apt install libopencv-dev
- PCL (Optional, for 3D demos):
brew install pcl / apt install libpcl-dev
# macOS / Linux
cd test_cpp && ./build.sh && code .
# Windows PowerShell
cd test_cpp; .\build.ps1; code .
⚡ Supported Types (Quick Reference)
| Category |
Type |
Viewer |
| Image (2D & 3D) |
cv::Mat, cv::Mat_<T> |
🖼️ Image Viewer |
|
cv::Matx (Matx33f, Matx44d, etc.) |
🖼️ Image Viewer |
|
std::array<std::array<T, cols>, rows> |
🖼️ Image Viewer |
|
T[rows][cols] (C-style 2D array) |
🖼️ Image Viewer |
|
T[H][W][C] (C-style 3D array, C=1,3,4) |
🖼️ Image Viewer |
|
std::array<...<T, C>, W>, H> |
🖼️ Image Viewer |
| Point Cloud (3D) |
pcl::PointCloud<T> (XYZ, RGB, Normal, etc.) |
✨ 3D Viewer |
|
std::vector<cv::Point3f / cv::Point3d> |
✨ 3D Viewer |
|
std::array<cv::Point3f / cv::Point3d, N> |
✨ 3D Viewer |
| Plot (1D) |
std::vector<T>, std::array<T, N> |
📈 Plot Viewer |
|
T[N] (C-style 1D array), std::set<T> |
📈 Plot Viewer |
|
cv::Mat (1×N or N×1, single channel) |
📈 Plot Viewer |
| Pointers |
cv::Mat*, pcl::PointCloud<T>::Ptr |
Auto-deref |
|
std::shared_ptr<T>, std::unique_ptr<T> |
Auto-deref |
Numeric types: int, float, double, uchar, short, long, int8_t, uint8_t, int16_t, uint16_t, int32_t, uint32_t, int64_t, uint64_t, etc.
Image depth: CV_8U, CV_8S, CV_16U, CV_16S, CV_32S, CV_32F, CV_64F
Pointer & Smart Pointer Support: Raw pointers (cv::Mat*) and smart pointers (std::shared_ptr<cv::Mat>, std::unique_ptr<std::vector<float>>, boost::shared_ptr) are natively supported. The extension automatically unpacks the smart pointer and visualizes the underlying 1D/2D/3D data. Pointers and their pointees pointing to the same memory will share a single visualization tab to save space.
🎯 Features
| Feature |
Description |
| 📈 1D Plot |
Line/Scatter/Histogram plotting, custom X-axis, box-zoom, pan, export to PNG/CSV |
| 🖼️ 2D Image |
Multi-channel visualization, auto-normalization, colormaps, high-ratio zoom, pixel inspection |
| ✨ 3D Point Cloud |
Supports pcl::PointCloud and OpenCV points! Three.js powered, color by RGB/Intensity/XYZ, adjustable point sizes, export to PLY & PCD |
| 🔗 View Sync |
Pair multiple variables together for synchronized zoom / pan / rotation |
| 🔍 Auto Detection |
The sidebar panel auto-detects all visualizable variables within scope context |
| 🔄 Auto Refresh |
Webviews automatically update in real-time as you step through the code |
🔧 Debugger Support
| Compiler |
Extension |
1D Data |
cv::Mat |
Point Cloud |
Notes |
| MSVC |
C/C++ (cppvsdbg) |
✅ |
✅ |
✅ |
Windows |
| GCC |
C/C++ (cppdbg) |
✅ |
✅ |
✅ |
Windows MinGW |
| Clang+MSVC |
CodeLLDB |
⚠️ |
✅ |
❌ |
LLDB can't parse MSVC STL |
| Clang |
CodeLLDB |
✅ |
✅ |
✅ |
macOS |
📖 Usage
Option 1: C++ DebugMate Panel (Recommended)
- Start a C++ debug session
- Open "Run and Debug" sidebar
- Find C++ DebugMate section
- Click variable name to view
Right-click a variable → "View by C++ DebugMate"

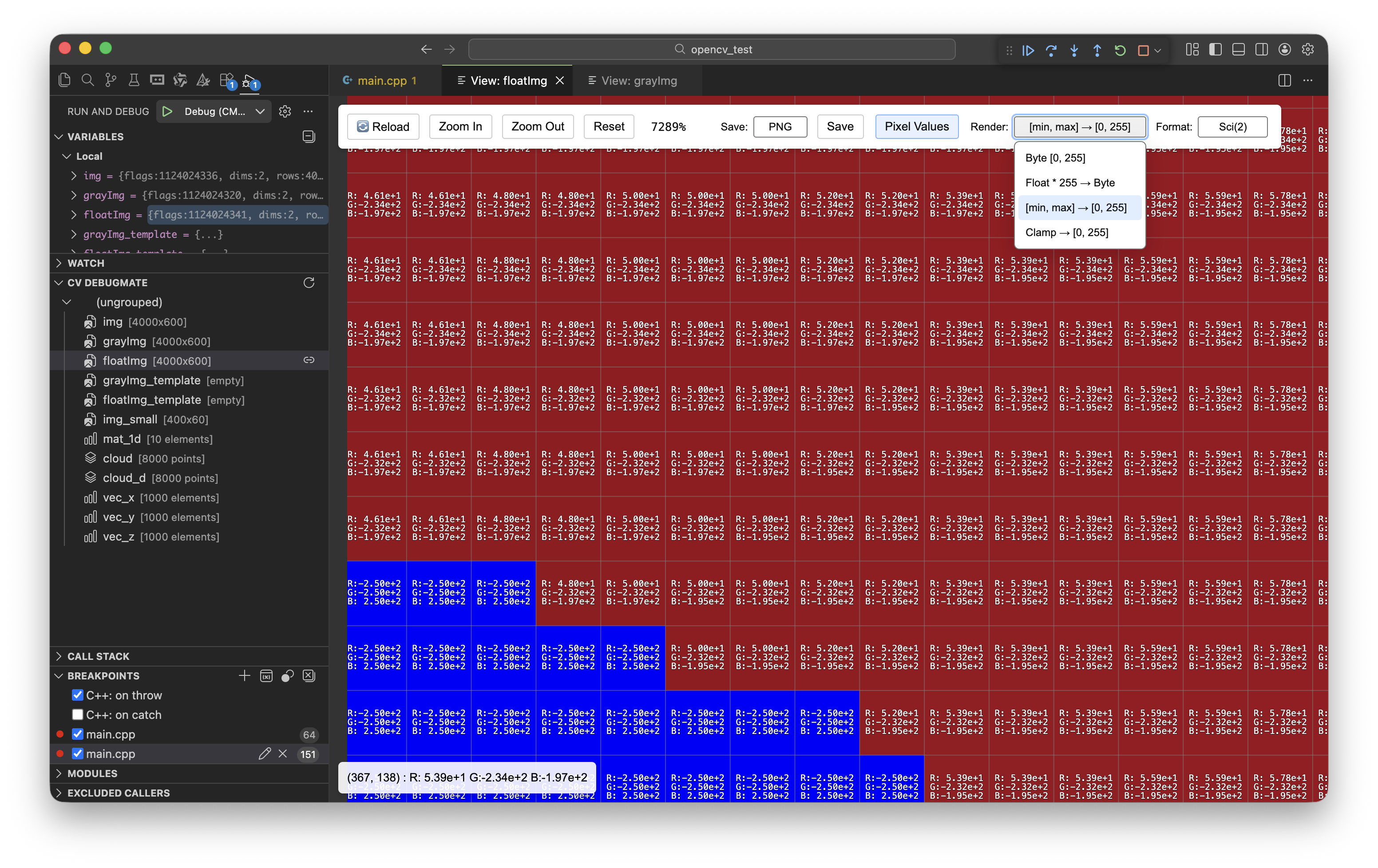

📷 Screenshots

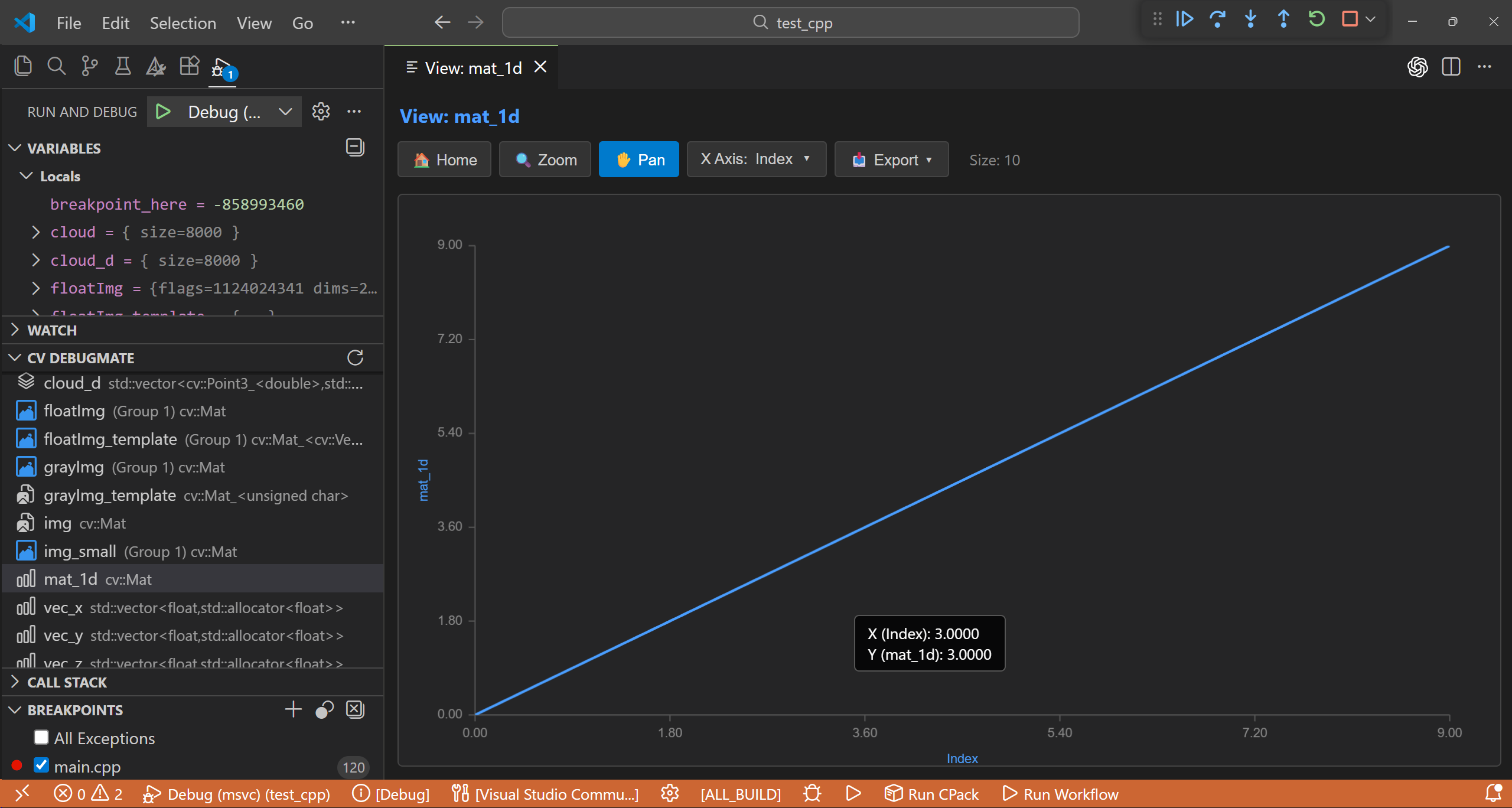

1D Plot
2D Image
3D Point Cloud

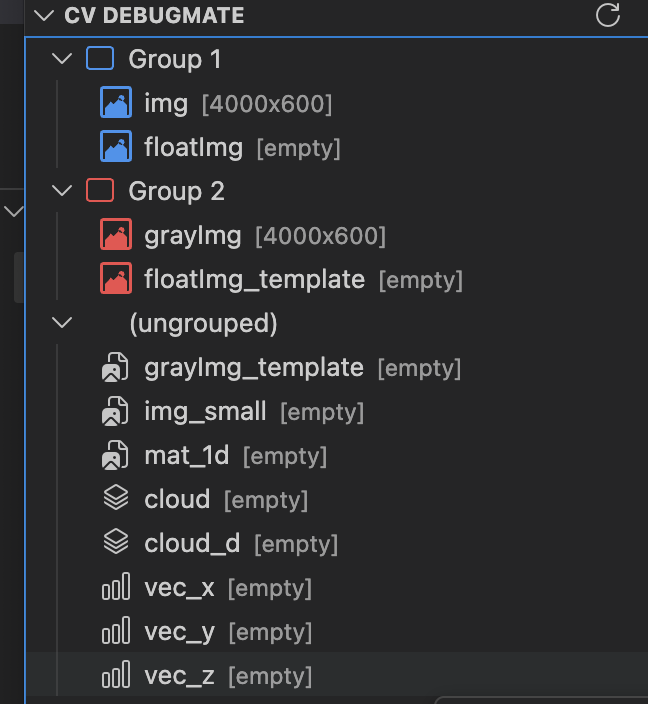

Variables Panel
🎮 Controls
Image Viewer
| Action |
Control |
| Zoom |
Scroll wheel |
| Pan |
Drag |
| Reset |
Click "Reset" |
| Export |
Save PNG / TIFF |
3D Point Cloud Viewer
| Action |
Control |
| Rotate |
Left-click Drag |
| Pan |
Right-click Drag |
| Zoom |
Scroll wheel |
| Color |
Extracted RGB/Intensity, or X/Y/Z heatmaps |
| Export |
Save to ASCII/Binary PLY & PCD |
Plot Viewer
| Action |
Control |
| Zoom |
Rectangle select or scroll |
| Pan |
Drag |
| Mode |
Line / Scatter / Histogram |
| Export |
Save PNG / CSV |
📦 Installation
From VSIX
- Download
.vsix file
- Extensions view (
Ctrl+Shift+X) → ... → "Install from VSIX..."
From Source
git clone https://github.com/dull-bird/cv_debug_mate_cpp
cd cv_debug_mate_cpp
npm install
npm run compile
# Press F5 to run
📋 Requirements
🙏 Acknowledgments
Inspired by Image Watch for Visual Studio.
📄 License
MIT
🤝 Contributing
Issues and PRs welcome!
| |
