MDForge
Transform VS Code into a Typora-like WYSIWYG Markdown editor with
GitHub-style rendering, Mermaid diagrams and rich task lists.

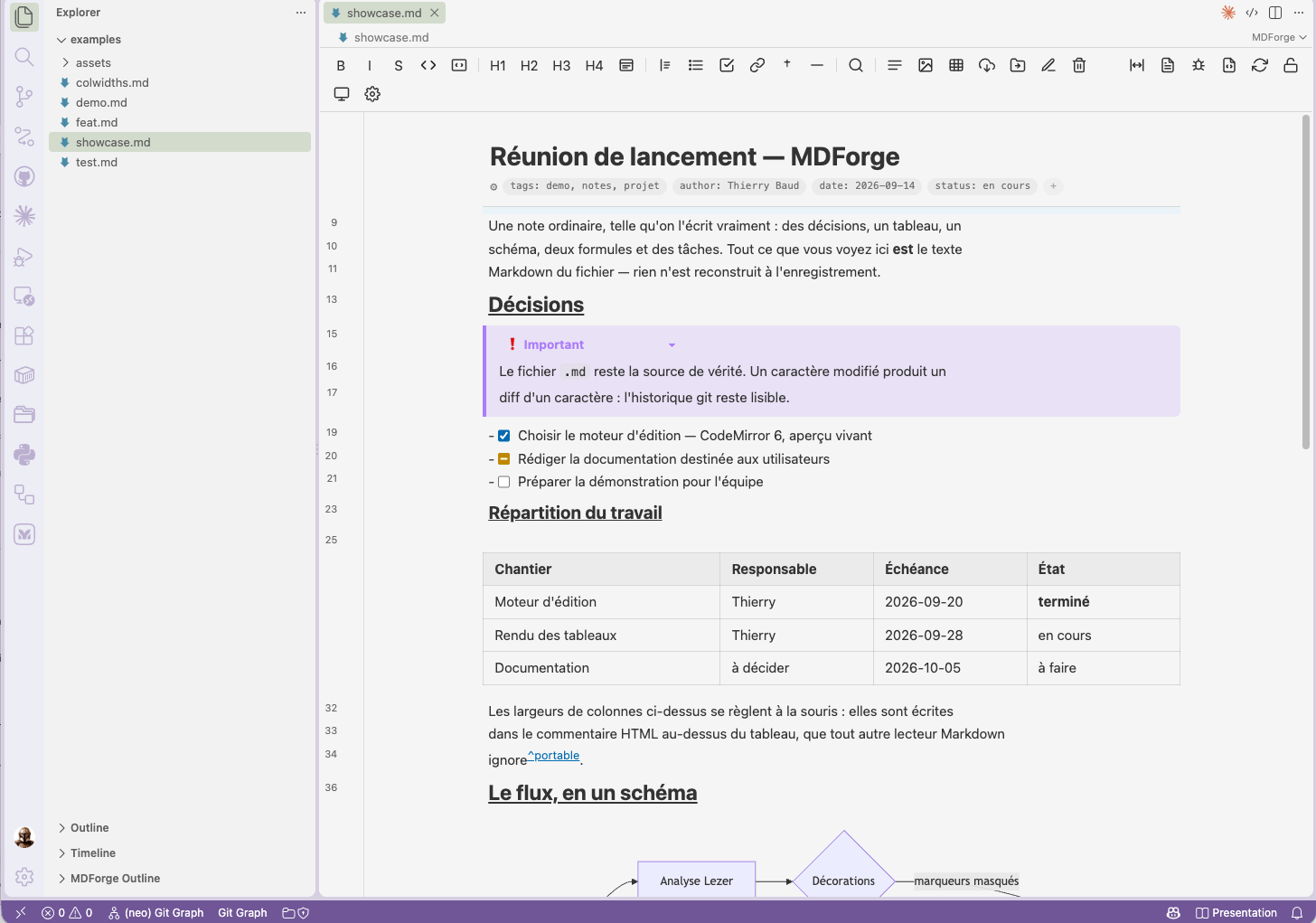

MDForge opens .md / .markdown files in a clean visual editor where the
Markdown renders in place as you type. It is built on
CodeMirror 6 in an Obsidian-style "live preview": the
document is the Markdown text, so editing never re-serializes — a one-character
change is a one-character diff. Fully open source (MIT) — no paid tiers, no
telemetry.
Status
🚧 Early scaffold (v0.0.1). The foundation is in place; features are being
built against SPEC.md.
Working now:
- Custom editor for
.md / .markdown, two-way synced with the file. It is the
default editor for Markdown; the code icon in the title bar (or
Ctrl/Cmd+Shift+Alt+M) opens the plain text editor instead, and
workbench.editorAssociations makes that choice permanent. Git comparisons
keep opening in VS Code's native diff editor, red/green intact.

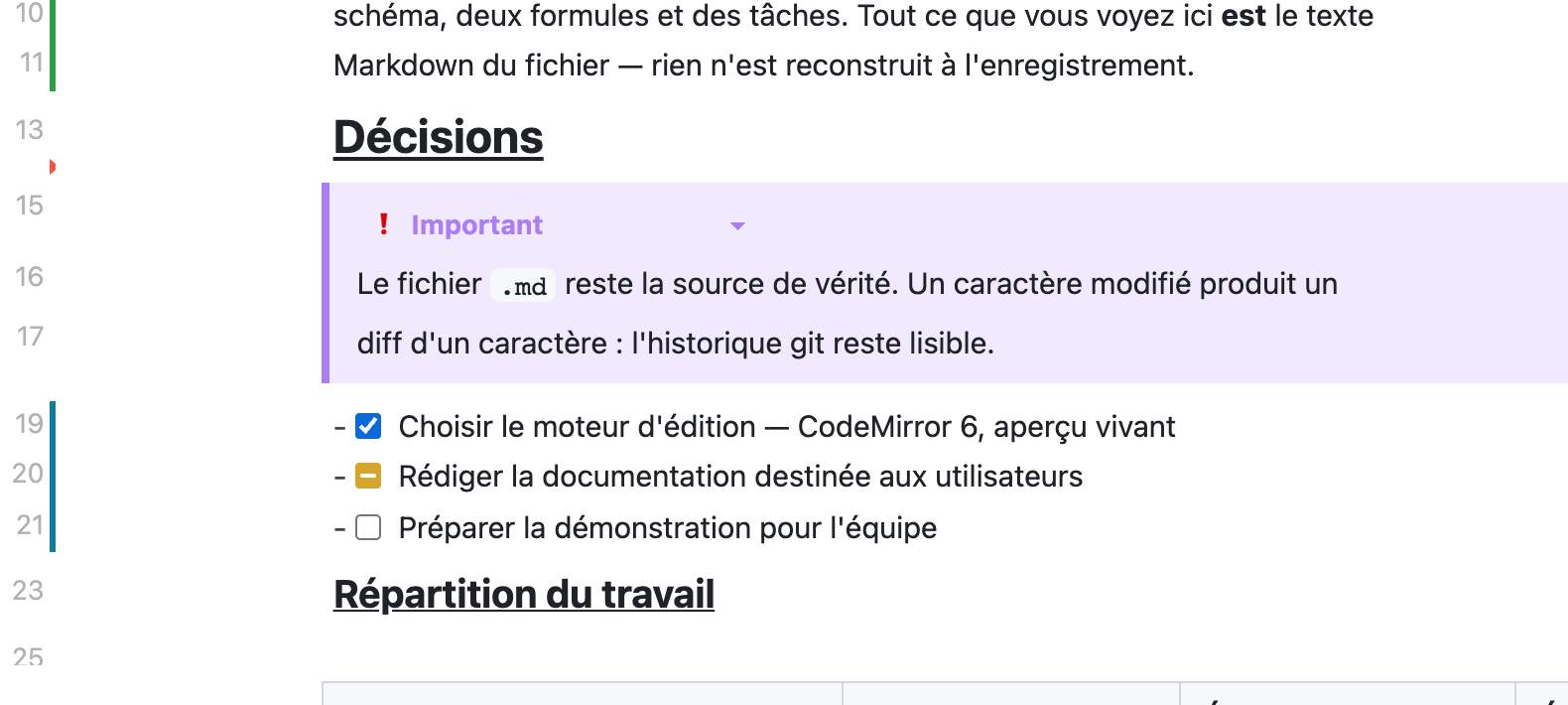

- Quick diff: the lines added, changed or removed since the last commit are
marked in the left margin, live as you type (
mdforge.quickDiff).
- WYSIWYG editing: headings, bold/italic/strikethrough, quotes, lists, links,
images, code blocks, GFM tables.
- Clickable task lists (
- [ ] / - [x]).

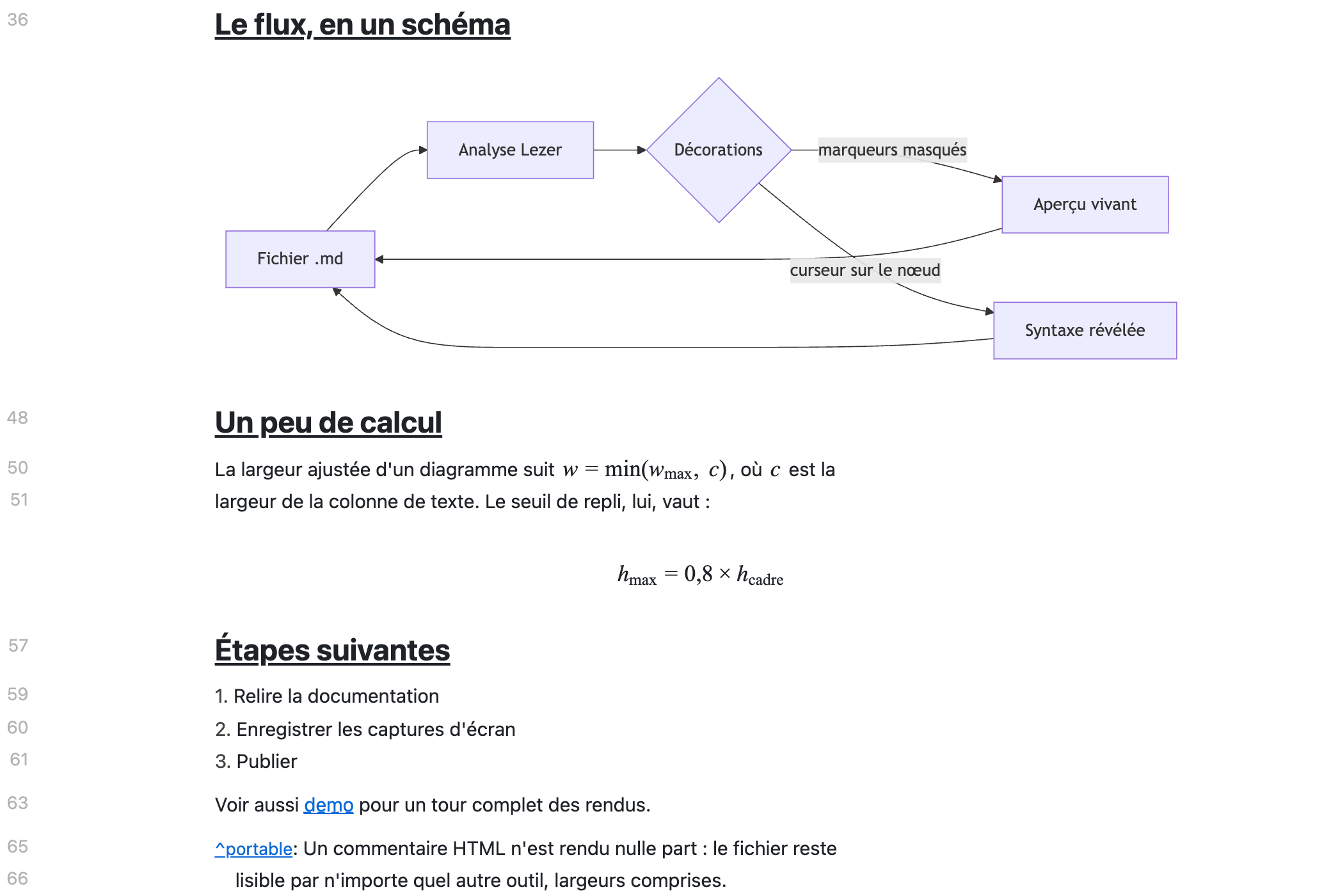

- Mermaid diagrams and KaTeX math.

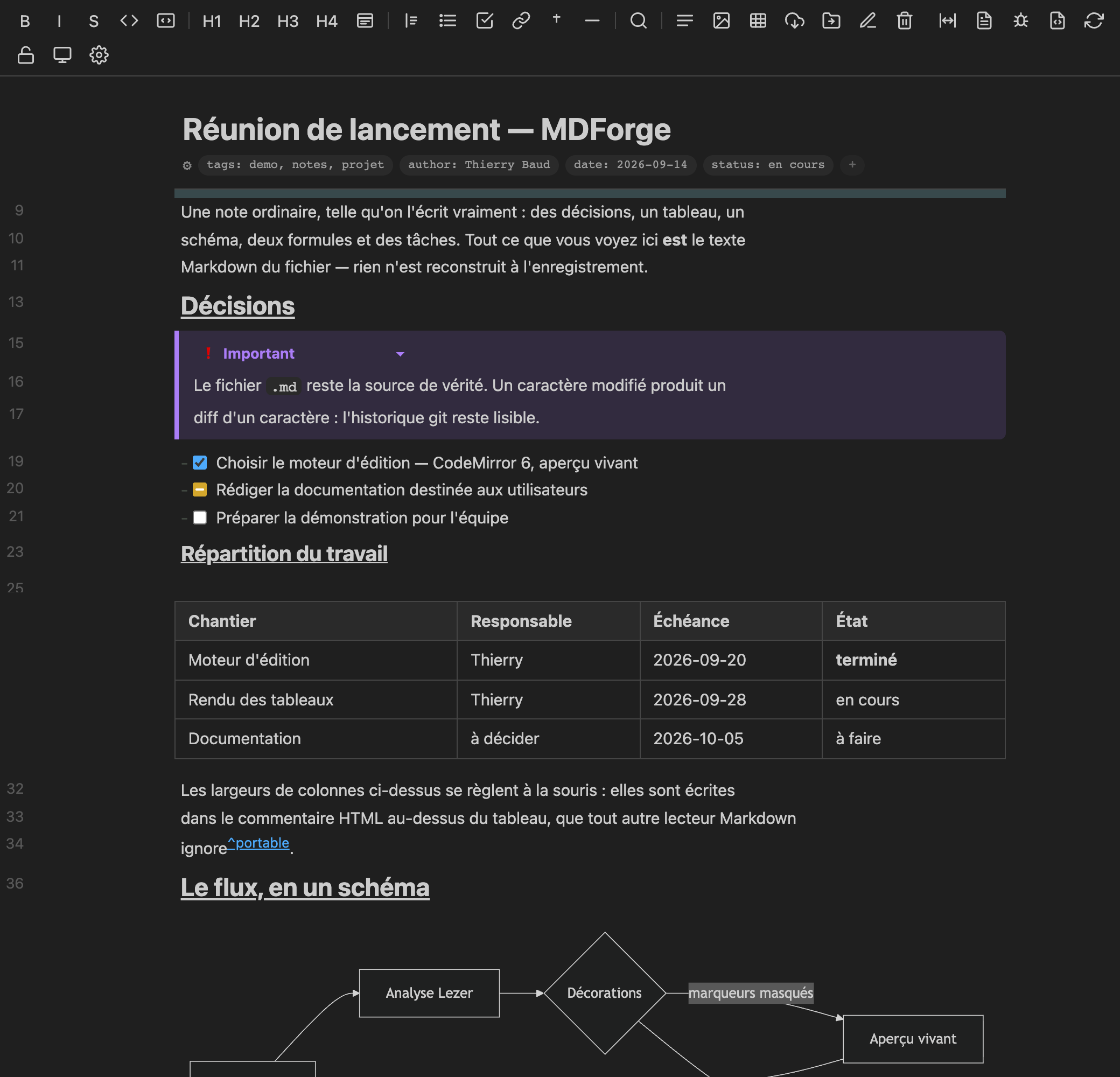

- GitHub-style theme that follows the VS Code light/dark theme.
Planned (see SPEC.md): custom [~] "in progress" checkbox state, slash
commands, GitHub alerts, outline panel, wikilinks, and more.
Development
npm install
npm run build # compiles the extension (tsc) + bundles the webview (esbuild)
Then press F5 in VS Code to launch an Extension Development Host and open a
Markdown file — MDForge is the default editor for those. To go back to the plain
text editor, use the code icon in the title bar, the command MDForge: Reopen
with Text Editor, or Ctrl/Cmd+Shift+Alt+M.
Watch mode during development:
npm run watch:ext # extension TypeScript
npm run watch:webview # webview bundle
Architecture
| Part |
Path |
Role |
| Extension host |
src/extension.ts |
CustomTextEditorProvider, webview wiring, file ↔ webview sync |
| Quick diff |
src/quickdiff.ts + src/linediff.ts |
Reads the committed text through the built-in Git extension and diffs it against the live one |
| Webview app |
media-src/src/main.ts + cm-*.ts |
CodeMirror 6 live-preview editor |
| Theme |
media-src/src/cm-theme.css |
GitHub-style CSS, VS Code theme-aware |
| Build |
esbuild.mjs |
Bundles the webview to media/dist/ |
Acknowledgements
License
MIT © 2026 tribaud
