CircleCI

The official CircleCI VS Code extension is a new way to interact with CircleCI.

This extension provides an interface to visualise and manage CircleCI pipelines directly from your IDE, as well as providing contextual help when creating, modifying and editing CircleCI YAML config files. This way, it avoids expensive context-switching between VS Code and your browser.

More practically, this extension allows you to:

• Authenticate and connect VS Code to CircleCI
• Browse and interact with your pipelines. Available actions include
  • Viewing pipelines, workflows, jobs statuses
  • Viewing test outputs
  • Browsing job logs
  • Downloading artifacts
  • Approving jobs
  • Re-running builds
  • Debugging jobs with SSH
• Be alerted through notifications when your workflows change status or need your attention
• Access in-file support when editing CircleCI YAML configuration files, including:
  • Syntax validation
  • Syntax highlighting
  • Go-to-definition and go-to-reference
  • On-hover documentation and usage hints
  • Autocompletion
• Launch commands to validate config files statically, or against your org policy

Getting started

It’s easy to get started with CircleCI for VS Code.

1. Install the extension from within VS Code, or download it from the marketplace

   For this extension to work, you will need VS Code version 1.67 or above.

2. Authenticate into CircleCI through the login page.

   You will need to be logged into app.circleci.com in order to create a Personal Api Token.

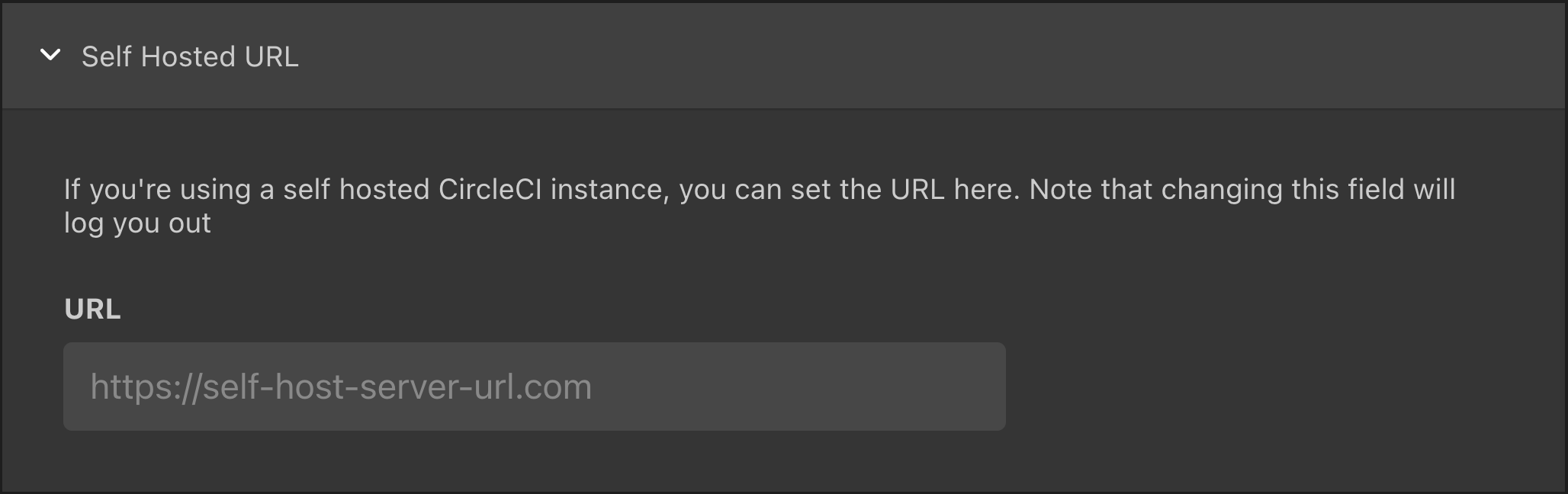

   If you are an Enterprise customer, you will first need to enter your self-hosted server URL at the bottom of the Settings page.

3. Open a project that contains a valid circleCI configuration file (.circleci/config.yaml), or manually select an existing CCI project

* Please note that you can skip steps 2 and 3 if you only want to use our in-file helper for CircleCI configuration files

Configuring the extension

⚠️ Please note that the Pipelines Manager does not yet support Gitlab projects.

If you want to take full advantage of the capabilities of this extension, we recommend you take a couple of minutes to configure it according to your needs.

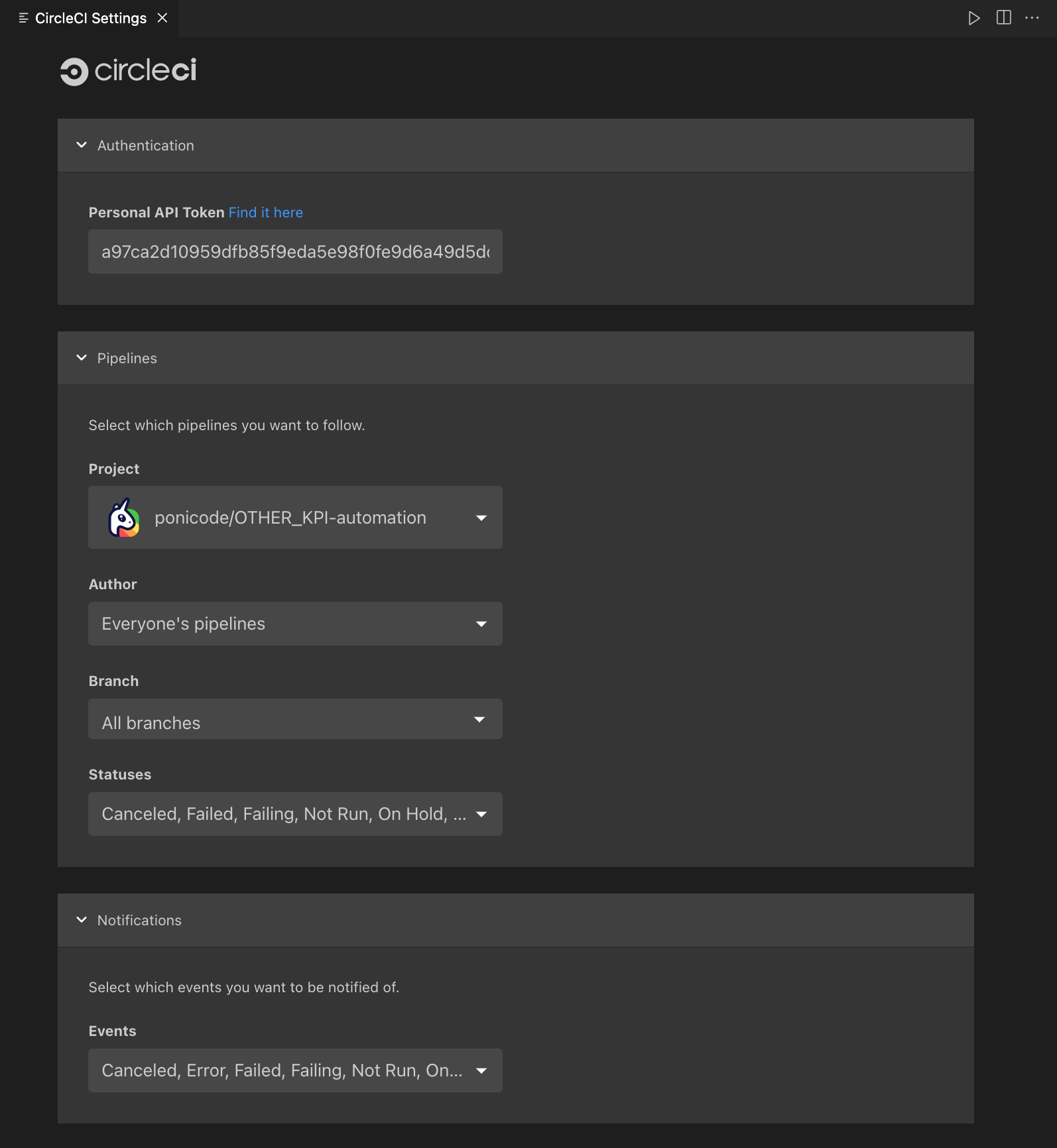

All configurations are available in the Settings page, which you can open with the command CircleCI: Open Settings or by clicking on the settings icon (⚙️) at the top of the Pipelines panel.

You can customize the following parameters:

1. Choice of which pipelines you want to visualize and interact with

   • You can select one project (this is automatically detected if you have a valid circleci/config.yml file), but can be changed
   • You can follow only your pipelines, or those authored by anyone
   • You can follow all branches, or only your current branch
   • You can decide to follow only pipelines that include workflows and jobs with specific statuses

2. Choice of what events you want to be notified of

   • Changes of workflow status (for instance, you might want to receive a push notification when a workflow fails, but not when it succeeds)

The Pipelines Panel

The Pipelines Panel lists your most recent pipelines, jobs and workflows, and lets you monitor their status and interact with them.

For each object, you can trigger certain events on hover.

Pipeline

Pipelines are the top level tree item, and they contain your workflows. Hovering over a Pipeline lets you:

• Open in browser, to view pipeline details in the CircleCI app on your default web browser

Workflow

Workflows are nested under each Pipeline, and contain Jobs. Hovering over a Workflow lets you:

• Open in browser, to view workflow details in the CircleCI app, on your default web browser
• Rerun workflow from start, to re-triggered the entire workflow

Job

Jobs are nested under each Workflow, and can contain Tests and Artifacts. Hovering over a Job lets you:

• Approve the job (only if the job is on hold)
• Cancel the job (only if the job is running)
• Rerun job with SSH (you can read more about this in a later section)
• View job details

By expanding a Job, you can also:

• Load tests, if you have configured test metadata to be available. Tests that CircleCI has detected as flaky will be prefaced by the indication [FLAKY].
• Load artifacts, to load any artifacts created by the Job. Once the artifacts are loaded, you can download them by clicking on them.

Re-run with SSH

You can re-run jobs with SSH directly from VS Code, either:

• through the Job Detail page, by clicking on the green button on the top right:

• or by clicking on the action icon next to the job name in the Pipelines Panel.

In both cases, you will be presented with two options:

1. Open SSH session in terminal

2. Open SSH session in remote VS Code window

This feature requires the official VS Code extension Remote - SSH. You can find more information on Remote Development using SSH in VS Code directly in the VS Code docs.

To rerun your job with SSH, you will first have to set the path to your Github or Bitbucket SSH key. The first time you attempt to re-run with SSH, the extension will guide you to select the path of the relevant SSH key. However, if you miss this step of want to modify it at a later time, you can do so from the dedicated section of the settings page:

Of course if the job you want to rerun uses parallelism, you will be able to select which job you want to SSH into.

You can read more about debugging with SSH on CircleCI in the Docs.

Notifications

You can set up notifications to warn you when a workflow in your Pipelines Panel has changed status.

If you are not following a workflow in the Pipelines Panel, you will never be notified about a status change. For instance, if you have set in your configuration to follow only the “current branch”, you cannot be notified of status changes relative to other branches.

We recommend not enabling notifications for status changing to “running”.

Status Bar

The Status Bar provides synthetic information about the state of the CircleCI extension, your project and your most recent workflow.

Specifically, you might see the following statuses:

• Not logged in - when clicking on the status bar, the login page will open
• No project - when clicking on the status bar, the settings page will open so you can select a project manually
• Success / On hold / Failed, and similar workflow statuses - it refers to the status of the top pipeline in your panel. When clicking on the status bar, the relative workflow will come into focus on the CircleCI Pipelines Panel.

Config Helper

This extension provides in-file assistance to writing, editing and navigating CircleCI Configuration files.

It is based on a CircleCI-specific Language Server, and offers:

• Rich code navigation through “go-to-definition” and “go-to-reference” commands. This is especially convenient when working on large configuration files, to verify the definition of custom jobs, executors parameters, or in turn view where any of them are referenced in the file. Assisted code navigation also works for Orbs, allowing to explore their definition directly in the IDE when using the go-to-definition feature on an orb-defined command or parameter.

• Contextual documentation and usage hints when hovering on specific keys, so to avoid you having to continuously switch to your browser to check the docs whenever you are editing your configuration. That said, links to the official CircleCI documentation are also provided on hover - for easier navigation.

• Syntax validation - which makes it much easier to identify typos, incorrect use of parameters, incomplete definitions, wrong types, invalid or deprecated machine versions, etc.

• Usage warnings - which can help identify deprecated parameters, unused jobs or executors, or missing keys that prevent you from taking advantage of CircleCI’s full capabilities

• Auto completion, available both on built-in keys and parameters and on user-defined variables

The Config Helper is based on a dedicated Language Server for CircleCI YAML files, which is Open Source. You can view its source code, contribute and add issues directly on the project repository: circleci-yaml-language-server.

Config validation commands

The extension also provides two commands that help you statically validate your YAML config files without having to run a pipeline.

1. Validate current configuration file

   Corresponds to the CLI command circleci config validate, and verifies statically that the config file is well formed. Please note that this command only validates this file for structure and syntax errors, but not for semantic error (e.g. this job does not exist).

2. Validate current configuration file against org policy

   Corresponds to the CLI command circleci policy decide, and verifies that the configuration file complies with your organisation policies - if any are set.

Both of these commands can also be invoked:

• by right clicking on a CircleCI YAML file:

• by clicking on the CircleCI button on the top right corner of the page, when focusing on a CircleCI YAML file. Please note that the button will not be visible if you are editing a different file.

Troubleshooting

Here are some frequently encountered issues, and some clarifications on each of them.

• “Your project could not be detected because no workspace is currently open”

  You can fix this issue by opening a folder or workspace. Alternatively, you can select to follow a CircleCI project manually from the Settings page.

• The following errors concern the extensions ability to link your workspace to a Git repository.

  • “Your project could not be detected because we couldn’t find a Git repository associated with this workspace”
  • “Your project could not be detected because we were unable to get the list of git remotes”
  • “Your project could not be detected because we could not find default remote of your Git repository”
  • “Your project could not be detected because we were unable to get the URL of the Git remote XYZ”

  When any of these errors occur, you might want to check that your workspace has a valid Git remote URL. You can also fix this issue by selecting to follow a CircleCI project manually from the Settings page.

• “Your project could not be detected because CircleCI does not know this project”

  This error indicates that the repository associated with your workspace doesn’t appear to be a CircleCI project. If this is unexpected, verify the Git remote URL associated with your repository, and ensure that you see this project on the CircleCI web app. You can also address this issue by selecting to follow a CircleCI project manually from the Settings page.

• “Your project could not be detected because you don't follow this project on CircleCI”

  When you see this error, you might want to visit the Projects page on the CircleCI app and ensure that you “follow” the project associated with this workspace.

• “connection to server is erroring. Shutting down server”

  This message indicates that the CircleCI Language Server has crashed. This might be caused by an unexpected parsing error. For this reason, it is likely that this issue will always occur on the same file. If you identify a file that causes this error, it would be helpful if you could inform us at XXXXXX (in the future on the LS open source repo)

• When interacting with pipelines, workflows and jobs, you might see the following errors.

  • “Cannot refresh pipelines: [runtime error message]”
  • “Download failed [runtime error message”’
  • “Cannot rerun workflow because: [runtime error message]”
  • “Job approval failed: [runtime error message]”

  Please keep in mind that one of the causes for any of the above error messages could be network issues. If you see any of these messages repeatedly, we recommend you check your internet connection.

• The following errors should never occur. Should you see any of them and be able to reproduce them appearing, it would be helpful if you could report this to us.

  • “Target entity can not be cancelled because it is not a workflow / job”
  • “Your project is not set up”
  • “Can not cancel your job because it has no job number”

Need support?

How to contact us

If you find any bugs with this extension or want to provide feedback, you can contact us at cci-vscode-feedback@circleci.com.

Documentation

You can find more information about CircleCI on our official documentation.

How to contribute

The Language Server upon which the Conifg Helper is based is Open Source. If you would like to contribute to the project, feel free to open a PR or get in touch with us through the circleci-yaml-language-server repository.
