JSON TreeSize

Ever wondered what's bloating that 50 MB JSON file?

JSON TreeSize gives you the same "what's eating my disk?" experience as TreeSize or WinDirStat — but for JSON files, right inside VS Code. No CLI tools, no pasting into online formatters, no leaving your editor.

Built by a developer, for developers. Free, open-source, no telemetry. Just right-click a .json file and see where the bytes are.

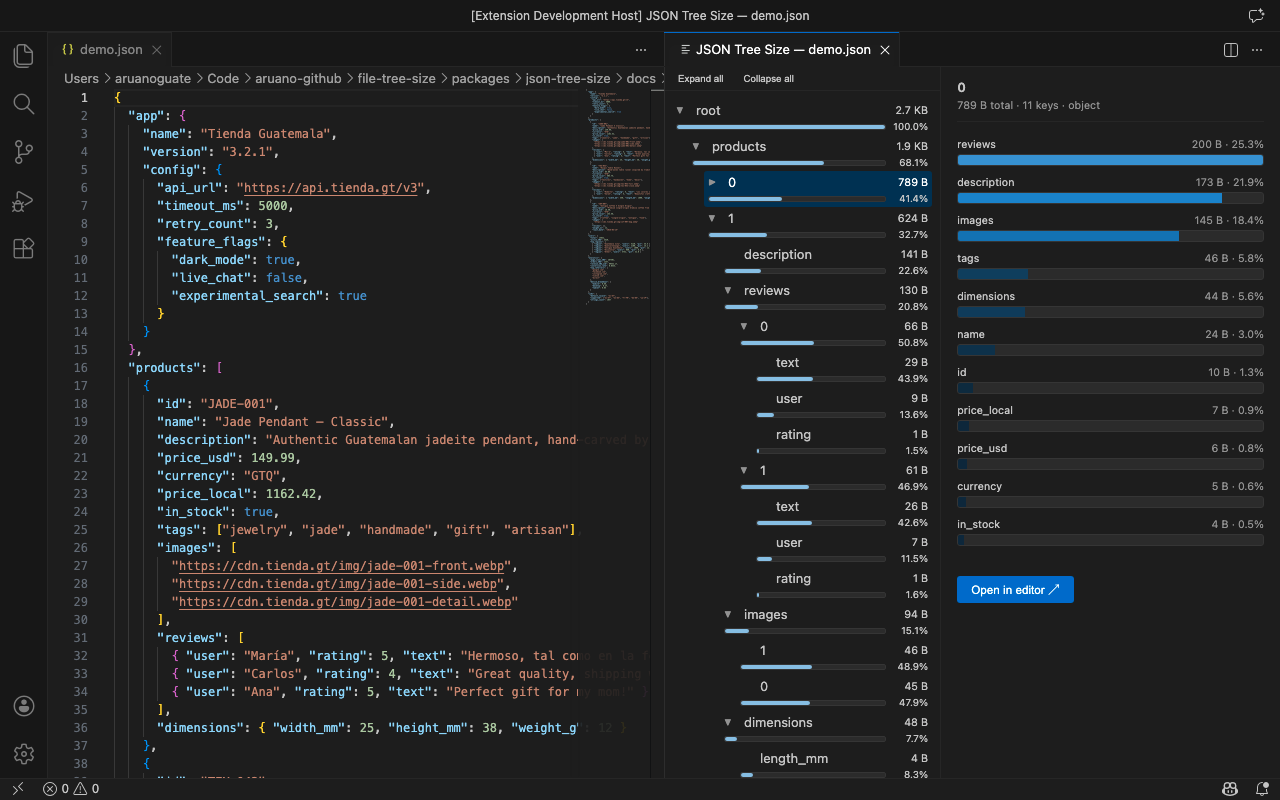

JSON TreeSize — split view with tree explorer and detail bar chart

Why JSON TreeSize?

Problem	Solution
"This config file is 12 MB and I have no idea why"	Instantly see which keys consume the most bytes
"I need to cut our API response payload"	Drill down the tree to find the heaviest nested objects
"Online JSON size tools feel sketchy for production data"	Everything runs locally in VS Code — your data never leaves your machine
"I found the big key — now I need to edit it"	Click "Open in editor" to jump straight to that line in the source

Features

Interactive tree explorer — expandable nodes showing byte size and percentage of parent
Detail bar chart — click any node to see its children ranked by size with percentage bars
HSL heat-map coloring — larger nodes get vivid colors, smaller nodes fade to background
Theme-aware — color scale adjusts automatically for dark, light, and high-contrast themes
Configurable base color — pick any hex color from the Settings UI color picker
Expand / Collapse all — toolbar buttons in the tree pane
Left↔right sync — clicking a bar in the detail pane highlights the tree node
Open in editor — one-click navigation from any node to its position in the raw JSON
Worker thread parsing — files up to 50 MB+ parsed without blocking the editor UI
20 languages — localized UI in Spanish, Chinese, Japanese, Korean, French, German, and 14 more

Getting Started

Install

Search for "JSON TreeSize" in the VS Code Extensions view (Ctrl+Shift+X / Cmd+Shift+X), or install from the Marketplace.

Option 1 — Right-click a JSON file

Right-click any .json file in the Explorer sidebar and select "Analyze with JSON TreeSize".

Option 2 — Command Palette

With a .json file open, press Ctrl+Shift+P (Cmd+Shift+P on macOS) and type "JSON TreeSize: Analyze".

Command Palette → JSON TreeSize: Analyze

Exploring the results

Click nodes in the tree to see their children ranked by size in the detail pane. The two panels stay in sync — clicking a bar on the right highlights the node on the left, and vice versa. Use Expand / Collapse all to navigate large files, and Open in editor to jump straight to the source.

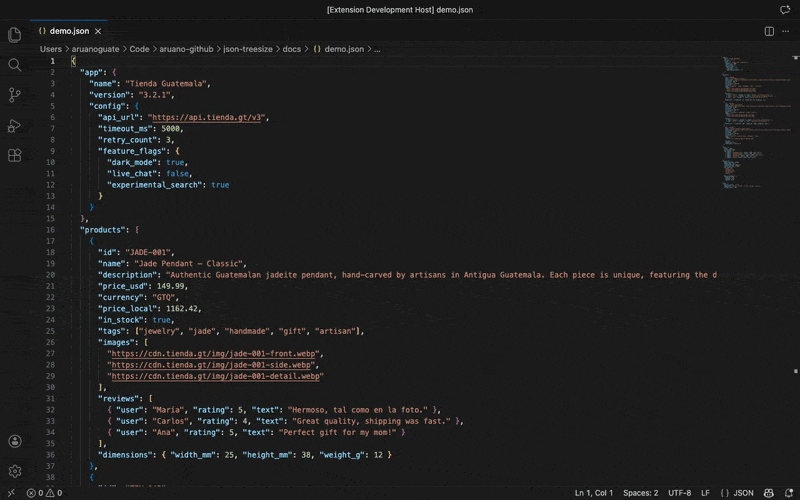

Interacting with the tree and detail pane

Settings

Setting	Default	Description
`jsonTreeSize.baseColor`	`"#4a9eda"`	Base color for the size heat map. Opens a native color picker in Settings. Leave empty for the default blue.

Contributing

Contributions are welcome! This is an open-source project maintained by a solo developer.

git clone https://github.com/aruanoguate/json-treesize.git
cd json-treesize
npm install
npm run compile
# Press F5 in VS Code to launch the Extension Development Host
npm test           # 83 tests, 100% coverage

See the project structure below for orientation.

Project Structure

src/                          # Extension source (bundled into dist/)
├── extension.ts              #   Entry point — registers the command
├── panel.ts                  #   Webview panel lifecycle, worker spawning
├── types.ts                  #   Shared TypeScript types (SizeNode, messages)
├── utils.ts                  #   Pure helpers (hex color validation)
├── worker/
│   └── parser.ts             #   Worker thread — JSON parsing + size tree
└── webview/
    ├── color.ts              #   hexToHsl, heatColor, wcagTextColor
    ├── helpers.ts             #   formatSize, pct, escHtml
    └── main.ts               #   Webview renderer — tree + detail pane

tests/                        # Jest unit tests (100 % coverage)
├── extension.test.ts
├── panel.test.ts
├── color.test.ts
├── helpers.test.ts
└── parser.test.ts

scripts/                      # Demo recording automation (local-only)
├── playwright.config.ts      #   Playwright config for demo specs
├── record-demos.ts           #   Orchestrator: compile → record → GIF
├── optimize-gif.ts           #   ffmpeg + gifsicle GIF conversion
└── demo/
    ├── helpers.ts             #   Launch VS Code as Electron app
    ├── command-palette.spec.ts #  Cmd+Shift+P demo recording
    ├── interaction.spec.ts    #   Tree & detail pane exploration demo
    └── screenshot.spec.ts     #   Captures docs/screenshot.png

l10n/                         # Localization bundles (20 languages)
docs/                         # Screenshots, GIFs, recording guide

License

MIT — free for personal and commercial use.

Made with care by Alvaro Enrique Ruano. If you find this useful, a ⭐ on GitHub is appreciated!
