Work Plan — VS Code Extension

The human face of the work-plan CLI. One engine, two faces: the extension is a UI — every read goes through work-plan export --json and every write shells to a work-plan subcommand, so there's no planning logic duplicated in TypeScript and no drift from the CLI's rules.

What it does

See

A sidebar tree (repos → tracks) showing the live state of every tracked GitHub repo — status dot, open count, blocked/next hints, a ⚠ badge on public repos.
A Mermaid dependency graph webview + per-track detail panel (issue table — capped at 50 rows with a collapsible overflow — blockers, depends-on chips, ordered next-up) — with a focus toggle that zooms in on the selected track, and a full map scoped to the track's repo.
Lenses (filter by repo / milestone / status — active, shipped, parked — / blocked) and sort (default / blocked / most-open / name).
An "Untracked" bucket under each repo: open GitHub issues that no track references — click to open on GitHub, or right-click to slot one into a track.

Act — every action runs the CLI under the hood:

Edit fields (status / priority / milestone / blockers / next-up / cross-track dependencies), Set next-up, Slot an issue, Move Issue from Track (source-first: pick a destination track in the same repo), Close a track (shipped / parked / abandoned), Refresh a track body, Reconcile (draft preview), Run hygiene, and New track.
Public-repo confirm modal. Before any write into a repo that's public (or whose visibility gh can't determine), the extension surfaces the CLI's heads-up as a "Write anyway / Keep private" dialog and re-invokes with a confirm token — the leak guard, moved from a terminal prompt to a GUI. Private repos write straight through with no friction.

Get started from empty — a cold-start a new user can drive without the CLI:

When you have no repos yet, the tree shows a welcome with Add a repo and Set notes location buttons.
Add Repo runs init-repo; Set Notes Location runs set-notes-root so your private track notes live wherever you choose (not just the hidden default). Config itself is auto-seeded by the CLI on first run.

A loading bar shows while the CLI fetch runs, and concurrent refreshes are coalesced (single-flight) so a burst of triggers can't spawn overlapping fetches.

Screenshots

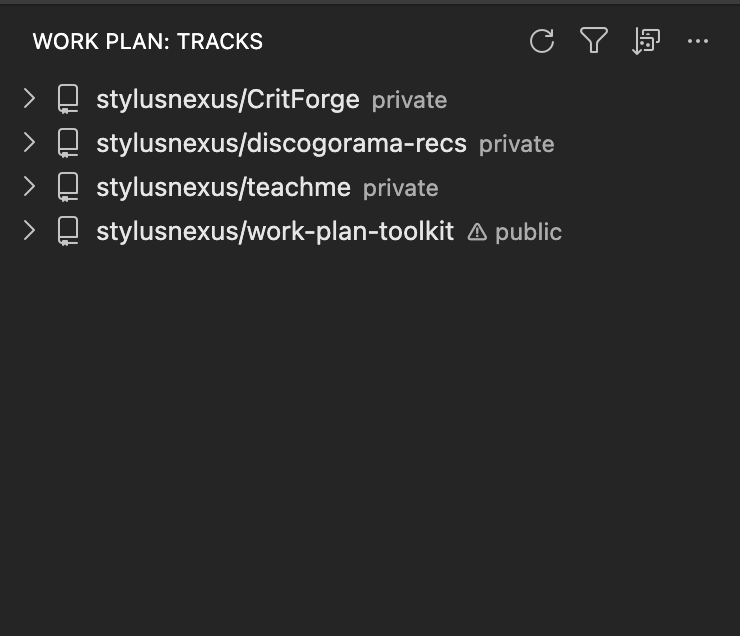

Repos → tracks in the Work Plan sidebar Repos → tracks: status dots, open counts, and a ⚠ badge on public repos.

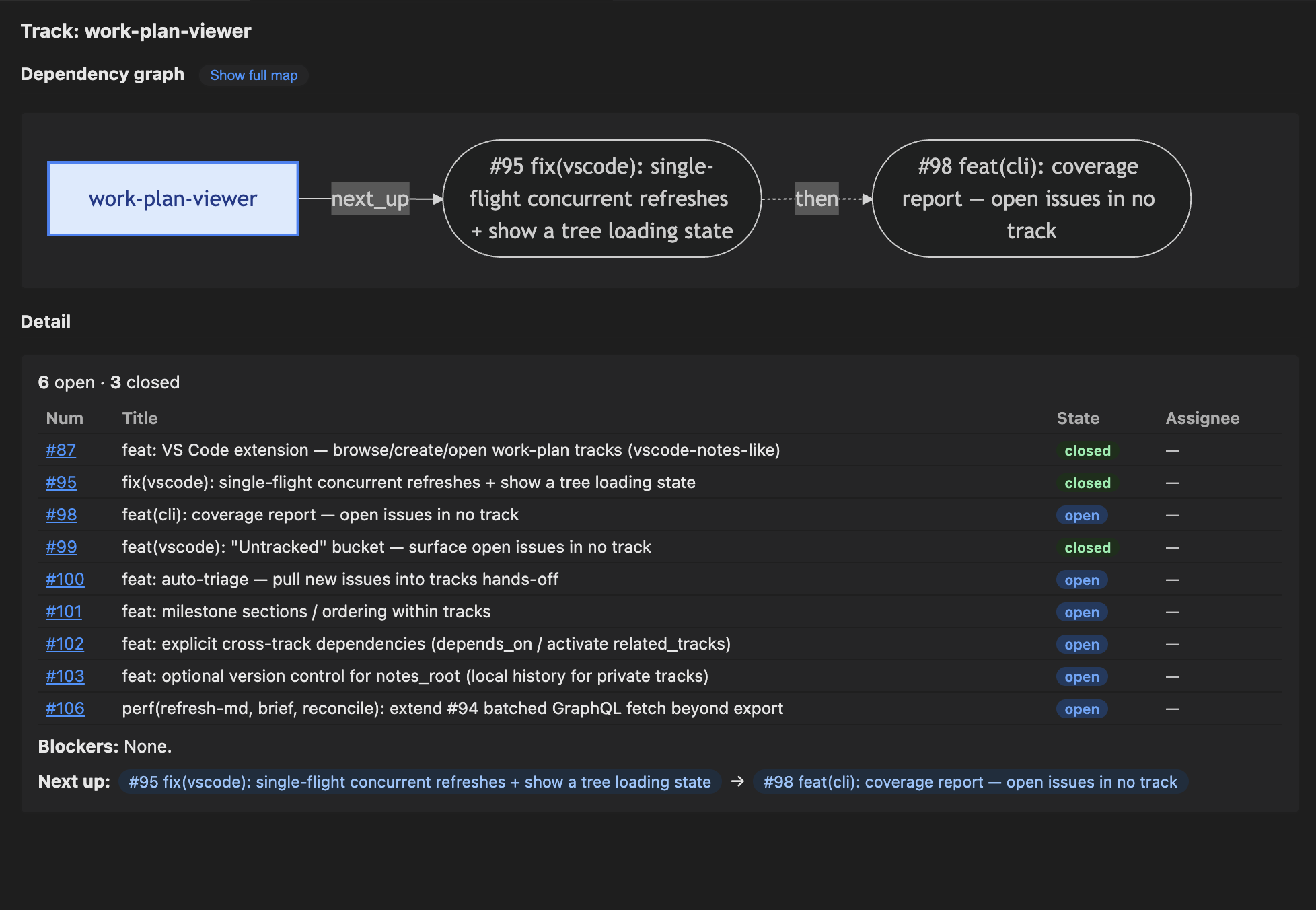

Mermaid dependency graph and track detail The dependency/flow graph and per-track detail panel — showing blockers, cross-track dependency chips, next-up flow, and per-issue move buttons.

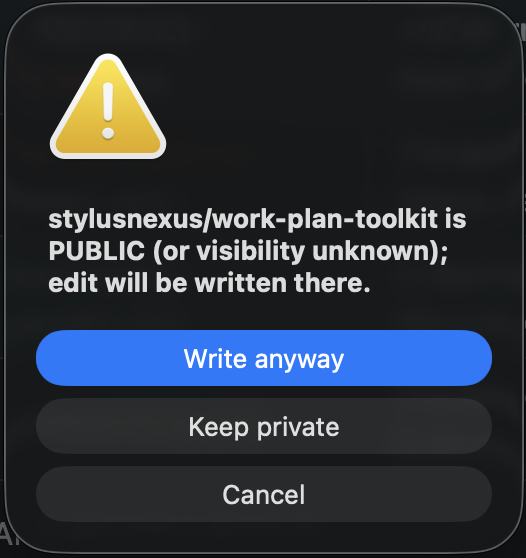

Public-repo confirm modal The "Write anyway / Keep private" modal before any write into a public repo.

The Untracked bucket Open issues that no track references — slot one in with a right-click.

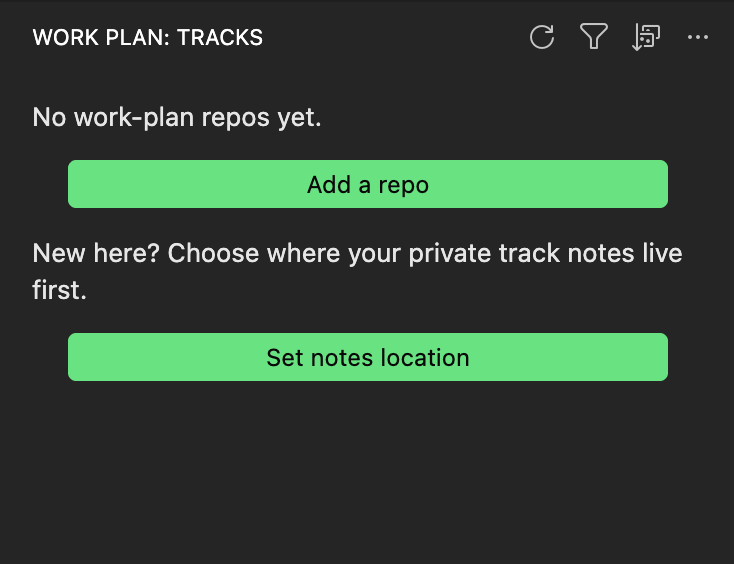

Cold-start onboarding Get started from empty: add a repo and choose where your notes live — no CLI needed.

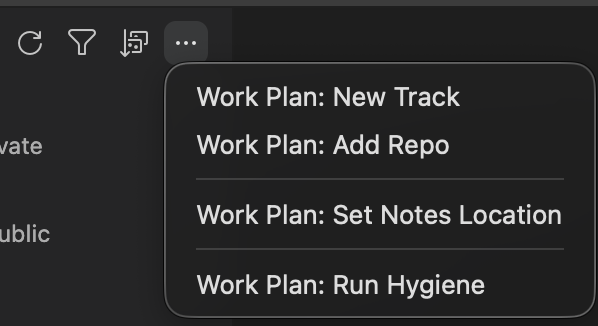

The ⋯ menu: New Track, Add Repo, Set Notes Location, Run Hygiene (track verbs are on each track's right-click menu).

Install

The extension — search "Work Plan" (publisher stylusnexus) in the Extensions view, or:
- VS Code: code --install-extension stylusnexus.work-plan-viewer
- VS Codium / Cursor / Windsurf (Open VSX): ovsx get stylusnexus.work-plan-viewer
The CLI (the extension drives it) — npm install -g @stylusnexus/work-plan, or any method in the toolkit README.
If work-plan isn't on your editor's PATH (common when VS Code is opened from the Dock/Finder, not a terminal), set workPlan.cliPath to an absolute launcher path and reload the window.

Requirements

The work-plan CLI must be on your PATH (or set workPlan.cliPath). The extension checks the CLI version at activation and points you at an update if it's too old to have the read/write surface it needs.
VS Code 1.90.0 or later.

Commands & controls

Every action runs the CLI under the hood. Commands live where they're relevant — the title bar (icons + the ⋯ overflow), a track's right-click menu, and the command palette.

View controls — filtering & sorting (title bar)

Control	What it does
Refresh (↻)	Re-fetch live state from the CLI and redraw the tree + graph.
Select View (filter icon)	Filter the tree and graph by a lens: a single repo, a milestone, a status (Active / Shipped / Parked), or only blocked tracks. Choose "All tracks" to clear the filter.
Sort Tracks	Order tracks within each repo: Default (discovery order), Blocked first, Most open, or Name (A–Z).

Track actions (right-click a track)

Command	What it does
Edit Track Fields	Change one field — status, launch priority, milestone, blockers, or next-up.
Set Next-Up	Set the ordered next-up issue list for the track.
Slot Issue into Track	Add a GitHub issue number to the track.
Move Issue from Track	Move an issue to another track in the same repo (source-first: pick the issue number, then the destination).
Close Track	Mark it shipped / parked / abandoned (with an optional wrap-up note); shipped & abandoned get archived.
Rename Track	Rename the track's slug — moves its file and updates the frontmatter. Enter a new lowercase slug; a public-repo write is gated by the confirm modal.
Refresh Track Body	Pull live GitHub state into the track's status table. Run this after closing or merging issues — it re-fetches each issue's open/closed state and rewrites the status cells, refreshing the dependency graph and next-up display. Equivalent to `work-plan refresh-md <track> --yes`.
Reconcile (preview)	Read-only draft of label-vs-frontmatter membership drift (no writes).
Slot Untracked Issue into Track	From a repo's Untracked bucket — file a loose issue into a track.

Create & setup (the `⋯` overflow)

Command	What it does
New Track	Create a new track for a repo (pick the repo + a slug).
Add Repo	Register a repo — a key, the `org/repo` slug, and an optional local checkout path.
Set Notes Location	Choose where your private track notes live (the CLI's `notes_root`).
Run Hygiene	Weekly all-in-one cleanup. Three steps: ① refresh every active track's status table from GitHub, ② reconcile track frontmatter against GitHub labels, ③ scan for duplicate issues. Use "Refresh Track Body" instead when you just need to update one track after closing issues.

Before any write into a public (or unknown-visibility) repo, a "Write anyway / Keep private" modal appears — the public-repo leak guard, surfaced as a dialog. Private repos write straight through.

GitHub access is read-only. The extension (and the CLI it drives) never writes to GitHub. All issue data comes from read-only gh CLI calls. Every write — status table updates, frontmatter, session logs — goes to your local markdown files only.

Configuration

Setting	Default	Description
`workPlan.cliPath`	`"work-plan"`	Path to the `work-plan` CLI launcher. Read at activation — reload the window after changing it.
`workPlan.expandReposByDefault`	`false`	Expand all repo groups on load (a single-repo workspace always expands).
`workPlan.autoRefreshInterval`	`0` (off)	Re-poll the CLI silently in the background. Options: 0 (off), 30 s, 60 s, 5 min, 15 min. Useful when teammates are pushing shared-track changes and you want the tree to stay current without manual refreshes.

Build & run

# From the vscode/ directory:
npm install          # esbuild, TypeScript, @types/vscode, mermaid
npm run typecheck    # tsc --noEmit
npm test             # node --test (pure modules; no VS Code host needed)
npm run build        # compiles extension + copies the Mermaid bundle into dist/

Then launch the extension host to try it live (the last arg is the workspace folder to open, which carries workPlan.cliPath):

code --new-window --disable-extensions --extensionDevelopmentPath=./vscode <workspace-folder>

The build step copies node_modules/mermaid/dist/mermaid.min.js into dist/ automatically. dist/ is gitignored — the Mermaid file is never committed.

Architecture

Pure logic lives in vscode-free modules (model.ts, cli.ts, treeModel.ts, write.ts, singleFlight.ts, webview/graph.ts/detail.ts/html.ts/lenses.ts) and is unit-tested by Node's native test runner — no VS Code host required. Only tree.ts, webview/panel.ts, and extension.ts import vscode. The write layer maps a UI action to CLI argv in write.ts (actionToArgs + the confirm-token flow in executeWrite); extension.ts is the thin glue that gathers input and shows dialogs.

How Mermaid is loaded

The webview loads dist/mermaid.min.js — the UMD bundle from Mermaid 11 (mermaid@^11.15.0): a single self-contained file (~3.2 MB) that exposes a global mermaid via a classic <script nonce="…" src="…"> tag (not the ESM build, which needs ~160 chunk files). If the graph fails to render, verify dist/mermaid.min.js was copied (ls vscode/dist/) and that the webview CSP allows 'wasm-unsafe-eval' (Mermaid needs it). The webview uses a strict CSP, a per-document nonce, and a single acquireVsCodeApi() call.

Status

Published — v0.3.6 on the VS Code Marketplace and Open VSX (publisher stylusnexus). v0.3.6 adds a Rename Track right-click action and orders the per-track milestone bands active-milestone-first. Earlier v0.3.x added Move Issue from Track, cross-track dependency chips in the detail panel, and a repo-scoped full map.

Development notes

Tests run via Node's native type-stripping; the manifest stays CJS (no "type": "module") because the VS Code extension host and esbuild.js require CommonJS — that's why the test script suppresses the MODULE_TYPELESS_PACKAGE_JSON warning. vscode/ has its own CI job (.github/workflows/vscode.yml: typecheck · node --test · esbuild · vsce package), separate from the Python matrix; the local gate is npm run typecheck && npm test && npm run build.
