LPG Modeler

Design a property graph once. Generate every schema from it.

LPG Modeler turns one hand-editable model file into LadybugDB DDL, Neo4j constraints, SHACL shapes, an OWL ontology, GQL graph types, PG-Schema and LinkML — and tells you, before you ship, exactly what each database is unable to enforce.

You author the model as YAML, or on a canvas beside it. Everything downstream is generated.

The problem it removes

A graph schema usually lives in four places at once: the DDL that creates the tables, the constraint script someone ran last quarter, a diagram in a wiki that stopped being true, and an ontology maintained by a different team. They drift.

The diagram says a property is required. The database never enforced it. Nobody finds out until a null reaches production.

LPG Modeler makes three of those four artifacts generated, and makes the fourth one reviewable text.

What it does

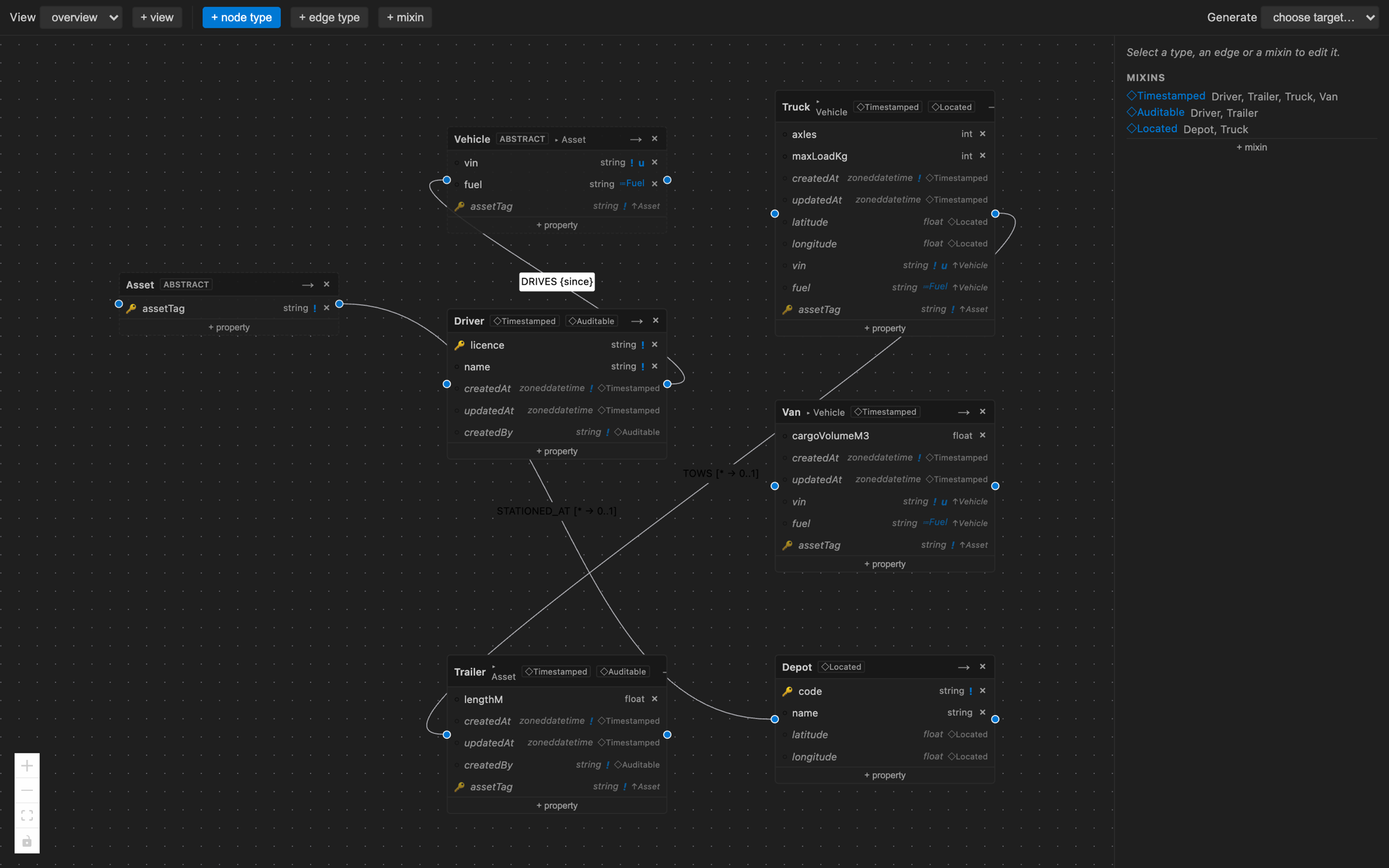

A canvas that writes the file

Create node types, draw edges, add properties and rename things directly on the diagram. Every action becomes a targeted edit to the YAML, applied as a workspace edit — so undo, dirty state and version control all behave the way you expect.

The canvas opens beside the file, in the manner of Markdown preview. It never replaces the editor, so you keep schema-driven completion and hover in the YAML itself.

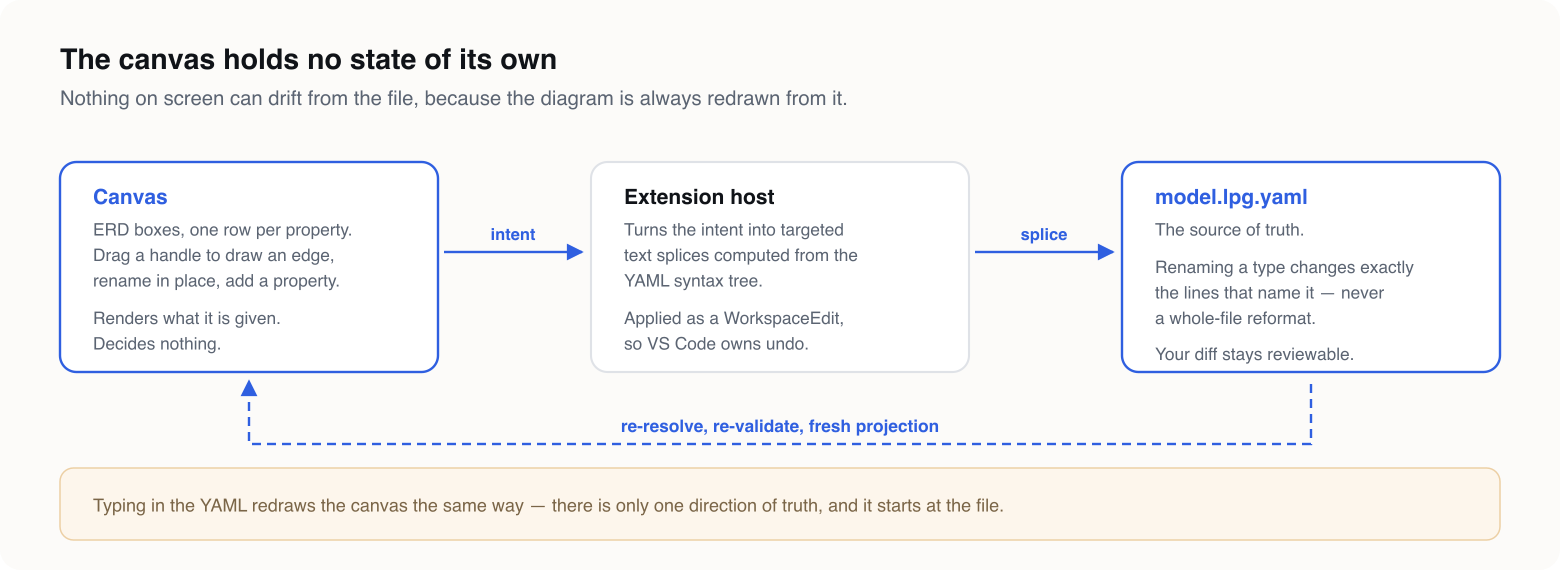

Why it matters: the webview holds no model state. It posts an intent, the extension host computes the edits, and a fresh diagram comes back from the file. Nothing on screen can diverge from what your teammates will review.

Diffs you can actually review

Edits are computed as text splices from the YAML syntax tree, never as a re-serialization. Renaming a type changes exactly the lines that name it — not the whole file.

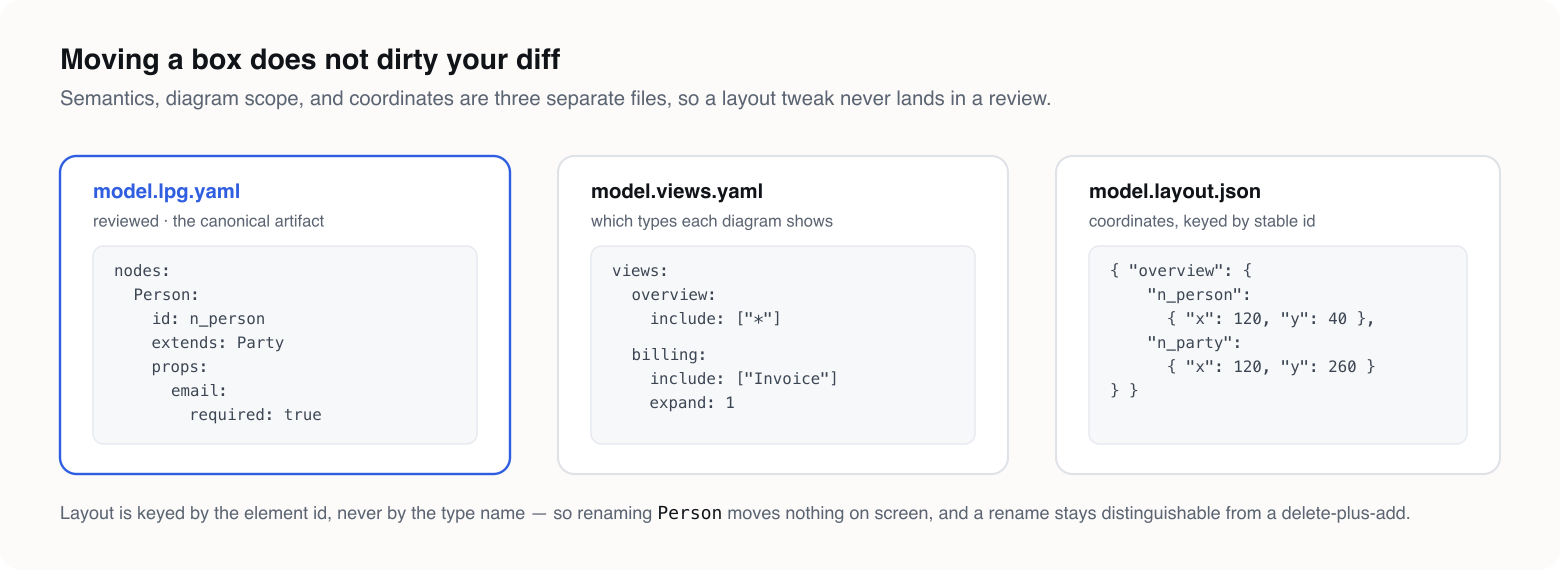

Diagram coordinates live in a separate sidecar keyed by a stable element id, so rearranging a diagram produces no semantic diff at all, and renaming a type moves nothing on screen.

Why it matters: a schema change that shows up as a 400-line reformat does not get reviewed. It gets approved.

Inheritance and mixins, kept apart

A node type may extend an abstract label, and it may apply any number of mixins. These look alike and are not: inheritance says what a thing is, and a mixin says what a thing carries.

• Abstract types emit no table and hold no instances. They exist to contribute a key, properties, and edges to every descendant — Truck above is three levels down, and its key assetTag is declared once, on the root.
• Inherited properties are flattened onto the subtype during resolution, each carrying the name of the type it came from. On the diagram they read ↑Vehicle; from a mixin, ◇Timestamped. A generator never walks the chain, and a reader can always see where a property is written.

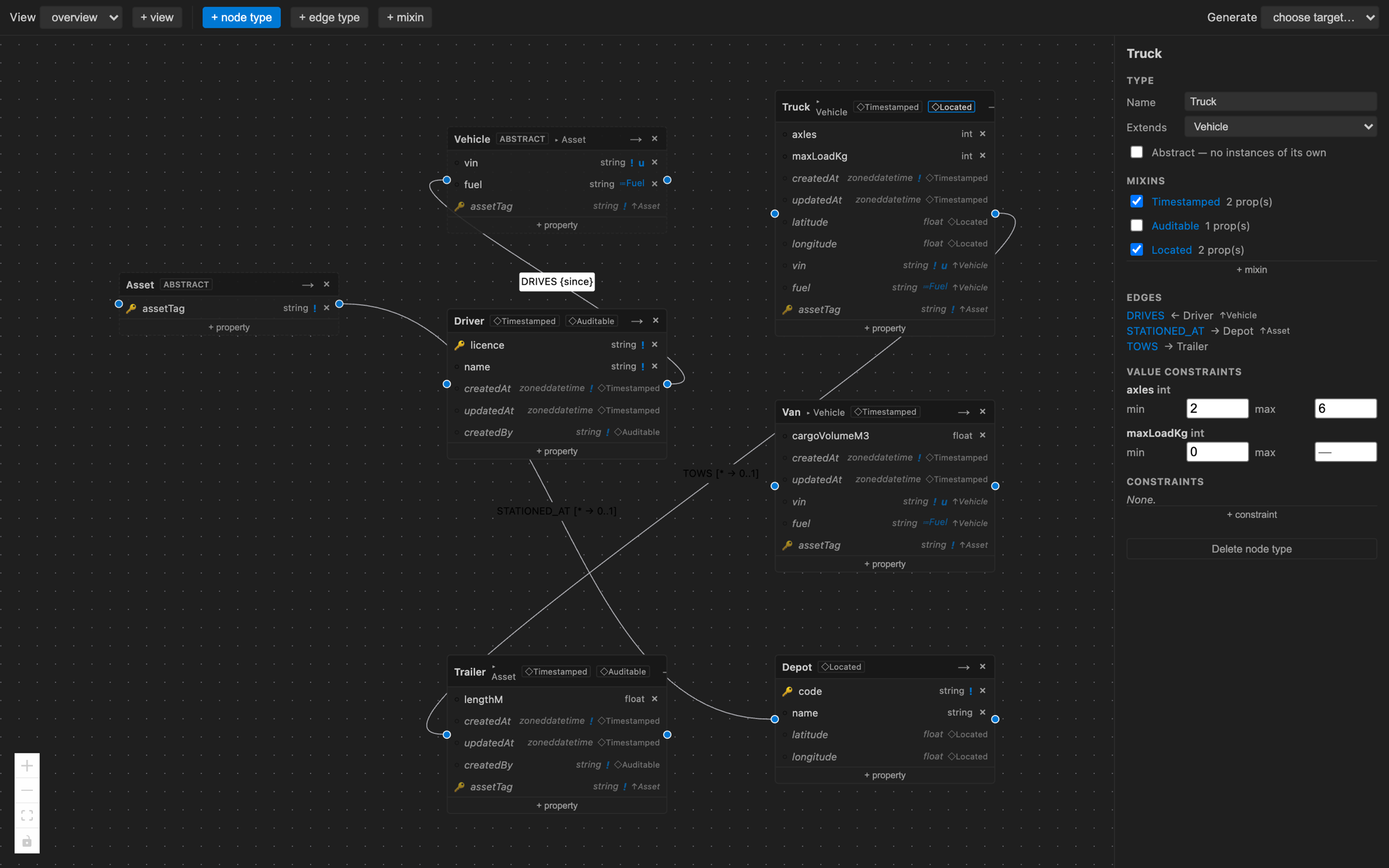

• Edges are inherited too. STATIONED_AT is declared on the abstract root and drawn there alone, then listed on each descendant in the inspector marked with the type it came from. The targets do the expanding: LadybugDB emits a FROM/TO pair per concrete subtype, while PG-Schema keeps the abstract endpoint as written.
• Mixins are checkboxes, not a parent. A mixin declares no supertype, never appears in an ancestor chain, and contributes no key — though a type may name a mixin's property in its own key. Because it is not a label, it costs the generators nothing.

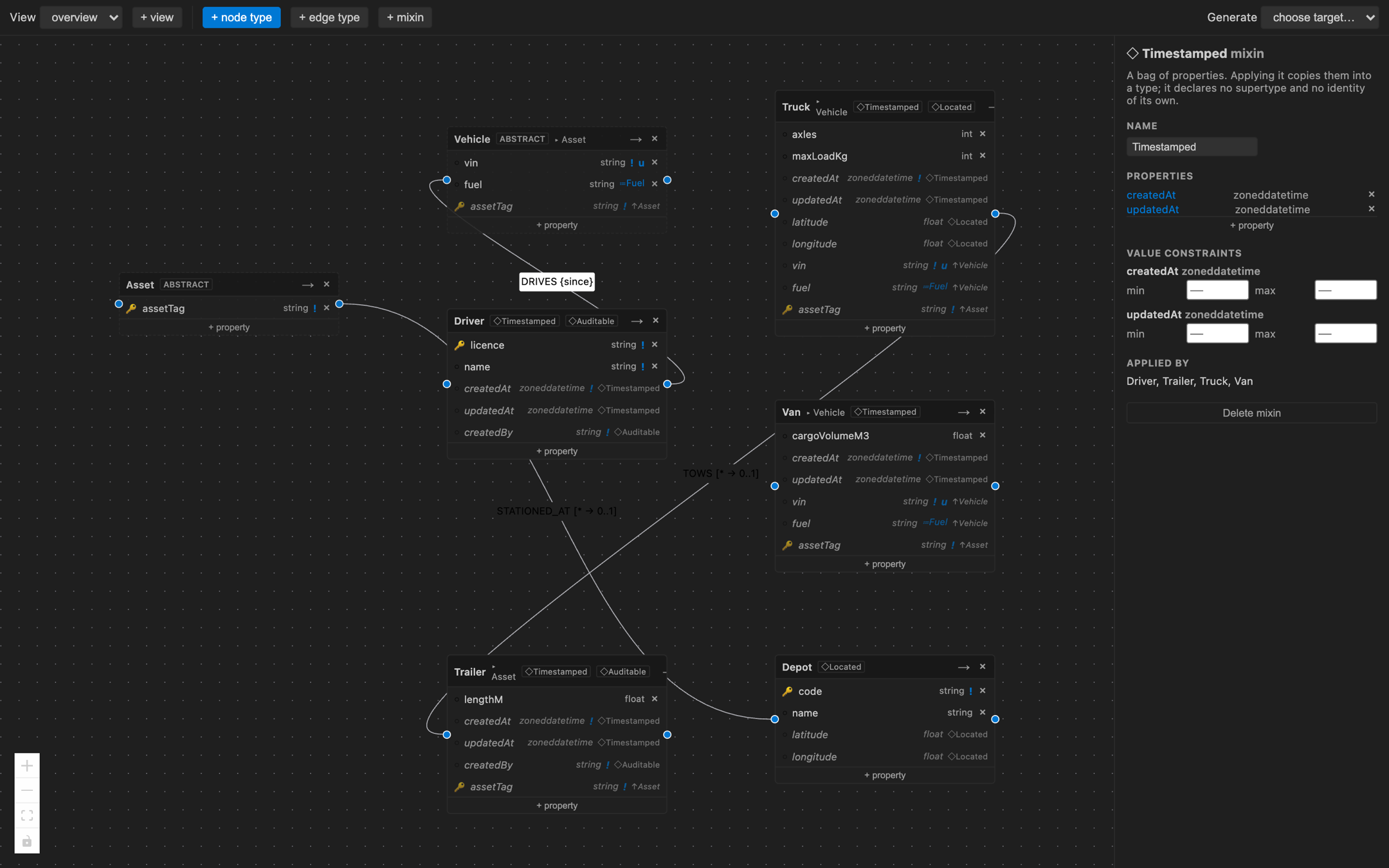

A mixin has no box on the canvas, because it is not a type — it gets the panel instead, listing its properties and every type that applies it, so you can see what a change would touch before making it. The nearer declaration wins: a type's own property beats a mixin's, and a mixin's beats an ancestor's. The first is reported at info and a mixin nothing applies at warning, because neither is visible in the file.

Why it matters: conflating reuse with subtyping produces a hierarchy shaped by which properties happen to travel together rather than by what a thing is. createdAt on twenty types does not make twenty subtypes of a Timestamped — and a hierarchy built that way exports an ontology nobody can use.

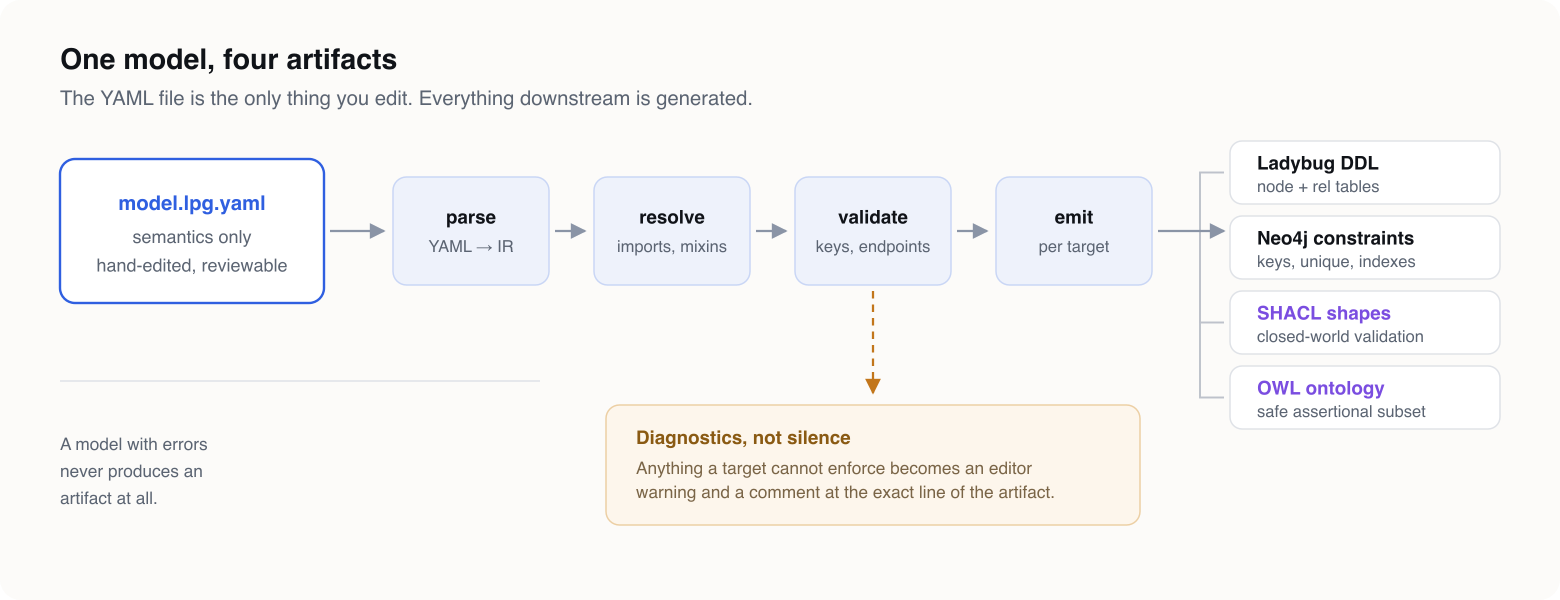

Seven generators, one model

One type hierarchy, one set of keys, one set of properties — with no second definition to keep in sync.

The last three are standards rather than database dialects. They are what makes a model readable by tools this project does not own — and they are emitted rather than adopted as the model format, because no published standard has anywhere to put stable element ids, import aliases, or a rename's previous IRI.

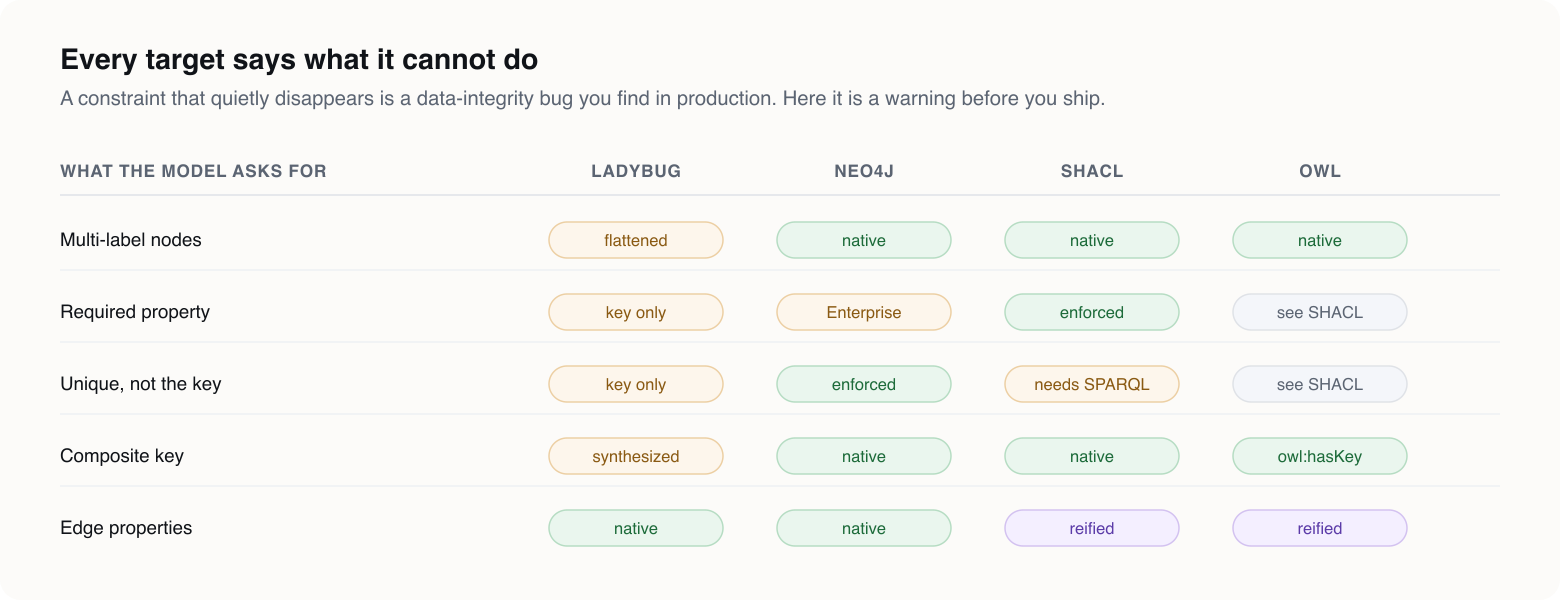

Loss is reported, never silent

Each generator publishes what it can express. Everything it cannot becomes a warning in the Problems panel and a comment at the exact line of the generated file, so the operator reading the DDL learns what the author already knew.

CREATE NODE TABLE IF NOT EXISTS Person (
  // UNENFORCED: 'email' is required in the model; LadybugDB has no NOT NULL.
  // UNENFORCED: 'email' is unique in the model; only the primary key is unique.
  email STRING,
  id STRING,
  PRIMARY KEY(id)
);

Why it matters: a required constraint that quietly vanishes is a data-integrity bug that surfaces in production, long after the model stopped being read.

Schema-driven YAML editing

The model format ships as a JSON Schema the extension contributes, so completion, hover documentation and structural errors come from the YAML tooling you already have. There is no new language server to install and no proprietary file format to get locked into.

Views, so diagrams stay readable

A view names a subset of types plus an optional neighbourhood expansion. One model can carry an overview beside several focused diagrams, and validation tells you which types have fallen out of every view — so diagrams do not quietly stop covering the model as it grows.

Serious about RDF

The RDF export is split in two, because a property graph schema and an OWL ontology do not mean the same thing. SHACL carries the constraints because it is closed-world validation. OWL asserts only what is safe to assert — no rdfs:domain, no rdfs:range, no cardinality restrictions, because those instruct a reasoner to reclassify individuals rather than reject bad data.

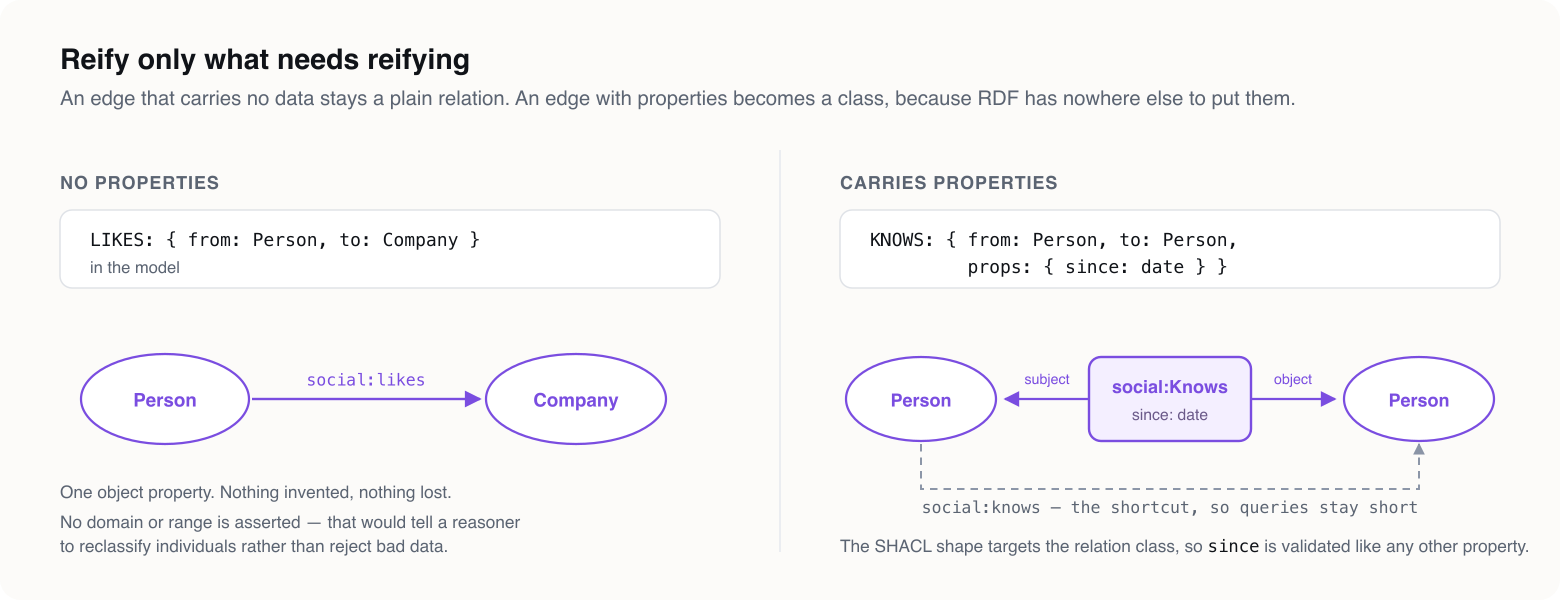

Reification is applied only where it is needed: an edge with no properties stays a plain object property, and an edge that carries properties becomes an n-ary relation class plus a shortcut.

Quick start

1. Create a file ending in .lpg.yaml:

namespace:
  prefix: catalog
  iri: https://example.org/vocab/catalog#

nodes:
  Product:
    key: [sku]
    props:
      sku:   { type: string, required: true }
      title: { type: string, required: true }
      price: { type: float }

2. Run LPG: Open Canvas from the command palette. The diagram opens beside the file.

Starting from nothing? Run LPG: New Model instead. It asks for a prefix and a base IRI, writes the file, and opens the canvas on it — no need to know the shape of a model file first.

3. Run LPG: Generate Schema and pick a target. The artifact is written next to the model and opened beside it.

That is the whole loop. Nothing here needs a running database.

Examples to download

Five complete models. Each is checked in continuous integration — a test resolves every one of them and generates all nine targets — so the file you download is the file the test checked. Save one as <name>.lpg.yaml in a workspace and run LPG: Open Canvas on it.

All five, with commentary on what to read in each: https://volland.github.io/lpg-modeler/examples.html

Commands

The two export commands are also buttons in the editor title bar, on a model file and on the canvas tab. They honour the canvas toolbar's light checkbox, which swaps in a print-safe palette for the capture.

Settings

Files

Also runs in CI

The same resolution and validation the editor runs is available as a command, so a pull request can be gated on the model being valid:

npx lpg-modeler-cli check model/domain.lpg.yaml

# Regenerate and fail the build if the committed schema drifted.
npx lpg-modeler-cli emit model/domain.lpg.yaml --target ladybug --target shacl --out schema
git diff --exit-code schema

That second step is the one that pays off over time. It turns "someone forgot to regenerate the DDL" from a thing you discover during an incident into a red build.

Requirements

VS Code 1.90 or newer. No database connection, container, or external service is required — generation is entirely offline.

Known limitations

• Migrations and the lockfile diff are not in this release. The model produces a schema, not a diff against a previous one.
• Nested edges — edges that are themselves endpoints of other edges — are outside the core metamodel, because Neo4j cannot represent them natively.
• Composite keys on LadybugDB are emitted as a synthesized concatenated column, since a composite PRIMARY KEY does not parse there.
• Uniqueness in SHACL across all instances needs a SPARQL-based constraint, which core SHACL cannot express. It is reported as a downgrade.
• Enums have nowhere to go in LadybugDB, Neo4j, GQL or PG-Schema. SHACL, OWL and LinkML enforce them; the rest report a downgrade.
• Open types cannot exist in LadybugDB's mandatory closed schema, nor in a GQL element type or a LinkML class. Reported as a downgrade.
• Cardinality is enforced by LadybugDB and SHACL. Neo4j, GQL and OWL have no constraint for it and say so.
• Composite keys in GQL graph types cannot be expressed, because a key marker attaches to a single property. Reported as a downgrade.
• Edges carrying properties in LinkML are reified into a class, because LinkML has no binary relation that can hold them. Reported as a downgrade.
• The canvas is built on React Flow, which is DOM-based and degrades past a few hundred nodes on one diagram. Use views to keep any single diagram small.

Documentation

Full documentation, including the model format reference and the design notes behind it: https://volland.github.io/lpg-modeler/

• Getting started
• Model format
• Targets
• CLI
• Architecture

Contributing and issues

Source and issue tracker: github.com/Volland/lpg-modeler. Adding a generation target is one file plus one registry entry — see Targets for the capability set a new one declares.

License

MIT.
