LaTeX in Markdown for Pandoc

TODO: badges: version, downloads, installs, license

Visual Studio Code extension that brings LaTeX syntax highlighting to Markdown documents processed with Pandoc.

Features

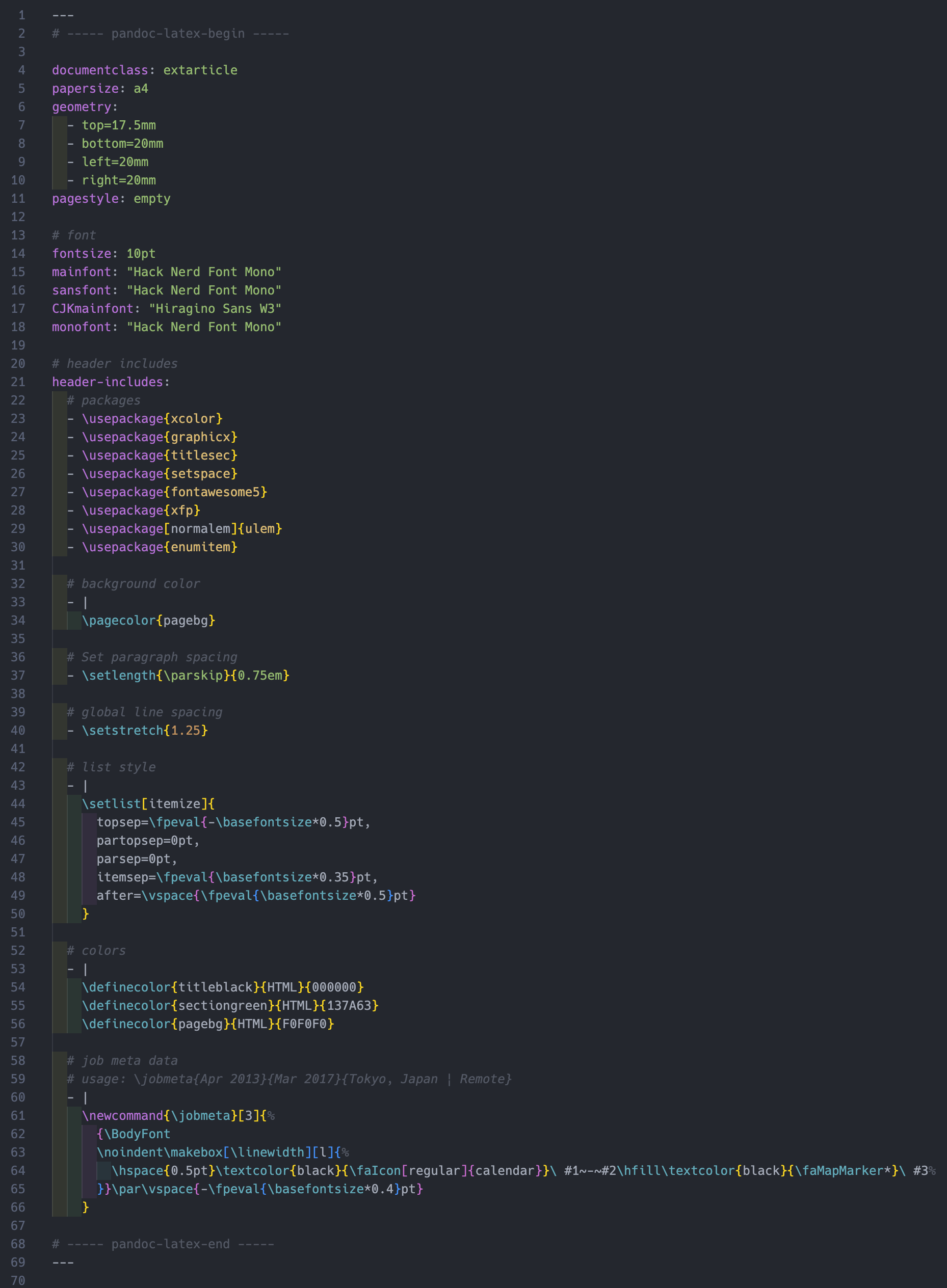

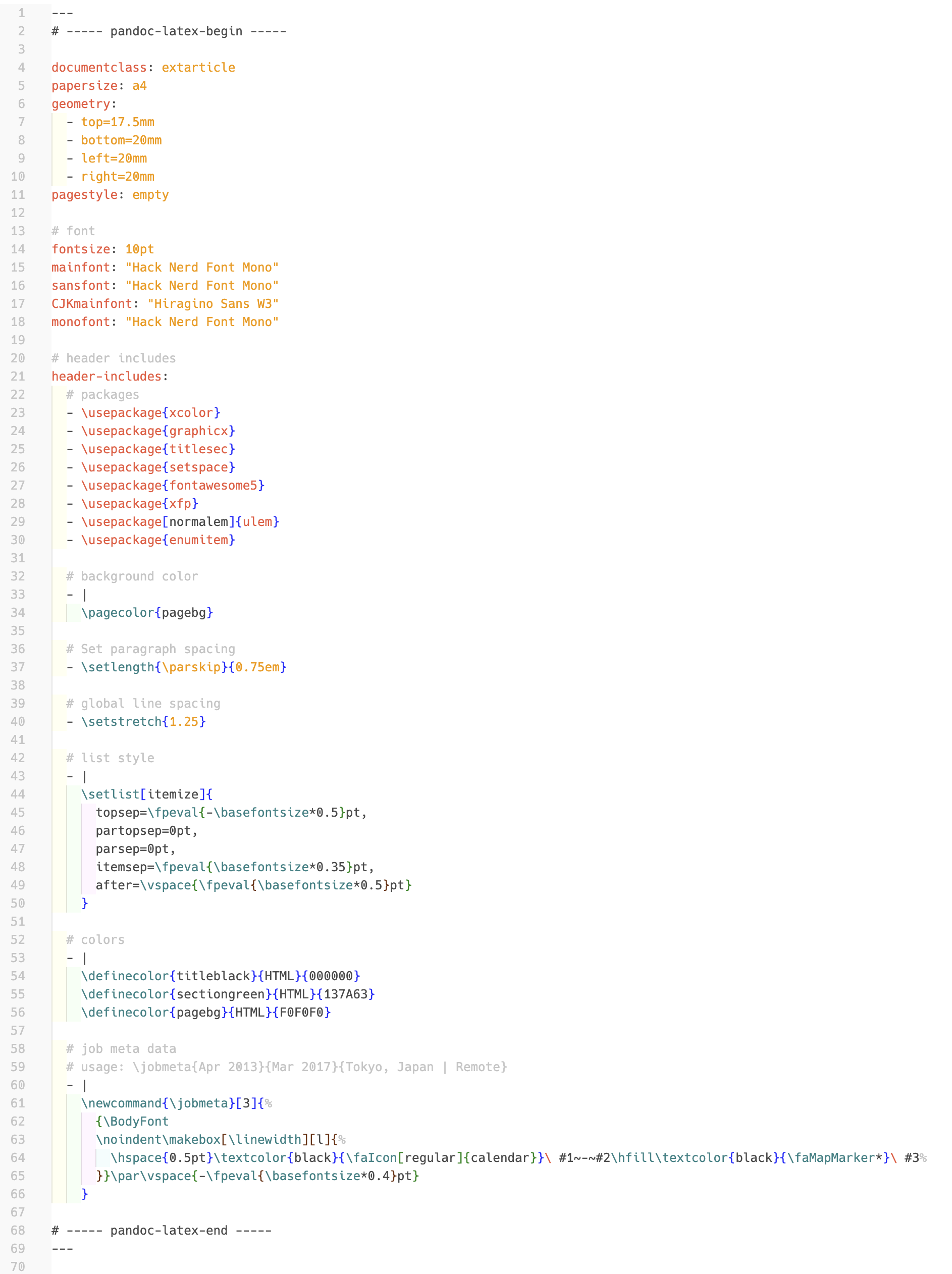

TODO: frontmatter にハイライトが当たっている様子のスクショ

TODO: body にハイライトが当たっている様子のスクショ

Requirements

• Visual Studio Code v1.99.x or later
• (optional) Cursor 1.7.x or later

Quick start

Installation

This extension is available for free in the Visual Studio Code Marketplace.

Usage

In this extension, syntax highlight is enabled by adding the following 2 lines of comments # ----- pandoc-latex-begin ----- and # ----- pandoc-latex-end ----- in the frontmatter of a Pandoc-flavoured Markdown file.

After adding, the range between these comments in frontmatter is highlighted as LaTeX code. This is a necessary step to enable syntax highlight.

---
# ----- pandoc-latex-begin -----

# highlighted as LaTeX code!!!

# ----- pandoc-latex-end -----
--- # <- punctuation to end frontmatter

Example of Markdown frontmatter that enables syntax highlight with this extension is the following. If correctly set up, LaTeX code, such as \usepackage{graphicx}, is highlighted.

---
# ----- pandoc-latex-begin -----

documentclass: extarticle
papersize: a4
pagestyle: empty

geometry:
  - top=17.5mm
  - bottom=20mm
  - left=20mm
  - right=20mm

fontsize: 10pt
mainfont: "Hack Nerd Font Mono"
sansfont: "Hack Nerd Font Mono"
CJKmainfont: "Hiragino Sans W3"
monofont: "Hack Nerd Font Mono"

header-includes:
  # highlighted as LaTeX code in your editor!
  - \usepackage{xcolor}
  - \usepackage{graphicx}
  - \usepackage{titlesec}
  - \usepackage{setspace}
  - \usepackage{fontawesome5}
  - \usepackage{xfp}
  - \usepackage[normalem]{ulem}

# ----- pandoc-latex-end -----
---

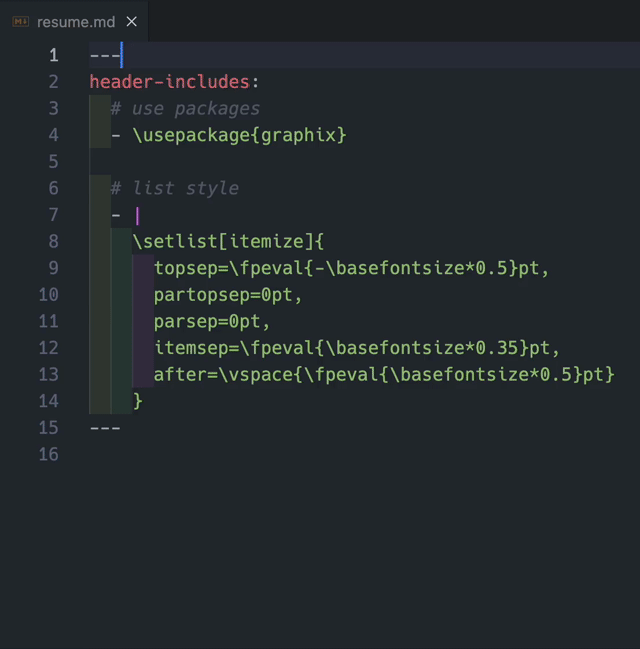

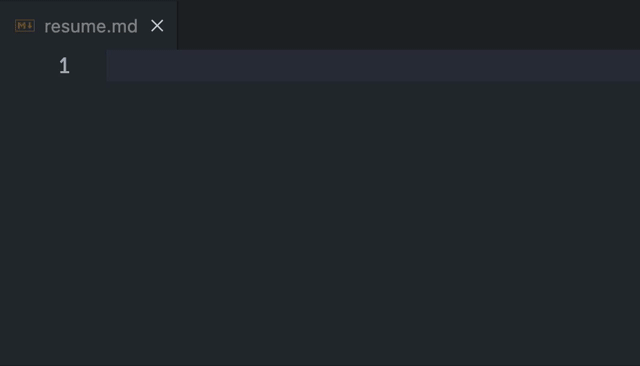

TODO: snippets の説明 with gif

Roadmap

• [x] 1. Highlight LaTeX syntax in Markdown
  • [x] LaTeX in Markdown frontmatter written in YAML
  • [x] LaTeX in Markdown body
• [ ] 2. Extend LSP support to LaTeX code in Markdown (hover documentation and go-to-definition).
  • [ ] LaTeX in Markdown frontmatter written in YAML
  • [ ] LaTeX in Markdown body

Motivation

I built this extension while writing my resume with Pandoc.

I needed proper LaTeX syntax highlighting inside Markdown, both in YAML frontmatter and the body.

Development

Requirements

• Node.js v22.16.x
• Visual Studio Code v1.99.x or later
• (optional) Cursor 1.7.x or later

Setup

git clone git@github.com:nukopy/latex-in-markdown-for-pandoc.git
cd latex-in-markdown-for-pandoc
pnpm i

Now, you can start developing the extension.

Build

pnpm run build

If successful, the extension package dist/latex-in-markdown-for-pandoc-<version>.vsix is created.

Install locally for testing

Execute command Extensions: Install from VSIX... in VS Code (or Cursor) and select the file dist/latex-in-markdown-for-pandoc-<version>.vsix.

Prepare for publishing

1. Create Azure DevOps organization
2. Create Personal Access Token
   • Copy the Personal Access Token for next step
3. Create a publisher

ref: Publishing Extensions | Visual Studio Code

Publish to VS Code Marketplace

• Login to VS Code Marketplace

pnpm run login -- <publisher ID>
# input Personal Access Token

• Edit version in package.json

{
-  "version": "0.1.0"
+  "version": "0.1.1"
}

• Release

pnpm run publish

• Unpublish

pnpm run unpublish

References

Thanks to the following references for inspiration:

• Pandoc User's Guide — YAML metadata blocks and header-includes
• Pandoc User's Guide — Variables
• Pandoc User's Guide — raw attribute extension ({=latex})
• Visual Studio Code Extension API — Syntax Highlight Guide (Injection Grammars)
• vscode-latex-basics/markdown-latex-combined.tmLanguage.json

License

LaTeX in Markdown for Pandoc is under the MIT License: See LICENSE file.
