Elyx Syntax and Previews

Highlights .elyx design files in VS Code and VSCodium, with colour swatches and visual hover cards for design tokens.

Comments, strings and escapes, numbers, length units, hex colours, atoms, keywords, annotations, declarations, property keys, source types, override labels, function calls, paths and punctuation have specific TextMate scopes. Your editor theme chooses their colours.

Install

VS Code

Search for "Elyx" in the Extensions view, or install it from the Visual Studio Marketplace. From a terminal:

code --install-extension nord-forge.elyx

VSCodium and other Open VSX editors

VSCodium, Cursor, Windsurf and Gitpod install extensions from Open VSX. Search for "Elyx" in the Extensions view, or run:

codium --install-extension nord-forge.elyx

On macOS, VSCodium may need Shell Command: Install 'codium' command in PATH before its terminal command works.

From a VSIX file

Every release on the releases page has an elyx-<version>.vsix file attached. Download it, then run:

code --install-extension elyx-0.4.0.vsix
codium --install-extension elyx-0.4.0.vsix

You can also use Extensions > ... > Install from VSIX in either editor.

From source

Install Bun and Node.js 22 or newer. Then run:

git clone https://github.com/nord-forge/vscode-elyx.git
cd vscode-elyx
bun install
bun run test
bun run package

The output is elyx-<version>.vsix in the project root. Install it as above.

Token previews

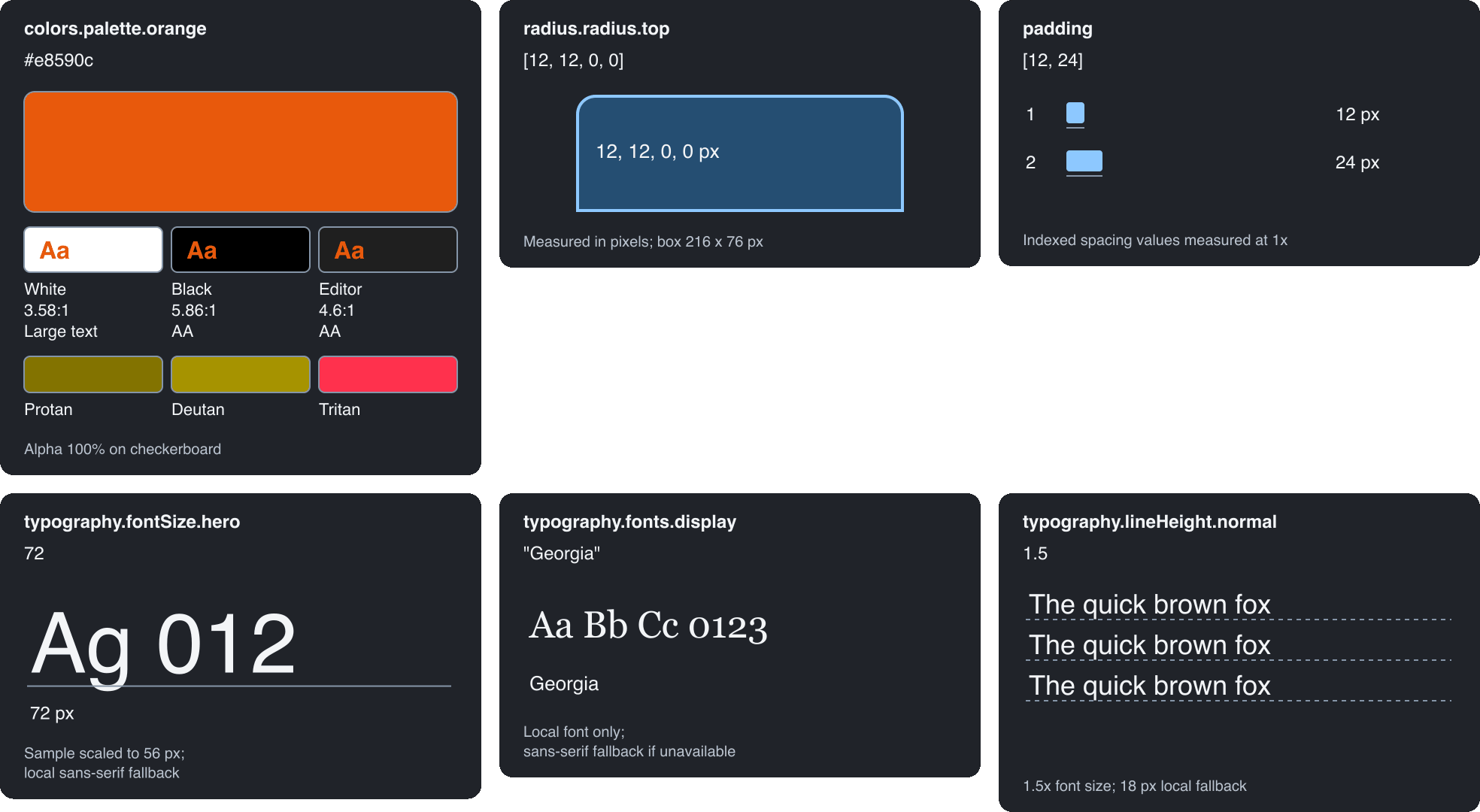

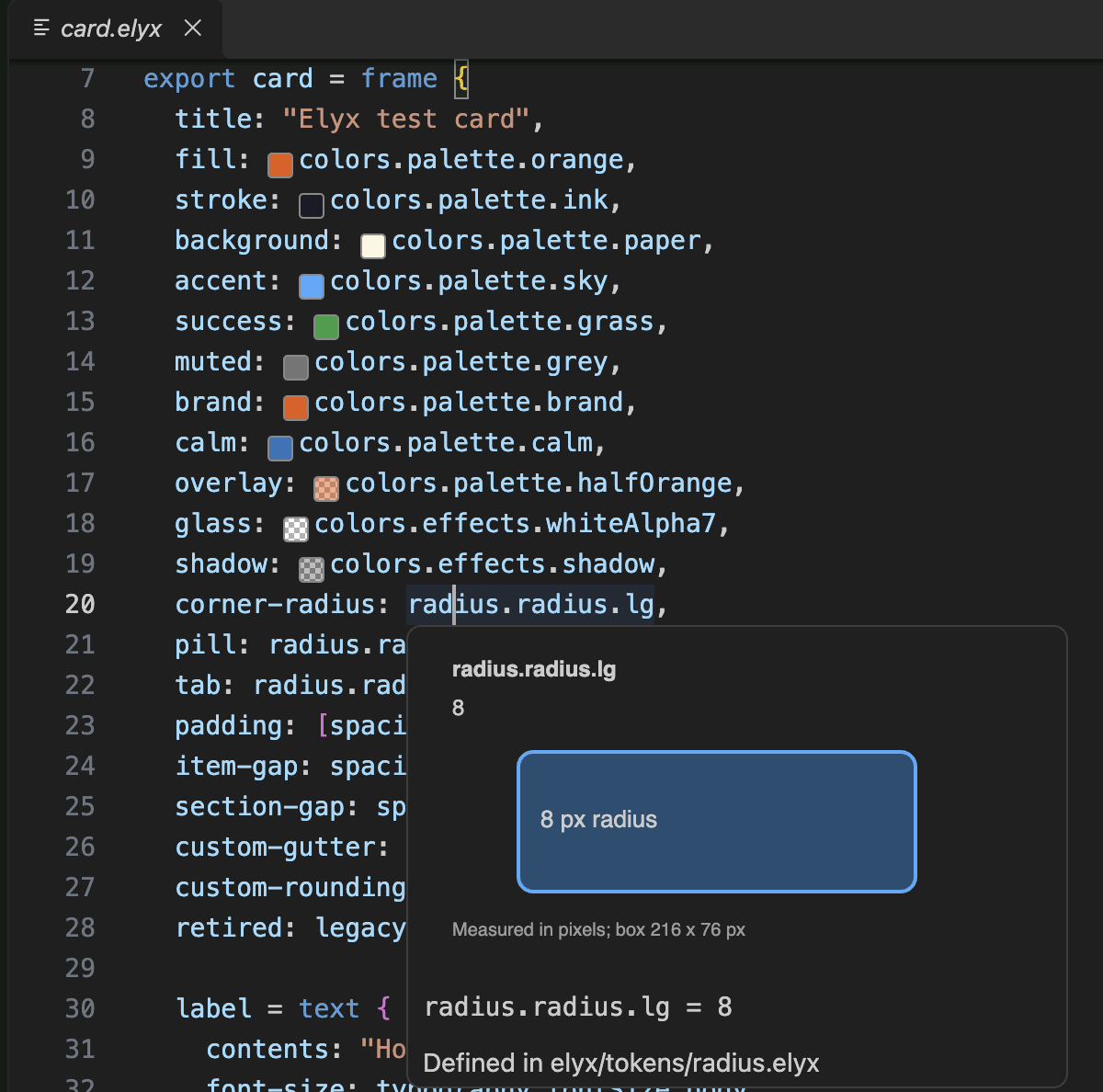

Colour token references show a small read-only swatch. Transparent colours use a checkerboard. Hover a reference to see a small visual card, its resolved value and source file. Literal values inside token files work too, so hovering lg: 8 shows its radius.

Very large samples scale to fit and say so. Unsupported units and negative radii show their values without inventing a shape. These are illustrative samples rather than a full rendered Elyx layer.

For example, colors.effects.whiteAlpha7 resolves to #ffffff12 in the sample project in test/manual. Previewing a token never replaces it with a literal colour.

Settings

Every setting can be set per user, per workspace or per workspace folder. elyx.refreshDelay applies per window.

Token discovery

Colour swatches

Hover content

Card appearance

With "editor", the default, cards use your editor theme. The extension reads the active theme file and workbench.colorCustomizations, then takes the hover widget, text, link and selection colours. Any colour the theme leaves out falls back to the built-in palette. "auto" uses the built-in dark or light palette to match the theme. "dark" and "light" always use one of them.

Overrides apply in this order, and later ones win:

1. Built-in palette
2. Editor theme colours, with "editor" only
3. darkColors or lightColors
4. themeColors entries that match the active theme

Colour objects accept background, surface, text, mutedText, line, accent, accentSoft, checkerLight and checkerDark. Leave a key out to keep the colour below it. Values must be hex colours. Anything else is ignored.

themeColors keys use the same form as workbench.colorCustomizations. That means [Theme Name], [One][Two] for several themes, or * as a wildcard.

{
  "elyx.tokenPreviews.darkColors": {"accent": "#ffb86c"},
  "elyx.tokenPreviews.themeColors": {
    "[Solarized Light]": {"background": "#fdf6e3", "accent": "#268bd2"},
    "[*High Contrast*]": {"line": "#ffffff"}
  }
}

Samples

propertyNames keys are font-size, line-height, letter-spacing, font-weight, font-family, radius and spacing. Names match property keys, group names and file names. A camelCase name such as bodySize also matches body-size.

{
  "elyx.tokenPreviews.propertyNames": {"spacing": ["gutter", "inset"], "radius": ["rounding"]}
}

Accessibility

Hover cards check their own colours. With the default "AA", card text gets at least 4.5:1 contrast against the card, its panels and its fills. Lines and shapes get at least 3:1. "AAA" raises text to 7:1. A colour that falls short is moved towards white or black until it passes. This only changes the card. Token colours are always shown exactly.

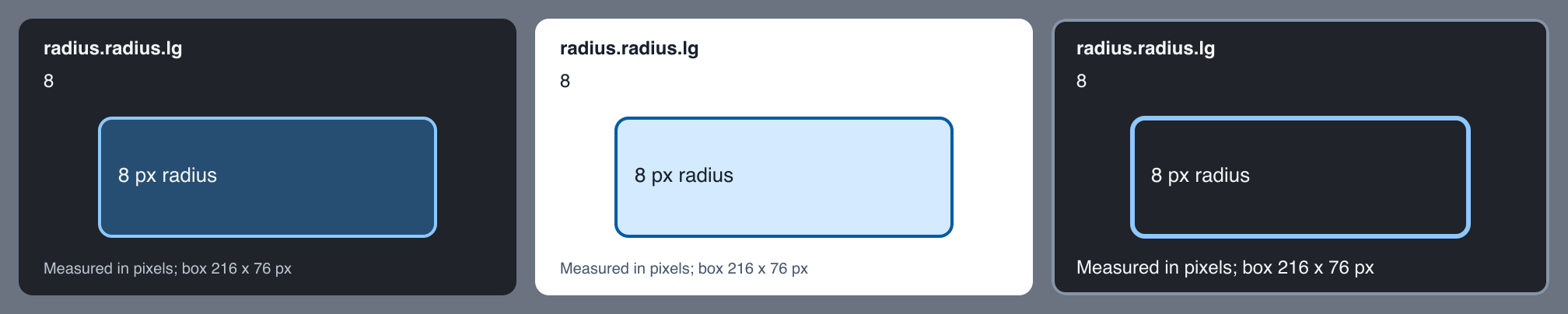

High contrast cards add a card border, use 2 px lines, drop the soft fills, enlarge the footnote and ask for AAA contrast.

The card is 320 pixels wide, and the size of each sample inside it is fixed. scale enlarges the whole card.

Each card image has alt text that describes the sample, such as "Rounded box with 8 px corners". VS Code shows hover text in the Accessible View (Alt+F2 on Windows and Linux, Option+F2 on macOS).

Colour tokens get three checks:

• A plain name after the hex value, such as #e8590c (vivid orange).
• Contrast when the colour is used as text on white, black and the editor background, rated against WCAG 2.2. Translucent colours are measured after blending with each background. The card shows each pairing as an Aa sample.
• Simulations for protanopia, deuteranopia and tritanopia, using the Machado, Oliveira and Fernandes (2009) model at full severity.

Colour names and simulations are approximations. Use them as a first check rather than a full audit.

Editor settings that affect Elyx

Your colour theme picks the syntax colours. To change one, target its scope:

{
  "editor.tokenColorCustomizations": {
    "textMateRules": [
      {"scope": "storage.type.kind.elyx", "settings": {"foreground": "#c792ea"}},
      {"scope": "constant.other.color.rgb-value.hex.elyx", "settings": {"fontStyle": "bold"}}
    ]
  }
}

Zed has no extension settings. Its languages and theme_overrides settings adjust Elyx files there. See zed/README.md.

{
  "elyx.tokenDirectories": ["design/tokens", "elyx/tokens"],
  "elyx.tokenExclude": ["**/node_modules/**", "**/.git/**", "**/vendor/**"],
  "elyx.refreshDelay": 100,

  "elyx.colorPreviews.enabled": true,
  "elyx.colorPreviews.position": "before",
  "elyx.colorPreviews.size": 0.9,
  "elyx.colorPreviews.borderColor": "#888888",
  "elyx.colorPreviews.checkerboard": {},

  "elyx.tokenPreviews.visualHovers": true,
  "elyx.tokenPreviews.showColorHex": true,
  "elyx.tokenPreviews.showColorName": true,
  "elyx.tokenPreviews.showContrast": true,
  "elyx.tokenPreviews.colorVision": true,
  "elyx.tokenPreviews.showDefinition": true,

  "elyx.tokenPreviews.theme": "editor",
  "elyx.tokenPreviews.darkColors": {},
  "elyx.tokenPreviews.lightColors": {},
  "elyx.tokenPreviews.themeColors": {},
  "elyx.tokenPreviews.fontFamily": "sans-serif",

  "elyx.tokenPreviews.sampleText": "",
  "elyx.tokenPreviews.fontWeights": {},
  "elyx.tokenPreviews.maxFontSize": 56,
  "elyx.tokenPreviews.maxSpacing": 160,
  "elyx.tokenPreviews.propertyNames": {},

  "elyx.tokenPreviews.minimumContrast": "AA",
  "elyx.tokenPreviews.highContrast": "auto",
  "elyx.tokenPreviews.scale": 1,
  "elyx.tokenPreviews.textDescriptions": "auto"
}

Token resolution

Explicit .elyx imports are followed too, including aliases whose names differ from their file names. Bare import paths start at the workspace root. Paths starting with ./ or ../ start at the importing file. An explicit import wins over folder fallback. An ambiguous file name stays unresolved until imported explicitly.

Swatches and hovers refresh after token edits, including unsaved edits. They also refresh when token files are created or deleted and when these settings change. Set elyx.colorPreviews.enabled to false to hide swatches. Value hovers remain available. Set elyx.tokenPreviews.visualHovers to false to keep text-only hovers. Open the containing project folder so imports and defaults have a workspace root.

The resolver supports token aliases, nested maps and lists, static token inheritance, hex colours, common colour atoms, opacity(), rgb(), rgba() and hsl(). It does not execute theme/variant contexts, arithmetic, quoted expressions, dependency imports or arbitrary functions. It shows statically declared values and leaves unsupported values unresolved. The Zed companion currently provides syntax highlighting only.

Tests

bun run test:semantic
bun run test:review
bun run test:snapshots
bun run test:coverage
bun run test:diagnostics
bun run test:tokens
bun run test:colors
bun run test:previews
bun run test:host

Tests use nine sample Elyx fixtures and small cases for the language rules. Coverage uses vscode-textmate with vscode-oniguruma. Diagnostics need the Elyx CLI. Copied fixtures can produce missing import and unresolved reference warnings. They must produce zero errors.

The extension provides syntax highlighting, editor configuration, colour previews and token value hovers. It does not run the Elyx CLI while you edit. test:host uses the installed VS Code app in an isolated temporary profile and workspace. Set ELYX_CODE_CLI to test another compatible editor. Pure token resolver tests run as part of bun run test.

Zed

A Tree-sitter companion is in zed/. Run its checks with:

cd zed
bun install
bun run test
bun run prepare:local

Local preparation needs a Git commit containing the grammar. It generates an extension.toml with a local file URL and the current commit. In Zed, use Install Dev Extension and select the zed/ directory. It has been tested in Zed 1.25.3. See zed/README.md for details and configuration.

Language association

If the status bar says Elysium instead of Elyx, another extension also claims .elyx. Choose Elyx through Configure File Association, or add this setting:

{"files.associations": {"*.elyx": "elyx"}}

Scope reference

Punctuation has separate scopes for braces, brackets, parentheses, separators, root paths, annotations, strings and comments. The full list is in docs/SCOPES.md.

Limits

TextMate reads one line at a time. If a name appears on a line before its =, : or {, it keeps an ordinary variable scope. Its precise role cannot be inferred until a later line. Kind and source scopes still resume correctly.

Development

Update snapshots only after checking semantic assertions and token dumps:

bun run test:snapshots:update

The editor's extension details page only loads https images. bun run package points the screenshots in images/ at the main branch on GitHub, so push screenshot changes before publishing.

Releasing

Pushing a tag such as v0.4.0 runs .github/workflows/release.yml. It tests and packages the extension, attaches the VSIX to a GitHub release, and publishes it to the Visual Studio Marketplace and Open VSX. The tag must match version in package.json.

The workflow needs two repository secrets:

A missing secret skips that marketplace.

Credits

Made by Nick Bevers at Spatie. This is a community extension. It is not made by the Elyx team.
