Schema Editor for VS Code

Visual diagram editor for VS Code. Build circuit schematics, ERDs, FSM state machines, software architecture diagrams, and architectural floorplans. Edit SVG files with a full node-and-wire canvas, domain-specific symbol kits, and export to SQL DDL, Mermaid, and XState.

See it work

Full walkthrough

Load a schematic, run a design check, inspect the connections, measure it. Deterministic, offline, and the analysis is real: the circuit below reports 0 errors, 0 warnings and a 4-line BOM you can send straight to the Table Formatter.

Electrical domain — symbol kits for passives, semiconductors, power and switches

Electrical symbol palette

Four domain modes ship in the box: General, Electrical/PCB, Software (ERD, sequence, FSM) and Construction.

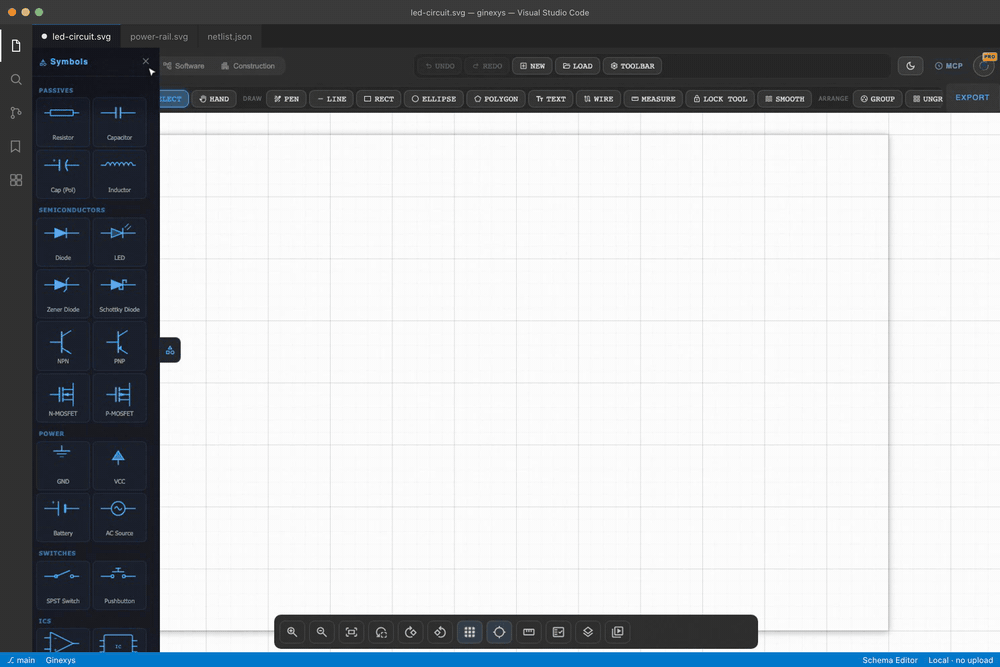

Open an existing drawing — SVG, PDF, HPGL, DWF or a raster scan

Loading a schematic

Symbols, pins and wires survive the import as real objects, so a loaded drawing is analysable rather than just visible.

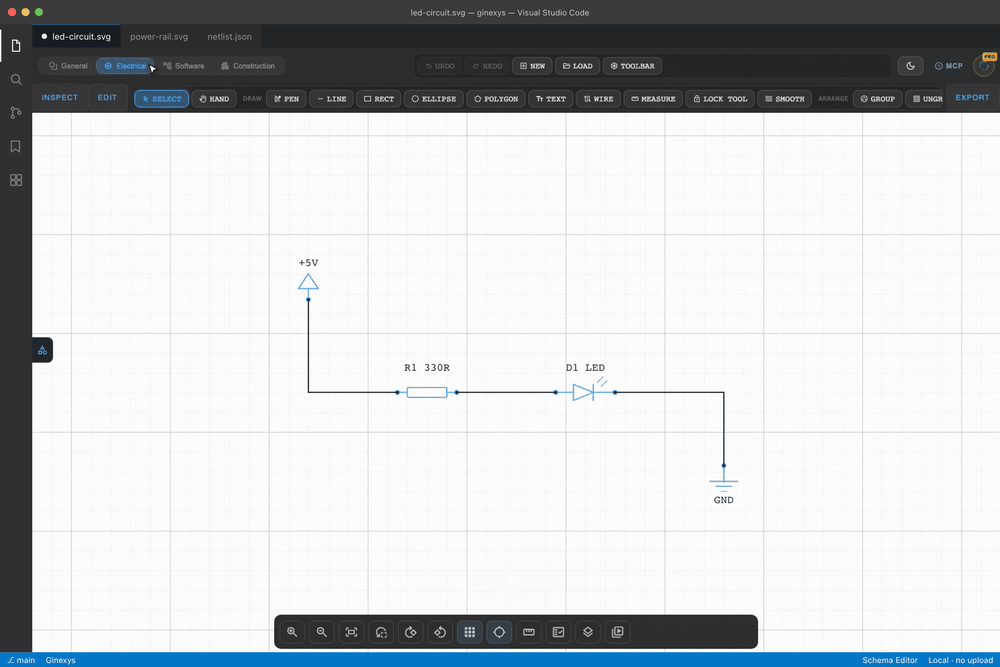

Design check and BOM — electrical rule checking over the netlist

Design check and BOM

Connection rules run against pin roles, not just topology: output-to-output shorts, power-to-signal, missing drivers and polarity. A clean circuit reports zero findings, and the bill of materials exports as CSV or straight into the Table Formatter.

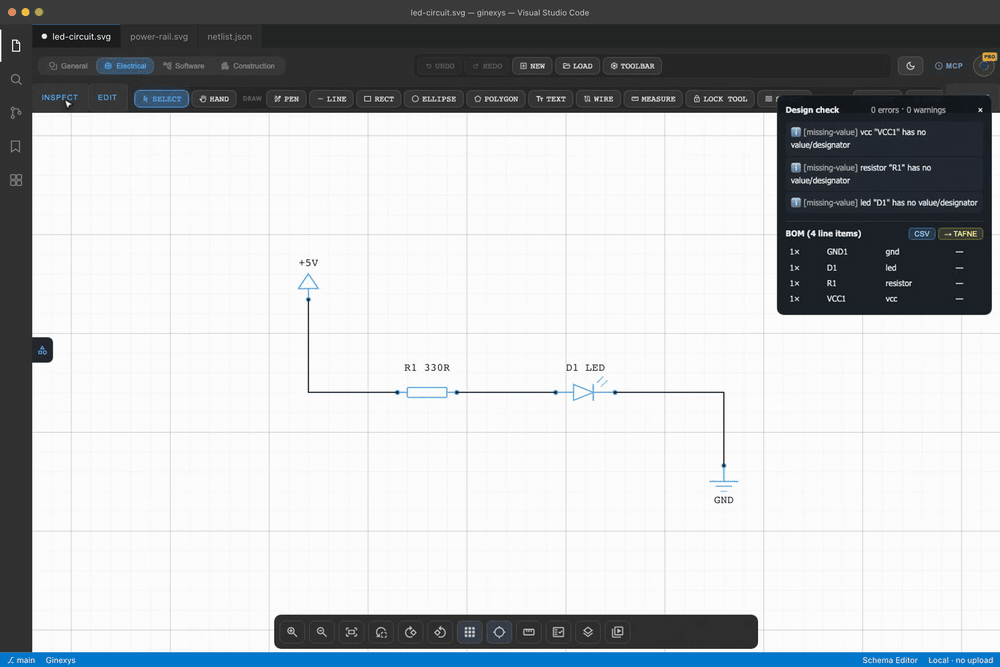

Inspect — highlight, trace connections, label, clear

Inspecting a schematic

Labels carry provenance. Each chip shows how the element was classified and by what, and clicking one reclassifies it — a human correction outranks the next engine re-run rather than being overwritten by it.

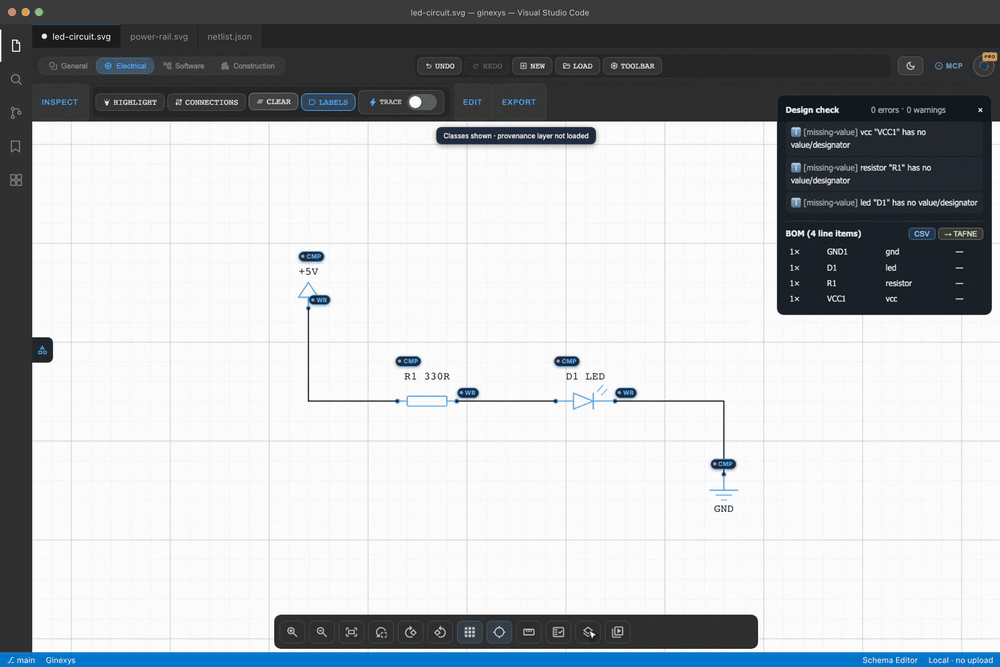

Layers and structure

Layers panel

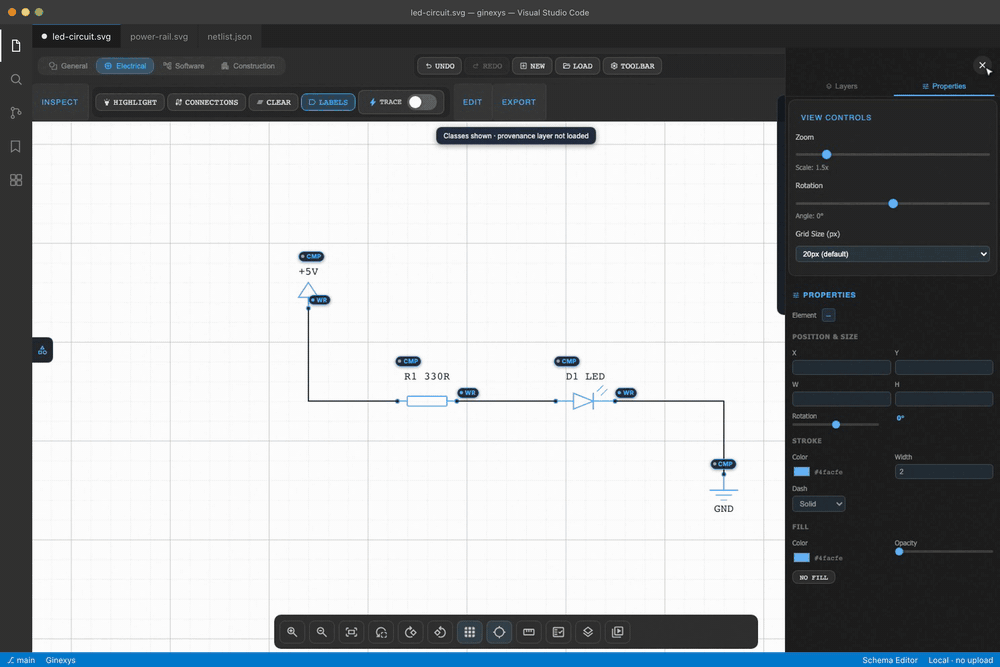

Measure — real dimensions on the drawing

Measure tool

Measurements are persistent document annotations with node editing, not a transient readout. Calibrate once to work in mm instead of px.

Install and use

Install this extension.
Right-click any .svg or .gschema file in Explorer.
Pick "Open with Schema Editor."

The diagram opens in a VS Code custom editor with full canvas controls, palette panels, and live wire routing.

Commands

Command	What it does
`Ginexys: Open with Schema Editor`	Open the active file in the editor
`Ginexys: Open Electrical Schema`	Open with the electrical palette active
`Ginexys: Open Software Diagram`	Open with the software palette (ERD, FSM, sequence)
`Ginexys: Open Construction Floorplan`	Open with the architectural palette

Each command also appears in the Explorer context menu.

File types

.svg · .gschema

The same custom editor handles both.

Domain modes

Electrical and PCB

Connectivity-focused symbols for passive components, ICs, and connectors. Built-in logic for netlist generation and BOM export. Intelligent Manhattan routing keeps wires orthogonal and clean as components move.

Software design

Build UML class diagrams, ERDs, and state machines. Auto-routing for sequence diagrams. Export ERDs as SQL DDL and FSMs as XState or Mermaid syntax.

Construction and AEC

Precision tools for architectural layouts. Symbols for walls, openings, MEP (mechanical, electrical, plumbing), and site utilities. Calibrated measurement system supporting metric and imperial units.

General

Generic SVG drawing with the full canvas and snapping engine, without a domain-specific symbol kit.

Key features

Intelligent Manhattan routing. Wires stay orthogonal as you drag components. No manual cleanup.
Real-time wire tracing. Click any wire to highlight the entire net's connectivity path.
Touch-optimized canvas. Smooth pan, zoom, and multi-touch on tablets or stylus devices.
Precision snapping. Grid, object, and pin-to-pin snapping for pixel-perfect engineering.
Layer management. Visibility, locking, stacking order, scene-graph view.
Live VS Code text sync. Edit the SVG markup in a text editor and the canvas updates after a 300ms debounce.
Multi-format export. SVG, JSON, SQL DDL (ERD), XState (FSM), Mermaid (sequence diagrams).
Cross-tool send. Push a netlist to TAFNE for BOM cleanup and editing.

Pro features

Some features require a Ginexys Pro account:

Pro symbol kits. AWS, Azure, GCP, Kubernetes, and DevOps branded icon kits.
Cross-tool send. Send netlists and back-annotations to TAFNE and PDF Processor.

Free symbols and all editing features remain available.

Requires

Ginexys Core Extension is a dependency. VS Code installs it automatically.

Part of the Ginexys pipeline

Schema Editor is the Engineer step:

Extract  (PDF/image to structured data)   PDF Processor
   v
Transform  (reshape, edit, clean)         TAFNE
   v
Engineer   (schematic / topology editor)  Schema Editor  (this extension)

Get the whole pipeline: Ginexys Developer Tools.

License

MIT. See LICENSE.

Source and issues

https://github.com/carnworkstudios/schema-editor

Web version

https://ginexys.com/tools/schema-editor/
