React Query Visualizer

React Query Visualizer is a VS Code extension for TanStack Query (React Query) that helps you debug query keys, cache invalidation/refetch flows, and impacted files with static source analysis.

Useful for searches like React Query visualizer, TanStack Query debugger, React Query dependency graph, invalidateQueries tracker, and React Query VS Code extension.

Open Source

This project is open source: https://github.com/fe-dudu/react-query-visualizer

If this extension saves you debugging time, please Star ⭐ this repo on GitHub

If this tool helps you, please star the repository and contribute improvements through issues and pull requests.

What It Does

The extension scans your project on demand and builds a graph:

File -> Action -> QueryKey

It helps answer:

• Where query keys are defined
• Which callsites invalidate, refetch, reset, or clear query caches
• Which files and projects are most impacted

Core Features

• On-demand scanning (Scan Now, Scan With Scope)

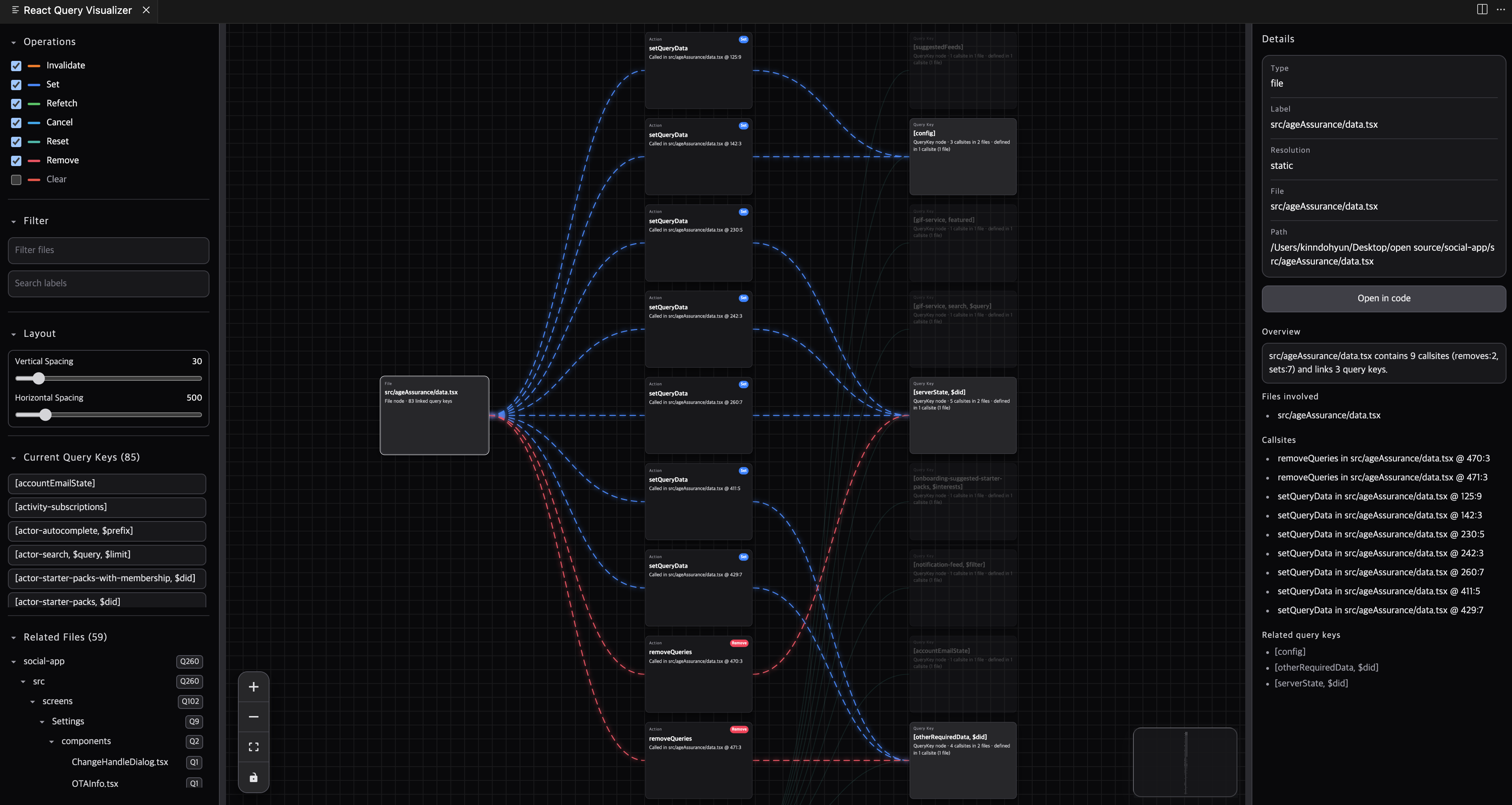

• React Flow graph view with details panel and code reveal
• File/action/query-key linkage with callsite locations
• Wildcard/prefix/exact query-key matching
• Predicate/exact option support for invalidateQueries, refetchQueries, resetQueries
• Monorepo-aware grouping and project-based impact boundaries
• Large-graph safety with query-key grouping/collapsing
• Tunable layout controls in panel (verticalSpacing: default 30, range 0-300; horizontalSpacing: default 500, range 100-3000)
• Related files tree with impact badges

React Query Coverage

Declare flows

• useQuery
• useInfiniteQuery
• useSuspenseQuery
• useSuspenseInfiniteQuery
• useQueries
• useSuspenseQueries
• usePrefetchQuery
• usePrefetchInfiniteQuery
• queryClient.fetchQuery
• queryClient.prefetchQuery
• queryClient.ensureQueryData
• queryClient.fetchInfiniteQuery
• queryClient.prefetchInfiniteQuery
• queryClient.ensureInfiniteQueryData

Query option helpers (key inference)

• queryOptions
• infiniteQueryOptions

Action flows

• queryClient.invalidateQueries
• queryClient.refetchQueries
• queryClient.resetQueries
• queryClient.removeQueries
• queryClient.setQueryData
• queryClient.setQueriesData
• queryClient.clear
• refetch() from hook results

UI Notes

• Operation filters control mutation relations (invalidate, refetch, reset, clear).
• Query key details include:
  • Files involved
  • Callsites
  • Declared in (when declaration callsites are detected)

Commands

• React Query Visualizer: Focus Activity View
• React Query Visualizer: Open Graph Panel
• React Query Visualizer: Scan Now
• React Query Visualizer: Scan With Scope
• React Query Visualizer: Reveal In Code

Settings

Scope

• rqv.scope.folders
• rqv.scope.include
• rqv.scope.exclude

Scan

• rqv.scan.maxFileSizeKB
• rqv.scan.useGitIgnore

Graph

• rqv.graph.renderer (react-flow)
• rqv.graph.direction (LR)
• rqv.graph.layoutEngine (dagre)
• rqv.graph.verticalSpacing (default: 30, min: 0, max: 300)
• rqv.graph.horizontalSpacing (default: 500, min: 100, max: 3000)

Local Development

Requirements:

• Node.js 24.8.0 (.nvmrc)
• pnpm 10+

1. Install dependencies:

nvm use
pnpm install

2. Build:

pnpm run build

3. Type-check:

pnpm run type-check

4. Package VSIX:

pnpm run package:vsix

Release Automation

Extension publish is automated with GitHub Actions for both marketplaces:

• Workflow file: .github/workflows/publish-vscode-extension.yml
• Trigger: push to main or manual run (workflow_dispatch)
• Release strategy: Changesets (.changeset/*)
• Secrets:
  • AZURE_ACCESS_TOKEN (used as VSCE_PAT for VS Code Marketplace)
  • OVSX_ACCESS_TOKEN (used as OVSX_PAT for Open VSX)

Typical release flow:

1. Add a changeset in your feature PR (pnpm changeset)
2. Merge PR to main (workflow creates/updates a version PR)
3. Merge version PR (workflow publishes to VS Code Marketplace and Open VSX)

Contributing

See contribution guide: CONTRIBUTING.md

Contributions of any size are welcome:

• parser and query-key inference improvements
• graph UX/layout improvements
• performance and stability
• docs and examples

License

MIT
