Codebase Architecture Visualizer
Instant architecture diagrams for 13 frameworks — no API key needed.
Available on VS Code, Cursor, VSCodium, and any editor using the Open VSX registry.
CodeSight analyzes your project statically and renders three interactive diagrams inside your editor: route hierarchy with HTTP methods, component trees, and DB schema with FK relations.
🖼️ How It Looks

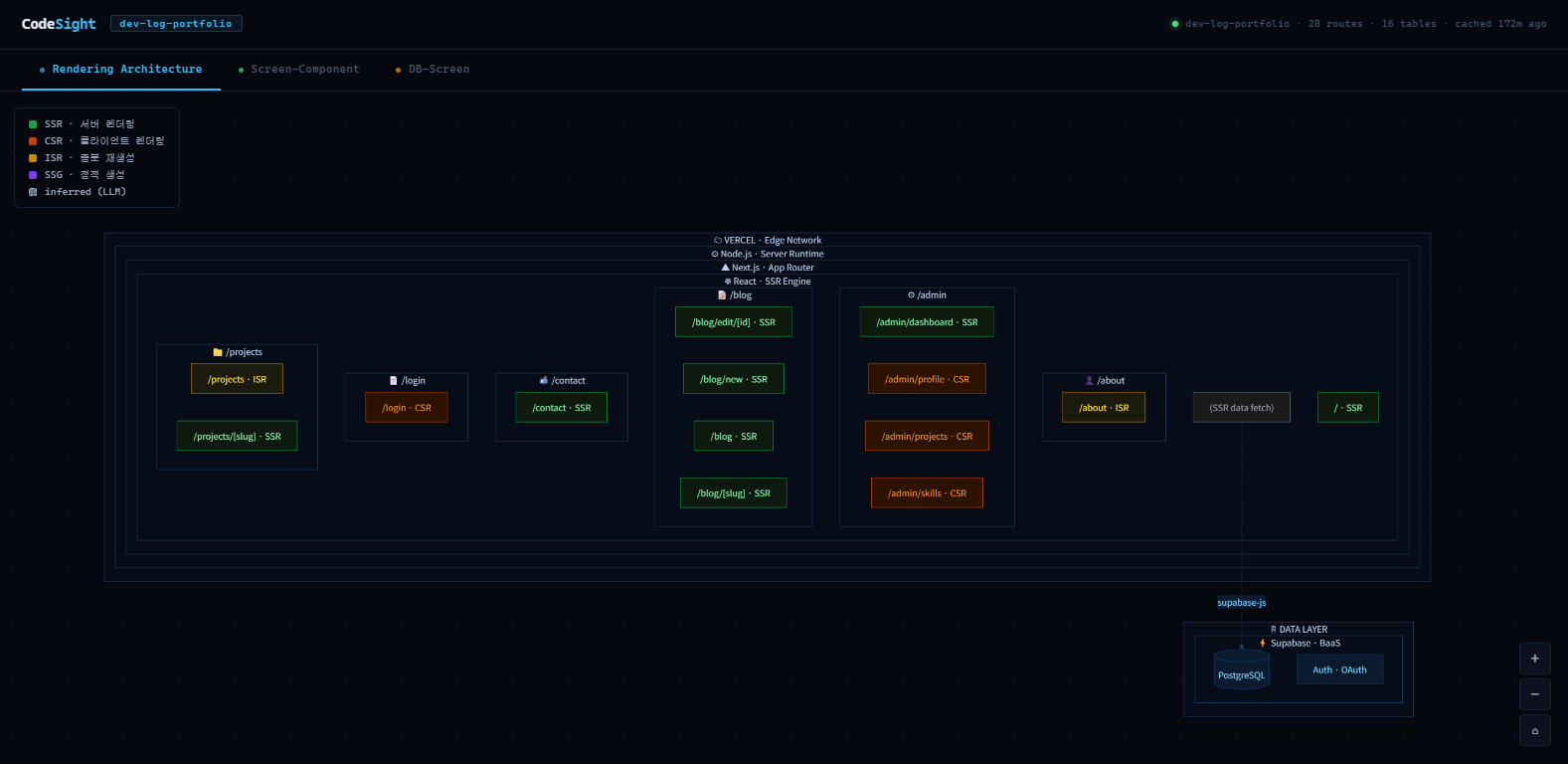

Routes & Components — at a glance
Switch tabs once and see every route, every component, with SSR/CSR/ISR/SSG labels colour-coded.
Mouse wheel to zoom, click and drag to pan — explore freely.

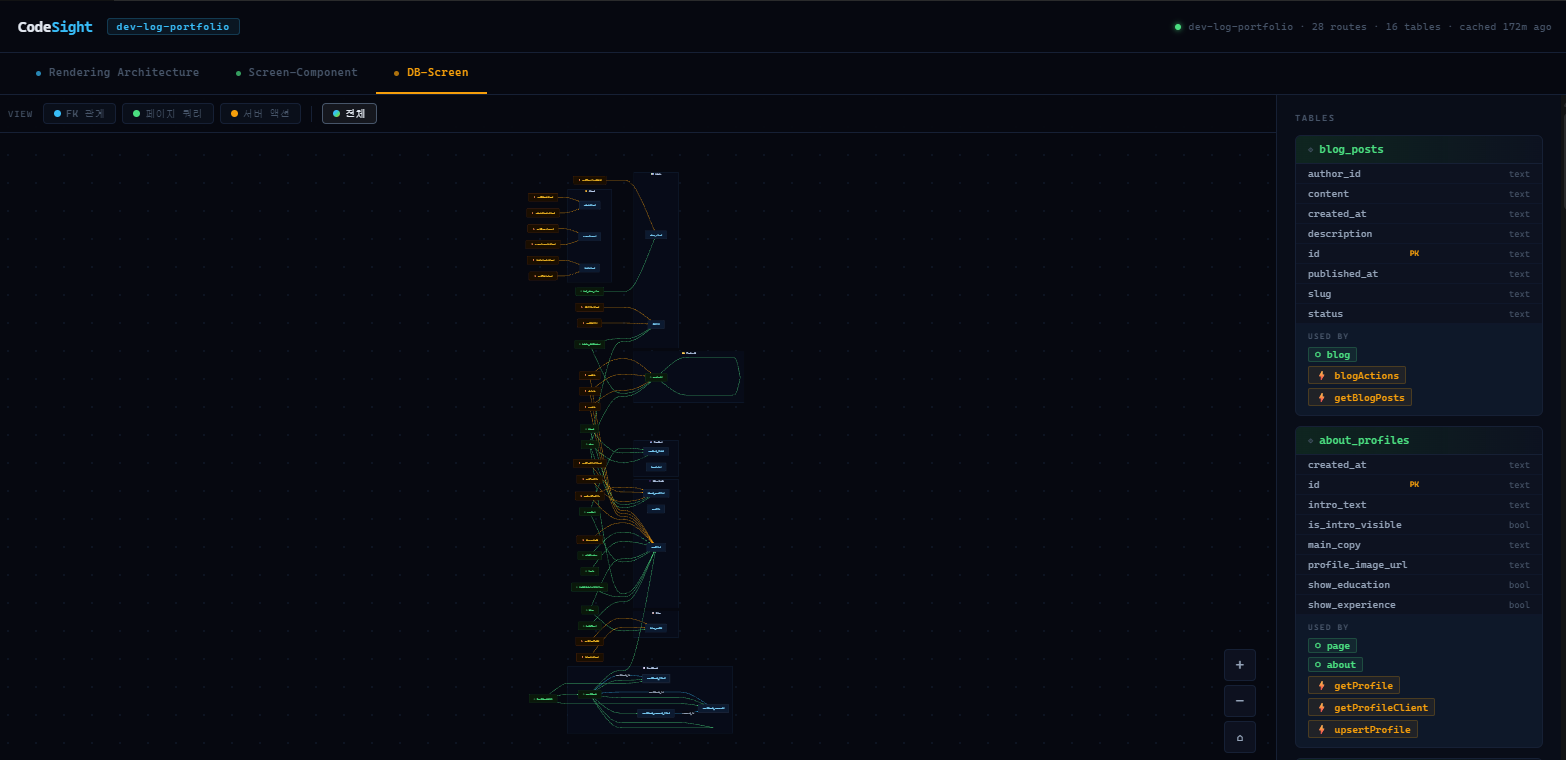

DB–Screen — four views, one click
Toggle between All / FK Relations / Page Queries / Server Actions to isolate what you need.
The right sidebar shows every column, FK, and which routes/actions query the table.

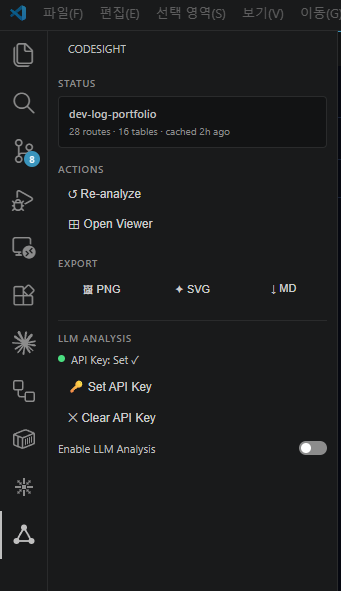

Control everything from the sidebar — analyze, re-analyze, open the viewer, export diagrams, and manage your API key.
🌐 Supported Frameworks
| Framework |
Level |
Routes |
Components |
DB |
| Next.js App Router |
L3 |
✅ SSR/SSG/ISR/CSR · .js/.jsx/.tsx |
✅ import graph |
✅ Supabase · Prisma · Drizzle · TypeORM |
| NestJS |
L2 |
✅ GET/POST labels · template literals |
✅ Controllers · Services · Modules |
✅ TypeORM entities + FK relations |
| Django |
L2 |
✅ CBV/FBV · re_path regex |
✅ View / ViewSet classes |
✅ models.Model + nullable/FK/db_table |
| FastAPI |
L2 |
✅ GET/POST labels · relative imports |
✅ Pydantic schemas |
✅ SQLAlchemy + nullable/type/tablename |
| Spring Boot |
L2 |
✅ GET/POST labels |
✅ @Service / @Repository |
✅ JPA @Entity + FK · MyBatis mapper XML |
| Flask |
L2 |
✅ Blueprint routes · HTTP methods |
✅ View classes |
✅ SQLAlchemy (Base / db.Model) + FK relations |
| SvelteKit |
L2 |
✅ +page/+layout/+server |
✅ .svelte + runtime tags |
✅ Supabase · Prisma · Drizzle · TypeORM |
| Nuxt |
L2 |
✅ pages/ |
✅ .vue SFC import graph |
✅ Supabase · Prisma · Drizzle · TypeORM |
| Next.js Pages Router |
L2 |
✅ SSG/ISR/SSR detection |
✅ component graph |
✅ Supabase · Prisma · Drizzle · TypeORM |
| Remix |
L2 |
✅ nested folder routes · splat (*) |
✅ component graph |
✅ Supabase · Prisma · Drizzle · TypeORM |
| React Router |
L2 |
✅ createBrowserRouter() |
✅ import chain |
✅ Supabase · Prisma · Drizzle · TypeORM |
| Vue SPA |
L2 |
✅ createRouter() |
✅ template renders graph |
✅ Supabase · Prisma · Drizzle · TypeORM |
| Angular |
L2 |
✅ provideRouter() · lazy loadComponent |
✅ template renders + lazy edges |
✅ Supabase · Prisma · Drizzle · TypeORM |
L3 = all 3 tabs always · L2 = routes + components + DB (DB shown when ORM detected) · L1 = routes only
Frameworks not in this list (Express, Hono, Rails, Go, etc.) use LLM primary mode when an Anthropic API key is provided.
✨ What's new in v1.2.53
Fixed — Tab1 architecture layers restored on large projects + standardized Tab2 spacing
- Tab1 always shows the full architecture now. Apps with more than 5 top-level domains used to fall into a chunked path that dropped the infrastructure stack (
Browser → Router → React) and the backend/data layer — leaving Tab1 as a bare URL tree. Tab1 is now a domain summary (one box per domain with a route count, e.g. 📁 partner · 24 routes); the detailed route/screen tree stays in Tab2. The summary is small, so Tab1 no longer chunks and always keeps its framework + backend layers.
- No more over-nested sub-domains in Tab1 (e.g.
matMgmt inside partner as its own layer) — that detail belongs to Tab2.
- Tab2 vertical connectors are tighter and uniform — domain/file trees no longer stretch the lines between layers unevenly.
Previous highlights
v1.2.52 — Large-project viewer loads ~4× sooner (progressive chunk streaming) and scrolls smoother (content-visibility); viewer-only
v1.2.51 — React Router bulk route omission (tsconfig path alias resolution) · Spring Boot large-domain "maximum size" sub-chunking · Tab1 many-domain readability grid
v1.2.50 — Spring DI chain 5-level fan-out (Lombok @RequiredArgsConstructor · MyBatis XML mapper) · React Router template-literal paths · src/pages domain layering
v1.2.49 — React Router parser fixes (pathless · dedup · array spread) · large-webview freeze fix (node-bound chunking + frame yield)
v1.2.47 — React Router alias/barrel/lazy import route tracing · full src code-quality pass
v1.2.45 — FE diagram standard v1.1 (top-level X-axis · nested Y-stack) · brand/folder unification
v1.2.44 — React Router .map() pattern regression fix · Vue/Angular Tab2 standard · Data Flow promotion
v1.2.42 — React Tab1/2/3 redesign · file-based FE adapters (6) Tab2 file-path nodes
v1.2.40 — Backend Tab1/Tab2 package tree standard (Spring · NestJS · Django · FastAPI · Flask)
✨ Features
| Tab |
What you see |
| Rendering Architecture |
Route hierarchy · HTTP method badges · SSR/CSR/ISR/SSG labels |
| Screen–Component |
Route → component renders/import graph · runtime tags (client/shared/server) |
| DB–Screen |
Tables · columns with types/nullable/FK arrows · mapper connections to routes |
Sidebar panel
- Detected framework, parsing level (L2/L3), route/table count, last cached time
- Analyze → Re-analyze button
- Open Viewer — opens the diagram panel
Two analysis modes
| Mode |
What you get |
API key |
| Static analysis |
Full L3 for Next.js App Router. L2 for all 12 other adapters. |
Not required |
| LLM-enhanced (BYOK) |
Fills gaps the static parser can't reach |
Required |
Quality-of-life
- Results cached in
.codesight/cache.json
- Offline-friendly — Mermaid bundled locally, no CDN
- Pure Node.js — Python/Java AST via bundled WebAssembly, no native installs
🚀 Getting Started
Install
- VS Code — search "Codebase Architecture Visualizer" in Extensions, or install from the Marketplace
- Cursor / VSCodium / code-server — search in Extensions panel (served via Open VSX)
Run
- Open your project folder (
File → Open Folder)
- Click the CodeSight icon in the Activity Bar → ▶ Analyze Project
- Explore the three diagram tabs
Or use the Command Palette (Ctrl+Shift+P):
CodeSight: Analyze Project
🤖 LLM Analysis (BYOK)
CodeSight uses Anthropic Claude for deeper enrichment on top of static analysis. Your key is stored in VS Code's SecretStorage and never sent anywhere other than Anthropic's API.
Setup
- Get an API key at console.anthropic.com
- Click 🔑 Set API Key in the sidebar
- Toggle Enable LLM Analysis
Model selection (codesight.model)
| Value |
Description |
claude-sonnet-4-6 |
Default — best balance |
claude-haiku-4-5-20251001 |
Faster, lower cost |
claude-opus-4-7 |
Highest quality for large codebases |
⚙️ Settings
| Setting |
Default |
Description |
codesight.enableLLM |
false |
Enable Claude-powered analysis |
codesight.model |
claude-sonnet-4-6 |
Claude model to use |
🔧 Commands
| Command |
Description |
CodeSight: Analyze Project |
Run analysis and open the viewer |
CodeSight: Set Anthropic API Key |
Store your API key securely |
CodeSight: Clear Anthropic API Key |
Remove the stored key |
📋 Requirements
- VS Code 1.90+ (or Cursor / VSCodium based on the same version)
- No additional runtimes — Python and Java AST via bundled WebAssembly
🔒 Privacy
- Your code is never sent anywhere in static-only mode
- In LLM mode, relevant source files are sent to the Anthropic API using your own key
- Anthropic's data handling: anthropic.com/privacy
- Results cached locally in
.codesight/cache.json
📦 Source
github.com/cubha/codesight — MIT License
