cdx-logics-vscode

VS Code extension that provides a visual orchestration panel for the Logics workflow (requests → backlog → tasks → specs), backed by the existing Markdown files in logics/*.

Features

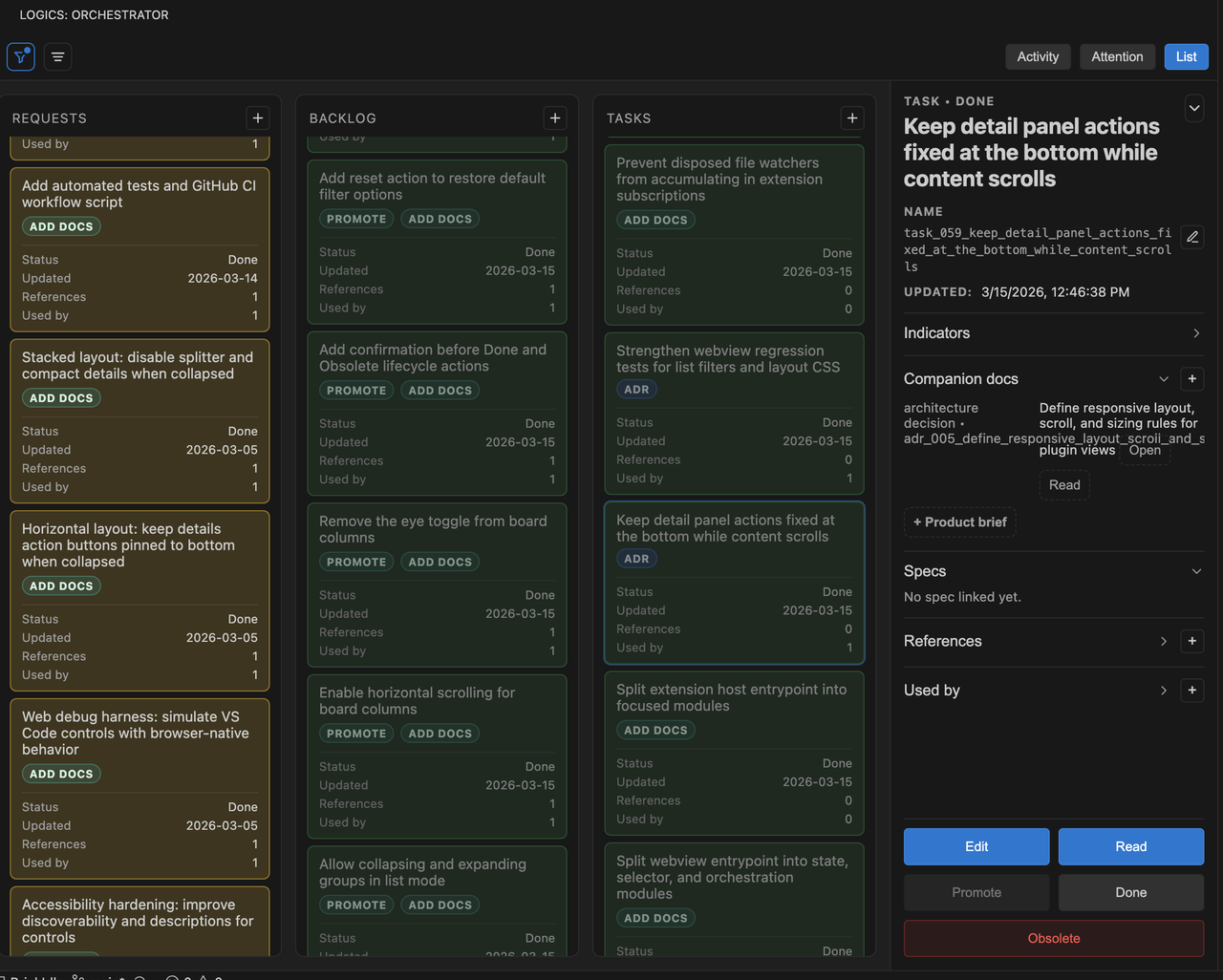

• Flow board view (Requests / Backlog / Tasks / Specs).

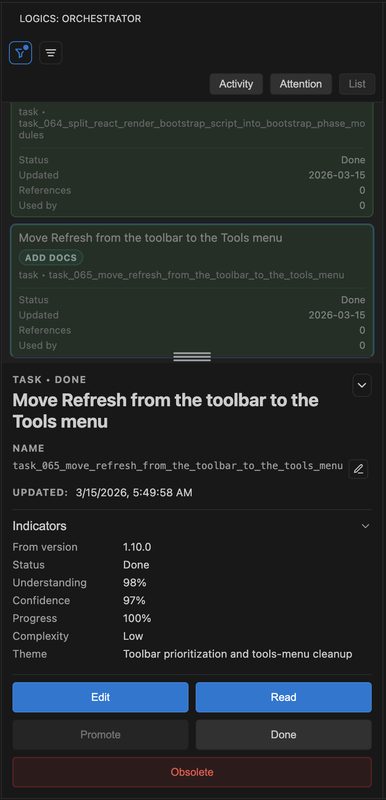

• Board/List display mode switch for compact navigation.
• Details panel with indicators and references (Promoted from / Derived from) + reverse “Used by”.
• Details lifecycle actions (Done, Obsolete) for fast status updates.
• Create new requests from the UI (uses Logics templates).
• Open, refresh, promote, bootstrap, and root-management actions from the UI.

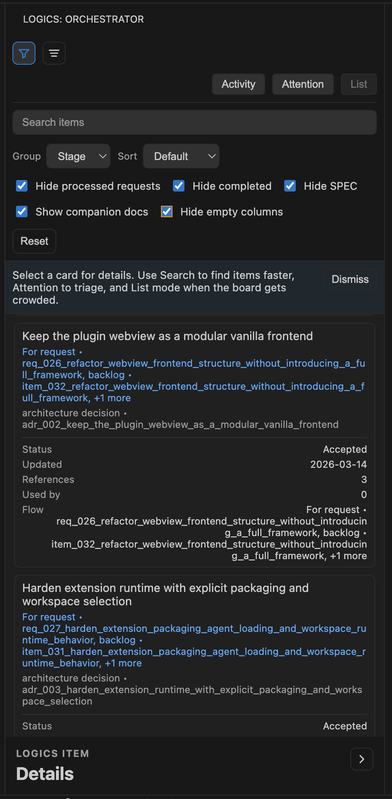

• Progress-based card styling + optional hide completed.

Requirements

• A workspace that contains a logics/ folder.
• Logics skills kit installed at logics/skills/ (for promote/new request).
• python3 available on PATH (required for Logics flow scripts).
• Node.js + npm (for build/package).
• VS Code CLI code available on PATH (for VSIX install).

Flow Manager Compatibility

• Minimum supported Logics kit baseline: v1.0.5+.
• Required script path: logics/skills/logics-flow-manager/scripts/logics_flow.py.
• If the script is missing or incompatible, create/promote actions fail with explicit error messaging in the extension.

Flow-manager smoke checklist

• Create a request from UI (New Request) and confirm markdown is generated.
• Promote request -> backlog and confirm links are updated.
• Promote backlog -> task and confirm task document is generated.
• Refresh board/details and confirm data remains consistent.

Installation

Install from Marketplace

https://marketplace.visualstudio.com/items?itemName=cdx-logics.cdx-logics-vscode

Install from VSIX (recommended for users)

code --install-extension cdx-logics-vscode-<version>.vsix --force

If you don't have the code CLI on PATH, enable it in VS Code: Command Palette → Shell Command: Install 'code' command in PATH.

Install from source (dev)

npm install
npm run compile
npm run test

Run the extension:

• In VS Code: Run → Start Debugging (F5)
• The Extension Development Host opens.
• Open the Logics panel at the bottom → Orchestrator.

Deploy / Release (VSIX)

1. Bump the version in package.json.
2. Build and package:

npm run package

This creates cdx-logics-vscode-<version>.vsix in the repo root.

3. Smoke-test the package locally:

npm run install:vsix

4. Distribute the .vsix (e.g., attach to a GitHub release or share internally).

Commands

• Logics: Refresh
• Logics: Open Item
• Logics: Promote Item
• Logics: New Request

Validation

• Compile: npm run compile
• Lint TS: npm run lint
• Unit tests: npm run test
• Logics docs lint: npm run lint:logics
• Full CI-equivalent local check: npm run ci:check

CI runs compile, lint, tests, Logics docs lint, and VSIX packaging validation on every push and pull_request via .github/workflows/ci.yml.

Webview Browser Debug

Run the harness server:

npm run debug:webview

Then open http://localhost:4173/ and switch scenarios from the in-page debug control.

In harness mode:

• Change Project Root uses browser-native directory selection fallbacks.
• Edit and Read open selected files in new browser tabs (preferring File System Access API content when available).
• Host-only actions (for example Promote, Fix Logics) show explicit guidance instead of silent no-op.
• Add ?debug-ui=1 to the harness URL to enable verbose UI state transition logs in browser console.

Accessibility Baseline

For new UI controls in this project:

• Every interactive control must expose an accessible name (aria-label or visible text).
• Icon-only controls must include a title tooltip for discoverability.
• Dynamic toggles must keep ARIA state in sync (aria-expanded, aria-disabled, aria-pressed).
• Custom interactive elements must be keyboard reachable (tabindex) and activatable (Enter/Space).
• Keep hover/focus descriptions consistent across toolbar, board, menus, and details panel.

Notes

• Promotion is only allowed for request/backlog items that are not already used.
• Items with Progress: 100% are treated as completed.
• The UI reads and writes the existing Markdown files; it does not manage a separate database.
• For stable references in the board/details panel, use canonical markdown links:
  • Derived from \logics//.md`` or Promoted from \...``
  • # Backlog section in requests
  • # References and # Used by sections with backticked relative paths
• Legacy nested list blocks (- References: / - Used by:) are also parsed for backward compatibility.
