Cisco Config Highlight

Syntax Highlighting for Cisco Device Configuration in Visual Studio Code.

日本語版: README.ja.md

This project is in the development stages.

Definitions may change in future versions.

[!NOTE]
Experimental Tool Release
A tool for customizing token definitions has been released.

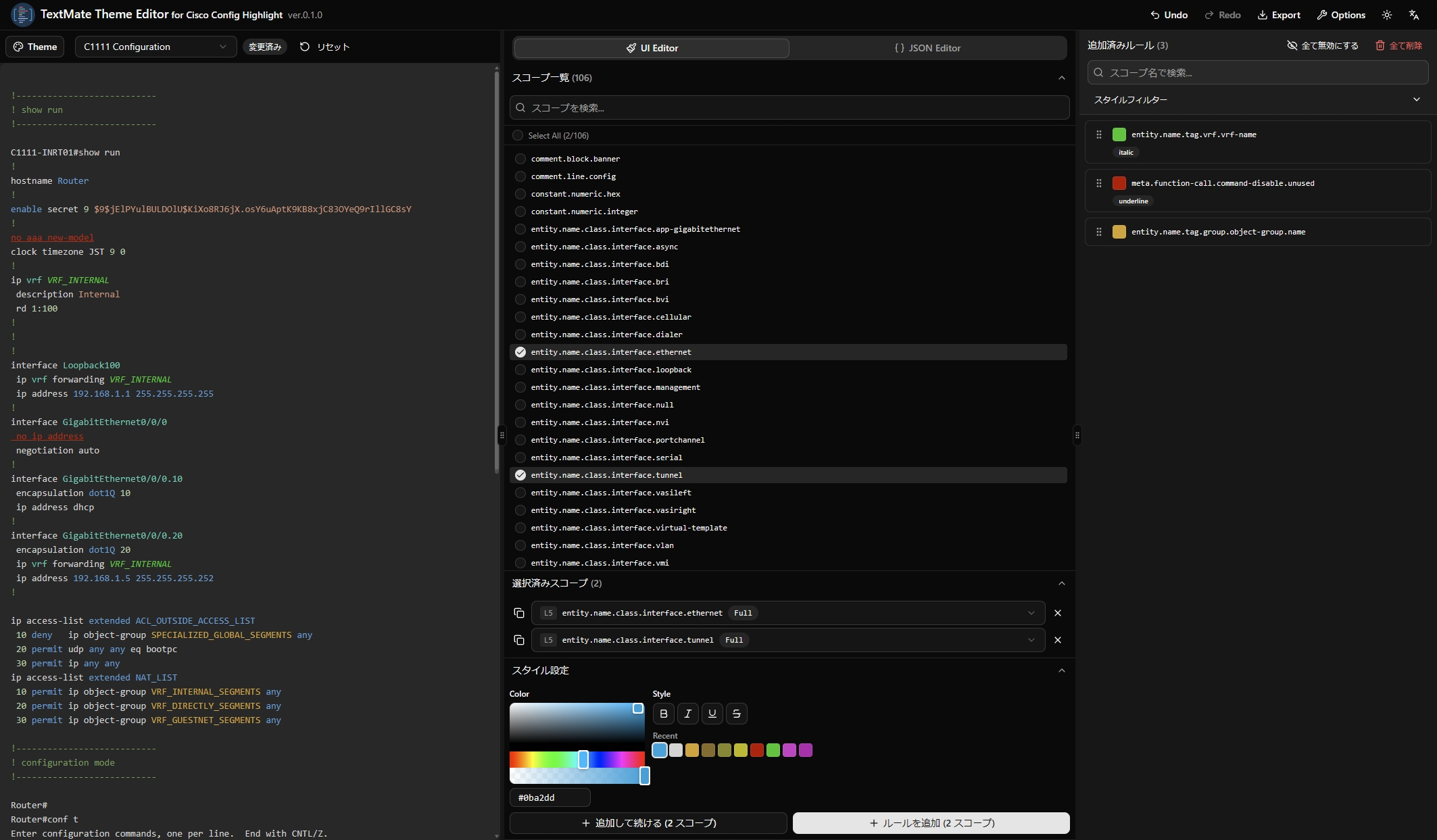

With the theme editor, you can customize colors and styles while checking the scopes of tokens.
This tool is an experimental feature and may change in the future.

• TextMate Theme Editor for Cisco Config Highlight

The theme editor is a web application that runs in the browser.

Features

This extension provides useful features for Cisco config text, including:

• Syntax highlighting
• Config outline (Experimental)

Installation

The extension for VS Code is available on the Visual Studio Marketplace and the Open VSX Registry:

• Visual Studio Marketplace - Cisco Config Highlight
• Open VSX Registry - Cisco Config Highlight

Supported Platforms

Syntaxes commonly used in configuration files are supported.

• IOS
• IOS-XE
• NXOS

The following platforms provide similar syntax highlighting for constructs that overlap with IOS:

• IOS-XR
• ASA

I would like to expand support for these platforms in the future.

Screenshot

[!NOTE]
All screenshots in this README use a custom theme (Y-Ysss/Daybreak Theme).

Token Color Customizations

The color of syntax highlighting depends on the theme you have enabled.

Not all highlighting settings are enabled in VSCode's default theme. For a better experience, I recommend using a custom theme or defining your own token color customizations.

If the colors are not defined in the currently activated theme, or if you want to customize the colors and style to your liking, you will need to edit the settings.json.

Open the settings and add the customization options to the JSON. (You can open the settings.json file by typing Preferences: Open Settings (JSON) in the command palette.)

For more information on how to customize the settings.json file, please refer to the following URL.

Visual Studio Code Documentation - Color Themes

Scope Hierarchy

Tokens follow a hierarchical structure, which allows you to abbreviate scopes when customizing them.

For example, consider the following two scopes:

• entity.name.class.interface.ethernet
• entity.name.class.interface.loopback

If you specify these scopes in full, the customization will apply only to those specific tokens.

However, if you use a higher-level scope such as:

• entity.name.class.interface

The customization will apply to all tokens under that scope. The higher (shallower) the level in the hierarchy, the broader the range of tokens affected.

VSCode settings.json customize sample

    "editor.tokenColorCustomizations": {
        "textMateRules": [
            {
                "scope": "entity.name.class.interface.ethernet",
                "settings": {
                    "foreground": "#328f16",
                    "fontStyle": "italic"
                }
            },
            {
                "scope": [
                    "keyword.other.address",
                    "constant.numeric"
                ],
                "settings": {
                    "foreground": "#cc0ca2",
                    "fontStyle": "underline"
                }
            }
        ]
    }

Token Scopes List

comment.block.banner
comment.line.config

constant.numeric.hex
constant.numeric.integer

entity.name.class.interface.async
entity.name.class.interface.bri
entity.name.class.interface.bvi
entity.name.class.interface.cellular
entity.name.class.interface.dialer
entity.name.class.interface.ethernet
entity.name.class.interface.loopback
entity.name.class.interface.management
entity.name.class.interface.null
entity.name.class.interface.portchannel
entity.name.class.interface.serial
entity.name.class.interface.tunnel
entity.name.class.interface.virtual-template
entity.name.class.interface.vlan
entity.name.class.interface.wireless
entity.name.class.interface.bdi
entity.name.class.interface.nvi
entity.name.class.interface.vmi
entity.name.class.interface.vasileft
entity.name.class.interface.vasiright
entity.name.class.interface.app-gigabitethernet

entity.name.class.vrf.declaration

entity.name.tag.acl.access-group.name
entity.name.tag.acl.access-list.name
entity.name.tag.acl.access-class.name

entity.name.tag.bgp.neighbor-peer-group.name
entity.name.tag.bgp.peer-group.name
entity.name.tag.bgp.peer-policy.name
entity.name.tag.bgp.peer-session.name

entity.name.tag.config-string.domain-name
entity.name.tag.config-string.hostname
entity.name.tag.config-string.logging-system-message
entity.name.tag.config-string.username
entity.name.tag.config-string.name
entity.name.tag.config-string.role

entity.name.tag.wireless.ssid.name

entity.name.tag.crypto.crypto-map.name
entity.name.tag.crypto.transform-set.name
entity.name.tag.crypto.ipsec-profile.name
entity.name.tag.crypto.isakmp-profile.name
entity.name.tag.crypto.keyring.name
entity.name.tag.crypto.key-chain.name

entity.name.tag.group.class-map.name
entity.name.tag.group.class.name
entity.name.tag.group.object-group.name
entity.name.tag.group.policy-map.name
entity.name.tag.group.pool.name
entity.name.tag.group.prefix-list.name
entity.name.tag.group.route-map.name
entity.name.tag.group.service-policy.name
entity.name.tag.group.policy-list.name
entity.name.tag.group.traffic-filter.name
entity.name.tag.group.community.name

entity.name.tag.event-manager.applet.name
entity.name.tag.event-manager.environment.name
entity.name.tag.event-manager.run.name
entity.name.tag.event-manager.action.label

entity.name.tag.vrf.vrf-name

keyword.other.acl.access-list.type
keyword.other.address.ipv4.cidr
keyword.other.address.ipv4.full
keyword.other.address.ipv6.condensed
keyword.other.address.ipv6.full
keyword.other.address.mac

keyword.other.config-keyword.add-remove.add
keyword.other.config-keyword.add-remove.except
keyword.other.config-keyword.add-remove.remove
keyword.other.config-keyword.allowed-native
keyword.other.config-keyword.any-all.all
keyword.other.config-keyword.any-all.any
keyword.other.config-keyword.in-out.in
keyword.other.config-keyword.in-out.out
keyword.other.config-keyword.input-output.input
keyword.other.config-keyword.input-output.output
keyword.other.config-keyword.inside-outside.inside
keyword.other.config-keyword.inside-outside.outside
keyword.other.config-keyword.match.all
keyword.other.config-keyword.match.any
keyword.other.config-keyword.permit-deny.deny
keyword.other.config-keyword.permit-deny.permit
keyword.other.config-keyword.shutdown
keyword.other.config-keyword.status.administratively-down
keyword.other.config-keyword.status.deleted
keyword.other.config-keyword.status.down
keyword.other.config-keyword.status.up
keyword.other.config-keyword.switchport-mode.access
keyword.other.config-keyword.switchport-mode.dynamic
keyword.other.config-keyword.switchport-mode.trunk
keyword.other.config-keyword.enable-disable.enable
keyword.other.config-keyword.enable-disable.disable
keyword.other.config-keyword.vlan
keyword.other.group.object-group.type

meta.function-call.command_hostname.privileged-mode
meta.function-call.command_hostname.user-mode
meta.function-call.command-disable.default
meta.function-call.command-disable.unused

punctuation.config-param.first

string.other.description
string.other.password
string.other.remark
string.other.secret
string.other.key-string

Experimental Features

• Show symbols in outline panel
• Multilingual support (settings page)

Show symbols in outline panel

Open the settings and enter a keyword in the search box. Select the check box to enable.

@ext:Y-Ysss.cisco-config-highlight showSymbolsInOutlinePanel

Supported symbols

• Command
  • hostname#{command name}
  • hostname>{command name}
• Virtual Routing and Forwarding(VRF)
  • ip vrf {vrf-name}
• Border Gateway Protocol(BGP)
  • router bgp {autonomous-system-number}
  • address-family ipv4 {unicast|multicast|vrf vrf-name }
• Group
  • class-map {match-any|match-all} name
  • policy-map {name}
• Interface
  • interface {type, slot, port, etc...}
  • e.g. interface GigabitEthernet0/0
• Sub Interface
  • interface {type, slot, port, etc...}.{number}

Multilingual support

Currently, only the settings page is available.

The following languages are supported:

• English
• Japanese

Notes

Highlighting in large files

If you want to enable highlighting in large files, change the following setting to false:

"editor.largeFileOptimizations": false

However, VSCode disables features on large files for performance reasons, and forcing VSCode to syntax highlight large files may result in poor editor performance.

Recommended Extensions

I recommend the following extensions for a better visual experience:

• Y-Ysss/Daybreak Theme
• Jarvis Prestidge/Sublime Material Theme

Requests or Issues

If you have any requests or issues, please open an Issue or submit a Pull Request on GitHub.

GitHub - Y-Ysss/vscode-cisco-config-highlight

License

MIT License Copyright (c) 2021 Y-Ysss
