QuecPython Vs Code Extension

Extension for handling interaction with QuecPython based modules. Communicate with Python based Quectel modules using the built-in REPL or AT CLI. Besides serial communication, extension provides out-of-the box module file system preview in a tree view. Users are free to opt using commands from the extension UI or execute raw commands via REPL.

Import Quectel projects, add compoenets to your project and view information about different solutions.

• Works with Windows only at the moment.

How to use

Using Package manger with VS Code

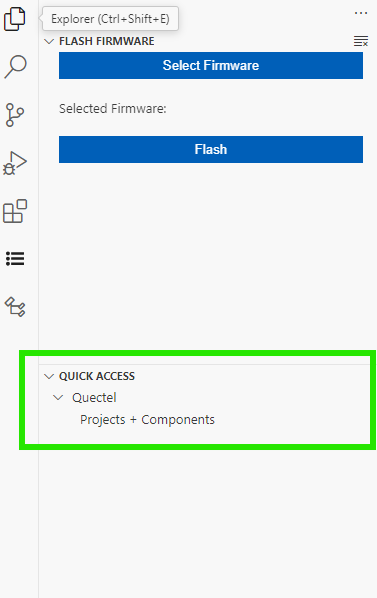

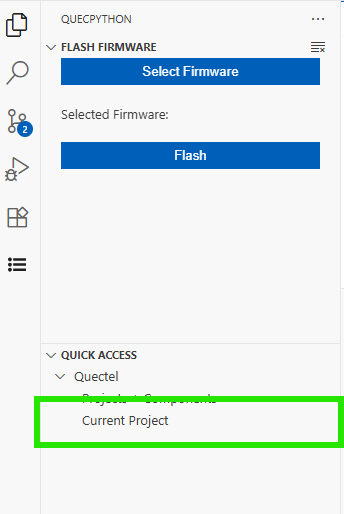

1. From QuecPython menu -> Quick Access -> Quectel -> Projects + Components

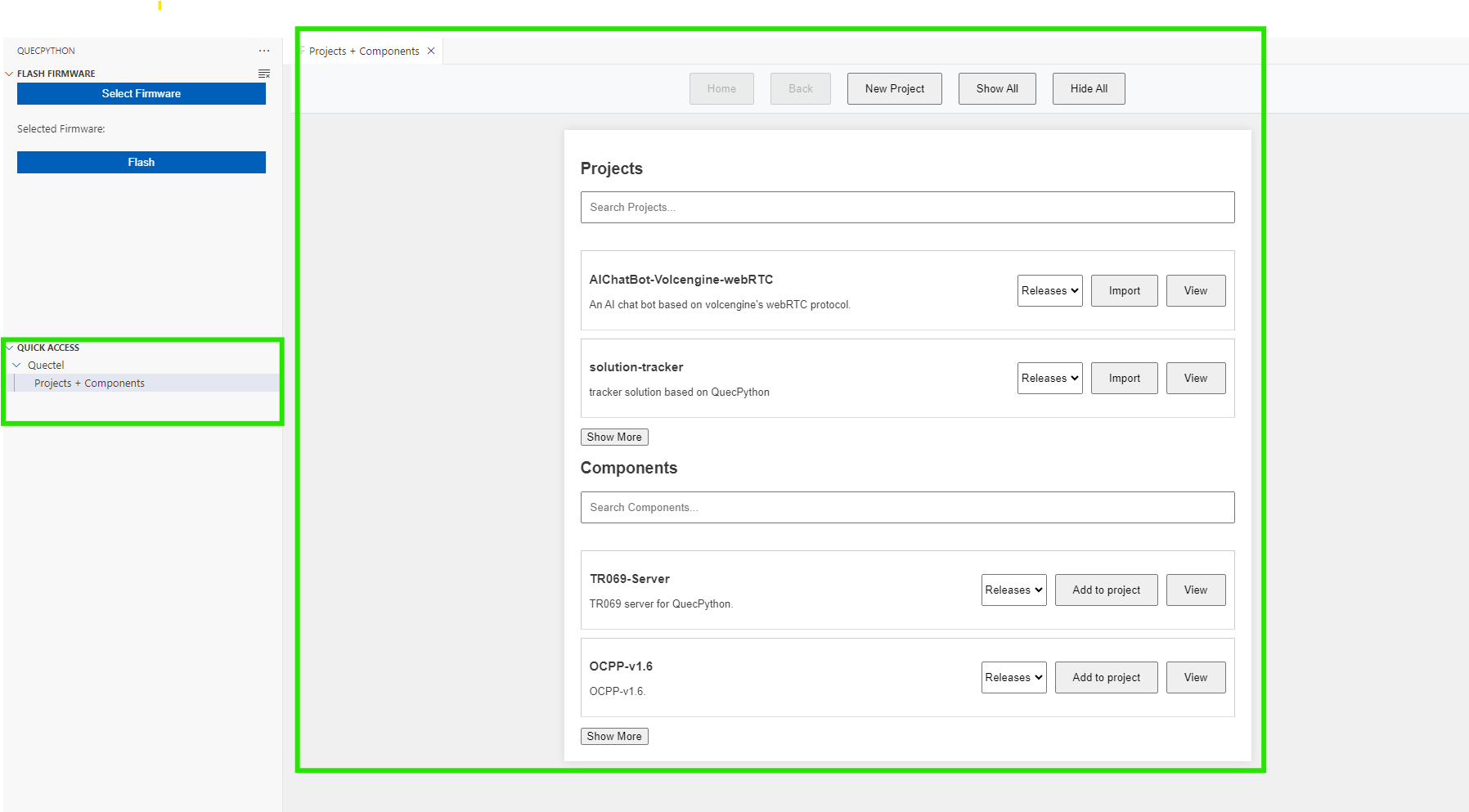

2. List of Projects + Components will show in the panel

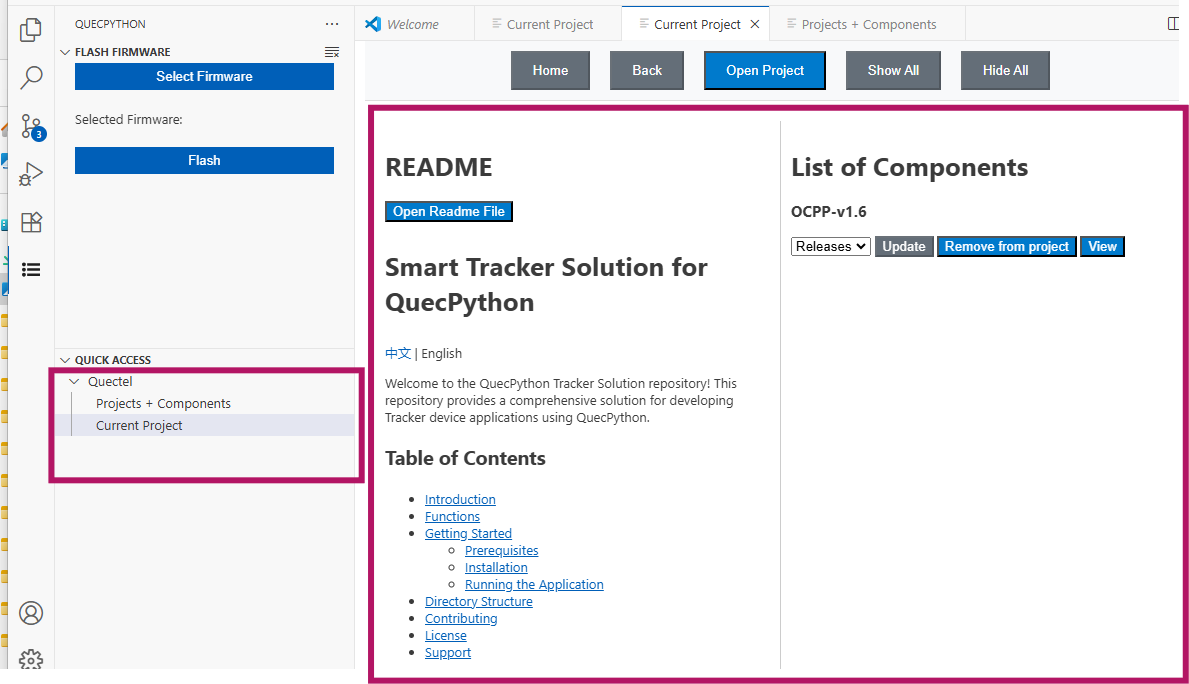

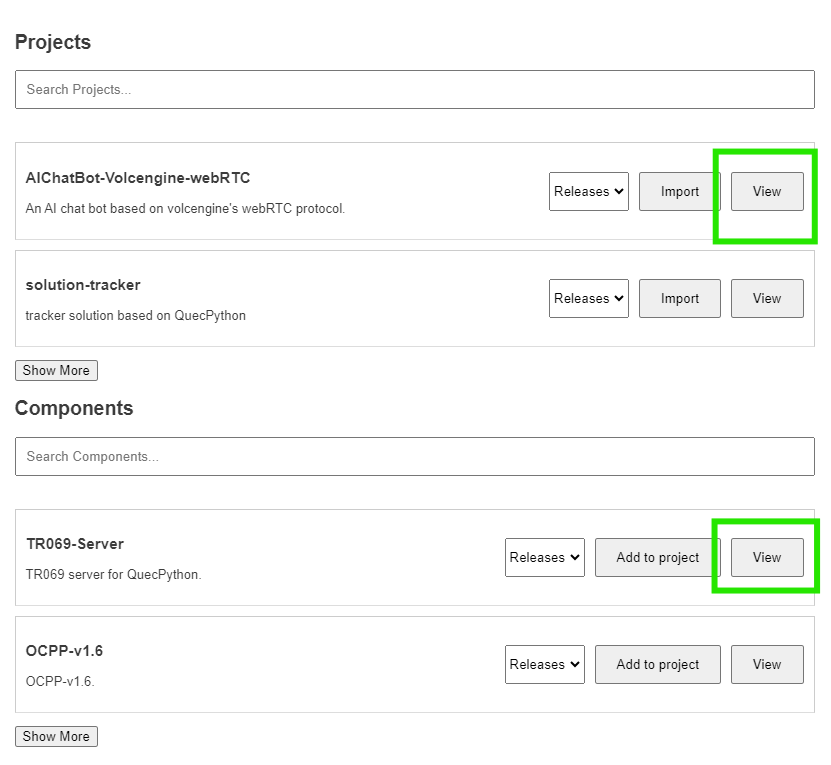

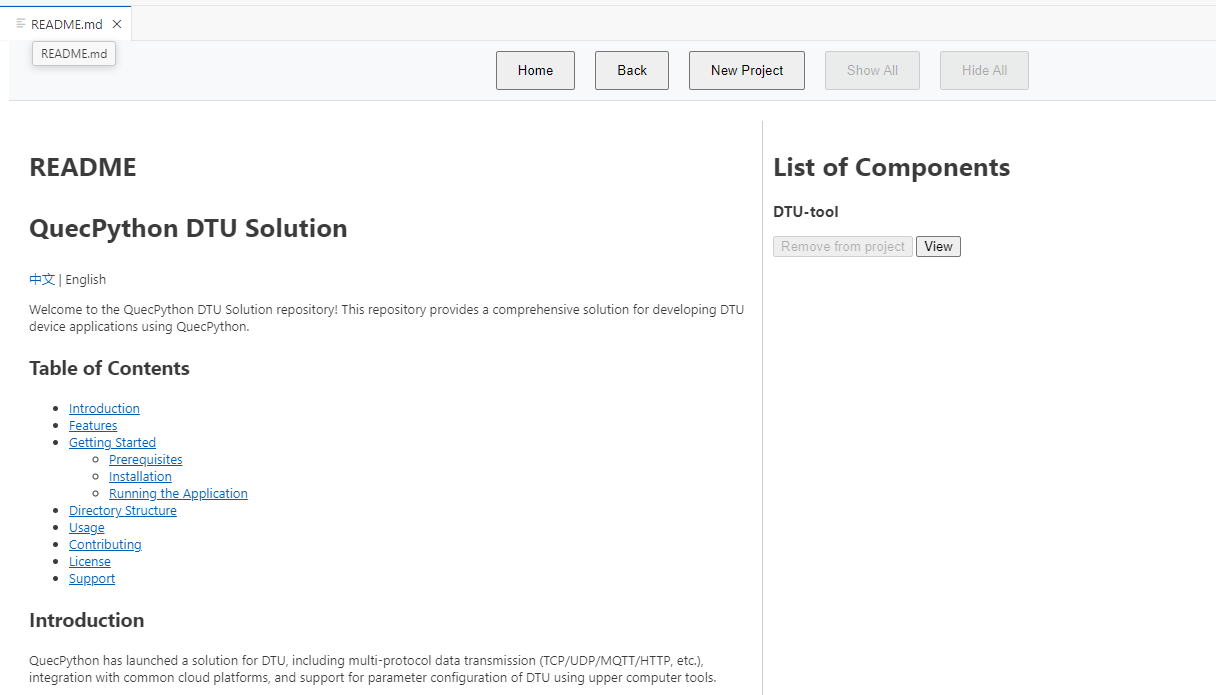

3. From the panel, you can view usig view button for a project of component, which will show readme + submodules for project or component.

Note: View button will always show the info of project, component or submodule.

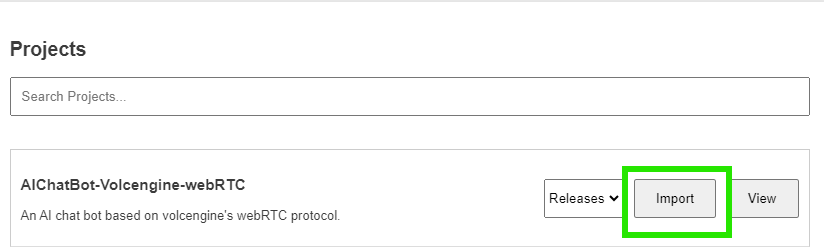

4. From Main Panel, Import button will clone the project to your machine.

• click import

• choose where to save the project
• please wait while the extension clone the project

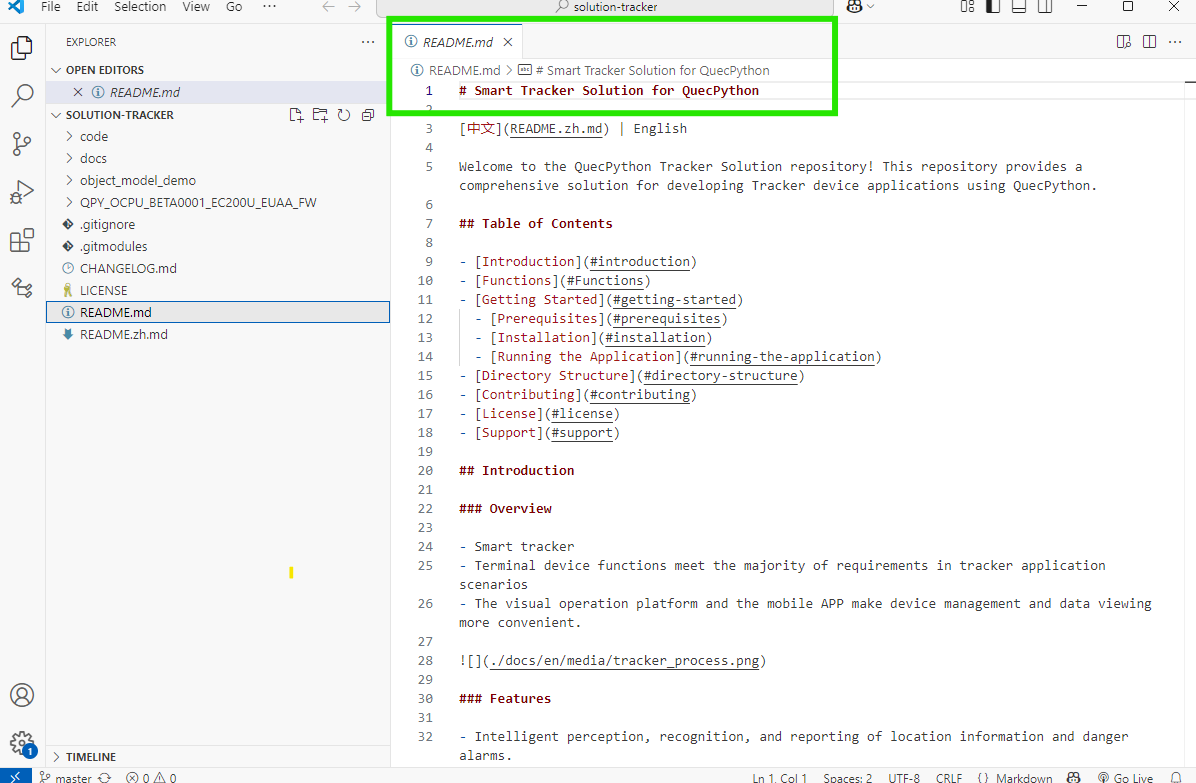

• when done, the extension will open the new project

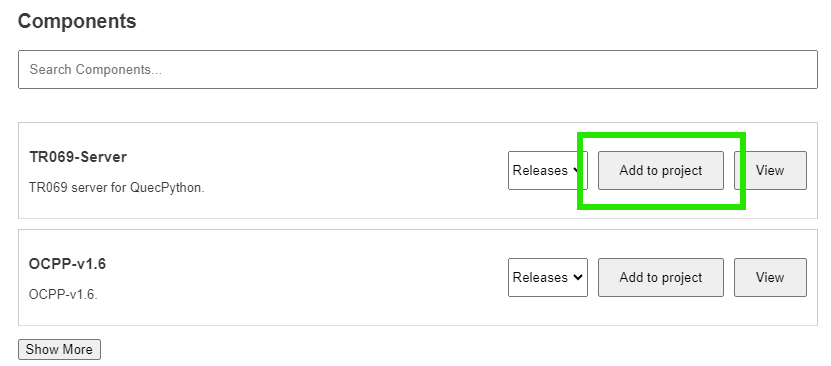

5. From Main Panel, Add to project button will clone the submodule to your current open project.

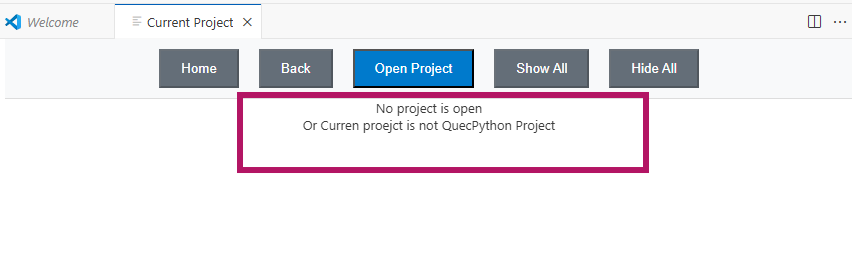

Note 1: Add to project will work only when there's an open project already. If there's no project open, the button will be disabled.

Note 2: Add to project and these submodules can be used and cloned with any of client QuecPython projects or with our projects from our github.

6. Banner buttons, and search fields are give a better experience while using the extension

• Show all / Hide All: Show or Hide all the items from projects + components list.
• New Project: Create a new project.
• Home: Redirect to main page (Not active when user is alraedy at main page).
• Back: go back to previouse page (active only when previouse page is avilable).
• Search Projects / Components: search the list of Projects or Components.
• Show More:show the list of Projects or Components.

Extension Requirements

• NodeJS installed on your system (12 or higher) - NodeJS

Supported Modules

• Support all QuecPython modules.

Usage

• Check User Guide on our site.

Open the serial connection by opening the commands palette the CTRL+SHIFT+P and running the command QuecPython: Connect to COM Port. or click statusbar button Connect.

Upon successful connection, the terminal will open with either REPL or AT CLI depending on the chosen port. The board can be disconnected from the VSC by killing the active serial connection terminal. When manually closing the terminal (x on the right top of the terminal) the connection stays active.

Extension Settings

This extension contributes the following settings for configuring it's usage:

• QuecPython.defaultLineTerminator: Text added to end of all sent lines. Will be appended to sent data but will not be rendered in terminal. Allows escape characters (\r, \n etc.), hex representation (\x6F, \xF8 etc.) and unicode representation (\u006F, \u00F8 etc.)
• QuecPython.translateHex: Set to true to translate incomming hex data. Set to false to output raw hex.

Commands list

• openConnection - Opens a connection with a serial port of choice
• closeConnection - Closes currently open connection
• qpy-ide.clearTerminal - Clears active terminal

Flashing Firmware

It is possible to flash firmware using built-in activity bar QuecPython. Steps for flashing are:

• Select firmware from the PC file system or select firmware from the online.
• Click Flash button

Known Issues

• There are cases when file system does not appear on boot-up, if that happens, please manually refresh the file system tree view.

To compile:

npm install -g vsce
vsce package

Release Notes

1.1.6

• compatible with vs code 1.100.2 or higher
• udpate packages
• update online firmware url
• enable auto-complete

1.1.5

• compatible with vs code 1.100.1 or higher
• add theme for package manager for dark/light themes

1.1.4

• compatible with vs code 1.99.3 or higher
• Update How-To-Use

1.1.3

• compatible with vs code 1.99.3 or higher
• add quick access menu with projects + components
• import quectel project
• add quectel component to current project
• view project or component readme

1.1.2

• compatible with vs code 1.98.2 or higher
• update packages and dependecies
• Add support for TEST BG950S fw

1.1.1

• compatible with vs code 1.98.1 or higher
• udpate list of modules
• fix minor issues

1.1.0

• compatible with vs code 1.98.1 or higher
• fix minor issue

1.0.13

• compatible with vs code 1.95.3 or higher
• fix create multiple dirs
• fix minor issue

1.0.12

• fix issue with firmware zip files
• update firmware download tool
• fix issue with EC200A module

1.0.11

• update dependecies
• remove clear project button

1.0.10

• Fix issues with flashing online firmware
• Fix issues with autocomplete
• Update libraries

1.0.8

• New feature for flashing firmware fool-proofing.
• Add log output function (console & file)
• Fix issues with flashing online firmware

1.0.7

• Fixed issues with create directory and remove directory commands probability failed.
• Added repl and flash firmware feature for supported module (support for all QuecPython modules).
• supported module list : [ 'EC600N', 'EC800N', 'EC200N', 'EG915N', 'EG912N', 'EC800K', 'EC600K','EG800M', 'EG810M', 'EC600M','EC600U', 'EC200U', 'EG915U', 'EG912U', 'EC600G', 'EC800G','EC600E', 'EC800E','EC200A','BC25','BG95', 'BG600L','FCM360W', 'FC41D'],
• new feature for download and flash online firmware. burning firmware can be selected directly on vscode. The plugin will automatically download the correct firmware from the official QuecPython official website according to the selected module and firmware version.
• new feature for display content of connect serial port. add connect button on status bar, and click connect button to open the serial port directly instead of selecting the module first.

1.0.6

• Fixed issues with repl

1.0.5

• Improved stability for firmware operations

1.0.4

• Added support for EC600U modules
• Added support for firmware flashing for EC600U modules
• Improved stability for file system tree view

1.0.3

• Added support for EC600S_CNLA and EC600S_CNLB
• Added firmware flashing feature for supported modules

1.0.2

• Fixed issue with downloading files
• Fixed issues with connectivity

1.0.1

• Fixed issue with removing directory
• Fixed issue with removing files

1.0.0

• Initial version of QuecPython VSCode Extension

new feature about directly burning online firmware

According to the prompts, you can directly select the firmware provided by QuecPython on the vscode page.

After selecting the module and firmware version you want to burn, You can directly burn the selected firmware.

In addition, local firmware files can also be selected for burning.
