FailSafe — Safety layer for AI coding agents

Prevent runaway AI edits, hallucinated dependencies, and destructive refactors before they break your codebase.

FailSafe runs locally inside VS Code and Cursor. It monitors what AI agents do, applies deterministic policy checks at the editor boundary, and gives you full visibility into every decision — before code ships.

Current Release: v4.9.9 (2026-03-17)

What's New in v4.9.9

Bugfix release: Install Skills button now works, and the Brainstorm Prep Bay (microphone, voice controls) is visible again in the Command Center.

Fixed

• Install Skills button now correctly finds bundled skills and scaffolds them into the workspace.
• Brainstorm Prep Bay, topology legend, and AI extraction tiers visible in the right panel when Mindmap sub-view is active.
• Right panels for all TabGroup sub-views (Operations, Transparency, Skills) are now properly surfaced.

What's New in v4.9.0

Agent Run Replay & Governance Decision Contracts — capture full execution traces from AI coding agents and replay them step-by-step with governance decision overlay.

Added

• Agent Run Replay — Record and replay complete agent sessions with step navigation, file-level diff inspection, and governance decision cards (B146).
• Governance Decision Contracts — Typed decision pipeline converting raw sentinel events into structured GovernanceDecision objects with risk categorization and mitigation suggestions (B147).
• New command: FailSafe: Show Run Replay.

Security

• 3 fixes: XSS in onclick handlers, path traversal in file viewer, re-entrancy in run recorder.

What's New in v4.8.0

Agent Debugging & Stability Monitoring Suite — dedicated panels for agent execution timeline, risk indicators, and shadow genome debugging.

Added

• Agent Execution Timeline — Step-by-step visualization of agent actions with governance decision overlay (B142).
• Risk & Stability Indicators — Real-time agent health status with observe-mode notification and fallback logic (B143).
• Shadow Genome Debugging Panel — Interactive browser for failure patterns with filtering and pattern details (B144-B145).
• New commands: FailSafe: Agent Health Status, FailSafe: Agent Execution Timeline, FailSafe: Shadow Genome Debugger.

What's New in v4.7.2

Performance improvements and bug fixes for the FailSafe extension.

Fixed

• L3 escalation resilience: Added try/catch blocks around L3 queuing in L3ApprovalService and VerdictRouter to prevent potential crashes on connection failures.

Performance

• Concurrent Folder Manifold Calculation: Shifted folder processing from sequential to concurrent using Promise.all, showing improved execution time during workspace initialization.

What's New in v4.7.0

Agent Marketplace and Microsoft Agent Governance Toolkit integration — discover, install, and manage external agent repositories with HITL security gates and automated vulnerability scanning.

Added

• Agent Marketplace — Skills tab sub-section with curated catalog of 11 external agent repos (AutoResearch, AutoGen, TaskWeaver, PyRIT, Garak, Promptfoo, Dify, and more) across Autonomous, Safety, and UI categories.
• HITL Security Gates — Nonce-based approval tokens for installation confirmation with repo URL, author, permissions, and sandbox options.
• Security Scanner Integration — Garak/Promptfoo CLI integration for vulnerability scanning with L1/L2/L3 risk grades.
• Microsoft Agent Governance Toolkit Adapter — Python package (agent-failsafe) bridging FailSafe to agent-os, agent-mesh, agent-hypervisor, and agent-sre.

What's New in v4.6.6

Workspace isolation and repository governance — multiple VS Code windows can run FailSafe independently, and external workspaces can be validated against governance standards.

Added

• Repository Governance as a Service — Validates workspaces against REPO_GOVERNANCE.md standards (structure, root files, GitHub config, commit discipline, security posture) with automated grading (A-F).
• Compliance metric in Monitor — Workspace Health grid displays compliance grade with color-coded indicator and violation tooltips.
• Multi-workspace support — Server registry tracks active instances; workspace selector in Command Center enables switching between connected workspaces.
• S.H.I.E.L.D. phase tracker — Parses META_LEDGER.md to detect current governance phase and provide context-aware next steps.

What's New in v4.6.5

Cross-agent skill consolidation — all SHIELD skills migrated from legacy .claude/commands/ to modern .claude/skills/{name}/SKILL.md format. Agent definitions separated to .claude/agents/. ModelAdapter output directories corrected for all 5 supported platforms. VSIX bundling de-complected (skills only, no agents).

Changed

• Skills migrated to SKILL.md format — 17 SHIELD skills + 3 personas now use directory-based .claude/skills/ql-*/SKILL.md with YAML frontmatter, matching modern Claude Code SDK conventions.
• Agents separated — 7 agent definitions moved to .claude/agents/ql-*.md with subagent frontmatter. Claude Code loads these natively without extension scaffolding.
• ModelAdapter output dirs fixed — Claude (.claude/skills/), Codex (.agents/skills/), Gemini (.gemini/skills/), Copilot (.github/skills/), Cursor (.cursor/rules/) all corrected.
• getOutputPath simplified — Directory-based output ({name}/SKILL.md) is now the default; only Cursor uses flat files.
• VSIX bundling de-complected — Agents removed from bundle patterns, eliminating scaffold collision. Directory-based skill bundling added.
• Antigravity restructured — Genesis/Qorelogic directories replaced with skills/ql-*/SKILL.md + agents/ layout.
• Stale duplicates removed — FailSafe/Claude/ (20 files) deleted; 12 quarantined skills cleaned up.
• Cross-agent instruction file — AGENTS.md created at repo root for Codex/Copilot/Cursor/Windsurf compatibility.

What's New in v4.6.4

Governance state integrity remediation — trust data that was transient or fabricated is now persisted, verified, and kept in sync.

Fixes

• Trust state no longer transient — Agent trust scores, quarantine status, and verification counts now persist through EventBus-driven cache invalidation. Every trust mutation writes to SQLite and rebuilds the in-memory cache from DB.
• Trust timestamps are real — Audit trails reflect actual DB updated_at instead of fabricated call-time timestamps.
• Checkpoint chain verified on startup — No longer assumes valid. Auto-verifies integrity and flags failures.
• Version display fixed — Command Center hub snapshot reads version from package.json (was hardcoded 4.4.0).

Added

• Optimistic locking for trust persistence — Concurrent agent trust writes use version-based concurrency control with automatic retry, preventing silent data loss from race conditions.

Changed

• TrustEngine refactored — 449-line monolith split into TrustEngine (223L), TrustPersistence (167L), and TrustCalculator (40L) for Section 4 Razor compliance.

What's New in v4.6.3

Fixes

• Console Server accessible again — Fixed latent Express dotfile protection bug that caused 404 errors when extension was installed in dotfile directories (.vscode/, .antigravity/).
• Monitor & Command Center Parity — Build steps, debug sessions, and recently completed items now track live in the sidebar. L3 approval queue auto-prunes expired requests. Command Center surfaces Sentinel critical alerts with verdict banners and status-aware mission strip coloring.

What's New in v4.6.1

Fixes

• Missing sidebar icon restored — activity bar now shows the FailSafe shield.
• Release Pipeline no longer fails on tag-based CI runs (detached HEAD).
• Icon validation added to preflight gate to prevent missing asset regressions.

What's New in v4.6.0

Section 4 Razor Decomposition

• ConsoleServer.ts: 3265L decomposed to 1124L with 5 extracted route modules (Brainstorm, Checkpoint, Actions, TransparencyRisk) and 7 service modules (SkillParser, SkillFrontmatter, SkillRegistry, SkillDiscovery, SkillRanker, CheckpointStore, CheckpointUtils).
• stt-engine.js: 400L decomposed to 249L with 4 extracted modules (whisper-loader, silence-timer, wake-word-listener, live-transcriber).
• EnforcementEngine.ts: 250L decomposed to 122L with 4 enforcement evaluators (Observe, Assist, Enforce, IntentAutoCreator).

Voice Brainstorm Fixes

• rAF batching for graph mutations prevents forced reflows during rapid node updates.
• TTS error handling now surfaces actual error messages instead of [object Object].
• Node type taxonomy: Idea, Decision, Task, Constraint with color-coded categories.
• Modal waveform visualizer renders via onAnalyser callback.

Release Tooling & Governance

• Hook toggle UI in Console Settings panel with enable/disable controls.
• Release gate now validates backlog duplicates, version summaries, and help doc markers.
• Governance doc storage consolidated to .failsafe/governance/ with /ql-organize Phase 6 compliance checking.

Voice-Brainstorm Status

Implemented. Console Mindmap tab supports mic capture, STT/TTS roundtrip, transcript-to-graph extraction, and confidence-based node coloring. Requires vendored Whisper/Piper runtime assets.

Under the Hood

• Socket.dev compliance: deprecated API removal and post-build pattern sanitization for clean scan scores.
• Circular dependency between SkillRegistry and SkillDiscovery eliminated.
• Operator help docs (COMPONENT_HELP.md, PROCESS_GUIDE.md) updated to v4.6.0.

We'd love your review! If FailSafe is useful to you, please leave a review on the VS Code Marketplace or Open VSX. Your feedback helps other developers discover FailSafe and directly shapes its roadmap. Bug reports and feature requests welcome on GitHub Issues.

Quick Start

1. Install FailSafe from the VS Code Marketplace or Open VSX.
2. Open a workspace in VS Code or Cursor.
3. Run FailSafe: Open Command Center (Browser Popout) or press Ctrl+Alt+F.
4. Run FailSafe: Set Up Agent Governance to inject governance rules into detected agents.
5. Run FailSafe: Audit Current File to generate a governance verdict for the active editor.
6. If you want commit-time guardrails, run FailSafe: Install Commit Hook inside a git workspace with curl available on the path.

Bundled Documentation

• docs/COMPONENT_HELP.md - every shipped surface, metric group, and governance component in one place
• docs/PROCESS_GUIDE.md - setup, audits, commit hooks, provenance, break-glass, replay, rollback, and troubleshooting flows

Core Commands

Command	Purpose
FailSafe: Open Command Center (Browser Popout)	Open the main governance console in a browser window
FailSafe: Open Command Center (Editor Tab)	Open the governance console in an editor tab
FailSafe: Audit Current File	Run a manual audit on the active file
FailSafe: Set Governance Mode	Switch between observe, assist, and enforce
FailSafe: Set Up Agent Governance	Detect supported agents and inject governance rules
FailSafe: Install Commit Hook	Add the authenticated pre-commit governance hook to the current repository
FailSafe: Remove Commit Hook	Remove the FailSafe pre-commit governance hook and token file
FailSafe: Activate Break-Glass Override	Start a time-limited emergency override
FailSafe: Replay Verdict (Audit)	Re-run a prior governance decision for comparison
FailSafe: Revert to Checkpoint (Time-Travel)	Restore a recorded governance checkpoint

What FailSafe Does

FailSafe separates system awareness from system control.

The Monitor provides real-time visibility into system health, governance posture, and operational risk. The Command Center is the primary control surface for planning, audits, checkpoints, and agent governance.

• Save-time intent gate that can block writes outside an active intent
• Sentinel daemon for file-change audits in heuristic, llm-assisted, and hybrid modes
• SOA ledger with local audit history and checkpoint summaries
• MCP server support for external tools that need audit and ledger hooks

QoreLogic: The Governance Layer

QoreLogic is the deterministic governance engine that enforces safety policies at the editor boundary. It operates on a fundamental principle: governance decisions are made by code, not by asking an LLM to follow rules.

Prompt Guidelines vs. Deterministic Governance

Aspect	Prompt-Based Safety	QoreLogic Deterministic Governance
Decision Maker	LLM interprets rules	TypeScript code executes rules
Consistency	Varies with context, temperature, model	Identical output for identical input
Auditability	Opaque reasoning chain	Explicit code path, logged decisions
Bypass Risk	LLM can ignore or reinterpret	Code cannot be persuaded
Speed	Network latency + inference	Sub-millisecond local execution

How QoreLogic Works

1. Risk Classification — Files are classified as L1 (low), L2 (medium), or L3 (high) risk based on:

   • File path triggers (e.g., auth/, payment/, credential → L3)
   • Content triggers (e.g., DROP TABLE, api_key, private_key → L3)
   • Configurable via .failsafe/config/policies/risk_grading.json

2. Policy Evaluation — Each risk grade has deterministic requirements:

   • L1: Heuristic check, 10% sampling, auto-approve
   • L2: Full Sentinel pass, no auto-approve
   • L3: Formal verification + human approval required

3. Ledger Recording — Every governance decision is recorded to an append-only SOA ledger with:

   • Agent identity and trust score
   • Artifact path and risk grade
   • Timestamp and decision rationale

4. Trust Dynamics — Agent trust scores evolve based on outcomes:

   • Approved L3 actions → trust increase
   • Rejected or failed actions → trust decrease
   • Trust scores influence future routing decisions

Why Deterministic Matters

When an LLM is asked to enforce safety rules, it can:

• Reinterpret rules based on context
• Produce inconsistent decisions across similar inputs
• Be influenced by prompt engineering attacks

QoreLogic avoids these risks by executing deterministic TypeScript code at the governance boundary. The policy engine uses simple string matching and path analysis—no LLM inference required for governance decisions.

Example: A file containing api_key will always trigger L3 classification. No prompt can persuade the code to ignore this trigger.

Safety Alert

FailSafe Blocked: AXIOM 1 VIOLATION: No active Intent exists.
Remediation: Create an Intent before modifying files.

[Create Intent] [View Active Intent]

Features

1. Governance Modes

FailSafe now supports three governance modes to match your workflow needs:

Mode	Behavior	Best For
Observe	No blocking, just visibility and logging. Zero friction.	New users, exploration, learning
Assist	Smart defaults, auto-intent creation, gentle prompts. Recommended.	Most development workflows
Enforce	Full control, intent-gated saves, L3 approvals.	Compliance, regulated industries

Switch modes via:

• Command: FailSafe: Set Governance Mode
• Settings: failsafe.governance.mode

2. Save-Time Governance Gate

FailSafe evaluates save operations against the active Intent and can block writes when no active Intent exists or when a file is out of scope.

3. Sentinel Monitoring and Audits

• File watcher queues audits for code changes
• Manual audits via command
• Modes: heuristic, llm-assisted, hybrid (LLM uses the configured endpoint)

4. SOA Ledger and L3 Queue

• Append-only ledger database for audit entries
• L3 approvals surfaced in the UI

5. UI Screens

• FailSafe Monitor (compact view)

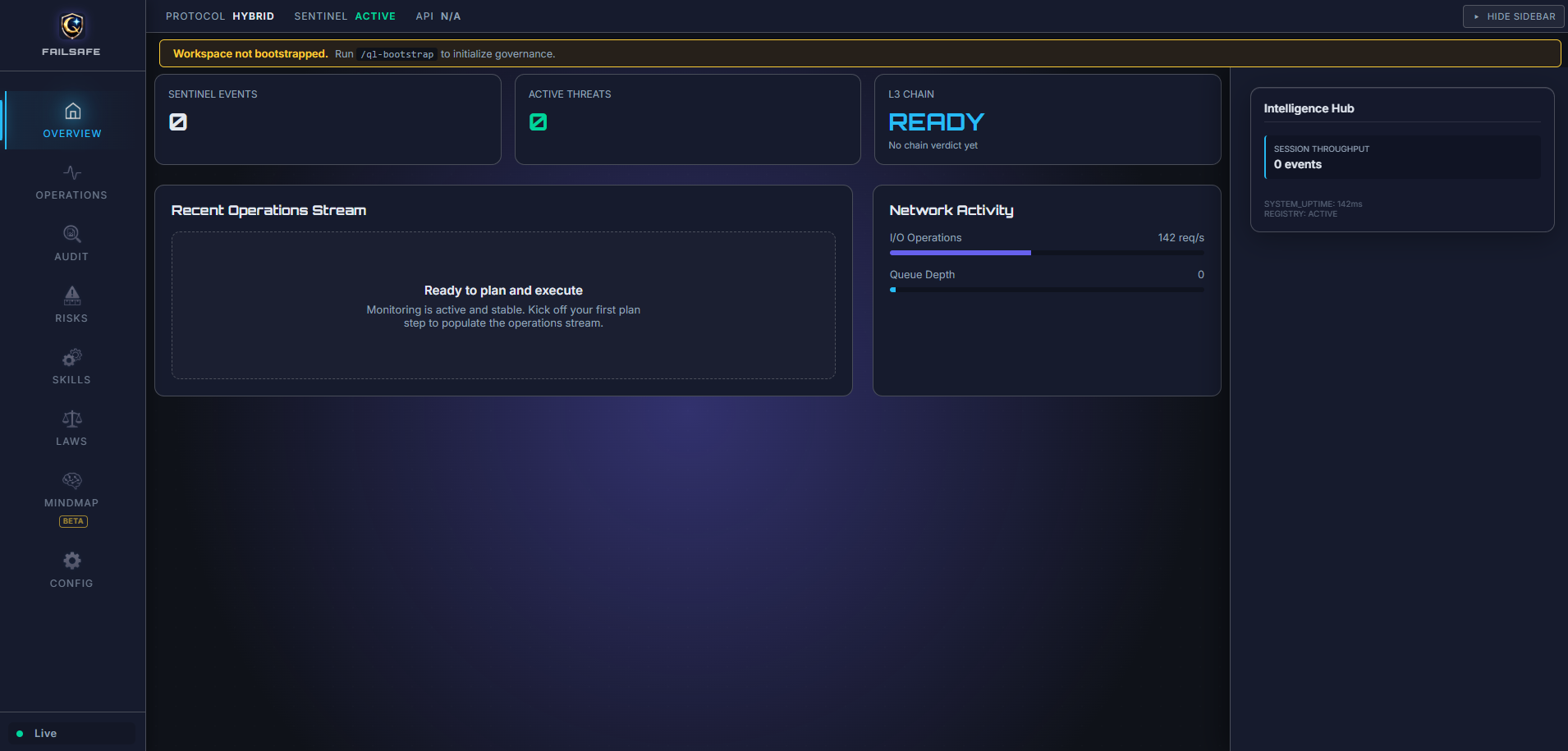

• FailSafe Command Center (extended popout/editor view)
• Skills view now includes Recommended, All Relevant, All Installed, and Other Available to keep full skill visibility.

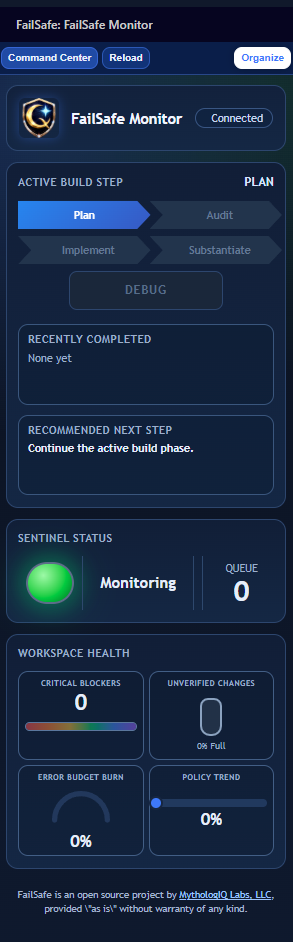

FailSafe Monitor UI

6. Command Center UX

• Compact FailSafe Monitor webpanel (UI-02) provides phase status, prioritized feature counters, Sentinel state, and workspace health at-a-glance.
• Open FailSafe Command Center opens the extended popout console for deeper workflow views (Overview, Operations, Audit, Risks, Skills, Laws, Mindmap, Config).
• Branding is consistent across shell surfaces, including FailSafe icon usage in header and favicon contexts.
• Optional external Qore runtime integration can display live runtime state, policy version, endpoint, and latency in the compact monitor.

UI Positioning Model

• Monitor and Command Center roles are defined in the Solution summary above; this model maps those roles to FailSafe architecture.
• Narrative alignment:
  • Genesis -> Build
  • QoreLogic -> Govern
  • Sentinel -> Watch
  • Command Center -> Build + Govern
  • Monitor -> Watch

7. Skill Governance and Provenance

• Installed skills are discovered from FailSafe workspace roots (FailSafe/VSCode/skills, .agent/skills, .github/skills) with project-first precedence.
• Phase-aware relevance ranking returns recommended, allRelevant, and otherAvailable groupings.
• Skill metadata includes provenance fields (creator, source repo/path, source type/priority, admission state, trust tier, version pin).
• SOURCE.yml metadata is ingested to preserve attribution and authorship for bundled and imported skills.

8. Checkpoint Reliability Backbone

• Checkpoint events are stored in a local SQLite ledger (failsafe_checkpoints) with typed events and parent-chain integrity checks.
• Hub APIs expose checkpoint summaries and recent checkpoint history for UI transparency.

9. Feedback Capture

• Generate, view, and export feedback snapshots

10. QoreLogic Propagation

Supported via internal sync flows when enabled by workspace governance configuration.

11. Break-Glass Protocol (v4.1.0)

Emergency governance overrides for time-sensitive situations. Activate via FailSafe: Activate Break-Glass Override with a justification (min 10 chars) and duration (15–240 minutes). Auto-reverts on expiry. Full audit trail recorded in the SOA ledger.

12. Verdict Replay (v4.1.0)

Re-execute past governance decisions for audit verification via FailSafe: Replay Verdict (Audit). Compares current policy hash and artifact hash against the original decision to detect drift.

13. Commit Governance (v4.3.0)

• FailSafe: Install Commit Hook writes a thin hook client and per-session token into .git/.
• The hook calls GET /api/v1/governance/commit-check and only enforces the server's allow decision.
• If the local API is unreachable or no token is present, the hook fails open by design. This is an operator guardrail, not a hard security boundary.

14. AI Provenance Tracking (v4.3.0)

• Save events can emit PROVENANCE_RECORDED ledger entries with artifact path, detected agent type, confidence, and active intent.
• Provenance is observational. It does not mutate source files or inject comments.
• History is queryable through the governance API and visible in local ledger data.

15. Multi-Agent Governance Fabric (v4.2.0)

FailSafe detects and governs multiple AI coding assistants in your workspace:

• Runtime Detection — Identifies Claude CLI, Copilot, Codex CLI, and Agent Teams via terminal and config scanning.
• Per-Agent Config Injection — Writes governance rules into each agent's native format (.github/copilot-instructions.md, .kilocode/rules/, codex.md, .claude/agents/).
• Governance Ceremony — Single command (FailSafe: Set Up Agent Governance) to inject or remove governance across all detected agents.
• Coverage Dashboard — Console view showing which agents are detected, governed, and compliant.
• First-Run Onboarding — Guides new users through multi-agent governance setup on first activation.

16. Intent Schema v2 (v4.2.0)

Intents now carry schemaVersion, agentIdentity (which agent created the intent and via which workflow), and planId references. Legacy v1 intents are auto-migrated on read.

Commands

Command	Description
FailSafe: Open Command Center (Browser Popout)	Main governance popout
FailSafe: Open Command Center (Browser)	Browser launch alias
FailSafe: Open Command Center (Editor Tab)	Compact monitor in editor
FailSafe: Token Economics Dashboard	Open token economics and ROI dashboard
FailSafe: Audit Current File	Manual file audit
FailSafe: Secure Workspace	Apply workspace hardening baseline
FailSafe: Panic Stop	Stop active monitoring and guard actions
FailSafe: Resume Monitoring	Resume Sentinel monitoring
FailSafe: Set Governance Mode	Switch between Observe/Assist/Enforce
FailSafe: Open Project Overview	Project-level governance summary
FailSafe: Open Risk Register	Open the risk tracking panel
FailSafe: Add Risk	Add a new risk entry
FailSafe: Revert to Checkpoint (Time-Travel)	Revert workspace to a governance checkpoint
FailSafe: Activate Break-Glass Override	Emergency time-limited governance bypass
FailSafe: Revoke Break-Glass Override	Manually revoke an active break-glass session
FailSafe: Replay Verdict (Audit)	Re-execute a past governance decision
FailSafe: Undo Last Attempt	Rollback to a specific checkpoint
FailSafe: Set Up Agent Governance	Inject governance into detected AI agents
FailSafe: Install Commit Hook	Add pre-commit governance hook to current repo
FailSafe: Remove Commit Hook	Remove FailSafe pre-commit hook and token
FailSafe: Agent Health Status	View composite agent health and risk level
FailSafe: Agent Execution Timeline	Step-by-step agent action timeline
FailSafe: Shadow Genome Debugger	Browse and debug failure patterns
FailSafe: Agent Run Replay	Replay recorded agent execution traces

Configuration

Open Settings and search for FailSafe:

Setting	Default	Description
failsafe.governance.mode	observe	Governance mode: observe, assist, or enforce
failsafe.genesis.livingGraph	true	Enable Living Graph visualization
failsafe.genesis.cortexOmnibar	true	Enable Cortex Omnibar
failsafe.genesis.theme	starry-night	Genesis UI theme
failsafe.sentinel.enabled	true	Enable Sentinel monitoring
failsafe.sentinel.mode	heuristic	Sentinel operating mode
failsafe.sentinel.localModel	phi3:mini	Ollama model for LLM-assisted mode
failsafe.sentinel.ollamaEndpoint	http://localhost:11434	Ollama API endpoint
failsafe.sentinel.ragEnabled	true	Persist Sentinel observations to local RAG store
failsafe.qorelogic.ledgerPath	.failsafe/ledger/soa_ledger.db	Ledger database path
failsafe.qorelogic.strictMode	false	Block on all warnings
failsafe.qorelogic.l3SLA	120	L3 response SLA (seconds)
failsafe.qorelogic.externalRuntime.enabled	false	Enable external FailSafe-Qore runtime integration in monitor
failsafe.qorelogic.externalRuntime.baseUrl	http://127.0.0.1:7777	Base URL for external FailSafe-Qore runtime API
failsafe.qorelogic.externalRuntime.apiKey	``	Optional API key used for runtime calls
failsafe.qorelogic.externalRuntime.apiKeyEnvVar	QORE_API_KEY	Environment variable fallback for runtime API key
failsafe.qorelogic.externalRuntime.timeoutMs	4000	Timeout for runtime API calls in milliseconds
failsafe.bootstrap.autoInstallGit	true	Auto-install Git (if missing) and initialize repo during bootstrap
failsafe.feedback.outputDir	.failsafe/feedback	Feedback output directory

If .failsafe/config/sentinel.yaml exists, it overrides settings. The initializer seeds it with mode: hybrid unless you change it.

Commit-time governance is available through the local FailSafe API on http://127.0.0.1:7777 when the optional git hook is installed.

Workspace Files

FailSafe seeds a .failsafe/ directory in your workspace for configuration, ledger, and feedback output. The primary workspace config is .failsafe/config/sentinel.yaml. Optional policy overrides can be placed at:

• .failsafe/config/policies/risk_grading.json
• .failsafe/config/policies/citation_policy.json

Privacy

• Heuristic mode runs locally
• LLM-assisted and hybrid modes call the configured endpoint

Requirements

• VS Code 1.90.0 or later
• Node.js 18+ (for development)
• curl (required only if you install the commit hook)
• Ollama (optional, for LLM-assisted mode)

We'd love your review! If FailSafe is useful to you, please leave a review on the VS Code Marketplace or Open VSX. Your feedback helps other developers discover FailSafe and directly shapes its roadmap. Bug reports and feature requests welcome on GitHub Issues.

Contributing

Contributions are welcome via GitHub issues and pull requests.

Terms and Conditions (Beta)

FailSafe is a beta product. It is provided "as is" without warranties of any kind, and may contain bugs, incomplete features, or breaking changes.

By using this software, you acknowledge that it is experimental and agree to use it at your own risk. MythologIQ is not liable for any loss of data, downtime, or other damages arising from use of this beta release.

License

MIT - See LICENSE.

Links

• GitHub: https://github.com/MythologIQ/FailSafe
• Issues: https://github.com/MythologIQ/FailSafe/issues
• VS Code Marketplace: https://marketplace.visualstudio.com/items?itemName=MythologIQ.mythologiq-failsafe
• Open VSX: https://open-vsx.org/extension/MythologIQ/mythologiq-failsafe
• Documentation: FAILSAFE_SPECIFICATION.md

Publishing

Releases are automated via GitHub Actions. Tag pushes trigger the CI/CD pipeline which builds, tests, and publishes to both VS Code Marketplace and Open VSX.

UI Snapshot

Checkpoint Integrity and Local Memory

FailSafe tracks more than Git state. It records governance checkpoints as signed metadata records, then stores Sentinel observations in a local retrieval store so operators can recover the what, why, and how of runtime decisions.

Process Reality

1. Git readiness is enforced at bootstrap (ensureGitRepositoryReady), including optional auto-install and git init when needed.
2. Governance events are checkpointed into failsafe_checkpoints with run/phase/status context and deterministic hashes.
3. Each checkpoint carries git_hash, payload_hash, entry_hash, and prev_hash so chain integrity can be recomputed.
4. Hub and API surfaces expose both summary and recent checkpoint records for operational visibility.
5. Sentinel writes local memory records to .failsafe/rag/sentinel-rag.db (or JSONL fallback), including payload_json, metadata_json, and retrieval text.

Technical Advantages

• Tamper evidence via hash-chained checkpoint records.
• Git-linked governance state for repository-correlated audit trails.
• Local-first memory retention for security and low-latency recall.
• Deterministic fallback paths when SQLite is unavailable.

Claim-to-Source Map

Claim	Status	Source
v4.3.0 ships commit hook install/remove commands.	implemented	FailSafe/extension/src/extension/main.ts, FailSafe/extension/package.json
v4.3.0 ships commit-check and provenance API routes.	implemented	FailSafe/extension/src/api/routes/governanceRoutes.ts
v4.3.0 exports governance context in release CI.	implemented	.github/workflows/release.yml, tools/export-governance-context.sh
Bundled operator docs ship inside the VSIX.	implemented	FailSafe/extension/.vscodeignore, FailSafe/extension/docs/COMPONENT_HELP.md, FailSafe/extension/docs/PROCESS_GUIDE.md
Checkpoints persist in failsafe_checkpoints with typed governance fields.	implemented	FailSafe/extension/src/roadmap/RoadmapServer.ts:1533-1556
Checkpoint records include hash-chain material (payload_hash, entry_hash, prev_hash).	implemented	FailSafe/extension/src/roadmap/RoadmapServer.ts:1689-1695
Each checkpoint captures current Git head/hash context.	implemented	FailSafe/extension/src/roadmap/RoadmapServer.ts:1647
Checkpoint history and chain validity are exposed over API.	implemented	FailSafe/extension/src/roadmap/RoadmapServer.ts:331
Hub snapshot includes checkpointSummary and recentCheckpoints.	implemented	FailSafe/extension/src/roadmap/RoadmapServer.ts:742-743
Sentinel local RAG persists observation payload + metadata + retrieval text.	implemented	FailSafe/extension/src/sentinel/SentinelRagStore.ts:60-81
Sentinel RAG can fall back to JSONL when SQLite is unavailable.	implemented	FailSafe/extension/src/sentinel/SentinelRagStore.ts:85-91
RAG writes are controlled by failsafe.sentinel.ragEnabled (default true).	implemented	FailSafe/extension/src/sentinel/SentinelDaemon.ts:339-341
Checkpoint and Sentinel RAG tables are independent (no foreign-key link).	false	Confirmed: failsafe_checkpoints (ledger DB) and sentinel_observations (RAG DB) are in separate databases with no shared keys. evidenceRefs is always [].
