XML Doc Color

XML Doc Color adds precise TextMate scopes to XML documentation, Javadoc, TSDoc, JSDoc, PHPDoc, KDoc and ordinary block comments, including /*** … */ forms. It colors tags, delimiters, attributes, entities, references, CDATA, @-tags, prefixes and prose without replacing the semantic token provider supplied by your language extension.

Features

• Seventeen TextMate injection grammars that coexist with C#, TypeScript, Java and Kotlin language services
• Ten supported VS Code language IDs, including TSX and JSX
• Thirteen independently configurable documentation token categories
• Global colors with optional per-language overrides
• Dark, Light, Custom and Inherited Theme modes
• A typed, keyboard-accessible sidebar with persistent per-language drafts
• Desktop, remote, virtual workspace and VS Code Web support
• Automatic migration from XML Doc Color 0.0.x semantic color rules

Supported languages

Owned /* … */ and three-or-more-star comments in these seven block-comment languages use the same thirteen-color palette. Exact /** … */ delimiters remain native to Javadoc/JSDoc/PHPDoc/KDoc. Comment-like text inside strings, templates, regular expressions, line comments, or embedded CSS in PHP/HTML files is left to the host grammar. C# remains limited to /// documentation.

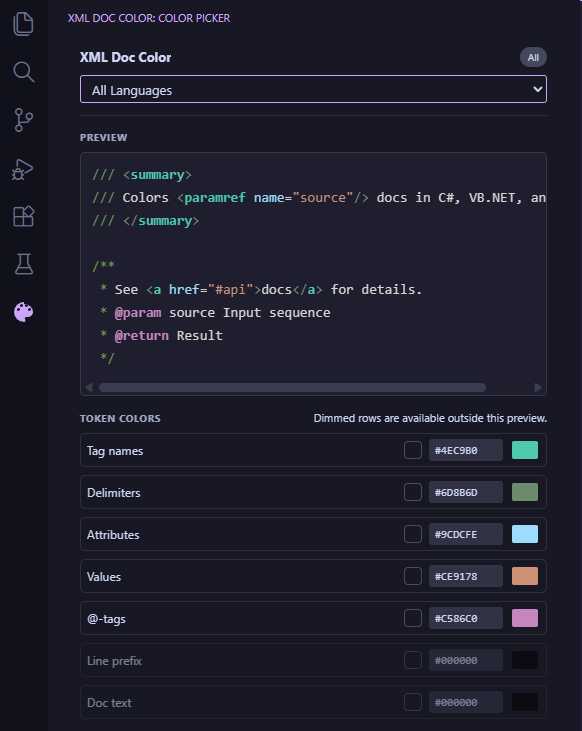

Color picker

Open the XML Doc Color view from the Activity Bar or run XML Doc Color: Open Color Picker.

1. Select All Languages or one language.
2. Keep the inherited theme colors, choose a preset, or edit any of the thirteen hexadecimal colors.
3. Apply the rules to your global settings or the current workspace.
4. Use Copy JSON to export the corresponding editor.tokenColorCustomizations snippet.
5. Use Reset to remove only XML Doc Color rules for the selected scope.

All-language rules are applied first. A language rule is more specific and therefore wins for that language. Resetting one language falls back to the all-language rule and then to the active theme.

TextMate scopes

Every category uses a stable scope suffixed with the VS Code language ID. Examples:

• entity.name.tag.xml-doc-color.typescript
• punctuation.definition.tag.xml-doc-color.csharp
• variable.other.reference.documentation.xml-doc-color.java
• keyword.other.documentation.xml-doc-color.kotlin
• punctuation.definition.comment.block.xml-doc-color.typescript
• comment.documentation.xml-doc-color.php

Block comment delimiters controls owned /*, /***, /**** and */ markers. Comment prefix controls ///, ''' and interior multiline * prefixes. Tag delimiters controls XML punctuation such as <, >, </ and />.

The owned block region also carries a standard comment.block parent scope. This lets normal theme rules such as comment color a new block delimiter in Inherited Theme mode without requiring access to private theme variables.

The sidebar writes named rules such as:

{
  "editor.tokenColorCustomizations": {
    "textMateRules": [
      {
        "name": "XML Doc Color / xmlDocTagName / typescript",
        "scope": "entity.name.tag.xml-doc-color.typescript",
        "settings": {
          "foreground": "#4EC9B0",
          "fontStyle": "bold"
        }
      }
    ]
  }
}

Rules not created by XML Doc Color are preserved when colors are applied or reset.

Applying a palette to All Languages removes existing XML Doc Color language overrides so the selected palette takes effect in every supported language. Resetting All Languages removes only the global rules and keeps any language overrides created afterwards.

Migration from 0.0.x

On first activation of 0.1.0, XML Doc Color scans the global and workspace values of editor.semanticTokenColorCustomizations. Rules owned by the extension are converted to equivalent TextMate rules in the same configuration layer, including language and theme-specific entries.

The new rules are written and verified before the legacy keys are removed. Unrelated semantic and TextMate customizations are never changed. If migration cannot be verified, the legacy rules remain in place and an error is shown.

The old xmlDocColor.enabled, xmlDocColor.enabledLanguages and xmlDocColor.tokenMode settings were removed because TextMate grammars are declarative and stay active while the extension is installed. With no explicit override, the new scopes inherit your active theme.

Existing twelve-color TextMate palettes are not rewritten automatically. The new block-delimiter category inherits the theme until the next Apply, which writes the complete thirteen-color palette.

Settings

Commands

Troubleshooting

• Run Developer: Inspect Editor Tokens and Scopes to inspect the generated TextMate scopes.
• Run Developer: Reload Window once after installing or updating a local VSIX so VS Code reloads grammar contributions.
• If a workspace target is selected, open a folder or workspace before applying colors.
• Reset the selected scope to check the active theme's inherited colors.
• Report grammar conflicts with a small documentation-comment sample and the language extension/version in use.

Development

npm install
npm run compile
npm test
npm run test:webview
npm run test:web
npm run vsix

The build generates seventeen injection grammars in dist/syntaxes, desktop and WebWorker extension bundles, and a separate browser bundle for the sidebar.

Links

• GitHub repository
• Report an issue
• Changelog

Made by MindLated
