sftp sync extension for VS Code

This fork is maintained by @khoazero123 and continues the work from Natizyskunk/vscode-sftp.

• Original upstream: Natizyskunk/vscode-sftp
• Earlier upstream: liximomo/vscode-sftp
• Current source code and releases: https://github.com/khoazero123/vscode-sftp
• VS Code Marketplace listing: https://marketplace.visualstudio.com/items?itemName=KhoaZero123.sftp-extension

Contributions, bug reports, and feature requests for this maintained fork are welcome through this repository's issues and pull requests.

VSCode-SFTP enables you to add, edit or delete files within a local directory and have it sync to a remote server directory using different transfer protocols like FTP or SSH. The most basic setup requires only a few lines of configuration with a wide array of specific settings also available to meet the needs of any user. Both powerful and fast, it helps developers save time by allowing the use of a familiar editor and environment.

• Features
  • Browser remote with Remote Explorer
  • Diff local and remote
  • Sync directory
  • Upload/Download
  • Upload on save
  • File Watcher
  • Multiple configurations
  • Switchable profiles
  • Temp File support
• Commands
• Debug
• FAQ

Installation

Method 1 (VS Code Marketplace)

1. Select Extensions (Ctrl + Shift + X).
2. Uninstall current sftp extension from @liximomo or other SFTP extensions if needed.
3. Install from VS Code Marketplace: https://marketplace.visualstudio.com/items?itemName=KhoaZero123.sftp-extension
4. Voilà!

Method 2 (Manual install from VSIX)

To install just follow these steps from within VSCode:

1. Select Extensions (Ctrl + Shift + X).
2. Uninstall current sftp extension from @liximomo.
3. Download the VSIX file from https://github.com/khoazero123/vscode-sftp/releases.
4. Open "More Action" menu(ellipsis on the top) and click "Install from VSIX…".
5. Locate VSIX file and select.
6. Reload VSCode.
7. Voilà!

Documentation

• Home
• Settings
• Common configuration
• SFTP configuration
• FTP confriguration
• Commands

Usage

If the latest files are already on a remote server, you can start with an empty local folder, then download your project, and from that point sync.

1. In VS Code, open a local directory you wish to sync to the remote server (or create an empty directory that you wish to first download the contents of a remote server folder in order to edit locally).
2. Ctrl+Shift+P on Windows/Linux or Cmd+Shift+P on Mac open command palette, run SFTP: config command.
3. A basic configuration file will appear named sftp.json under the .vscode directory, open and edit the configuration parameters with your remote server information.

For instance:

{
    "name": "Profile Name",
    "host": "name_of_remote_host",
    "protocol": "ftp",
    "port": 21,
    "secure": true,
    "username": "username",
    "remotePath": "/public_html/project", // <--- This is the path which will be downloaded if you "Download Project"
    "password": "password",
    "uploadOnSave": false
}

The password parameter in sftp.json is optional, if left out you will be prompted for a password on sync. Note： backslashes and other special characters must be escaped with a backslash.

4. Save and close the sftp.json file.
5. Ctrl+Shift+P on Windows/Linux or Cmd+Shift+P on Mac open command palette.
6. Type sftp and you'll now see a number of other commands. You can also access many of the commands from the project's file explorer context menus.
7. A good one to start with if you want to sync with a remote folder is SFTP: Download Project. This will download the directory shown in the remotePath setting in sftp.json to your local open directory.
8. Done - you can now edit locally and after each save it will upload to sync your remote file with the local copy.
9. Enjoy!

For detailed explanations please go to wiki.

Example configurations

You can see the full list of configuration options here.

• sftp sync extension for VS Code
  • Installation
    • Method 1 (VS Code Marketplace)
    • Method 2 (Manual install from VSIX)
  • Documentation
  • Usage
  • Example configurations
    • Simple
    • Profiles
    • Multiple Context
    • Connection Hopping
      • Single Hop
      • Multiple Hop
    • Configuration in User Setting
  • Remote Explorer
    • Multiple Select
    • Order
  • Debug
  • FAQ

Simple

{
  "host": "host",
  "username": "username",
  "remotePath": "/remote/workspace"
}

Profiles

{
  "username": "username",
  "password": "password",
  "remotePath": "/remote/workspace/a",
  "watcher": {
    "files": "dist/*.{js,css}",
    "autoUpload": false,
    "autoDelete": false
  },
  "profiles": {
    "dev": {
      "host": "dev-host",
      "remotePath": "/dev",
      "uploadOnSave": true
    },
    "prod": {
      "host": "prod-host",
      "remotePath": "/prod"
    }
  },
  "defaultProfile": "dev"
}

Note： context and watcher are only available at root level.

Use SFTP: Set Profile to switch profile.

Multiple Context

The context must not be same.

[
  {
    "name": "server1",
    "context": "project/build",
    "host": "host",
    "username": "username",
    "password": "password",
    "remotePath": "/remote/project/build"
  },
  {
    "name": "server2",
    "context": "project/src",
    "host": "host",
    "username": "username",
    "password": "password",
    "remotePath": "/remote/project/src"
  }
]

Note： name is required in this mode.

Connection Hopping

You can connect to a target server through a proxy with ssh protocol.

Note： Variable substitution is not working in a hop configuration.

Single Hop

local -> hop -> target

{
  "name": "target",
  "remotePath": "/path/in/target",

  // hop
  "host": "hopHost",
  "username": "hopUsername",
  "privateKeyPath": "/Users/localUser/.ssh/id_rsa", // <-- The key file is assumed on the local.

  "hop": {
    // target
    "host": "targetHost",
    "username": "targetUsername",
    "privateKeyPath": "/Users/hopUser/.ssh/id_rsa", // <-- The key file is assumed on the hop.
  }
}

Multiple Hop

local -> hopa -> hopb -> target

{
  "name": "target",
  "remotePath": "/path/in/target",

  // hopa
  "host": "hopAHost",
  "username": "hopAUsername",
  "privateKeyPath": "/Users/hopAUsername/.ssh/id_rsa" // <-- The key file is assumed on the local.

  "hop": [
    // hopb
    {
      "host": "hopBHost",
      "username": "hopBUsername",
      "privateKeyPath": "/Users/hopaUser/.ssh/id_rsa" // <-- The key file is assumed on the hopa.
    },

    // target
    {
      "host": "targetHost",
      "username": "targetUsername",
      "privateKeyPath": "/Users/hopbUser/.ssh/id_rsa", // <-- The key file is assumed on the hopb.
    }
  ]
}

Configuration in User Setting

You can use remote to tell sftp to get the configuration from remote-fs.

In User Setting:

"remotefs.remote": {
  "dev": {
    "scheme": "sftp",
    "host": "host",
    "username": "username",
    "rootPath": "/path/to/somewhere"
  },
  "projectX": {
    "scheme": "sftp",
    "host": "host",
    "username": "username",
    "privateKeyPath": "/Users/xx/.ssh/id_rsa",
    "rootPath": "/home/foo/some/projectx"
  }
}

In sftp.json:

{
  "remote": "dev",
  "remotePath": "/home/xx/",
  "uploadOnSave": false,
  "ignore": [".vscode", ".git", ".DS_Store"]
}

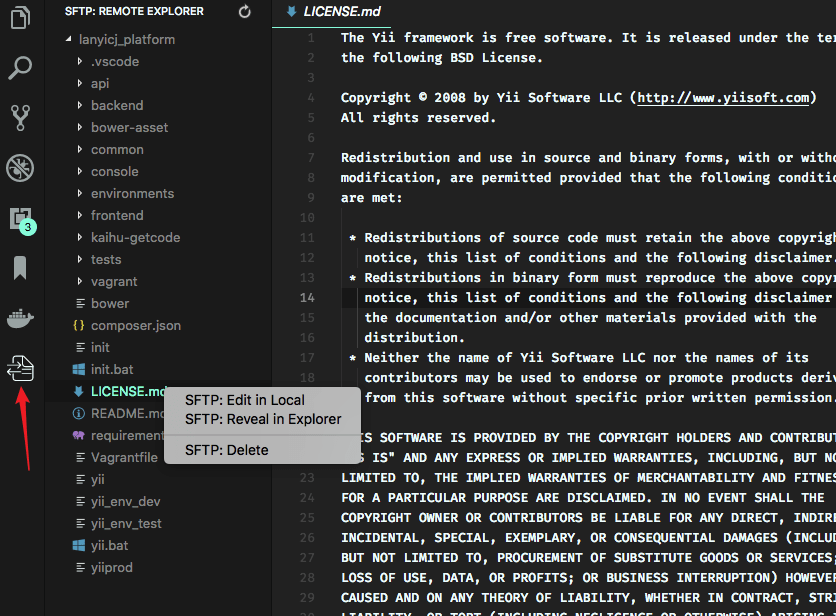

Remote Explorer

Remote Explorer lets you explore files in remote. You can open Remote Explorer by:

1. Run Command View: Show SFTP.
2. Click SFTP view in Activity Bar.

You can only view a files content with Remote Explorer. Run command SFTP: Edit in Local to edit it in local.

Multiple Select

You are able to select multiple files/folders at once on the remote server to download and upload. You can do it simply by holding down Ctrl or Shift while selecting all desired files, just like on the regular explorer view.

Note： You need to manually refresh the parent folder after you delete a file if the explorer isn't correctly updated.

Order

You can order the remote Explorer by adding the remoteExplorer.order parameter inside your sftp.json config file.

In sftp.json:

{
  "remoteExplorer": {
    "order": 1 // <-- Default value is 0.
  }
}

Debug

1. Open User Settings.

• On Windows/Linux - File > Preferences > Settings
• On macOS - Code > Preferences > Settings

2. Set sftp.debug to true and reload vscode.
3. View the logs in View > Output > sftp.

FAQ

You can see all the Frequently Asked Questions here.
