VsMerMark AzDevOps — User Guide

VsMerMark AzDevOps is an Azure DevOps Services extension that brings rich Markdown and Mermaid preview to work item attachments. Open any work item, select the VsMerMark Attachments Preview tab, click an attached .md, .mmd, or .mermaid file, and see it rendered inline with full diagram support — no downloads, no context switching. The extension reuses the same rendering engine as the VsMerMark Editor for Visual Studio, so output is visually identical across your IDE and your work tracking platform. Developed by GiPStech srl.

Table of Contents

1. License
2. Changelog
3. Features Overview
4. What VsMerMark AzDevOps Adds
5. Installation
6. Getting Started
7. Supported File Types
8. Supported Mermaid Diagram Types
9. Interactive Click-Highlighting
10. Dark Theme Support
11. Permissions
12. Example: Markdown with Embedded Mermaid
13. Known Limitations
14. Related Products
15. Attribution & Third-Party Licenses
16. Support

License

Copyright & Distribution

Copyright (c) since 2026 GiPStech srl. All rights reserved.

VsMerMark AzDevOps is currently distributed as freeware. You may install and use this extension free of charge within your Azure DevOps organization for any purpose, including commercial and non-commercial use. Redistribution of the VSIX package, in original or modified form, requires prior written consent from GiPStech srl.

Future Licensing Changes

GiPStech srl reserves the right to change the licensing terms in future versions, including but not limited to introducing usage limits, feature restrictions, or paid tiers for some or all of the current functionality. The extension is currently free of charge, but this may change in a subsequent release. Any change to the licensing terms will be communicated through the release notes in the Changelog section of this page, and through the Visual Studio Marketplace listing.

Warranty Disclaimer

THIS SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT.

GiPStech srl shall not be liable for any claim, damages, or other liability, whether in an action of contract, tort, or otherwise, arising from, out of, or in connection with the software or the use or other dealings in the software.

Third-Party Libraries

The extension bundles third-party open-source libraries distributed under their original licenses (MIT, Apache 2.0). See the Attribution & Third-Party Licenses section for the complete list.

Changelog

Version 1.0.0 (April 2026)

First release.

Features introduced in this release:

• VsMerMark Attachments Preview tab contributed to every Azure DevOps work item form (Bug, User Story, Task, Feature, Epic, and custom types).
• Full Markdown rendering via marked@17.0.5, with support for headings, paragraphs, lists (ordered, unordered, task lists), tables, code blocks, blockquotes, inline code, images, links, horizontal rules, and emphasis.
• Embedded Mermaid diagrams via mermaid@11.13.0, rendered as scalable SVG inside fenced code blocks tagged ```mermaid.
• Multiple file extensions recognized as previewable attachments: .md (Markdown, optionally with embedded Mermaid fences), .mmd and .mermaid (pure Mermaid content). The parser detects the format automatically.
• Interactive click-highlighting on Mermaid diagrams: click any node or edge to emphasize it; Ctrl+click to build a multi-selection; click empty space to clear.
• Automatic dark mode following the Azure DevOps theme via the prefers-color-scheme media query. Both the surrounding UI and the Mermaid theme switch in sync.
• Auto refresh on save: when a work item is saved, the attachment list is reloaded automatically — no need to reload the tab.
• Shared rendering engine with the VsMerMark Editor for Visual Studio: the bundle reuses the exact same source files (LivePreview/src/index.js, highlight.js), ensuring pixel-perfect visual consistency between the two tools and propagating future fixes to both in one place.
• Read-only by design: the extension requests only the vso.work scope (read access to work items and their attachments) and never modifies data.

Features Overview

What VsMerMark AzDevOps Adds

Azure DevOps Services has no native inline preview for Markdown or Mermaid attachments. The table below compares out-of-the-box behavior against what this extension provides.

Installation

1. Open the VsMerMark AzDevOps page on Visual Studio Marketplace.
2. Click Get it free.
3. Select your Azure DevOps organization from the dropdown.
4. Click Install.
5. After a few seconds, the extension is active on all work items in all projects within that organization.

For private distribution scenarios, contact GiPStech srl for direct .vsix delivery.

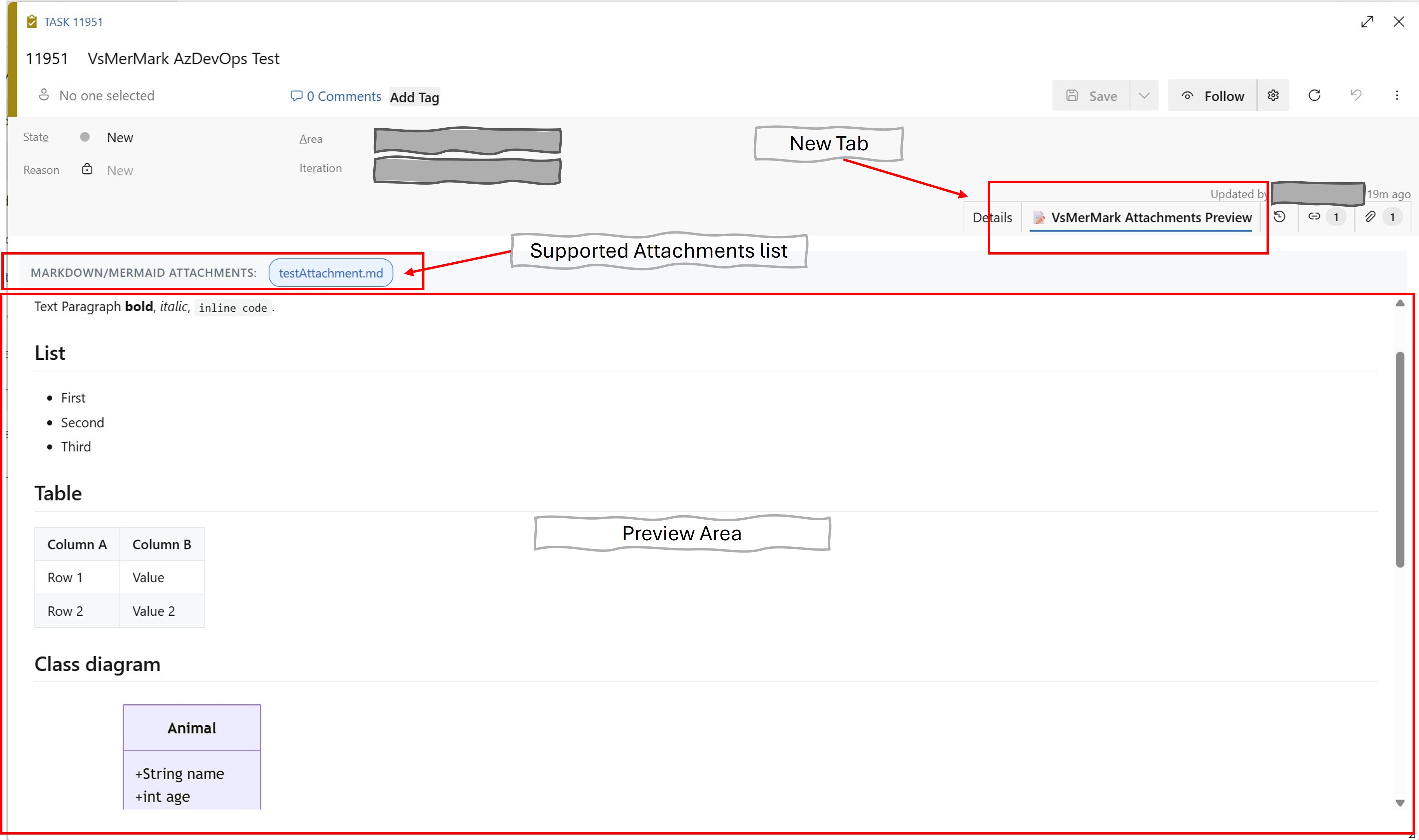

Getting Started

1. Open any work item (Bug, User Story, Task, Feature, Epic, ...) in your Azure DevOps organization.
2. Go to the Attachments tab of the work item form and upload one or more .md, .mmd, or .mermaid files (drag-and-drop supported).
3. Save the work item.
4. Click the VsMerMark Attachments Preview tab, which appears next to Details, History, Links, and Attachments.
5. The top bar of the tab lists every Markdown/Mermaid attachment as a selectable chip. Click a chip to open that file in the preview viewport.
6. Scroll through the rendered content. For Mermaid diagrams, click on nodes to highlight them; hold Ctrl while clicking to add more elements to the selection.

Tip: If the work item has exactly one previewable attachment, it is opened automatically as soon as the tab loads.

Supported File Types

The parser applies a heuristic to detect pure Mermaid content: if the first non-empty, non-comment line starts with a known Mermaid keyword (classDiagram, flowchart, graph, sequenceDiagram, erDiagram, stateDiagram, gantt, pie, gitGraph, journey, mindmap, timeline, sankey, xychart, block-beta, quadrantChart, requirementDiagram, C4, or kanban), the entire file is rendered as one diagram.

Supported Mermaid Diagram Types

All diagram types supported by Mermaid 11.13.0:

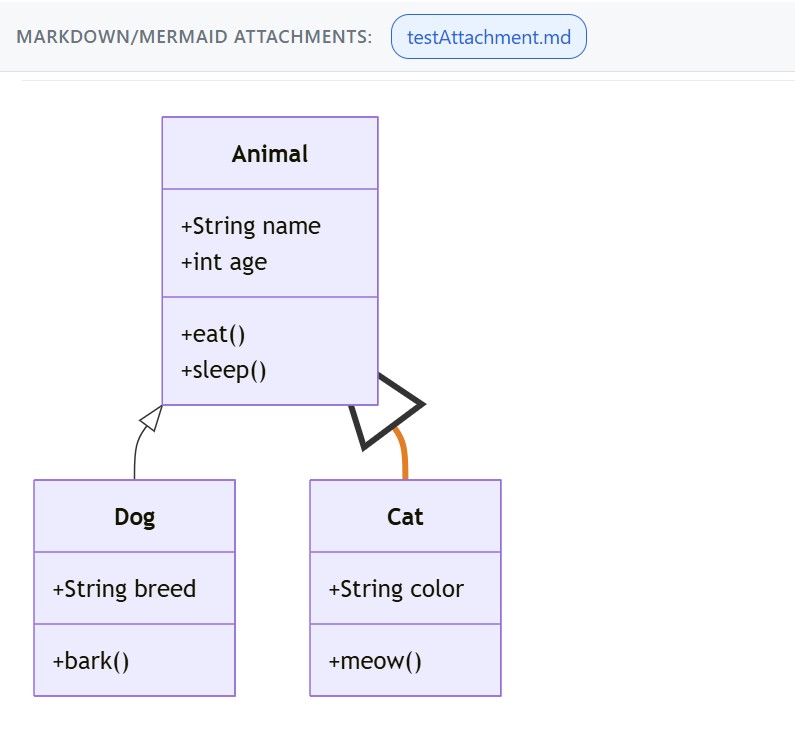

Interactive Click-Highlighting

When you click on a Mermaid diagram inside the preview, the extension tracks which element you selected and applies a visual emphasis:

• Nodes (classes, flowchart boxes, ER entities, sequence actors): border stroke width is increased and the fill saturation/brightness is boosted.
• Edges (relationships, arrows, connectors): the line is recolored to a highlight color and drawn thicker.
• Labels on edges: bold and darker.

Controls:

The click-highlighting feature is useful when walking stakeholders through a specific path in a flowchart or a chain of relationships in a class diagram during a work item review meeting.

Dark Theme Support

The preview follows the Azure DevOps theme automatically, without any manual toggle. The mechanism relies on the prefers-color-scheme CSS media query evaluated inside the iframe hosting the tab: when Azure DevOps is set to a dark theme, the UI switches to a dark palette and the Mermaid theme changes to dark at the same time. When the user switches theme at runtime, the change is detected via the change event on the media query and applied immediately, without reloading the tab.

Permissions

The extension requests a single OAuth scope:

No write permissions are requested. The extension is strictly read-only and never creates, modifies, or deletes work items, attachments, comments, or any other data in your Azure DevOps organization.

Example: Markdown with Embedded Mermaid

Any .md attachment can mix prose and diagrams using standard fenced code blocks:

# Architecture notes

The authentication service depends on the user repository through the repository pattern.

```mermaid
classDiagram
    class AuthService {
        +login(user, pass)
        +logout()
    }
    class IUserRepository {
        <<interface>>
        +findByEmail(email)
    }
    AuthService ..> IUserRepository : depends on
```

## Login flow

```mermaid
sequenceDiagram
    actor User
    User->>AuthService: login(email, password)
    AuthService->>IUserRepository: findByEmail(email)
    IUserRepository-->>AuthService: user record
    AuthService-->>User: JWT token
```

## Known constraints

- Token expires after 15 minutes
- Refresh token valid for 7 days

Files with the .mmd or .mermaid extension can contain pure Mermaid syntax without any fence — the parser detects and renders them automatically.

Known Limitations

• Relative image paths in Markdown are not resolved. Images referenced with a relative path like ![diagram](image.png) do not render, because the attachment has no companion folder to resolve against. Absolute URLs (https://...) work normally.
• Cross-work-item links of the form #1234 are rendered as plain text, not as clickable Azure DevOps work item references.
• Raw HTML inside Markdown is accepted and rendered as-is. Consider the security implications if work items are authored by untrusted users in your organization.
• Large attachments (> 1 MB of markdown) may take a noticeable time to render the first time they are opened.

Related Products

VsMerMark AzDevOps shares its rendering engine with VsMerMark Editor for Visual Studio, which brings the same Markdown and Mermaid preview directly into the Visual Studio editor, plus additional authoring features:

• Side-by-side live preview for .md, .mmd, and .mermaid files while editing
• Automatic C# class diagram generation from source code via Roslyn, with full support for partial classes
• DevExpress XPO model diagram generation from [Association] / [Aggregated] attributes
• Multi-format export: HTML, SVG, PNG
• Syntax highlighting for Mermaid inside Markdown code fences
• Diagram Explorer tool window with navigable tree of all diagram elements
• Smart merge of regenerated diagrams into existing Mermaid blocks, preserving manual edits and styling

Install both extensions to keep documentation authoring and work tracking perfectly in sync, with identical visual output across your whole workflow.

Attribution & Third-Party Licenses

VsMerMark AzDevOps is built on top of the following open-source components:

All bundled third-party libraries retain their original licenses. License texts are included in the distributed .vsix file via work-item-preview.js.LICENSE.txt.

Support

For bug reports, feature requests, or questions, please contact GiPStech srl through your usual support channel.
