AgenticFlowX

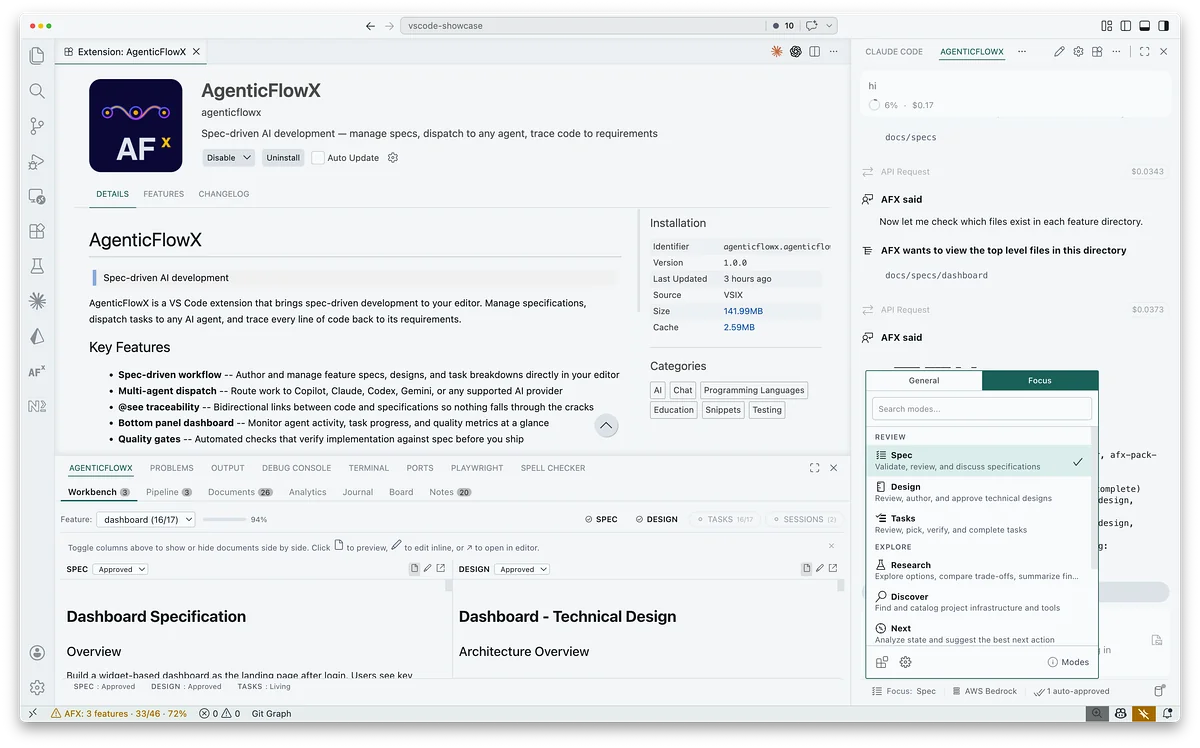

AgenticFlowX is a VS Code extension for AI coding that starts as a normal chat assistant and grows structure only when the work earns it.

Most days, it is chat, file context, right-click editor actions, model switching, and follow-up. When a change needs a trail, AFX gives you spec-driven development inside the same VS Code sidebar: requirements, design, tasks, approvals, traceability, history, notes, boards, journals, and a portable project canvas.

Why bother with specs if AI can just write the code? This short IBM Technology video is a good primer on the risk AFX is designed around: What is AI Technical Debt? Key Risks for Machine Learning Projects.

Install

Install from the VS Code Marketplace or Open VSX.

code --install-extension AgenticFlowX.agenticflowx

Then open the AgenticFlowX activity bar icon, choose Settings → Models, connect a model, and start chatting.

Works in VS Code, VS Code Insiders, VSCodium, Windsurf, Gitpod, and Antigravity-compatible VS Code builds.

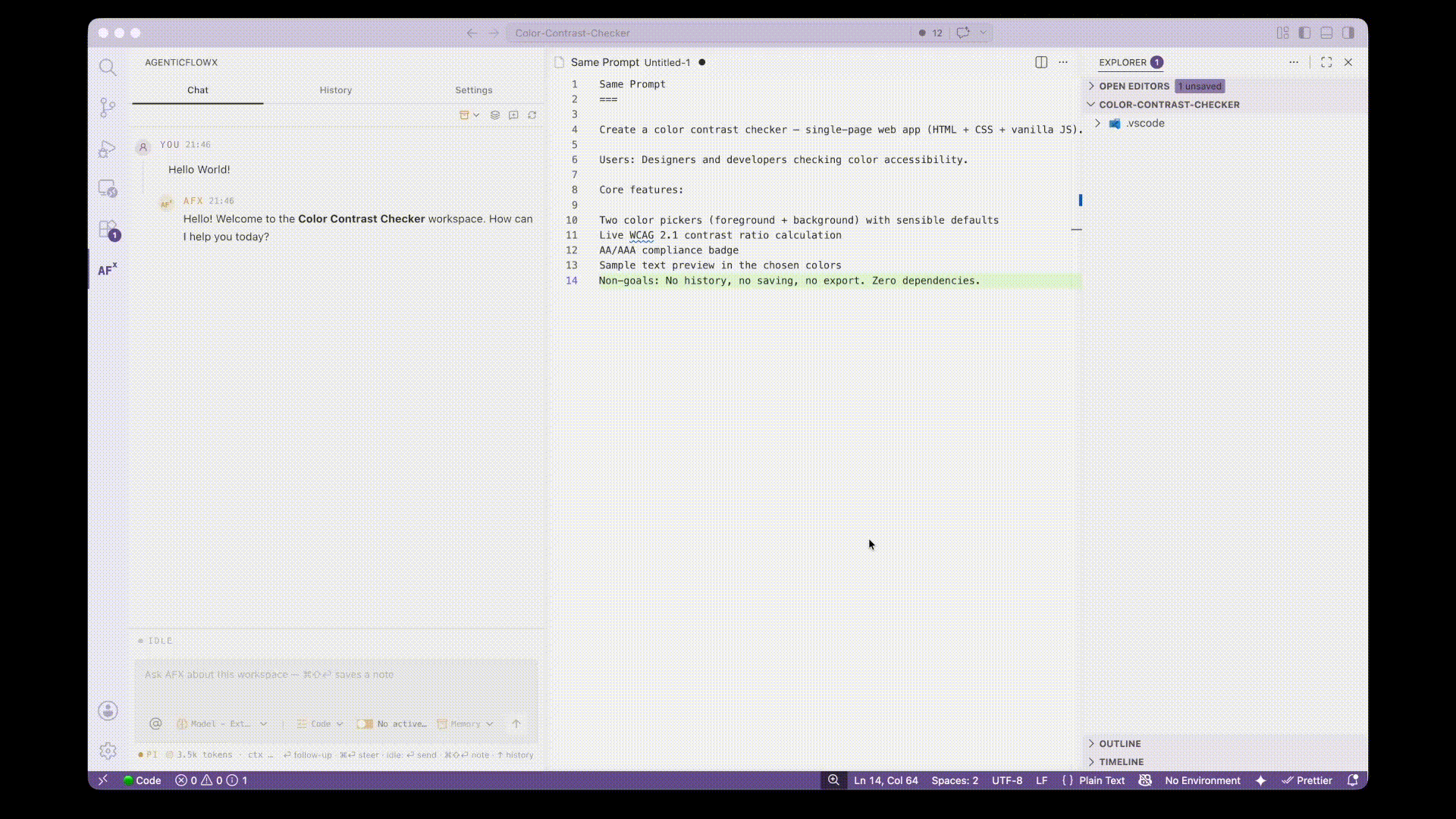

60-second start

1. Open the AgenticFlowX chat panel.
2. Ask for help like you normally would, or mention files with @path/to/file.
3. Right-click code when you want fast actions: send selection, explain, review, improve, generate tests, save to notes, or add an @see link.
4. Switch modes with Cmd+Shift+M on macOS or Ctrl+Shift+M on Windows/Linux:
   • Code for normal implementation.
   • Explore for read-only investigation.
   • Spec when the work needs requirements, design, tasks, and approval.

If you already know you want the workflow, run:

/afx-scaffold spec my-feature

That creates repo-local SDD files under docs/specs/, then AFX guides the next step from chat, the Previewer, and SDD Studio.

---

01 · Chat that stays fast

AFX does not force every task into a process. Start loose: ask about the repo, send a selection, mention files, switch models, and keep coding.

The composer has intent controls for how much structure a message should carry. Default adds no intent-specific steering; active-file context, mentions, workspace-mode guardrails, and runtime prompts can still add relevant context. Ask, Architect, Code, and PRD add lightweight steering when you want it.

When the selected model supports image input, the composer can attach screenshots and diagrams to a turn (including image-only messages). Text-only models are clearly marked and keep the attachment action disabled, so an unsupported request does not fail after you send it. Images are forwarded through both the bundled Pi SDK and the optional Pi RPC runtime, with staged attachments cleaned up when a send is rejected. Thinking-level controls, live usage counters, and usage warnings follow the capabilities reported by Pi instead of assuming every provider behaves the same way.

When the conversation touches documents, files, or workflow state, the UI keeps the useful next action close without turning the chat box into a control panel.

02 · History that can hand off

Past sessions are searchable, reopenable, renameable, exportable, and recap-friendly. Copy a recap when you want to hand context to another agent, another window, or future you. Retry a failed turn, cancel an in-flight request, and copy individual messages without losing the conversation trail.

History is not a separate project-management system; it is the conversation trail beside the work.

03 · Three modes, one chatbox

Code, Explore, and Spec are lanes, not separate products.

• Code is the default: edit, implement, debug, and run commands.
• Explore is enforced read-only: inspect first, plan safely, avoid accidental writes.
• Spec is planning-first: clarify requirements, shape design, break down tasks, and ship from the document.

04 · Spec mode makes the next step obvious

Spec-driven development should not feel like joining a methodology cult. In AFX, it is a guided lane inside chat.

The SDD guide watches the current spec, design, and tasks, then offers the actions that make sense now: refine, author, validate, review, approve, plan tasks, open Previewer, or continue in Studio.

Not every change needs four files. Use Dash for surgical fixes, Sprint for single-document feature work, and the full spec/design/tasks/journal shape when the work needs long-lived traceability.

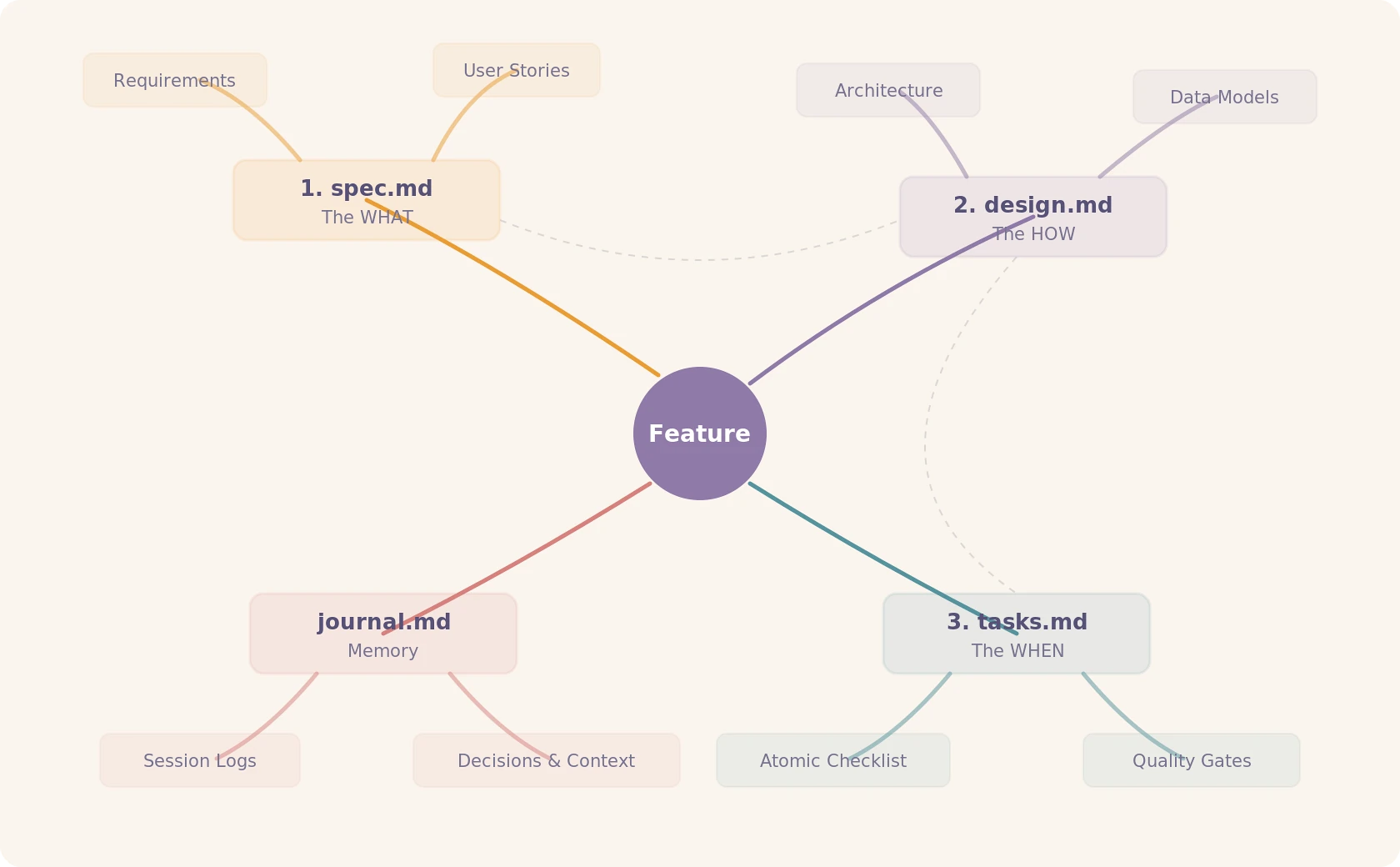

05 · How AFX specs are structured

AFX gives the same workflow discipline in three sizes. Pick the smallest shape that fits the risk; graduate up when the work grows. The important part is that the anchors survive: FR-N, NFR-N, [DES-*], task IDs like ### 2.1, @see links, and Work Sessions all use the same notation across the ladder.

For the long-form version, see the SDD Guide and Document Anatomy.

Shape	Use it for	Files	What it contains	Approval model
Dash	Surgical fixes, bounded cleanup, known bugfixes	docs/specs/<feature>/<feature>.md	Purpose · Tasks · Work Sessions	No approval block; progress is task state
Sprint	Most solo features and medium changes	docs/specs/<feature>/<feature>.md + journal.md	References · Spec · Design · Tasks · Work Sessions	Frontmatter approval.spec/design/tasks, in order
Full spec	Multi-session, cross-cutting, risky work	spec.md · design.md · tasks.md · journal.md	One formal lifecycle file per artifact	Per-file status and approval gates

docs/specs/<feature>/

# Dash
└─ <feature>.md        # type: DASH

# Sprint
├─ <feature>.md        # type: SPRINT
└─ journal.md          # session continuity

# Full spec
├─ spec.md             # the WHAT
├─ design.md           # the HOW
├─ tasks.md            # the WHEN
└─ journal.md          # the WHY / history

spec.md — the WHAT

The product contract: references, problem statement, users, user stories, functional requirements, non-functional requirements, acceptance criteria, non-goals, open questions, dependencies, and appendix.

Requirements carry stable IDs like [FR-1] and [NFR-2]. If a requirement changes, keep the ID. If a requirement is retired, do not silently renumber old IDs — code and tasks may still point at them.

design.md — the HOW

The technical contract: architecture, data model, APIs, integrations, failure modes, security, testing strategy, rollout, and trade-offs.

Design sections carry anchors such as [DES-ARCH], [DES-API], and [DES-SEC], plus backlinks to the spec with @see spec.md [FR-1]. The design is where implementation reality belongs; changelog-style history belongs in the journal.

tasks.md — the WHEN

The executable plan. Tasks use stable IDs such as ### 2.1, checkboxes, acceptance criteria, file scopes, and @see references back to design/spec anchors.

Task actions in AFX can pick, code, verify, brief, or report status. Verification checks for evidence: files exist, @see backlinks are present, no stray TODO/FIXME markers, and the session was logged.

journal.md and Work Sessions — the memory

The journal keeps discussions, decisions, recaps, and captured prompts out of the living spec/design documents. Work Sessions are the append-only ledger for implementation evidence, with separate agent and human sign-off.

That split matters: the spec/design/tasks stay current, while the journal explains how they got there.

Sprint is the one-file version

A Sprint keeps Spec, Design, Tasks, and Work Sessions in one document, gated by an approval: block in frontmatter. Approve in order: spec → design → tasks. Edit an approved upstream section and downstream approvals demote back to Draft.

When a Sprint outgrows itself, graduate splits it into spec.md, design.md, and tasks.md, promotes headings, retargets @see paths, and keeps IDs plus Work Sessions intact.

Dash is the lightweight version

A Dash is Purpose + Tasks + Work Sessions. No status, no version, no approval block. It is for the work that deserves a record but not a ceremony.

Use Dash when the outcome is known, the rollback is bounded, the scope is small, and verification can be written as task criteria. Unknown root cause? Explore first, then Dash the fix.

06 · Markdown that grades itself

AFX Previewer turns repo markdown into a working surface. Specs, designs, tasks, ADRs, research notes, journals, and sprint docs render with workflow-aware toolbars.

Quality Pulse reviews the document as you write it — strategy, structure, clarity, completeness — and the Refinement Coach suggests the next fix. Read the source. Run the section action. Send a section back to chat. Keep the file plain markdown the whole time.

07 · The workflow, visible

SDD Studio gives every feature a live board: spec, design, tasks, and work sessions. Use it when a change outgrows one chat turn and you need to see the whole chain.

It is built for the boring-but-critical parts of agentic work: What is approved? What is stale? What has evidence? What should run next? Focus a document, compare related docs, or continue from the inline action that matches the current stage.

08 · Workbench without another database

Workbench is a set of repo-backed views over the files you already own: SDD Studio, Pipeline, Documents, Analytics, Journal, Board, Notes, and Canvas.

No hosted workflow database. No hidden project state. Just markdown, JSON Canvas, and VS Code surfaces over the repo.

If you want a quieter sidebar, hide the views you do not use with afx.experimental.workbenchHiddenViews. The files and commands stay available.

09 · Pipeline, Documents, Analytics

Three Workbench views make the repo easier to read at a glance:

• Pipeline: feature progress and next actions in one place.
• Documents: browse specs, designs, ADRs, journals, and research notes without leaving the panel.
• Analytics: trace health, velocity, task completion, feature-stage KPIs, and activity heatmaps.

10 · Board, Notes, Journal

The everyday planning tools stay close to the work.

• Board: markdown-backed Kanban for feature flow, triage, and “what next?”
• Notes: quick captures with edit/delete and reader mode, saved under .afx/.
• Journal: append-only session memory so the next agent or human can resume with context.

11 · Canvas for architecture thinking

Canvas is the experimental “architect brain” surface: freeform planning, spec maps, file cards, markdown references, labels, notes, images, URLs, and dependency views.

It is backed by .afx/project.canvas using the portable JSON Canvas format, with AFX metadata layered on top for commands, spec maps, presentation frames, and workflow actions. Open it in the Workbench tab or as a dedicated Canvas editor, keep it reviewable in git, and round-trip it with compatible canvas tools.

Enable it from VS Code settings with afx.experimental.canvas.

12 · Skills: bundled AFX, plus yours

The extension bundles the core AFX workflow skills, and it can also discover standard skills through Pi: project skills, global skills, team packs, and personal skill folders.

That means AFX can run the built-in spec workflow while still respecting the skills your repo already uses. Role packs such as dev, QA, security, architecture, or product can live outside the extension and load as external skills instead of bloating the VS Code bundle.

Skills are loaded from the same places Pi understands:

Source	Paths / setting	Scope shown in Settings
Bundled AFX	Extension resources, resources/skills/agenticflowx	Bundled AFX
Pi global	$PI_CODING_AGENT_DIR/skills or ~/.pi/agent/skills	Global
Agent Skills	~/.agents/skills	Global
Workspace Pi	<workspace>/.pi/skills	Workspace
Workspace AFX	<workspace>/.agents/skills	Workspace
Extra paths	afx.skills.extraPaths entries, absolute, ~/, or workspace-relative	Custom

Each skill is a directory containing SKILL.md; nested skill folders are discovered recursively. Settings → Skills shows the loaded command, source path, and scope so you can tell whether a command came from the extension, the user profile, the workspace, or a custom path.

Settings → About shows the exact tagged AFX skill bundle shipped with the installed extension.

Project-local Pi settings, skills, extensions, and packages are guarded by afx.pi.projectTrust (ask, trust, or ignore), and individual Pi tools can be fenced with afx.pi.excludedTools.

Skill loading uses progressive disclosure: names and descriptions stay in the always-on context, while full SKILL.md instructions, references, and scripts load only when the task matches or you invoke the skill directly.

13 · Bring the model access you already have

AFX uses the Pi coding harness under the hood: sessions, tools, skills, thinking levels, usage reporting, image-aware model metadata, and a broad provider catalog. Use subscription sign-in, API keys, local runtimes, your installed Pi CLI, or the bundled Pi SDK.

• Subscription sign-in: Anthropic, ChatGPT/Codex, GitHub Copilot, OpenRouter, Kimi For Coding, and xAI. AFX-owned OAuth flows keep subscription credentials out of the chat UI; device-code providers open their verification page automatically.
• API keys: OpenAI, Gemini, DeepSeek, Groq, Mistral, OpenRouter, Bedrock, Azure OpenAI, xAI, Kimi, Qwen token plans, Xiaomi token plans, Z.ai, MiniMax, and more.
• Local runtimes: Ollama, llama.cpp-style servers, LM Studio, vLLM, and OpenAI-compatible endpoints.
• Already on Pi: AFX can reuse your Pi CLI config, sessions, provider auth, and skills.

The picker groups configured models by provider, so you can keep a frontier model for design/review, a value model for mechanical edits, and a local model for private work — then switch mid-conversation without losing the thread.

Pi SDK and Pi RPC

AFX exposes two complementary Pi runtimes. The bundled SDK runs in-process and uses AFX-managed provider settings and VS Code SecretStorage. Pi RPC runs your Pi CLI as a subprocess and keeps Pi's native model catalog, sessions, skills, and authentication in Pi's own configuration. Choose the SDK for the simplest managed setup, or enable RPC when you want the same local Pi environment you use from a terminal.

Runtime	Runs	Credentials and model setup
Pi SDK	In the extension host	AFX Settings → Models and VS Code SecretStorage
Pi RPC	As a Pi subprocess	Pi config, pi /login, and Pi-native model discovery

Custom providers are runtime-specific too: SDK providers are managed by AFX, while RPC providers are read from Pi's models.json.

14 · Settings and configuration

Most people can configure AFX from Settings → Models, Settings → Runtimes, Settings → Skills, and the model picker. Settings → About shows the bundled AFX skill version. If you prefer settings.json, these are the important knobs.

For provider recipes, OAuth setup, and runtime walkthroughs, see Help & setup.

Providers and runtime

Setting	Default	Use it for
afx.sdk.enabled	true	Use bundled API Providers when a key/sign-in is configured
afx.sdk.defaultModel	anthropic:claude-opus-4-5	Legacy bootstrap fallback in <provider>:<modelId> format
afx.sdk.ollamaBaseUrl	""	Point AFX at a local Ollama server
afx.rpc.enabled	false	Enable the external Pi CLI RPC runtime
afx.agentBinaryPath	""	Use a specific agent/Pi binary
afx.agentEphemeralSession	false	Run without persistent session continuity
afx.sessionDir	""	Override where agent sessions are stored
afx.runtime.responseStartTimeoutMs	60000	Increase for slow first-token providers, proxies, or local warm-up
afx.network.httpProxy	""	Pass an HTTP/HTTPS proxy to AFX-spawned runtimes

afx.model.defaultSelection becomes the source of truth after you pick a model and is managed by AFX; you normally do not edit either model setting by hand.

Chat defaults

Setting	Default	Use it for
afx.mode.active	code	Default composer mode: code, explore, or spec
afx.composer.intent.slot	1	Default intent slot: Default, Ask, Architect, Code/PRD
afx.composer.intent.minimized	false	Collapse the Intent strip into a smaller one-line control
afx.context.includeActiveFileContext	true	Attach the active editor file to new chat turns by default

Skills and trust

Setting	Default	Use it for
afx.skills.extraPaths	[]	Load extra Pi Agent Skills files/directories outside the default scan paths
afx.pi.projectTrust	ask	Trust policy for project-local Pi settings, skills, extensions, packages
afx.pi.excludedTools	[]	Disable specific Pi tools by name

Paths in afx.skills.extraPaths may be absolute, ~/ based, or workspace-relative.

Workbench and Canvas

Setting	Default	Use it for
afx.experimental.canvas	false	Enable the experimental JSON Canvas tab and Canvas editor
afx.experimental.workbenchHiddenViews	[]	Hide Workbench tabs: workbench, pipeline, documents, analytics, journal, board, notes, canvas

Hiding a Workbench tab only hides the surface. It does not delete files or disable commands.

Appearance

Setting	Default	Use it for
afx.theme	meridian	AFX identity/accent theme
afx.style	lyra	Surface treatment: lyra, luma, maia, nova, vega, mira, sera

Logging and privacy

Setting	Default	Use it for
afx.logLevel	info	Output channel verbosity: silent, error, warn, info, debug, trace
afx.debugPerf	false	Show streaming performance diagnostics in the chat status bar
afx.telemetry.enabled	true	Anonymous UI analytics; respects VS Code telemetry and Do Not Track

15 · Code that can prove itself

AFX teaches the editor about spec links. @see CodeLens connects implementation back to requirements and design anchors, hover previews show the linked section inline, and go-to-definition jumps to anchors such as [FR-1] or [2.1].

Editor context actions turn selected code into workflow material: explain, review, improve, generate tests, save to notes, insert into composer, verify traceability, or add a new @see link. The result is simple: the code can explain why it exists.

---

Files stay yours

AFX writes durable project memory into the workspace:

File	Purpose
docs/specs/<feature>/spec.md	Requirements, constraints, acceptance criteria
docs/specs/<feature>/design.md	Architecture, trade-offs, data models, contracts
docs/specs/<feature>/tasks.md	Ordered implementation checklist and verification plan
docs/specs/<feature>/journal.md	Session notes, decisions, handoff context
docs/adr/*.md	Architecture Decision Records
.afx/notes.md	Workbench Notes
.afx/kanban/*.md	Workbench Board
.afx/project.canvas	Portable JSON Canvas project map
.agents/skills/, .pi/skills/	Workspace-local skill discovery targets

Everything is diff-able, reviewable, and portable.

Runtime upgrades

AFX periodically upgrades the bundled Pi runtime. Existing Pi RPC configuration remains separate from AFX's in-process SDK configuration. Model capability metadata controls whether image attachments and thinking controls are available, and Settings → Models exposes the providers supported by the installed runtime. Check the changelog for exact bundled-runtime versions and migration notes. If you use custom providers, check the runtime table above before deciding where to configure them.

Headless AFX

No VS Code? The workflow also runs as standard skills through the AFX CLI and skill pack.

Claude Code, Codex, Gemini CLI, GitHub Copilot, and Pi-compatible agents can run the same SDD workflow against the same markdown files.

Good to know

• AgenticFlowX is Apache 2.0 open source.
• AFX-managed provider keys and OAuth credentials are stored in VS Code SecretStorage; Pi RPC credentials remain in your existing Pi config.
• Prompts, file context, and attachments are sent to the model provider selected for that turn. AFX does not host a workflow database.
• Specs, tasks, notes, boards, journals, and canvas files stay in your repo.
• The Canvas is experimental and moving quickly.
• The Meridian UI includes seven style treatments: lyra, luma, maia, nova, vega, mira, and sera.
• Anonymous usage telemetry can be disabled.

Contributing

Community contributions are welcome. See CONTRIBUTING.md to get started.

License

Apache 2.0
