C++20 Module Go-to-Definition Workaround
This provides a workaround for navigating import statements in C++20 modules using the Quick Open functionality (Ctrl+P).
Background
The clangd language server currently does not support the "Go to Definition" feature for import statements in C++20 modules. While it can successfully resolve #include directives and other symbols based on compile_commands.json, it does not appear to resolve the location of modules imported via import.
This behavior likely stems from clangd's limited support for resolving module paths based on C++20 Modules.
Features
This extension provides a simple workaround for navigating C++20 module imports and supports:
- Both
import and export import statements.
- Multi-line module declarations.
- Lines containing comments.
Requirements
The project’s directory structure should roughly align with module naming.
How It Works
The extension performs the following steps:
When the cursor is on a line that begins with an import statement, the extension extracts the remainder of the line after the import keyword and treats it as the search text.
If the search text starts with any prefix listed in the optional user configuration (cppm.prefixMatchIgnore), that prefix is stripped.
The search text is transformed for workbench.action.quickOpen:
- Replace all
. and : with spaces.
- Add a
"/" prefix to improve matching by hinting that the first word may represent a folder name.
The transformed search text is copied to the clipboard.
The extension automatically opens the Quick Open dialog (Ctrl+P) and pastes the search text.
This enables a quick, keyboard-driven navigation flow—effectively simulating a "Go to Definition" behavior for C++20 module imports.
ℹ️ This extension does not parse or interact with actual module graphs or BMI files. It simply performs text-based transformation based on assumptions about your project's structure.
ℹ️ If the current line does not start with a valid import statement, or the cursor is not on such a line, the command silently does nothing.

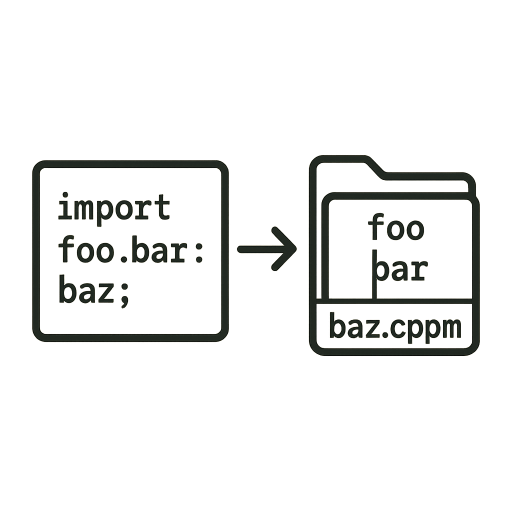

Example Use Case
import foo.bar.module.sub:partition;
→ transforms into:
foo bar module sub partition
→ matches a file path like:
... /foo/bar/module/sub/partition.cppm
Command Usage
The extension contributes one command:
- Command ID:
cppm.searchModuleInQuickOpen
- Command Palette Title:
C++: Search Module in Quick Open
You can run it in one of the following ways:
Via Command Palette
Press F1 (or Ctrl+Shift+P), search for C++: Search Module in Quick Open, and run it.
Via Custom Keybinding
You can assign a keyboard shortcut to run the command.
Example: Bind it to F11 by adding the following to your keybindings.json:
{
"key": "f11",
"command": "cppm.searchModuleInQuickOpen",
"when": "editorTextFocus"
}
Limitation
- Parsing is limited to a maximum of 5 lines for performance reasons when handling multi-line module declarations.
- Designed and tested primarily with
clang-format style formatting; behavior may be inconsistent with other formatters.
Extension Settings
The extension contributes the following setting:
Optional Prefix Filtering
cppm.prefixMatchIgnore: An array of string prefixes to strip from import lines before processing.
Module names do not always map directly to file paths. For example:
import com.example.image.processing.filters.blur;
To allow ignoring certain prefixes (like com.example), the extension supports a user-defined configuration field:
// settings.json
"cppm.prefixMatchIgnore": [
"com.example",
"com.company"
]
In this case, the extension will:
- Check if the module name starts with one of the configured prefixes
- If matched, strip the prefix (e.g.,
com.example.)
This is useful for projects that adopt a Java-style naming convention, such as com.company.module.
Known Issues
License
MIT
