ACPeye
Instant ACPI/ASL documentation tooltips. Hover over any ACPI keyword to see descriptions.
Provides ACPI ASL/AML language help info in the form of hover tooltips, and a command to display help info for the extension.
Mouse hover will triger the hints.
This extension is useful for developers working with ACPI code, such as DSDT/SSDT tables, and UEFI/BIOS development.
Descriptions for ACPI predefine names (methods and PNPID) based on ACPI Spec version 6.4 are provided, and the language definiation is based on CPP.

Features
- Hover over any ACPI ASL/AML keyword to see its definition
- Command to display help info for this extension.
- Configurable to include user-provided ACPI keyword definitions.
- Command to reload the user-provided config file.
Usage

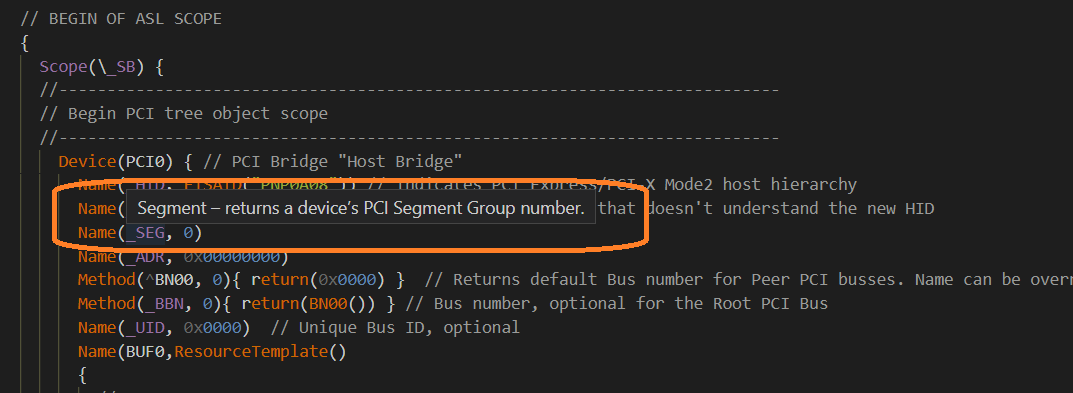

- Hover over any ACPI keyword in your code to see the documentation.
- Use the command palette to run
ACPeye: Help
to display help for this extension.
- Use the command pallete to run
ACPeye: Reload Config
to reload the user-provided config file.
Configuration
- You can include user-provided ACPI keyword definitions by setting
acpeye.includeUserConfig
to true and specifying the path to your JSON config file in acpeye.configPath
.
- A default config file (
AcpiCfg.json
) is included with the extension, which can be used as a starting point for your own configurations.
Configuration Properties
The extension can be configured through VS Code settings:
Property |
Type |
Default |
Description |
Notes |
acpihelper.configPath |
string |
"" |
Path to a custom JSON configuration file containing additional ACPI keywords and descriptions. If empty, only the built-in ACPI specification keywords will be used. |
Format of the file is a JSON list of Object Literals, each having "KeyWord " and "Desc " keys and values. |
acpihelper.includeUserConfig |
boolean |
false |
When enabled, the extension will load keywords and descriptions from the custom configuration file specified in configPath . When disabled, only the built-in ACPI specification keywords will be shown. |
The default is to use the example AcpiCfg.json config included with this extension. Set includeUserConfig to true (checked) and set configPath to an empty string "" (no text) to disable the default config and only use the standard ACPI specification keywords. |
The custom configuration file should be a JSON array of Object Literals, where each object has the following structure:
[
{
"KeyWord": "YOUR_KEYWORD",
"Desc": "Description of the keyword"
},
{
"KeyWord": "ANOTHER_KEYWORD",
"Desc": "Another description"
}
]
Example Configuration
{
"acpihelper.configPath": "/path/to/your/acpi-config.json",
"acpihelper.includeUserConfig": true
}
Known Issues
Release Notes
1.0.0
- Initial re-release of ACPeye (fork of
williamwu-hj.AcpiHelper
) with renovated user-config support, updated dependencies, and added integration tests.
- Currently, the auto-complete is not implemented yet.
Contributing
Please read our contributing guide if you'd like to help improve ACPeye.
Contributors
- William Wu (@FirstWilliam)
- James Cuzella (@trinitronx)
License
This extension is licensed under the MIT License.
