Metal Shading Language for VSCode

Real Metal Shading Language (MSL) language support for Visual Studio Code, powered by the libmsl compiler front-end. Semantic highlighting and diagnostics come straight from the same lexer and parser that produce the WGSL output — no regex approximations, no guesswork.

What's stable

These are the core features the extension exists for, and what most of the C compiler code has been tuned against:

• Semantic highlighting. Types, keywords, built-in functions, struct names, function names, parameters, fields, and local variables are each classified by the real MSL front-end and handed to VSCode as LSP semantic tokens. Your theme's struct, function, parameter, and property colors light up the way they do for first-class languages.
• Structured diagnostics. Parse errors land in the Problems panel with precise line/column ranges as you type. Each malformed construct produces exactly one diagnostic — no cascading noise.
• Metal: Show Transpiled WGSL command. Open the WebGPU shader your .metal file lowers to, side-by-side with the source. Accessible from the Command Palette, the editor title bar ($(open-preview) icon), the right-click menu (editor and explorer), or the Cmd+K V / Ctrl+K V keybinding.

What's experimental

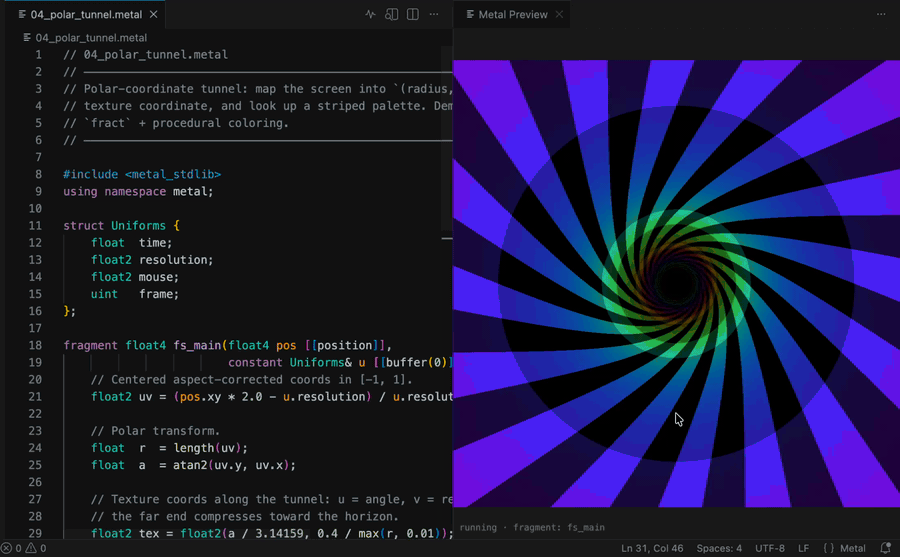

• Live WebGPU Preview (Metal: Open Live Shader Preview, Cmd+K P / Ctrl+K P). A ShaderToy-style webview renders the active fragment shader against a canvas with WebGPU. It works today for self-contained fragment shaders with the time / resolution / mouse / frame uniform convention (see the examples/ directory of the source repository), and the pipeline recompiles on every keystroke so you can iterate visually.

  Caveats, because this is brand new:

  • Only fragment shaders that take @builtin(position) (or nothing) are supported. Shaders using stage_in structs, custom vertex outputs, textures, samplers, or compute kernels fall back to an overlay message.
  • The transpiler may emit WGSL that the browser rejects. If the pipeline fails to compile, the error text appears in an overlay on the preview — if the error looks like a bug in the WGSL output, please file it (see below).
  • The preview relies on navigator.gpu being available in VSCode webviews, which requires VSCode 1.83 or newer on a platform with WebGPU enabled.

Maturity & feedback

The language server, syntax highlighting, and diagnostics are the main product and what we actively develop against. The WGSL preview command and the live WebGPU preview are built on top of a transpiler that's still closing gaps against the full MSL 3.2 / Metal 4 specification, so:

• If your shader looks right in the editor but the Problems panel reports something you think is valid MSL, that's almost certainly a parser gap — please report it.
• If the transpiled WGSL compiles in the browser but runs wrong, that's almost certainly a lowering/emission bug — please report it.
• If the preview blows up with a "pipeline failed to compile" overlay, copy the WGSL error text and the original MSL snippet into the issue.

The preview's scope will grow (textures, compute visualization, scene config) as the underlying compiler matures.

Issues and suggestions: https://github.com/toprakdeviren/metal-shading-language-vscode-extension/issues

Commands

Both commands also show up in the editor title bar, the editor right-click menu, and the explorer right-click menu when the target is a .metal or .msl file.

Architecture (one paragraph)

The extension boots a small Node-hosted language server that loads libmsl — the same C compiler front-end used by the command-line toolchain — as a WebAssembly module. Every editor request (semantic tokens, diagnostics, transpile-on-demand) round-trips through the same parser your production build uses, so the editor can't drift from the real behavior of the compiler. The extension ships as a single .vsix with no native binaries and no platform-specific install steps.

File extensions

.metal, .msl
