n8n Atom VS Code Extension

🚀 n8n Atom is a powerful VS Code extension that brings the n8n workflow automation platform directly into your editor. With this extension, you can create, manage, and monitor your n8n workflows without leaving VS Code.

Features

🚀 Integrated n8n Server: Automatically starts and manages the n8n server using npx n8n-atom
🌐 Webview Integration: Full n8n interface embedded within VS Code
⚡ Auto-start: Automatically starts the server when you open the panel
🔄 Server Management: Start, stop, and restart the n8n server with ease
📊 Status Monitoring: Real-time server status and health checks
🔧 Configuration: Customizable server port and auto-start settings
📝 Logging: Comprehensive logging for debugging and monitoring

What is n8n?

n8n is a workflow automation platform that gives technical teams the flexibility of code with the speed of no-code. With 400+ integrations, native AI capabilities, and a fair-code license, n8n lets you build powerful automations while maintaining full control over your data and deployments.

Key Capabilities

Code When You Need It: Write JavaScript/Python, add npm packages, or use the visual interface
AI-Native Platform: Build AI agent workflows based on LangChain with your own data and models
Full Control: Self-host with our fair-code license or use our cloud offering
Enterprise-Ready: Advanced permissions, SSO, and air-gapped deployments
Active Community: 400+ integrations and 900+ ready-to-use templates

Installation

Install the extension from the VS Code marketplace
Ensure you have Node.js installed on your system
The extension will automatically handle the n8n-atom package installation

Usage

Quick Start

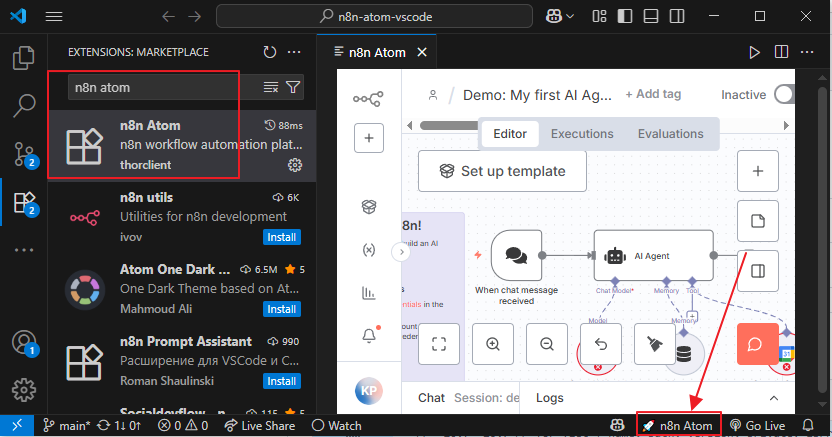

Open the Extension: Click the 🚀 n8n Atom status bar item or use the command palette
Auto-start: The server will automatically start (if enabled in settings)
Access n8n: The full n8n interface will load in the webview panel

Commands

n8n-atom.open: Open the n8n Atom panel
n8n-atom.startServer: Start the n8n server
n8n-atom.stopServer: Stop the n8n server
n8n-atom.restartServer: Restart the n8n server
n8n-atom.showLogs: Show the extension logs

Configuration

The extension provides several configuration options:

{
  "n8n-atom.serverPort": 5678,
  "n8n-atom.autoStartServer": true,
  "n8n-atom.packageVersion": "1.108.4"
}

serverPort: Port number for the n8n server (default: 5678)
autoStartServer: Automatically start the server when opening the panel (default: true)
packageVersion: n8n-atom package version to use (default: latest)

How It Works

Package Management: The extension checks if n8n-atom is available and updates it if needed
Server Launch: Uses npx n8n-atom to start the server with proper environment configuration
Health Monitoring: Continuously monitors server health and readiness
Webview Integration: Embeds the n8n interface in a VS Code webview panel
Process Management: Handles server lifecycle, startup, and shutdown

Requirements

VS Code: Version 1.74.0 or higher
Node.js: Version 18 or higher
npm/npx: For package management

Troubleshooting

Common Issues

Server Won't Start
- Check if Node.js is installed and accessible
- Verify the port isn't already in use
- Check the extension logs for detailed error messages
Package Installation Issues
- Ensure you have internet access for npm downloads
- Try running npm install -g n8n-atom manually
- Check npm configuration and permissions
Port Conflicts
- Change the server port in VS Code settings
- Ensure no other services are using the configured port

Getting Help

Check the extension logs: n8n-atom.showLogs
Review the VS Code output panel
Ensure your system meets the requirements
Try restarting VS Code

Development

Building from Source

Clone the repository
Install dependencies: npm install
Compile TypeScript: npm run compile
Package the extension: npm run package

Project Structure

src/
├── extension.ts      # Main extension entry point
├── server.ts         # Server management and process handling
├── webview.ts        # Webview panel and UI management
└── logger.ts         # Logging utilities

Contributing

Contributions are welcome! Please feel free to submit issues, feature requests, or pull requests.

License

This extension is licensed under the same terms as n8n. See the n8n license for details.

Acknowledgments

Built on the amazing n8n platform
Inspired by the httptoolkit-vscode extension architecture
Powered by the VS Code extension API

Support

Extension Issues: Use the GitHub issues page
n8n Support: Visit community.n8n.io
Documentation: Check docs.n8n.io

Happy automating! 🚀
