WGSL Preview

A VS Code extension that provides real-time preview for WGSL shaders with WebGPU rendering.

Features

• Real-time Preview - Live preview of your WGSL shaders as you type
• Texture Support - Load and sample textures in your shaders
• Custom Uniforms - Define custom uniform variables with automatic std140 layout
• Built-in Uniforms - Access handy built-in uniforms like time, resolution, and mouse
• Performance Monitoring - Optional FPS and render time display
• Custom Entry Points - Configure custom vertex/fragment shader entry points
• Hot Reload - Automatic preview update when shader or config file changes
• Error Display - Friendly error messages with collapsible panels

Installation

1. Install the extension from the VS Code Marketplace (search for "WGSL Preview")
2. Or install the .vsix file manually
3. Or install via command line:

code --install-extension taiyuuki.vscode-wgsl-renderer

Usage

Opening Preview

• Click the preview icon in the editor title bar (right side of the tab)
• Or use the Command Palette (Ctrl+Shift+P / Cmd+Shift+P) and run WGSL: Preview

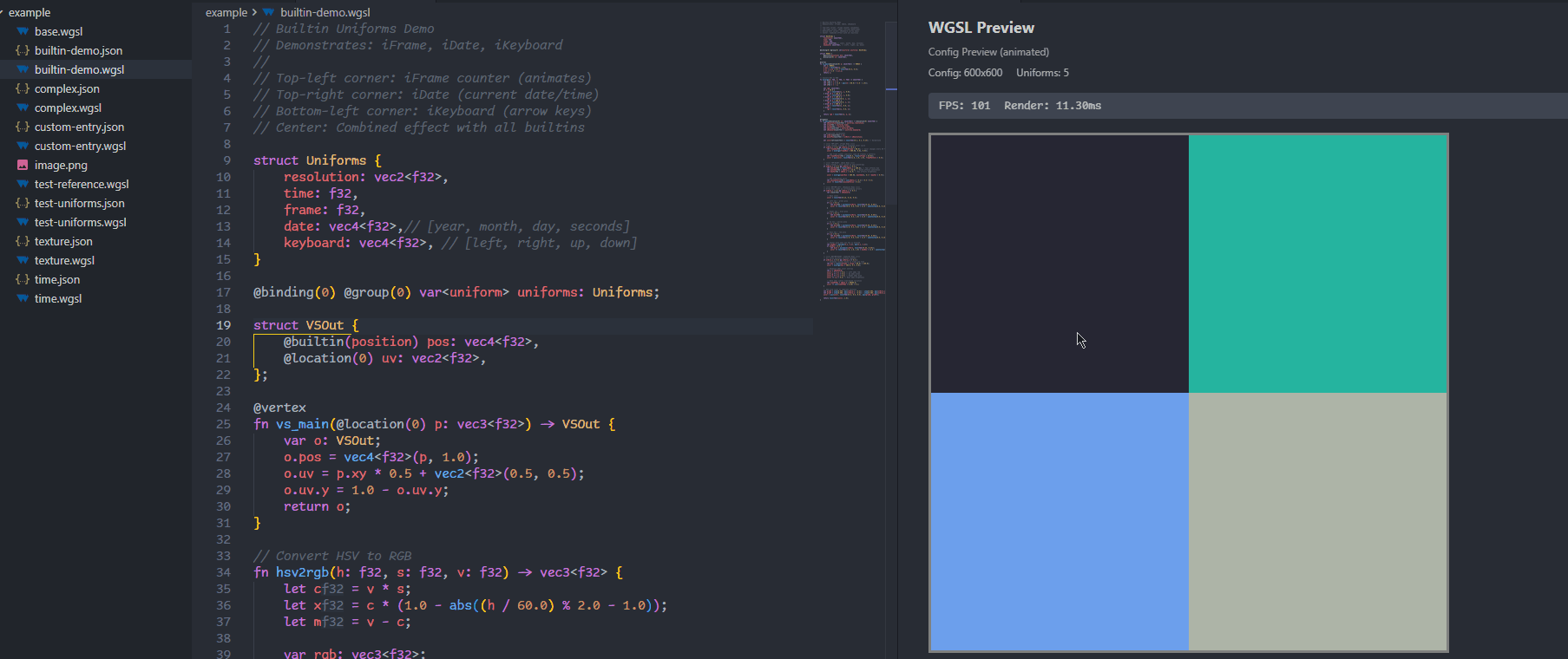

The preview will open in a side panel, showing your rendered shader in real-time.

Basic Shader

A minimal WGSL shader without configuration:

struct VSOut {
    @builtin(position) pos: vec4<f32>,
    @location(0) uv: vec2<f32>,
};

@vertex
fn vs_main(@location(0) p: vec3<f32>) -> VSOut {
    var o: VSOut;
    o.pos = vec4<f32>(p, 1.0);
    o.uv = p.xy * 0.5 + vec2<f32>(0.5, 0.5);
    o.uv.y = 1.0 - o.uv.y;
    return o;
}

@fragment
fn fs_main(@location(0) uv: vec2<f32>) -> @location(0) vec4<f32> {
    let color = vec3<f32>(uv, 0.5);
    return vec4<f32>(color, 1.0);
}

Configuration

Create a JSON configuration file alongside your WGSL file (e.g., shader.wgsl → shader.json) to customize the preview.

Example Configuration

{
  "canvas": {
    "width": 800,
    "height": 600
  },
  "showStats": true,
  "entryPoints": {
    "vertex": "vs_main",
    "fragment": "fs_main"
  },
  "uniforms": [
    {
      "name": "time",
      "type": "f32",
      "builtin": true
    },
    {
      "name": "resolution",
      "type": "vec2<f32>",
      "builtin": true
    },
    {
      "name": "mouse",
      "type": "vec2<f32>",
      "builtin": true
    },
    {
      "name": "myColor",
      "type": "vec3<f32>",
      "value": [1.0, 0.5, 0.2]
    }
  ],
  "textures": [
    {
      "name": "myTexture",
      "path": "image.png"
    }
  ],
  "samplers": [
    {
      "name": "mySampler",
      "addressModeU": "clamp-to-edge",
      "addressModeV": "clamp-to-edge",
      "magFilter": "linear",
      "minFilter": "linear"
    }
  ],
  "bindings": [
    {
      "name": "uniforms",
      "type": "uniform",
      "binding": 0
    },
    {
      "name": "mySampler",
      "type": "sampler",
      "binding": 1
    },
    {
      "name": "myTexture",
      "type": "texture",
      "binding": 2
    }
  ]
}

Configuration Options

Uniform Types

Supported uniform types follow WGSL syntax:

Scalars: f32, i32, u32 Vectors: vec2<f32>, vec3<f32>, vec4<f32> Matrices: mat2x2<f32>, mat3x3<f32>, mat4x4<f32>

Built-in Uniforms

Using Built-in Uniforms

struct Uniforms {
    time: f32,
    resolution: vec2<f32>,
    mouse: vec2<f32>,
    frame: f32,
    date: vec4<f32>,      // [year, month, day, seconds]
    keyboard: vec4<f32>,  // [left, right, up, down]
};

@group(0) @binding(0) var<uniform> u: Uniforms;

@fragment
fn fs_main(@location(0) uv: vec2<f32>) -> @location(0) vec4<f32> {
    // Animate color over time
    let r = 0.5 + 0.5 * sin(u.time);
    let g = 0.5 + 0.5 * cos(u.time * 0.7);

    // Add frame-based animation
    let framePattern = step(0.5, fract(u.frame / 60.0));

    // Respond to arrow keys
    let keyboardEffect = u.keyboard.x * 0.2;  // Left arrow adds red

    return vec4<f32>(r + keyboardEffect, g + framePattern * 0.2, 0.5, 1.0);
}

Configuration:

{
    "uniforms": [
        { "name": "time", "type": "f32", "builtin": true },
        { "name": "resolution", "type": "vec2<f32>", "builtin": true },
        { "name": "mouse", "type": "vec2<f32>", "builtin": true },
        { "name": "frame", "type": "f32", "builtin": true },
        { "name": "date", "type": "vec4<f32>", "builtin": true },
        { "name": "keyboard", "type": "vec4<f32>", "builtin": true }
    ],
    "bindings": [
        { "name": "uniforms", "type": "uniform", "binding": 0 }
    ]
}

Note: The time, frame, date, and keyboard uniforms enable automatic animation/interaction. When these are used, the preview will continuously render.

Textures and Samplers

Loading Textures

Place your texture images in the same directory as your WGSL file and reference them in the configuration:

{
    "textures": [
        { "name": "myTexture", "path": "./image.png" }
    ],
    "bindings": [
        {
            "name": "mySampler",
            "type": "sampler"
        },
        {
            "name": "myTexture",
            "type": "texture"
        }
    ]
}

Supported formats: PNG, JPEG, WebP

Using Textures in Shaders

@group(0) @binding(0) var mySampler: sampler;
@group(0) @binding(1) var myTexture: texture_2d<f32>;

@fragment
fn fs_main(@location(0) uv: vec2<f32>) -> @location(0) vec4<f32> {
    let color = textureSample(myTexture, mySampler, uv);
    return color;
}

Automatic Sampler Creation

If you reference a sampler in bindings but don't define it in samplers, a default sampler will be created automatically with:

• magFilter: linear
• minFilter: linear
• addressModeU: clamp-to-edge
• addressModeV: clamp-to-edge

Bindings

The bindings array allows you to explicitly control the resource binding order:

{
    "bindings": [
        { "name": "uniforms", "type": "uniform", "binding": 0 },
        { "name": "mySampler", "type": "sampler", "binding": 1 },
        { "name": "myTexture", "type": "texture", "binding": 2 }
    ]
}

If bindings is omitted, resources are bound in the default order: uniforms → textures → samplers.

Performance Monitoring

Enable FPS and render time display by setting showStats to true:

{
    "showStats": true
}

The stats panel displays:

• FPS: Current frames per second
• Render: Frame render time in milliseconds

Examples

The example/ directory contains several example shaders:

Hot Reload

The preview automatically updates when:

• You modify the WGSL file (500ms debounce)
• You modify the configuration file
• You switch to a different WGSL file

License

MIT

Contributing

Contributions are welcome! Please feel free to submit a Pull Request.
