Salesforce Metadata Manager

A Visual Studio Code extension that provides a user-friendly interface for managing and retrieving Salesforce metadata components. Create package.xml files and retrieve metadata with just a few clicks.

Short video of the Salesforce Metadata Manager

Features

1. Automatic Metadata Type Loading

All metadata types available in your connected org will be automatically loaded when the extension starts, providing a complete list of available metadata types.

Automatic metadata type loading

2. Metadata Type Search and Selection

You can search for a particular metadata type with keyword filtering, making it easy to find the specific metadata type you need.

Search and select metadata types using keyword filters

3. Smart Component Loading

On selecting a metadata type, all components of that type will be automatically loaded in a table, except for currently selected components or those already in existing package.xml. This prevents duplicate selections and ensures efficient workflow.

Smart component loading

Retrieved components

4. Component Search and Selection

You can search for a particular component with comma-separated keyword filtering, allowing you to quickly find specific components within a metadata type.

Search and select components using keyword filters

5. Selected Components Management

On selecting a component, Add button will displayed.

Add button

On cicking Add button, all selected components will be available in the selected components table for retrieval. The table provides a clear overview of all selected components with their metadata types.

Selected components table with metadata types

6. Existing Package Support

Components available in existing package.xml are also loaded back to the selected components table, allowing you to continue working with your existing metadata selections.

Existing package.xml Components Loading

7. Smart Component Filtering

Selected components will not be available for future selection, preventing duplicates. If you remove a component from the selected components table, that component will be available back for future selection.

8. Component Availability Alerts

If selected metadata has no components, you will be alerted that there are no components.

Alert when no components are available for the selected metadata type

If selected metadata has components and all components are already selected, you will be alerted that there are no more components to select.

Alert when all components are selected and no more components are available for selection

9. Package.xml Generation and Retrieval

On clicking Retrieve Components, package.xml will be created in the manifest folder and selected components will be retrieved from your Salesforce org.

Retrieving components

Automatically generated package.xml with selected components

Retrieved selected components successfully

10. Retrieval Status Tracking

Real-time status updates are provided for each component during the retrieval process:

• - (default): Not yet retrieved
• ✅ Success (green): Component retrieved successfully
• ❌ Failed (red): Component retrieval failed

11. Error Handling and Reporting

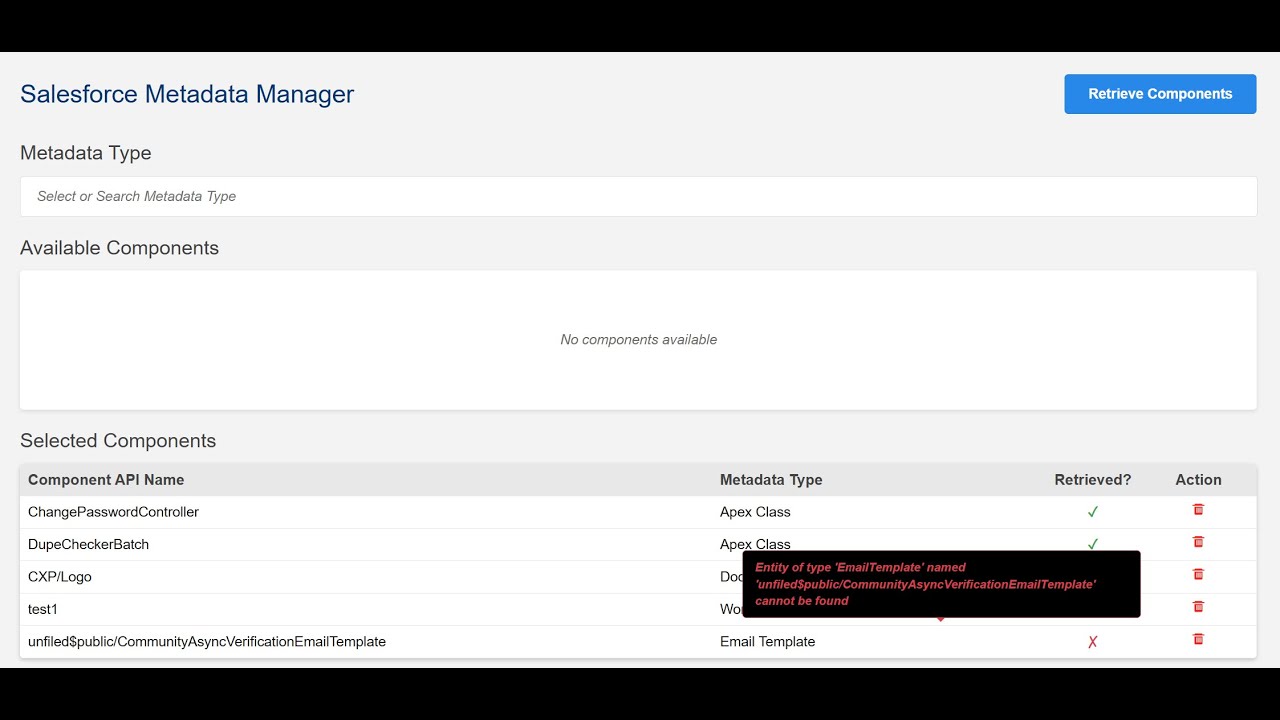

The extension provides comprehensive error handling. If the retrieval of some components fails, retrieval status will be marked as Success for retrieved components and Failed for failed components. When you hover your mouse over the retrieval status 'Failed,' you will see error information as a tooltip.

Detailed error information for failed component retrievals as tooltip

12. Dependency Loading

Click on any row in the selected components table to view its dependencies. The Dependencies section will show a table with:

• Component ID
• Component Name
• Type
• Dependency Type (Direct or Indirect)

You can add any dependency to the selected components list by clicking on the dependency row. A popup will appear confirming that the dependency is being added to the selected components list.

Loading dependencies of the selected component

Dependencies section showing component dependencies

Adding a dependency to the selected components list

Prerequisites

• Visual Studio Code
• Salesforce CLI (sf) installed and configured
• Authenticated Salesforce org connection

Installation

1. Download the .vsix file
2. Open VS Code
3. Press Ctrl+Shift+P and type "Extensions: Install from VSIX"
4. Select the downloaded .vsix file
5. Restart VS Code

Usage

Opening the Extension

Method 1: Command Palette

1. Press Ctrl+Shift+P
2. Type "Salesforce: Open Metadata Manager"
3. Press Enter

Method 2: Context Menu

1. Right-click on any folder in the Explorer
2. Select "Open Metadata Manager"

Selecting Components

1. Search and Select Metadata Type: Use the search box to find and select a metadata type (e.g., Apex Class, Custom Object)
2. Search and Multi-select Components: Use the component search text box to find and multi-select specific components from the table
3. Review Selection: View selected components in the table below with real-time status updates

Loading Indicators

• Progress Spinners: Visual indicators show when metadata types and components are loading
• No Components Message: Clear notification when no components are found for a selected metadata type
• Smart Component Filtering: Selected components are automatically filtered out from future selections

Retrieving Components

1. Click the "Retrieve Components" button (top-right)
2. Watch the progress indicator
3. Check the Retrieval Status column for results:
   • ✅ Success (green): Component retrieved successfully
   • ❌ Failed (red): Component retrieval failed
4. View error details in the Error Details section (if any failures occur)

Managing Components

• Remove Components: Click the 🗑️ icon next to any component to deselect it and make it available for future selection
• Load Existing: Automatically loads components from existing manifest/package.xml
• Package.xml Location: Generated files are saved to manifest/package.xml
• Smart Component Filtering: Selected components are automatically filtered out from future selections, preventing duplicates

Requirements

• Salesforce CLI: Must be installed and available in PATH
• Authenticated Org: Run sf org login web to authenticate
• Salesforce Project: Must be in a valid Salesforce DX project directory

Version History

1.1.9

• Changed null component id to 'Not Available'

1.1.8

• Added dependencies section to load the dependencies of selected metadata component
• Add the dependency to selected component list
• Refer Feature 12

1.1.7

• Fixed dashboard retrieval issues with proper SOQL query for Title field
• Improved folder hierarchy construction for all folder-based metadata types (Dashboard, Document, EmailTemplate)
• Fixed queryFoldersWithAncestors function placement to ensure proper accessibility

1.1.6

• Updated ReadMe file with url of new video about how Salesforce Metadata Manager works

1.1.5

• Replaced Success and Failed retrieval status text with green tick (✓) and red cross (✗) icons for better visual indication
• Implemented new SVG-based delete icon in the Action column for improved user interface

1.1.4

• Implemented multiselection of components for more efficient workflow
• Improved error handling with better error detection and reporting
• Enhanced user experience with error messages displayed as tooltips

1.1.3

• Implemented logic to treat "MetadataTransferError: Metadata API request failed: Could not find HEAD" errors as success. This error typically occurs in Salesforce Developer Sandboxes with source tracking enabled and despite the error message, the deployment or retrieval operation often completes successfully.

1.1.2

• Implemented search and select feature for both metadata type and component comboboxes
• Selected components will not be available for future selection
• If we deselect component, it will be available for future selection

1.1.1

• Added progress spinners for metadata type and component loading
• Improved error messaging for "no components retrieved" scenarios
• Enhanced user feedback during loading processes

1.1.0

• Email templates, documents, and dashboards in personal folders will not be displayed
• Enhanced filtering for folder-based metadata types

1.0.2

• Added visual interface for metadata management
• Implemented real-time retrieval status tracking
• Added error reporting and details
• Support for existing package.xml files

License

MIT License - see LICENSE file for details

Author

Shabu Thomas
Email: ars.shabu@gmail.com

Note: This extension requires an active Salesforce CLI installation and authenticated org connection to function properly.
