Project Atlas
Auto-record projects, quick access, task runner, and JetBrains-style Git integration.
English | 中文文档
Features

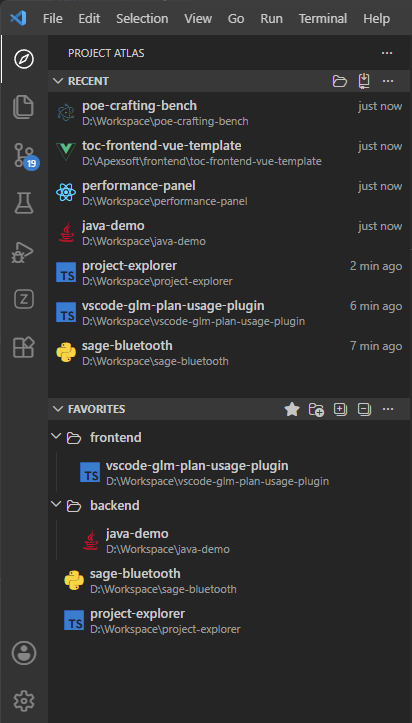

Project Atlas
Auto-tracking
Every project you open is recorded automatically. No manual setup needed.
Quick Access
Open any project from the sidebar with configurable click behavior (single/double click) and window preference. Keyboard shortcuts for instant access.
Favorites & Groups
Star projects for quick access and organize them into named groups with expand/collapse. Drag to reorder favorites.
Git Clone
Clone repositories directly into your workspace from the sidebar.
Project Type Detection
Automatically identifies 16+ project types and displays matching devicon icons.
Project Management
Rename display names, clean up invalid entries, reveal in file explorer, and right-click for quick actions.
Reveal Active File
Adds a button to the built-in file explorer's view title bar to locate the currently open file in the tree (can be toggled in settings).
Task Atlas
Task Runner
A dedicated sidebar for running tasks defined in .vscode/tasks.json and npm scripts from package.json. Start, stop, pin, and drag to reorder tasks with real-time status. Tasks are grouped by project and auto-refreshed when config files change.
Git Atlas
Visual Git Log
A bottom-panel commit graph with self-rendered SVG lane layout, branch tree (local/remote/tags), collapsible commit sequences, and a detail panel with changed-file tree. Filter by branch, author, date range, or file.
IDEA-style Commit Panel
An activity-bar commit panel with Changes / Staged / Unversioned groups, directory tree, amend, recent commit messages, and commit-and-push split button. Includes git stash (Shelf) and IDEA-compatible shelf (.idea/shelf/) with patch import/export.
Multi-repo Support
Workspaces with sub-directory git repos get a repo selector in both the Git Log and Commit views. Switch the active repo with one click; status badges (↑ahead / ↓behind / ●uncommitted) update in real time.
Branch Operations
Checkout, create, rename, delete (with force-delete and merge checks), merge, rebase (including checkout-and-rebase), and compare with current — all from the branch tree context menu.
Commit Operations
Cherry-pick, revert, reset (soft/mixed/hard), drop commit, create branch/tag from commit, and show file history.
3-way Merge Editor
A webview-based 3-way merge editor (base / ours / theirs) using node-diff3 with inline word-diff highlighting (Shiki). Accept left/right per conflict block, skip, undo, and apply with staging. Conflicts panel lists all conflicted files with Accept Yours/Theirs/Merge actions.
Push & Rollback
Dedicated push dialog (with force-push and rebase/merge-on-reject options) and rollback dialog (selective file revert, delete untracked copies).
Diff Navigation
Open diffs against any ref, navigate next/previous file diff across a commit range, and show working-tree file diff (HEAD ↔ Staged/Working).
Localization
Full Chinese (zh-cn) localization via VSCode's l10n system — both the extension host and the React webview.
TODO Atlas
Manual TODOs
Create global (cross-workspace) or project-level TODOs from the bottom panel. Checkbox to toggle complete, inline edit (double-click), copy, drag to reorder, and delete — with creation/completion timestamps shown in tooltip.
Comment Scanning
Scans source files for TODO / FIXME / XXX / HACK / BUG / NOTE comments. Results are grouped by tag, click to jump to source. Supports TODO(name) assignee extraction. Scan results are cached to workspace state for instant display on reopen.
Multi-repo Grouping
Project-level TODOs under multi-repo workspaces are grouped per sub-repo (reuses Git Atlas repo detection); root-level TODOs appear directly under the Project section.
Right-click Menu & Inline Actions
Per-row context menu (toggle complete / copy / edit / delete for manual items; jump to source / copy for scanned) plus hover action buttons.
Panel Toggle
Disabled by default. Enable via todoAtlas.enabled in settings — shows/hides instantly without reload.
Configuration
| Setting |
Type |
Default |
Description |
projectAtlas.recentProjectsLimit |
number |
50 |
Maximum number of recent projects to keep |
projectAtlas.openProjectMode |
ask / currentWindow / newWindow |
ask |
Default window behavior when opening a project |
projectAtlas.openMode |
singleClick / doubleClick / followIDE |
followIDE |
How a click on a project item opens it |
projectAtlas.confirmDelete |
ask / never |
ask |
Whether to confirm before deleting projects/groups |
projectAtlas.showRevealActiveFile |
boolean |
true |
Show 'Reveal Active File' button in the built-in file explorer view title |
taskAtlas.showRecentRuns |
boolean |
true |
Show the recent runs section in the Tasks view |
taskAtlas.maxRecentRuns |
number |
5 |
Maximum number of recent runs to keep (1–20) |
taskAtlas.showPinned |
boolean |
true |
Show the pinned tasks section in the Tasks view |
gitAtlas.commitListStyle |
vscode / jetbrains |
vscode |
Commit list display style |
gitAtlas.commitBadgeMode |
total / current / off |
total |
Change count badge on the Git Commit activity bar icon |
gitAtlas.enableGitLogPanel |
boolean |
true |
Show the Git Atlas panel (Git Log) in the bottom panel |
gitAtlas.enableCommitPanel |
boolean |
true |
Show the Commit panel in the activity bar |
gitAtlas.aiCommit.apiUrl |
string |
"" |
AI API base URL or full endpoint (OpenAI-compatible) |
gitAtlas.aiCommit.model |
string |
"" |
AI model name (e.g. gpt-4o-mini, deepseek-chat) |
gitAtlas.aiCommit.language |
auto / en / zh / follow-locale |
auto |
Language for generated commit messages |
gitAtlas.aiCommit.maxDiffChars |
number |
8000 |
Max diff characters sent to the AI (500–50000) |
gitAtlas.aiCommit.customInstructions |
string |
"" |
Custom instructions appended to the AI prompt |
gitAtlas.aiCommit.timeout |
number |
30 |
Timeout in seconds for AI commit generation (5–300) |
todoAtlas.enabled |
boolean |
false |
Show the TODO Atlas panel in the bottom panel (instant, no reload) |
todoAtlas.scan.autoScan |
boolean |
false |
Automatically scan on startup, window focus, and file save (use rescan button otherwise) |
todoAtlas.scan.tags |
array |
["TODO","FIXME","XXX","HACK","BUG","NOTE"] |
Tags to scan for in source comments |
todoAtlas.scan.exclude |
array |
["**/node_modules/**","**/.git/**","**/dist/**","**/out/**","**/build/**","**/.vscode-test/**","**/*.min.js","**/*.map"] |
Glob patterns to exclude from scanning |
todoAtlas.scan.debounceMs |
number |
500 |
Debounce (ms) for incremental rescans on file save (100–3000) |
todoAtlas.showCompleted |
boolean |
true |
Show completed TODOs in the list |
todoAtlas.groupBy |
scope / tag / file / none |
scope |
How to group TODOs in the view |
Keyboard Shortcuts
| Shortcut |
Action |
Alt+O |
Open project picker |
Ctrl+Alt+O |
Focus Project Atlas sidebar |
Ctrl+Alt+T |
Focus Task Atlas sidebar |
Ctrl+Shift+K |
Push (Git Atlas) |
Ctrl+F7 |
Next file diff (Git Atlas) |
Ctrl+Shift+F7 |
Previous file diff (Git Atlas) |
Changelog
See CHANGELOG.md for release history.
Credits
The Git Atlas feature builds on code from these open-source projects:
With additional multi-repo support (sub-directory git repo detection, repo switching, and status badges).
License
This project is licensed under the GNU General Public License v3.0 — free to use, modify, and distribute. Derivative works must also be licensed under GPL 3.0.
