REslava.Result Extensions

VS Code companion for the REslava.Result NuGet library.

Adds a Flow Catalog sidebar, CodeLens, and a gutter icon to every [ResultFlow] method — browse all pipelines across your workspace, click any method to open a live Mermaid diagram.

Features

⚡ Flow Catalog sidebar

A dedicated activity bar panel lists every [ResultFlow] method across your entire workspace, grouped by project and class — no need to navigate to a source file first.

• Project nodes turn green when the project has been built (registry found), red when a build is needed
• Method nodes show ⚡ for async methods, return type, and node count as inline description
• Hover a method to see the full tooltip: return type, node count, node kinds, and error types
• Click a method to open its diagram preview instantly
• Right-click a project → Build Project runs dotnet build --no-incremental and auto-refreshes the tree when done
• ↺ button in the panel header manually refreshes the full workspace scan
• Stats bar above the tree shows total projects · pipelines · nodes

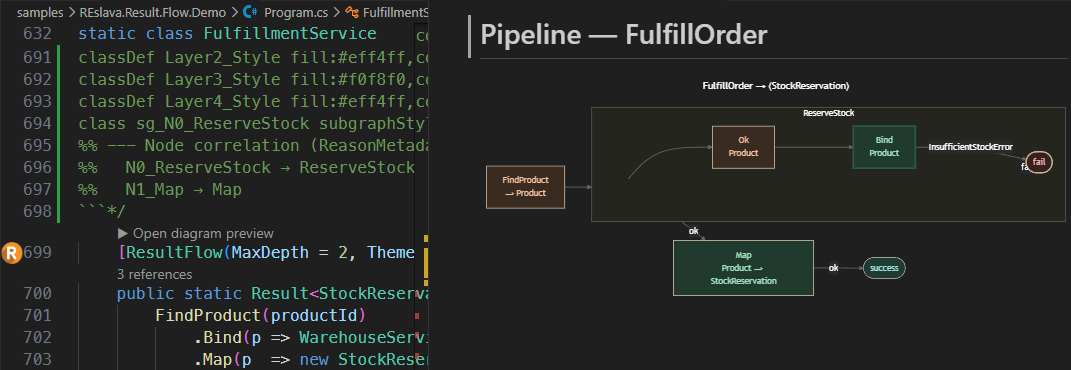

▶ Open diagram preview — CodeLens

A ▶ Open diagram preview CodeLens appears above every method decorated with [ResultFlow]. Click it to open the pipeline flowchart in a WebviewPanel beside your editor.

• Light and dark themes follow your ResultFlowDefaultTheme MSBuild property
• Works fully offline — Mermaid renderer is bundled, no internet connection required

Single / multiple window mode

Control whether clicking a pipeline reuses one shared panel or opens a new one per method.

• Toggle with the ⊞ button in the sidebar toolbar or the Single / Multi button in the diagram panel toolbar
• Persists across sessions via the reslava.diagramWindowMode VS Code setting (single by default)

Click nodes to navigate to source

When ResultFlowLinkMode=vscode is set in your .csproj, every node in the diagram is clickable. Clicking a node navigates VS Code to the exact line of that method call in your source file.

Diagram toolbar

Each panel includes a toolbar:

Auto-refresh on save

Open diagram panels refresh automatically when you save a C# file. The extension re-reads the generated *_Flows.g.cs after each save and updates any open panel silently. A 500 ms debounce absorbs format-on-save double-saves.

Orange R gutter icon

A branded gutter icon marks every [ResultFlow] attribute line so pipelines are visible at a glance while scrolling.

Requirements

Install one of the two ResultFlow NuGet packages in your project:

Track A:

dotnet add package REslava.Result.Flow

Track B:

dotnet add package REslava.ResultFlow

Both packages generate *_Flows.g.cs files at build time. The extension reads these files to render the diagram — build your project at least once to generate them.

How it works

When you click ▶ Open diagram preview, the extension tries four steps in order to find the diagram:

1. Reads the generated *_Flows.g.cs file from your obj/ folder (fastest — works after any build)
2. Asks Roslyn to run the "Insert diagram as comment" code action and reads the result
3. Reads an existing /*```mermaid...```*/ block comment in your source
4. Shows a "diagram not ready yet" message if none of the above succeeds

The diagram is then rendered in a dedicated WebviewPanel using a bundled copy of Mermaid — no Markdown preview, no external extensions, no internet required.

Enable node-click navigation

Add this to your .csproj to make every diagram node clickable:

<PropertyGroup>
  <ResultFlowLinkMode>vscode</ResultFlowLinkMode>
</PropertyGroup>

Then rebuild — the generator will embed vscode://file/... links in the diagram. Click any node to jump to that line in your editor.

▶ Debug CodeLens & Debug Panel (v1.53.0)

A ▶ Debug CodeLens appears on every line calling .Flow.Debug.{method}(...). Clicking it opens the Debug Panel beside your editor.

What the Debug Panel shows:

• Trace list — each recorded pipeline execution: pass/fail icon, method name, node count, elapsed ms
• Node stepper — step through every node in a trace; current step highlighted in the Mermaid diagram
• Animated replay — plays through all nodes automatically
• File picker — when multiple reslava-*.json trace files exist, switch between them without closing the panel
• Source badge — 📄 file or 🌐 http shows how trace data arrived

File-drop workflow (no extra setup):

Make your class partial:

public partial class OrderService
{
    [ResultFlow]
    public Result<Order> Process(int userId, int productId) => ...
}

Then call via the generated FlowProxy:

// Single-trace debug — auto-saves, panel auto-opens:
svc.Flow.Debug.Process(userId, productId);
// → reslava-debug-Process.json written to bin/
// → VSIX file watcher fires → Debug panel opens automatically

// Always-on tracing — save manually when ready:
var result = svc.Flow.Process(userId, productId);
ringBuffer.Save();  // → reslava-traces.json → Debug panel auto-loads

The VSIX watches **/reslava-*.json — no manual panel open needed.

🤖 AI features — Generate Test & Explain Failure (v1.55.0)

Two AI-powered buttons appear in the Debug Panel node stepper when a trace is selected:

Both use the captured PipelineTrace — real inputs, real outputs, real error types — not log text. This dramatically reduces hallucination compared to log-based AI tools.

Setup

No extra setup if you have Claude Code installed. The extension calls claude -p automatically and uses your existing Pro subscription.

If claude is not in your terminal PATH:

1. Open a terminal and run claude --version — if it fails, add the Claude Code CLI to your system PATH and restart VS Code.
2. Alternatively, set resultflow.anthropicApiKey in VS Code Settings as a fallback (free tier available at console.anthropic.com).

How to use

1. Open the Debug Panel (CodeLens ▶ Debug or sidebar button)
2. Click a trace row to enter Step view
3. Click 🧪 Test or 🔍 Explain — a progress notification appears while the model runs
4. Result opens in a panel beside your editor with a Copy button
