EasyAuth Emulator

Develop locally with Azure App Service / Azure Functions / Azure Container Apps authentication — without Azure.

EasyAuth Emulator is a local authentication gateway that emulates Easy Auth behavior (multi-provider login, Easy Auth-compatible request headers, /.auth/* endpoints). This extension integrates it directly into your VS Code debug workflow: the emulator starts when you start debugging, and stops when you stop.

Why?

Azure App Service, Azure Functions, and Azure Container Apps' built-in authentication feature (commonly known as Easy Auth) is powerful — but it only works inside Azure. This makes local development and testing difficult for applications that depend on Easy Auth headers and endpoints.

EasyAuth Emulator bridges that gap by running a compatible authentication gateway on your development machine, so you can develop and test as if Easy Auth were active.

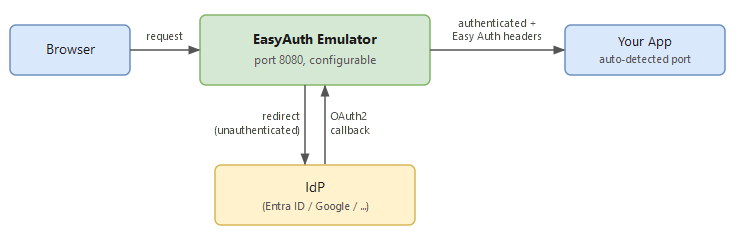

How it works

The extension auto-detects your app's listening port from launch.json, framework config files (.env, launchSettings.json, application.properties, …), or debug output — so no manual wiring is needed in most projects.

Features

Multi-IDP authentication — Microsoft Entra ID, Google, GitHub, Apple, Facebook, and any OIDC-compatible provider
Easy Auth-compatible headers — injects X-MS-CLIENT-PRINCIPAL, X-MS-CLIENT-PRINCIPAL-ID, and related headers into every authenticated request
Azure service compatibility — Azure App Service, Azure Functions, Azure Container Apps, and Azure Static Web Apps (partial)
Auto-start / auto-stop — emulator lifecycle is tied to your debug session
Smart port detection — reads launch.json, framework configs, and debug stdout; prompts you only as a last resort
Secure credential storage — client secrets are stored client-side via VS Code's SecretStorage (the OS keychain in desktop VS Code), never in settings files
Custom OIDC providers — add any OIDC-compatible provider via easyauth.customIdps
Status bar indicator — click to interact with the emulator based on its current state (start, stop, or open logs)
Private browser launch — set easyauth.privateBrowser.command to get a button that opens the gateway URL in a private/incognito window (in remote sessions the button copies the URL to the clipboard instead)

Requirements

Requirement	Details
VS Code	1.93 or later
Platform	Windows x64, macOS (Apple Silicon), Linux x64, Linux arm64

If the pre-built .vsix for your platform is not yet available, you can build from source: run python scripts/package.py --vsix from the repo root, then install the generated .vsix via Extensions: Install from VSIX.

Windows arm64 — Not supported. oauth2-proxy does not distribute Windows ARM binaries.

VS Code for Web (vscode.dev) — Standalone vscode.dev (without a remote connection) is not supported: running the emulator binary requires native OS access. When the browser client is connected to a remote (e.g. vscode.dev + Remote - Tunnels), the extension runs on the remote host and works normally.

No additional runtime installation is needed — the emulator binary is bundled inside the extension.

Getting Started

1. Configure your identity provider

Open your workspace settings (Ctrl+, → search easyauth) and fill in the Client ID and Issuer URL for your IdP. See Supported Identity Providers for the required settings per provider.

2. Store the client secret

Run EasyAuth Emulator: Set Client Secret from the Command Palette (Ctrl+Shift+P) and enter the client secret for the IdP you configured in step 1. The secret is stored on the client via VS Code's SecretStorage API — the OS keychain in desktop VS Code (Windows Credential Manager on Windows), or the browser's storage in web clients (vscode.dev) — never in settings files or on a remote host. Each client keeps its own store, so you are asked to enter secrets again when switching clients (e.g. desktop VS Code ⇔ vscode.dev).

3. Register the callback URL

Add the following redirect URI in your identity provider's app registration:

http://localhost:8080/oauth2/callback

If you changed easyauth.site.port, use that port instead. If you also access the gateway through another origin (e.g. a forwarded tunnel domain), register that origin's /oauth2/callback as well — one entry per origin.

GitHub and Facebook have additional setup requirements. See GitHub Provider Notes and Facebook Provider Notes in the configuration reference.

Usage

Press F5 to start debugging. The emulator starts automatically after your app.

Once running, click the EasyAuth: <port>:<upstream> status bar item to open the gateway in your browser. To navigate manually, use http://localhost:8080/ (or the port set in easyauth.site.port).

Status Bar

The status bar item in the bottom-left corner shows the emulator state at a glance. Clicking it performs a context-sensitive action:

Display	Meaning	Click action
`$(warning) EasyAuth: no config`	Not configured (no IdP set up)	Open Settings
`$(lock) EasyAuth: secret missing` (yellow background)	Client ID configured, client secret not stored	Prompt to enter client secret
`$(warning) EasyAuth: Entra issuer missing` (yellow background)	Entra client ID and secret set, OIDC Issuer URL missing	Open `easyauth.entra.oidcIssuerUrl` in workspace settings
`$(sync~spin) EasyAuth: starting...`	Emulator is starting	Open output
`$(shield) EasyAuth: 8080:3000`	Running — gateway port and upstream port	Open in browser
`$(shield) EasyAuth: stopped`	Stopped	Start emulator
`$(error) EasyAuth: error` (red background)	Failed to start	1st click: open output / 2nd click: start emulator

Explorer View

An EasyAuth Emulator view appears in the Explorer panel. It shows the same state as the status bar, and the view title bar offers actions matching the current state:

State	Buttons shown
Not configured	Open Settings
Client secret not set	Set Client Secret
Stopped / error	Start
Starting / running	Restart, Stop
Starting / running / error	Open Output
Running	Open in Browser, Open in Private Browser (when configured; in remote sessions, Copy URL for Private Browser)

Commands

All commands are available from the Command Palette (Ctrl+Shift+P):

Command	Description
`EasyAuth Emulator: Start`	Start the emulator manually
`EasyAuth Emulator: Stop`	Stop the emulator
`EasyAuth Emulator: Restart`	Restart the emulator (picks up config changes)
`EasyAuth Emulator: Open Output`	Open the log output channel
`EasyAuth Emulator: Open in Browser`	Open the gateway URL in the browser
`EasyAuth Emulator: Open in Private Browser`	Open the gateway URL in a private/incognito window (shown when `easyauth.privateBrowser.command` is set). In remote sessions the URL is copied to the clipboard instead — a browser cannot be launched on your local PC from the remote host
`EasyAuth Emulator: Copy URL for Private Browser`	Copy the gateway URL to the clipboard (shown instead of "Open in Private Browser" in remote sessions)
`EasyAuth Emulator: Set Client Secret`	Store a client secret in VS Code's SecretStorage (client-side)
`EasyAuth Emulator: Clear Client Secret`	Remove a stored client secret

Supported Identity Providers

Built-in

Provider	Required settings
Microsoft Entra ID	`easyauth.entra.clientId`, `easyauth.entra.oidcIssuerUrl`
Google	`easyauth.google.clientId`
GitHub	`easyauth.github.clientId`
Apple	`easyauth.apple.clientId`
Facebook	`easyauth.facebook.clientId`

At least one clientId must be set for the emulator to start. All IdPs with a clientId configured are enabled automatically.

Custom OIDC Providers

Add any OIDC-compatible provider via easyauth.customIdps:

// .vscode/settings.json
{
  "easyauth.customIdps": [
    {
      "name": "my-provider",
      "displayName": "My Provider",
      "clientId": "your-client-id",
      "oidcIssuerUrl": "https://your-provider.example.com"
    }
  ]
}

After adding a custom provider, store its client secret with EasyAuth Emulator: Set Client Secret.

Available fields per entry:

Field	Required	Description
`name`	✓	IDP identifier used in `IDP_LIST` (lowercase alphanumeric and hyphens)
`clientId`	✓	OAuth2 / OIDC client ID
`oidcIssuerUrl`	✓	OIDC issuer URL (e.g. `https://your-provider.example.com`)
`displayName`		Label shown on the IdP selection screen
`scopes`		Space-separated OAuth2 scopes. Default: `openid profile email`
`authUserIdClaim`		JWT claim used as user ID. Default: `sub`
`authProvider`		Value set in `X-MS-CLIENT-PRINCIPAL-IDP` header
`prompt`		OIDC `prompt` parameter (`login`, `consent`, etc.)
`codeChallengeMethod`		PKCE code challenge method: `S256` or `plain`
`logoutEndpoint`		Override the IdP logout URL
`skipClaimsFromProfileUrl`		`true` to skip fetching claims from the userinfo endpoint
`extraArgs`		Space-separated extra options passed to oauth2-proxy (e.g. `"--allowed-group=my-group --oidc-extra-audience=myapp"`)
`icon`		Icon shown on the IdP selection page. Specify a Simple Icons slug (e.g. `"auth0"`) or an image URL. Has no effect when `IDP_SELECT_ICONS` is `generic` or `text`.

Configuration Reference

For the full parameter reference including all options, see docs/configuration-reference.md.

`.vscode/easyauth.toml` (optional)

The extension always passes --config .vscode/easyauth.toml to the emulator on startup.

If the file exists: It is loaded as the base configuration. Use this to set advanced options (parameters available in config.toml format) not exposed in the VS Code settings UI. Values from VS Code settings (settings.json) override it via environment variables.
If the file does not exist: Auto-discovery of config.toml in the project root is suppressed (prevents accidentally loading a standalone config.toml from your workspace).

Extension behavior

Setting	Default	Description
`easyauth.autoStart`	`true`	Start emulator when a debug session begins
`easyauth.autoStop`	`true`	Stop emulator when the debug session ends
`easyauth.upstreamPort`	`null`	Fix the upstream port; `null` = auto-detect
`easyauth.portScanMax`	`5`	Ports to scan during auto-detection
`easyauth.portScanBase`	`null`	Base port for scanning; `null` = use first hint found
`easyauth.verbose`	`false`	Log all resolved configuration values on startup
`easyauth.privateBrowser.command`	`""`	Command that launches a private/incognito browser window; the site URL is appended as the last argument (e.g. `msedge --inprivate`, `chrome --incognito`, `firefox --private-window`). Empty hides the button. Not used in remote sessions (the button copies the URL to the clipboard instead)

Gateway

Setting	Default	Description
`easyauth.site.url`	`http://localhost`	Usually no change needed. Set an `https://` value only if a TLS-terminating front end (reverse proxy) does not send `X-Forwarded-Proto`
`easyauth.site.port`	`8080`	Listen port of the EasyAuth gateway (also the public port when accessed directly)
`easyauth.tls.certFile`	`""`	Path to the TLS certificate file (PEM). Set with `tls.keyFile` to enable HTTPS. Required for Facebook Login.
`easyauth.tls.keyFile`	`""`	Path to the TLS private key file (PEM). Set with `tls.certFile` to enable HTTPS. Required for Facebook Login.
`easyauth.defaultIdp`	`""`	Default IdP when `/.auth/login` is accessed
`easyauth.skipAuthRoutes`	`""`	Routes that bypass auth — comma-separated `[METHOD=]REGEX` patterns
`easyauth.debugHeadersEndpointEnabled`	`false`	Enable `GET /.debug/headers` to inspect injected headers
`easyauth.idpSelectIcons`	`simple`	Icons on the IdP selection screen: `simple`, `generic`, or `text`

oauth2-proxy

Setting	Default	Description
`easyauth.oauth2proxy.portBase`	`4180`	Base port for internal oauth2-proxy instances
`easyauth.oauth2proxy.standardLogging`	`false`	Show startup/shutdown messages in the output channel
`easyauth.oauth2proxy.authLogging`	`false`	Show authentication events in the output channel
`easyauth.oauth2proxy.requestLogging`	`false`	Show per-request HTTP logs in the output channel
`easyauth.oauth2proxy.showDebugOnError`	`false`	Show detailed OIDC error info (useful during initial setup)
`easyauth.oauth2proxy.version`	`""`	Pin a specific oauth2-proxy version (e.g. `v7.6.0`)
`easyauth.oauth2proxy.autoUpdate`	`false`	Auto-update oauth2-proxy to the latest version on startup
`easyauth.oauth2proxy.sslCaBundle`	`""`	Path to a custom CA certificate bundle (PEM). Normally not needed — the OS certificate store is used automatically.

Implemented Easy Auth Endpoints

Endpoint	Description
`GET /.auth/me`	Returns the current user's claims as JSON
`GET /.auth/login`	Redirects to the configured IdP login
`GET /.auth/login/<idp>`	Logs in with the specified IdP
`GET /.auth/login/aad`	Alias for `entra` (Azure AD compatibility)
`GET /.auth/logout`	Logs out and clears the session
`GET /.auth/refresh`	Stub for Azure Easy Auth compatibility — returns 200 if authenticated, 401 if not; no token refresh is performed
`GET /.auth/login/select`	Shows the IdP selection screen (multi-IdP) — emulator only, not part of Azure Easy Auth

Easy Auth-compatible Headers

After authentication, the following headers are injected into upstream requests:

X-MS-CLIENT-PRINCIPAL (Base64-encoded claims JSON)
X-MS-CLIENT-PRINCIPAL-ID
X-MS-CLIENT-PRINCIPAL-IDP
X-MS-CLIENT-PRINCIPAL-NAME
X-MS-TOKEN-AAD-ACCESS-TOKEN
X-MS-TOKEN-AAD-ID-TOKEN
X-Forwarded-User
X-Forwarded-Email

Not yet implemented: X-MS-TOKEN-AAD-EXPIRES-ON, X-MS-TOKEN-AAD-REFRESH-TOKEN

Troubleshooting

Status bar shows `$(warning) EasyAuth: no config`

No IdP is configured. Set at least one clientId in your workspace settings, then run EasyAuth Emulator: Set Client Secret from the Command Palette.

Status bar shows `$(lock) EasyAuth: secret missing`

A Client ID is configured but no client secret has been stored yet. Click the status bar item to open the secret entry prompt, or run EasyAuth Emulator: Set Client Secret from the Command Palette. The status bar switches to stopped automatically after the secret is saved.

Status bar shows `$(warning) EasyAuth: Entra issuer missing`

Microsoft Entra ID's client ID and secret are configured, but the OIDC Issuer URL is not set. Click the status bar item to open the easyauth.entra.oidcIssuerUrl field in workspace settings. Enter the Entra ID issuer URL, for example: https://login.microsoftonline.com/<tenant-id | common | organizations | consumers>/v2.0.

Login fails — redirect URI mismatch (`AADSTS50011` or similar)

The callback URL follows the origin shown in your browser's address bar. Register the matching redirect URI in your IdP's app registration:

<origin the browser uses>/oauth2/callback

For example http://localhost:8080/oauth2/callback (or with the port set in easyauth.site.port). Register one entry per origin you use.

Login fails — `invalid_client`

The clientId or client secret does not match the IdP app registration. Double-check both values and run EasyAuth Emulator: Set Client Secret to update the secret.

App port was not detected automatically

The extension could not determine which port your app listens on. Set easyauth.upstreamPort in your workspace settings:

{ "easyauth.upstreamPort": 5000 }

502 error while debugging

The emulator cannot reach the upstream app. Possible causes:

The app crashed or is still starting up and has not bound to its port yet
If easyauth.upstreamPort is set manually, the port does not match the app's actual listen port

Check the app logs to confirm it is running correctly.

Startup times out on the first run

On the first run, the emulator downloads oauth2-proxy from GitHub Releases, which may take more than 30 seconds. Watch the output channel for oauth2-proxy ... installed at ... to confirm the download is complete, then use EasyAuth Emulator: Restart to retry.

Authentication callback shows a blank page

VS Code's built-in Simple Browser has limited cookie support and cannot complete OAuth2 flows. Use an external browser (Chrome, Edge, Firefox) instead.

The emulator stopped when I started a second debug session

Only the first debug session controls the emulator. Stopping that session stops the emulator; subsequent sessions do not affect it. Use EasyAuth Emulator: Start / Stop / Restart from the Command Palette for manual control.

The emulator process is still running after VS Code was force-killed

Internal oauth2-proxy processes are cleaned up automatically by the OS. If the emulator itself is orphaned, terminate it manually:

Windows: End easyauth-emulator.exe in Task Manager
macOS: Use Activity Monitor, or run pkill easyauth-emulator
Linux: Run pkill easyauth-emulator

Remote Development

The extension and the emulator run on the remote host in both cases.

Remote - SSH

Works with the default settings. The gateway is reached via http://localhost:<site.port> through VS Code port forwarding.

Remote - Tunnels

The gateway is exposed through a forwarded tunnel URL (e.g. https://xxxxxxxx-8080.usw2.devtunnels.ms) instead of localhost. To sign in:

Find the forwarded URL — start a debug session (or the emulator) once; the URL is shown in the EasyAuth Emulator output and in the notification when you click Open in Browser.
Add <forwarded URL>/oauth2/callback to your IdP app registration's redirect URIs.

vscode.dev (browser client) + Tunnels — Open in Browser and Copy URL for Private Browser are not supported and show a guidance message instead. Open the gateway from the forwarded address for the gateway port in the PORTS panel.

The forwarded URL stays the same while the tunnel exists, but changes when the tunnel is re-created — e.g. after code tunnel unregister, or when an unused tunnel expires (by default after 30 days of inactivity). Update the IdP redirect URI when that happens. See "When are unused dev tunnels deleted?" in the dev tunnels FAQ for tunnel lifetime details.

Dev tunnels allow at most 10 forwarded ports per tunnel, while VS Code automatically forwards every listening port it detects. This includes the emulator's internal oauth2-proxy ports (4180, 4181, …), which never need forwarding, so the limit can be exhausted quickly. Exclude the internal ports from auto-forwarding:

// .vscode/settings.json
"remote.portsAttributes": {
  "4180-4189": { "onAutoForward": "ignore" }
}

Known Limitations

X-MS-TOKEN-AAD-EXPIRES-ON and X-MS-TOKEN-AAD-REFRESH-TOKEN headers are not implemented
This is a development tool, not a byte-for-byte replica of Azure Easy Auth

License

Apache License 2.0

EasyAuth Emulator

pnop

EasyAuth Emulator

Why?

How it works

Features

Requirements

Getting Started

1. Configure your identity provider

2. Store the client secret

3. Register the callback URL

Usage

Status Bar

Explorer View

Commands

Supported Identity Providers

Built-in

Custom OIDC Providers

Configuration Reference

.vscode/easyauth.toml (optional)

Extension behavior

Gateway

oauth2-proxy

Implemented Easy Auth Endpoints

Easy Auth-compatible Headers

Troubleshooting

Status bar shows $(warning) EasyAuth: no config

Status bar shows $(lock) EasyAuth: secret missing

Status bar shows $(warning) EasyAuth: Entra issuer missing

Login fails — redirect URI mismatch (AADSTS50011 or similar)

Login fails — invalid_client

App port was not detected automatically

502 error while debugging

Startup times out on the first run

Authentication callback shows a blank page

The emulator stopped when I started a second debug session

The emulator process is still running after VS Code was force-killed

More troubleshooting topics

Remote Development

Remote - SSH

Remote - Tunnels

Known Limitations

License

`.vscode/easyauth.toml` (optional)

Status bar shows `$(warning) EasyAuth: no config`

Status bar shows `$(lock) EasyAuth: secret missing`

Status bar shows `$(warning) EasyAuth: Entra issuer missing`

Login fails — redirect URI mismatch (`AADSTS50011` or similar)

Login fails — `invalid_client`
