8086 Lab: MASM/TASM Debugger

Debug 8086 assembly with registers, flags, data and stack in VS Code. Version 0.4 uses VS Code's JavaScript runtime with bundled WebAssembly libraries. No Python, pip, separate Node installation or runtime download is needed. The assembler and compilation emulator follow MASM/TASM's selection.

First use

1. Install Windows x64 desktop VS Code. The required xsro.masm-tasm extension is installed as a dependency.
2. Open a trusted assembly workspace. The CPU and disassembler are included in the VSIX. 8086 Lab: Check Bundled Runtime is an optional verification command.
3. Select an assembler and emulator using MASM/TASM's status bar. With jsdos or jsdos-x, no external DOSBox executable is required. With dosbox or dosbox-x, install that selected emulator and configure its command in MASM/TASM.
4. Run 8086 Lab: Open Register Tutorial, then 8086 Lab: Debug Current ASM File. Expand Registers, Flags, Data and Stack.

Check Bundled Runtime checks the included CPU/disassembler. Check Environment checks the selected assembler and compilation emulator. Legacy 8086lab.pythonPath and 8086lab.runtimePythonPath settings are ignored since 0.4; remove them when VS Code displays the deprecation notice.

The extension assembles actual machine code with the selected compiler, then executes it using Unicorn.js x86 WebAssembly; iced-x86 provides 16-bit disassembly. Choosing jsdos-x does not change the debugging execution engine into DOSBox-X: the emulator selection controls compilation. This is instructional instruction emulation, not a complete DOS/BIOS or cycle-accurate hardware simulator.

Selection mapping

All four emulator selections are dispatched separately: jsdos, jsdos-x, dosbox, dosbox-x. Selection settings are read for the source resource on every launch; changing them takes effect after restart. The Output channel reports the effective selection. Compiler bundles and js-dos are discovered in the installed dependency. No compiler, emulator binary or WebAssembly engine is redistributed.

Controls

Watch expressions accept registers, flags, data symbols and integer operations, such as AX, ZF, RESULT, AX + BX, SS:SP, 0008h. Registers, flags and named byte/word values can be edited while paused. Memory read/write and forward disassembly are supported.

Launch configuration

{
  "version": "0.2.0",
  "configurations": [{
    "name": "8086 Lab", "type": "8086-lab", "request": "launch",
    "program": "${file}", "stopOnEntry": true
  }]
}

Scope and limitations

Supports common MASM/TASM 8086 DOS formats: .model tiny/small/medium/compact/large/huge, .code/.data/.stack, explicit SEGMENT/ENDS/ASSUME, GROUP/DGROUP, multiple code segments and far calls, ORG, DB/DW/DUP, basic macros with positional parameters, and local relative INCLUDE files. .8086 is optional when using the compiler's default mode. Higher CPU directives and USE32 are rejected. A format accepted by the debugger must still be accepted by the chosen compiler version; this does not translate NASM syntax into MASM.

Tiny and code-only ORG 100H sources load as DOS COM with CS=DS=ES=SS, IP=100H and SP=FFFEH. Bare ORG 100H COM programs receive a temporary code-segment/entry wrapper. Other sources load as relocated MZ EXE. programFormat can force exe/com. COM layouts must have no relocation entries and entry 0000:0100. MASM 5.00 tiny sources receive a temporary DS/ES/SS:_TEXT assumption for code-only layouts, or a DGROUP containing _TEXT/_DATA for separate data layouts; the user's file is unchanged. .startup/.exit expand in the temporary copy into DOS entry/DS/stack setup and termination instructions, supporting all three compilers.

Segment/group addresses come from the linker map. Source breakpoints and frames follow linear addresses across code segments and include files. Simple macro expansion maps to the call line. Unicode comments are accepted; source literals must fit CP437. jsdos/jsdos-x support Unicode build paths. External DOSBox builds require an ASCII 8086lab.buildDirectory if the default temporary path contains other characters. See samples/com.asm, samples/segments-copy.asm and samples/registers.asm.

Separately assembled/linked multi-module projects, external libraries, advanced macro metaprogramming, custom dosasm.jsonc and altered MASM/TASM build actions need a project adapter and are unsupported. Conditional/log breakpoints and a reconstructed symbolic call stack are unsupported. Built-in actions generate extra listing/map information. An empty segment named STACKS alone does not allocate a DOS stack; the linker warning is preserved. Allocate a segment with STACK combine and space before using PUSH/CALL.

Implemented services: INT 21h AH=02h/09h/30h/4Ch, INT 20h exit, INT 10h AH=0Eh output. Keyboard/file services, port I/O and hardware timing are unsupported. Unsupported services pause with an error. For a complete DOS environment, use MASM/TASM's DOS debugger.

js-dos integration is verified with MASM/TASM 2.2.1 and its 8.4.1-dosasm0.2 engine. The bundled engine omits a Node platform initializer; this extension supplies it using a guarded in-memory adapter. An upstream layout change may require an update; select an external emulator if that happens. Windows desktop only; Linux/WSL/macOS and VS Code Web are unsupported.

Settings

• 8086lab.dosboxPath: optional override when dosbox-x is selected.
• 8086lab.tasmDirectory: optional TASM/TLINK directory; clear it when choosing MASM.
• 8086lab.buildDirectory: optional temporary build root; external DOSBox requires ASCII.

Run 8086 Lab: Check Environment to inspect the effective toolchain. Source and releases: https://github.com/newplayerXu/8086-lab-debug . Development and release steps are in docs/DEVELOPMENT.md and docs/PUBLISHING.zh-CN.md.

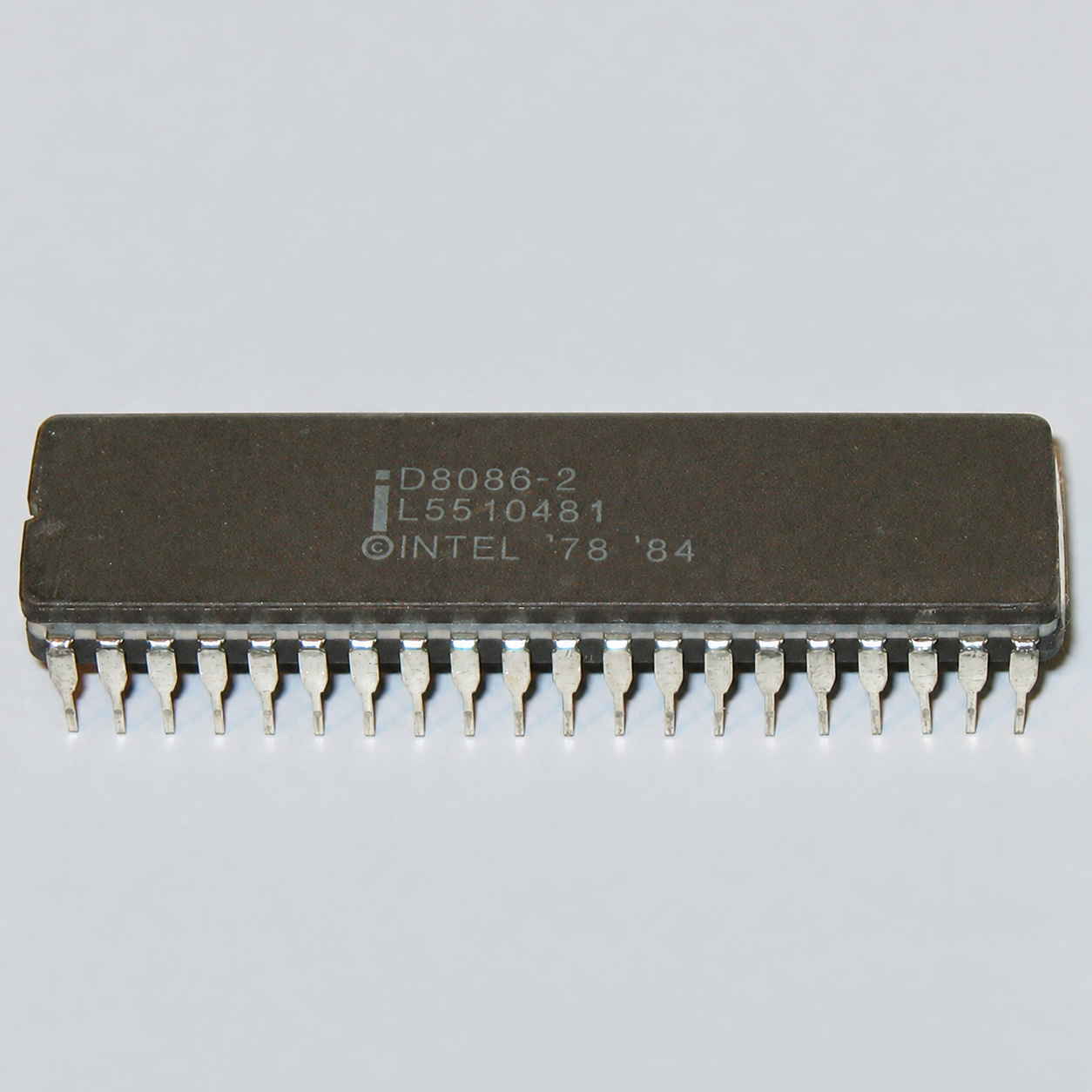

Code: GPL-2.0-or-later. Icon photograph: CC BY-SA 3.0; see THIRD_PARTY_NOTICES. No telemetry.

中文速览

0.4 无需安装 Python 或 Node.js。安装本扩展及前置 MASM/TASM 后，选择汇编器与 jsdos/jsdos-x 即可调试。支持常见 DOS COM/EXE、六种内存模型、显式分段、GROUP、多代码段、简单宏和相对 INCLUDE。寄存器、标志、内存、栈、断点、单步和调用步过保持可用。独立多模块链接、复杂宏和自定义构建尚未适配。
