Apex Dependency Analyzer

A Visual Studio Code extension to analyze Apex class dependencies in a Salesforce org, generate a dependency report in CSV format, and create visual dependency diagrams in DOT, SVG, and PNG formats. The extension stores output files in a temporary directory, opens CSV, DOT, and PNG files in VS Code side editors, and opens the temporary folder in the system file explorer for viewing the SVG in a web browser.

Features

• Fetch Apex Classes: Queries all Apex classes in a Salesforce org (excluding managed packages).
• Analyze Dependencies: Retrieves dependencies for each Apex class using the Salesforce Tooling API.
• Generate Reports:
  • CSV file (apex_class_dependencies.csv) listing classes and their dependencies.
  • DOT file (apex_dependencies.dot) for the dependency graph.
  • SVG file (apex_dependencies.svg) for visual dependency diagrams.
• Output Handling:
  • Stores files in a unique temporary directory (e.g., /tmp/apex-dependency-analyzer-abc123 on Linux/Mac).
  • Opens CSV, DOT, and PNG files in VS Code side editors.
  • Opens the temporary folder in the system file explorer (e.g., Finder on macOS, File Explorer on Windows) for viewing the SVG in a web browser.
• User Feedback: Displays progress notifications and logs details in the VS Code Output panel ("Apex Dependency Analyzer").

Prerequisites

• Visual Studio Code: Version 1.85.0 or higher.
• Salesforce CLI: Installed and configured with an authenticated org alias/username.
  • Install: Salesforce CLI Installation Guide
  • Authenticate an org: sf org auth web login -a <alias>
• Node.js and npm: Required for development and building the extension.
• System Utilities:
  • macOS: open command (pre-installed).
  • Windows: start command (pre-installed).
  • Linux: xdg-open (install via sudo apt-get install xdg-utils on Ubuntu).
• Optional: A VS Code extension like "Image Preview" for viewing PNG files in side editors.

Usage

1. Open VS Code and ensure a Salesforce org is authenticated via the Salesforce CLI.
2. Run the Command:
   • Open the Command Palette (Ctrl+Shift+P).
   • Select Apex Dependency Analyzer: Analyze Dependencies.
3. Enter Salesforce Org Alias/Username:
   • Input the alias or username of the authenticated Salesforce org (e.g., my-org-alias).
4. View Results:
   • Progress Notifications: The extension shows progress (e.g., "Fetching Apex classes...") in a notification.
   • Output Files:
     • CSV (apex_class_dependencies.csv): Lists Apex classes and their dependencies.
     • DOT (apex_dependencies.dot): Graphviz source for the dependency graph.

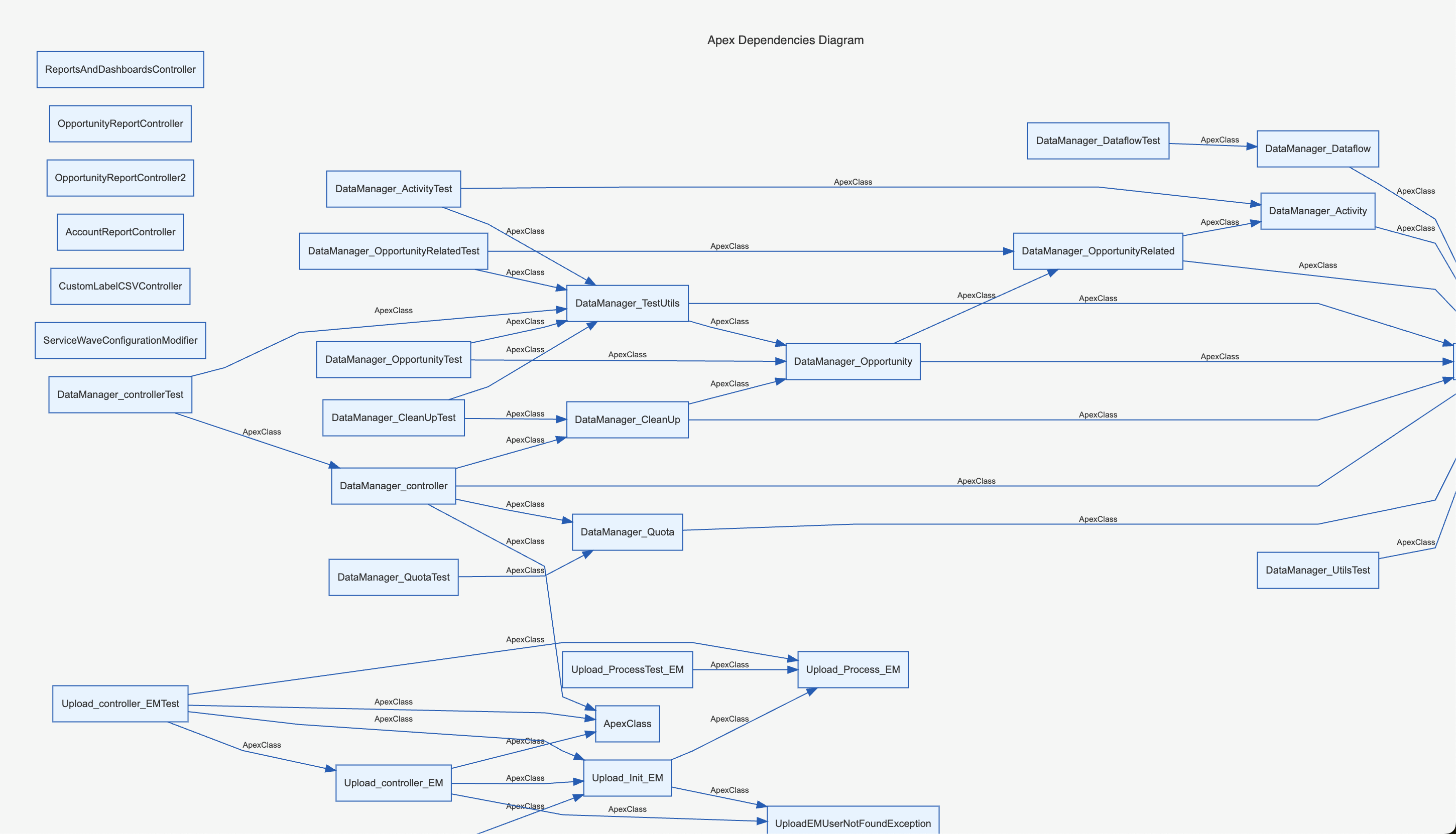

     • SVG (apex_dependencies.svg): Visual dependency diagram.
   • File Handling:
     • CSV, DOT files open automatically in VS Code side editors.
     • The temporary folder opens in the system file explorer (e.g., Finder on macOS, File Explorer on Windows).
     • Double-click the SVG file in the folder to view it in your default web browser.
   • Logs: Check the VS Code Output panel ("Apex Dependency Analyzer") for the temporary directory path and detailed logs.

Output Files

• Location: Files are stored in a unique temporary directory (e.g., /tmp/apex-dependency-analyzer-abc123 on Linux/Mac, %TEMP%\apex-dependency-analyzer-abc123 on Windows).
• Files:
  • apex_class_dependencies.csv: Comma-separated list of Apex classes and their dependencies.
  • apex_dependencies.dot: Graphviz DOT file for the dependency graph.
  • apex_dependencies.svg: Visual diagram viewable in a web browser.
• Cleanup: Temporary files persist until the OS cleans them up (e.g., on reboot). Manually delete the temporary directory if needed.
