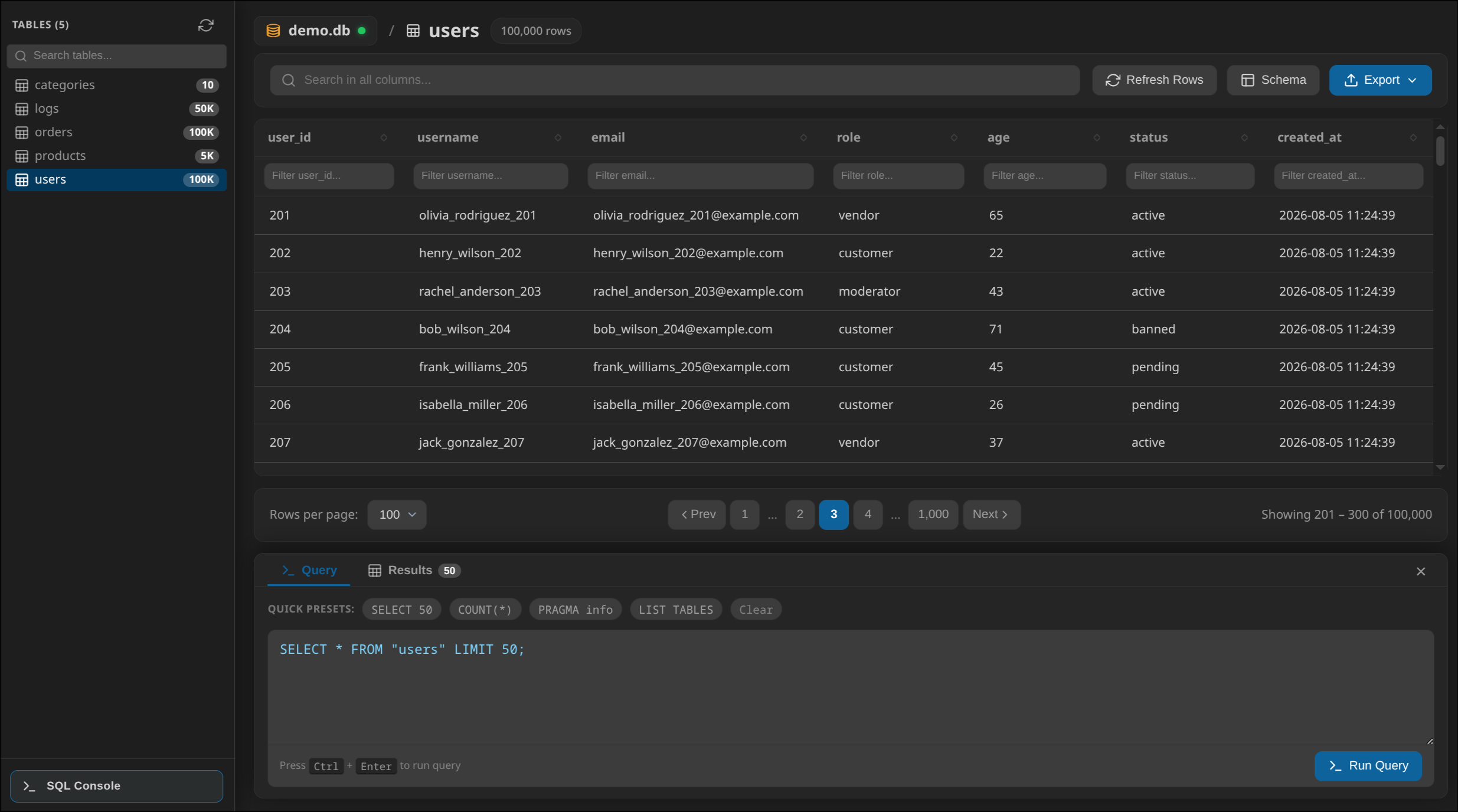

SQLite Viewer for Visual Studio Code

A fast, modern, feature-rich SQLite Database Viewer extension for Visual Studio Code built with Node.js, WebAssembly (sql.js), and modern VS Code Native Webview UI.

✨ Key Features

• ⚡ Fast SQLite Engine: Opens databases read-only with VS Code's built-in node:sqlite, reading pages from disk, so multi-gigabyte files (over 2 GiB) open without loading them into memory. Falls back to sql.js (asm.js/Wasm, files under 2 GiB, no FTS5) when node:sqlite is unavailable.
• 🧩 Views & Virtual Tables: Views and virtual tables (FTS5, FTS3/4, R-Tree) are shown read-only; their internal shadow tables (docs_data, docs_idx, ...) sit in a collapsed "Internal tables" group.
• 📂 Automatic File Associations: Opens .db, .sqlite, .sqlite3, and .db3 files directly on click or double-click in VS Code Explorer.
• 🔍 Multi-Column Live Search: Search across all columns instantly with in-input spinner feedback.
• ⚡ Independent Column-Level Filtering: Filter individual table columns with real-time text matching.
• 📊 Multi-Column Sorting: Click headers to sort by single column or hold Shift + click for multi-column priority sorting.
• ↔️ Resizable Layouts:
  • Resizable Left Sidebar with mouse drag support.
  • Resizable Table Columns: Drag column header borders to adjust individual column widths.
  • Resizable Bottom SQL Console Drawer: Drag top border to resize terminal height.
• 📋 Table Schema & DDL Viewer: Tabbed modal displaying PRAGMA column info (PK, Nullable, Default, Type) and full CREATE TABLE DDL SQL statements with a 1-click Copy SQL button.
• 🖥️ VS Code Terminal Style SQL Console:
  • Openable bottom drawer panel positioned underneath the table so you can inspect data and execute SQL queries simultaneously.
  • Supports Ctrl + Enter (or Cmd + Enter) execution.
  • Includes Quick Preset Chips (SELECT 50, COUNT(*), PRAGMA info, LIST TABLES).
  • Detailed metrics (Execution Time, Rows Returned, Affected Rows) and error alerts.
• 📄 Row Details & Safe HTML Escaping:
  • Custom right-click context menu (View Row Details, Refresh Rows, Copy Row JSON).
  • Row Details modal with un-truncated code block viewing.
  • XSS protection via automatic HTML escaping so <script> or HTML tags render as plain text.
• 📤 Multi-Format Export:
  • Export active table data as CSV (.csv), JSON (.json), or SQL Dump (.sql), streamed to disk so large tables export with low memory use.
  • Automatically defaults save location to active VS Code workspace folder.
• 🎨 Native VS Code Theme & Font Size Integration: Automatically inherits current VS Code theme colors, font sizes, and UI variables.

📦 Requirements

• Visual Studio Code 1.125.0 or newer. Nothing else is required: no Node.js, SQLite or other runtime needs to be installed.
• Large files (over 2 GiB) and FTS5 tables need a VS Code build that includes node:sqlite. Without it the extension falls back to the bundled sql.js (files under 2 GiB, no FTS5).
• Databases open read-only; the viewer never modifies your file.

🚀 Usage

1. Open any .db, .sqlite, .sqlite3, or .db3 file in VS Code.
2. Or press Ctrl+Shift+P / Cmd+Shift+P and type SQLite Viewer: Open Viewer.
3. Select a table from the sidebar to inspect records, filter columns, or execute SQL queries.

📋 Future Roadmap & TODOs

We are actively developing new capabilities to make SQLite Viewer the ultimate database extension for VS Code:

• [ ] Inline Cell Editing: Double-click any cell to edit its value directly and auto-save via UPDATE query.
• [ ] Row Management UI (Add & Delete Row): Dedicated UI buttons in toolbar and context menu to insert new rows or delete selected rows without writing SQL.
• [ ] Foreign Key Navigation: Detect Foreign Keys (PRAGMA foreign_key_list) and convert FK cells into clickable links that jump to referenced rows in target tables.
• [x] Large Database (>2 GiB) Support: Done via the native node:sqlite engine (read-only, bounded counts and result sizes).
• [ ] Writable Open Mode for Editing: Editing must keep views, virtual tables, shadow tables and generated columns read-only, and account for WITHOUT ROWID, triggers and foreign keys.
• [ ] SQL Query Auto-Completion: Monaco / SQL syntax auto-completion inside the SQL Console editor.

📄 License

MIT License
