SQLTools Mimer SQL Driver

A SQLTools driver for connecting to Mimer SQL databases from Visual Studio Code.

Uses @mimersql/node-mimer for database connectivity.

Features

• Connect to Mimer SQL databases
• Browse schemas, tables, views, columns, indexes, constraints, sequences, modules, functions, procedures, and triggers
• Show source code for functions, procedures, triggers, views, and modules
• Execute SQL queries with syntax highlighting
• View query results in a table format
• Auto-completion for table and column names
• Generate INSERT queries (standard SQL syntax)
• Secure credential storage via VS Code's built-in credential manager
• Export query results

Prerequisites

1. Visual Studio Code — Version 1.75.0 or later
2. SQLTools Extension — Install from VS Code marketplace
3. Mimer SQL — Version 11.0 or later installed on your system

Installation

Via VS Code Marketplace

1. Open VS Code
2. Go to Extensions (Ctrl+Shift+X / Cmd+Shift+X)
3. Search for "SQLTools Mimer SQL Driver"
4. Click "Install"

From VSIX

1. Download the .vsix file from releases
2. In VS Code, go to Extensions
3. Click the ... menu -> "Install from VSIX..."
4. Select the downloaded .vsix file

From Source

git clone https://github.com/mimersql/sqltools-mimer-driver
cd sqltools-mimer-driver

npm install
npm run package

Then install the generated .vsix file in VS Code.

Configuration

1. Open VS Code Command Palette (Ctrl+Shift+P / Cmd+Shift+P)
2. Select "SQLTools: Add New Connection"
3. Choose "Mimer SQL" as the driver
4. Fill in connection details:
   • Database: Your Mimer SQL database name (DSN)
   • Username: Your database username
   • Password mode: How to handle the password (see below)

Password Modes

• SQLTools Driver Credentials (default): Password is stored securely in VS Code's credential manager (OS keychain). You will be prompted for the password on first usage, and it will be saved securely for future connections.
• Ask on connect: Prompts for the password every time you connect. Nothing is stored.
• Save as plaintext in settings: Password is saved in your VS Code settings.json. Not recommended for shared or synced configurations.

Example Connection Settings

{
  "name": "My Mimer DB",
  "driver": "MimerSQL",
  "database": "mydb",
  "username": "SYSADM",
  "connectionTimeout": 30
}

Usage

Connect to Database

1. Click on the SQLTools icon in the sidebar
2. Click on your saved connection to connect
3. Explore your database structure in the tree view

Execute Queries

1. Open a new SQL file or select a query
2. Right-click -> "Run on Active Connection"
3. Or use keyboard shortcut: Ctrl+E Ctrl+E (Windows/Linux) or Cmd+E Cmd+E (Mac)

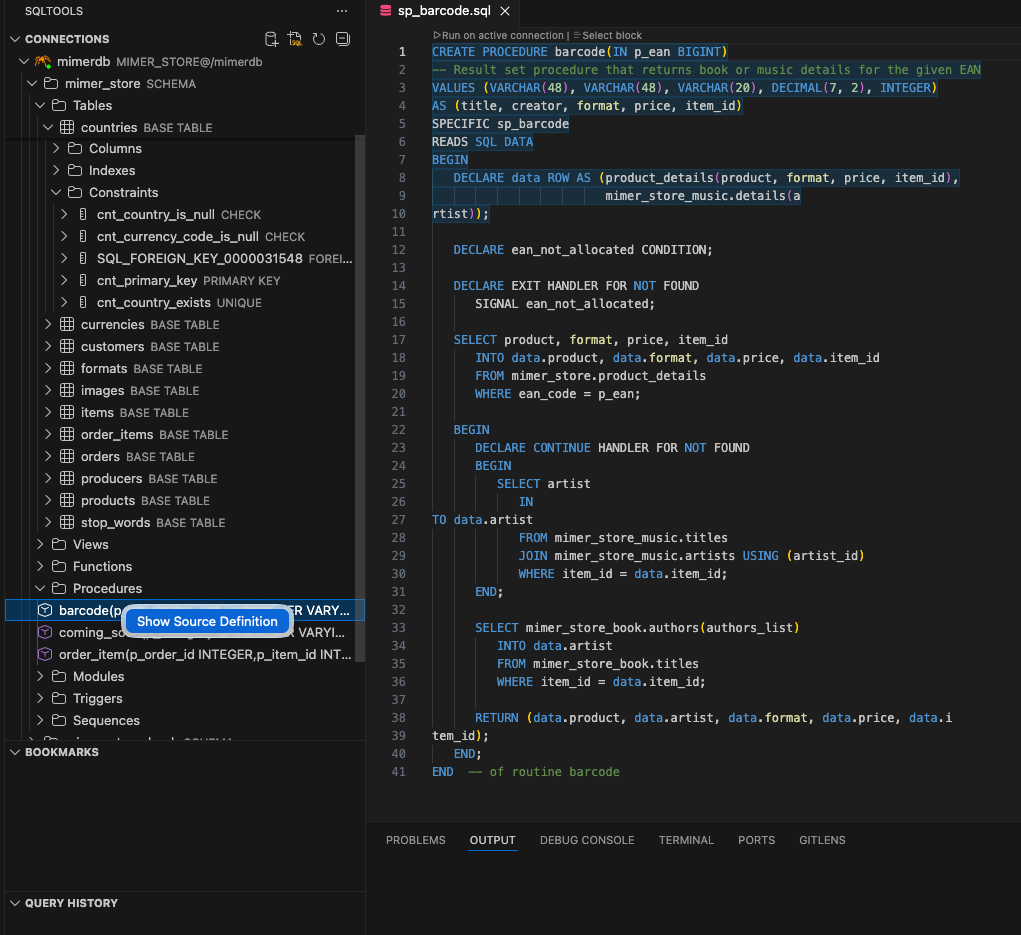

Browse Database

• Expand schemas to see tables, views, modules, functions, procedures, triggers, and sequences
• Click on tables to see sub-folders with columns (primary and foreign keys are indicated), indexes, and constraints
• Functions and procedures show their parameter signatures
• Triggers show their timing and event (e.g. "BEFORE INSERT")
• Indexes show whether they are unique
• Modules expand to show their member functions and procedures
• Right-click tables for options:
  • Show Records
  • Describe Table
  • Generate INSERT statement
• Right-click functions/procedures/triggers/views/modules and click "Show Source Code" to see their source definitions

Supported Platforms

The driver works on the following platforms (where Mimer SQL is available):

• Linux x64, ARM64
• Windows x64
• macOS x64, ARM64 (Apple Silicon)

Troubleshooting

Connection Issues

Problem: "dsn, user, and password are required"

Solution:

1. Verify the database name (DSN) is correct
2. Ensure username is filled in
3. If using "SQLTools Driver Credentials", try deleting the connection and re-creating it

Problem: Cannot connect to database

Solution:

1. Verify Mimer SQL is running (mimcontrol -t <database>)
2. Check that the DSN is configured correctly
3. Test connectivity with bsql command-line tool first

Extension Not Showing

Problem: Mimer SQL not appearing in driver list

Solution:

1. Ensure SQLTools is installed and enabled
2. Reload VS Code window (Ctrl+Shift+P -> "Reload Window")
3. Check the extension is enabled in the Extensions panel

Development

Building

# Install dependencies
npm install

# Compile TypeScript
npm run compile

# Build and package extension (universal, all platforms)
npm run package

# Build platform-specific packages
./scripts/build-all.sh

Project Structure

sqltools-mimersql-driver/
├── connection.schema.json # Connection dialog schema
├── src/
│   ├── extension.ts           # VS Code extension entry point
│   └── ls/
│       ├── plugin.ts      # Language Server plugin
│       ├── driver.ts          # Main driver implementation
│       └── queries.ts         # SQL metadata queries
├── webpack.config.js      # Webpack config (two bundles)
├── scripts/
│   ├── copy-deps.js       # Copies runtime deps for packaging
│   └── build-all.sh       # Builds universal + platform-specific packages
├── package.json           # Extension manifest
└── tsconfig.json          # TypeScript config

Contributing

Contributions are welcome. Please:

1. Fork the repository
2. Create a feature branch
3. Make your changes
4. Submit a pull request

Support

• Report issues on GitHub: https://github.com/mimersql/sqltools-mimer-driver/issues
• Mimer SQL documentation: https://developer.mimer.com/documentation
• SQLTools documentation: https://vscode-sqltools.mteixeira.dev/

License

MIT License — see LICENSE file for details.

Credits

• Built on SQLTools by Matheus Teixeira
• Uses @mimersql/node-mimer for database connectivity
• Developed for Mimer SQL

Changelog

1.0.0

• Initial release with core features:
  • Connect to Mimer SQL databases
  • Browse schemas, tables, views, modules, functions, procedures, triggers
  • Show source code for functions/procedures/triggers/views
  • Execute SQL queries with syntax highlighting
  • Auto-completion for table and column names
  • Generate INSERT queries
  • Secure credential storage via VS Code's credential manager
