PlotKeeper

Never lose the plot of your AI-generated codebase.

PlotKeeper is a VS Code extension that creates a bidirectional link between your code and an AI-generated markdown document that explains it. Click an explanation to highlight the code. Select code to jump to its explanation.

flowchart LR
    A[REVIEW.md] -->|click ref| B[Code highlighted in editor]
    B -->|select line| A

Installation

1. Open VS Code → Extensions view (Ctrl+Shift+X)
2. Search for PlotKeeper → Install
3. Generate a REVIEW.md for your project (see Quick Start below) and save it to your workspace root

Quick Start

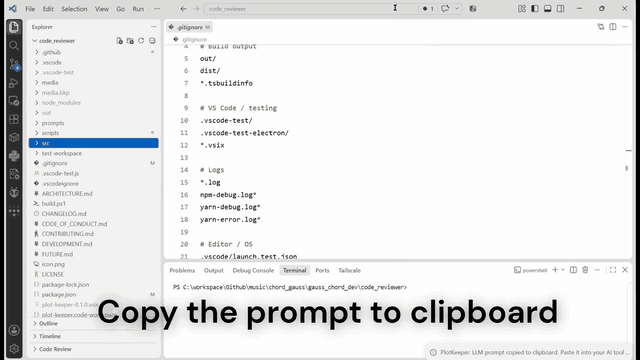

1. Ctrl+Shift+P → PlotKeeper: Copy LLM Prompt
2. Paste the prompt into your AI tool (Copilot Chat, ChatGPT, Claude, Cursor…) with your source files as context — it generates REVIEW.md in the required format
3. Save REVIEW.md to your workspace root — the panel auto-opens, and clicking any reference highlights the code

Full instructions, the document format, and troubleshooting are in USAGE.md.

The Story

Using AI to write code raises throughput, but it also introduces a gap: the more changes are produced, the harder it is to keep a complete mental model of the codebase. Code that was generated in minutes can take much longer to fully review, and the understanding of why it was written a certain way fades quickly. This project addresses that gap directly.

The core idea is a persistent REVIEW.md document in the repository, generated by an LLM in a strict format, with invisible <!-- ref: --> markers that link each explanation to the exact code it describes. The extension provides a bidirectional view: click an explanation to see the code, or read the code and jump to the corresponding explanation.

PlotKeeper takes the best from both sides and amplifies it. The LLM brings speed, coverage, and recall — it reads the whole codebase and drafts a map of what exists and why. The human brings judgment, intent, and context that no model has — the ability to sniff whether an explanation is right, and to know why a decision was actually made. Neither is sufficient alone. The AI drafts, the human validates, and the questions asked along the way become the intent the team inherits.

It is intended for developers who are comfortable writing code but want a more efficient way to re-establish context — after returning to a project, before a review, or while onboarding a teammate. The same workflow applies to any codebase you need to understand quickly: an inherited or legacy system, code that has grown beyond what one person can hold in memory, or a project last touched months ago.

A Way of Working (Human in the Loop)

PlotKeeper is a workflow for robust coding, not a magic button:

1. Draft — the LLM reads the code and writes REVIEW.md in the required format. Good enough is fine; perfection is not the goal.
2. Review — you navigate doc ↔ code and validate. The explanation only needs to be right enough to guide you to the code; your judgment confirms it.
3. Clarify — anything unclear, you push back. The answer is merged back into the section.
4. Persist — what started as machine description becomes human-verified intent documentation: why a decision was made, what was considered and rejected.

Crucially, PlotKeeper does not make your code better on its own. It doesn't fix bugs, improve design, or generate features. It gives you tools to make review easier and faster — the part of robust coding that usually gets cut when velocity rises. The LLM does what it's best at (broad, fast, thorough); you do what you're best at (judgment, intent, context).

The extension provides the navigation (doc ↔ code lookup) and the document convention. The iteration loop — draft, review, clarify, merge — is a feature you drive through your AI tool of choice. Automating parts of that loop is on the roadmap.

Why

You're using AI to write code at an accelerating pace. The codebase grows faster than you can read it. You need a way to:

• Re-board after weeks away from a project
• Review what AI generated and understand why
• Onboard team members onto AI-heavy codebases
• Audit decisions captured in the code
• Inherit a legacy codebase — generate a REVIEW.md and get a navigable map of what exists and why, without reading every file end-to-end
• Amplify — combine the LLM's speed and coverage with your judgment and intent, instead of trading one for the other

Existing tools are too granular (doc strings), ephemeral (chat), or lack bidirectional navigation (CodeTour). PlotKeeper fills the gap: a persistent, check-in-friendly, bidirectional document that lives in your repo.

Quick Start

Step 1: Copy the prompt

Cmd/Ctrl+Shift+P → "PlotKeeper: Copy LLM Prompt"

Step 2: Generate REVIEW.md

Paste the prompt into your AI tool (Copilot Chat, ChatGPT, Claude, Cursor, etc.) with your source files as context. The LLM generates a REVIEW.md following the required format.

Step 3: Save and open

Save REVIEW.md to your workspace root. The extension auto-detects it and opens the review panel. Click any code reference to see the code highlighted.

Commands

Features

Bidirectional Navigation

• Doc → Code: Click any reference in the review panel → the corresponding code is highlighted (gold background) and scrolled into view. The highlighted range is resolved by symbol name via the language server when available, so it stays correct even after edits shift the original line numbers.
• Code → Doc: Move your cursor through code → the review panel auto-scrolls to matching explanations. Lookup is drift-resistant: it resolves the enclosing symbol first, falls back to exact line numbers, then to the nearest documented section — so navigation keeps working in gaps and after code changes.

Tree View

The Explorer sidebar shows a Code Review tree organizing all sections by file. Click any entry to navigate.

Inline Code Snippets

Each review section includes a collapsible Code block showing the exact source of the referenced range, read live from disk — so you can see the code being explained without leaving the panel. Click the section body to jump to the code in the editor; use the Code disclosure to peek at the snippet inline.

Change Detection

When you save changes to REVIEW.md, the extension automatically re-parses and refreshes the panel. Run Check References to validate all file paths and line numbers still point to real code.

Settings

Requirements

• VS Code 1.85+
• A REVIEW.md file in your workspace root (see prompt to generate one)

Extension Structure

code_reviewer/
├── src/
│   ├── extension.ts              # Composition root — wires everything together
│   ├── types.ts                  # Shared interfaces and types
│   ├── parser/
│   │   ├── refIndex.ts           # Parses REVIEW.md refs into bidirectional index
│   │   ├── IRefResolver.ts       # Strategy interface for ref resolution
│   │   ├── lineRefResolver.ts    # Line-number-based resolver
│   │   └── refUtils.ts           # Regex patterns and utilities
│   ├── panels/
│   │   ├── reviewPanel.ts        # WebView side panel for rendered markdown
│   │   └── reviewTreeProvider.ts # Tree view in Explorer sidebar
│   ├── navigation/
│   │   ├── docToCode.ts          # WebView click → code highlight
│   │   └── codeToDoc.ts          # Editor selection → WebView scroll
│   ├── symbols/symbolResolver.ts # LSP symbol lookup + cache (drift-resistant)
│   ├── config/config.ts          # Reads VS Code settings
│   └── test/                     # Test infrastructure
├── media/
│   ├── review.js                 # WebView client-side logic
│   └── review.css                # WebView styling
├── prompts/
│   └── review-prompt.md          # LLM prompt template
└── test-workspace/               # Fixture project for testing

Development

# Install dependencies
npm install

# Compile TypeScript
npm run compile

# Watch mode
npm run watch

# Run unit + integration tests
npm test

# Package for distribution
npm run package

Debug in Extension Development Host

Press F5 in VS Code with this project open. An isolated VS Code window opens with the test-workspace loaded and the extension active.

For the full setup guide — prerequisites, project layout, testing, conventions, packaging, and publishing — see DEVELOPMENT.md.

LLM Prompt Format

The extension uses REVIEW.md files with embedded HTML comments as references:

### FunctionName <!-- ref:path/to/file.js:42-58 -->
Description of what this function does, why it exists, and how data flows
through it. Cross-references other sections by name.

The <!-- ref: --> comments are invisible in the rendered document but tell the extension which code corresponds to which explanation. See prompts/review-prompt.md for the full template.

Sections may optionally include the exact source as a fenced code block (see the prompt's Optional: Include Code Snippets rule). The extension also reads the referenced range live from disk, so every section gets an inline collapsible Code block regardless of whether the LLM included the snippet.

Roadmap

• Iteration loop automation — in-extension draft, clarify, and merge instead of editing REVIEW.md by hand
• Symbol-based reference format — path::symbol refs alongside line numbers for languages without a language server
• Stale detection — flag sections where the code has diverged from the doc

Known Issues

• The test runner requires glob — run npm install to pull it in
• On first activation, the panel may take ~500ms to open while parsing REVIEW.md
• Line-number-based references can drift as code changes. Run Check References periodically to detect drift.

License

MIT

Contributing

Contributions are welcome — bug reports, docs, and features. See CONTRIBUTING.md for the workflow, and CODE_OF_CONDUCT.md for our community standards.
