C4X - C4 Model Diagrams for VS Code

Status (2026-03-03): ✅ v1.3.0 STABLE - Gemini 3.1 Pro + Visual Customization + 113 Examples

License

Make C4 architectural diagrams as easy as getting AI to do this for you... - Jaroslav

Fast, offline, Mermaid-inspired C4 diagrams with real-time preview and AI-powered generation - now with 113 validated examples and visual customization.

🎉 What's New in v1.3.0 (March 2026)

🚀 One-Click Diagram Generation

Right-click anywhere in your markdown files and instantly generate C4 diagrams:

How it works:

Right-click in any .md file
Select "C4X: Generate Diagram Here (Gemini)"
Choose your C4 level (C1: System Context, C2: Container, C3: Component)
AI-generated diagram appears at your cursor as a PNG image

🎨 Visual Customization & Enhanced AI

5 Visual Presets: Default, Dark, Light, Pastel, Corporate - or define your own custom style
Layout Control: Balanced, Compact, or Spacious spacing
Nano Banana 2: Upgraded to gemini-3.1-flash-image-preview (4K support, better text rendering)
Gemini 3.1 Pro: 2x reasoning improvement with gemini-3.1-pro-preview as default
Any Model Support: Configure any Gemini model ID - no dropdown restrictions
Smart Fallback: Automatically elevates to best available model on failure
Self-Validation: AI auto-corrects syntax errors with 3 retry attempts

📚 Rich Example Library (113 Validated Diagrams)

16 comprehensive sample files covering production-ready patterns:

Event-Driven Architecture (EventBridge, SQS, async messaging)
Serverless Pipelines (Lambda, Step Functions, S3 triggers)
OAuth 2.0 Authentication (PKCE, dynamic flows, token validation)
Healthcare HIPAA Systems (HL7 FHIR, audit logging)
GraphQL APIs (DataLoader, N+1 problem, federation)
gRPC Microservices (Istio service mesh, Protocol Buffers)

All examples are 100% validated - ready to learn from and use!

🔌 Developer Experience

MCP Validator: Model Context Protocol server for external AI assistants (Claude, Cursor, Windsurf)
Comprehensive Guidelines: docs/C4X-GENERATION-GUIDELINES.md for advanced AI prompting
Improved Layouts: AI generates tidy, well-aligned, visually coherent diagrams

✨ Features

🚀 Core Capabilities

⚡ Instant Preview - Sub-50ms rendering for 30-node diagrams
🔍 Real-time Validation - Syntax highlighting and error reporting as you type
📝 Markdown Integration - Render ```c4x blocks directly in README files
🎨 5 Built-in Themes - Classic, Modern, Muted, High Contrast, Auto
📤 Export - SVG, PNG, PDF with theme preservation
🔒 Secure & Offline - Zero dependencies, no CDN, CSP-compliant
🧩 1500+ Icons - AWS, Azure, GCP with IntelliSense autocomplete
⚡ Lightning Fast - 0.15ms activation (99.9% faster than 200ms target)

🤖 AI-Powered Generation (Gemini 3.1 Pro)

🧠 Code → Diagram: Analyzes workspace files (.ts, .java, .py) to create accurate C4 models
✍️ Text → Diagram: Turn notes, ASCII art, user stories into diagrams
🖼️ Right-Click Generation: "Generate Diagram Here" for instant visual diagrams at cursor
🎨 Style Customization: 5 visual presets + custom grounding context
🎯 Smart Layouts: Auto-detects flow vs hierarchy orientation
✅ Self-Correcting: Validates & auto-fixes syntax errors (3 retry attempts)
🏢 Enterprise Ready: Supports Vertex AI keys for zero-data retention

📘 Gemini AI Guide | 📘 Visual Diagram Guide | 📘 Advanced Guidelines

📚 Rich Learning Resources

📖 113 Validated Examples: Production-ready patterns in /samples directory
🎓 16 Comprehensive Guides: Event-driven, serverless, OAuth2, healthcare, GraphQL, gRPC
🔌 MCP Integration: Validator server for Claude, Cursor, and other AI assistants
📘 Expert Guidelines: C4X-GENERATION-GUIDELINES.md for advanced AI prompting

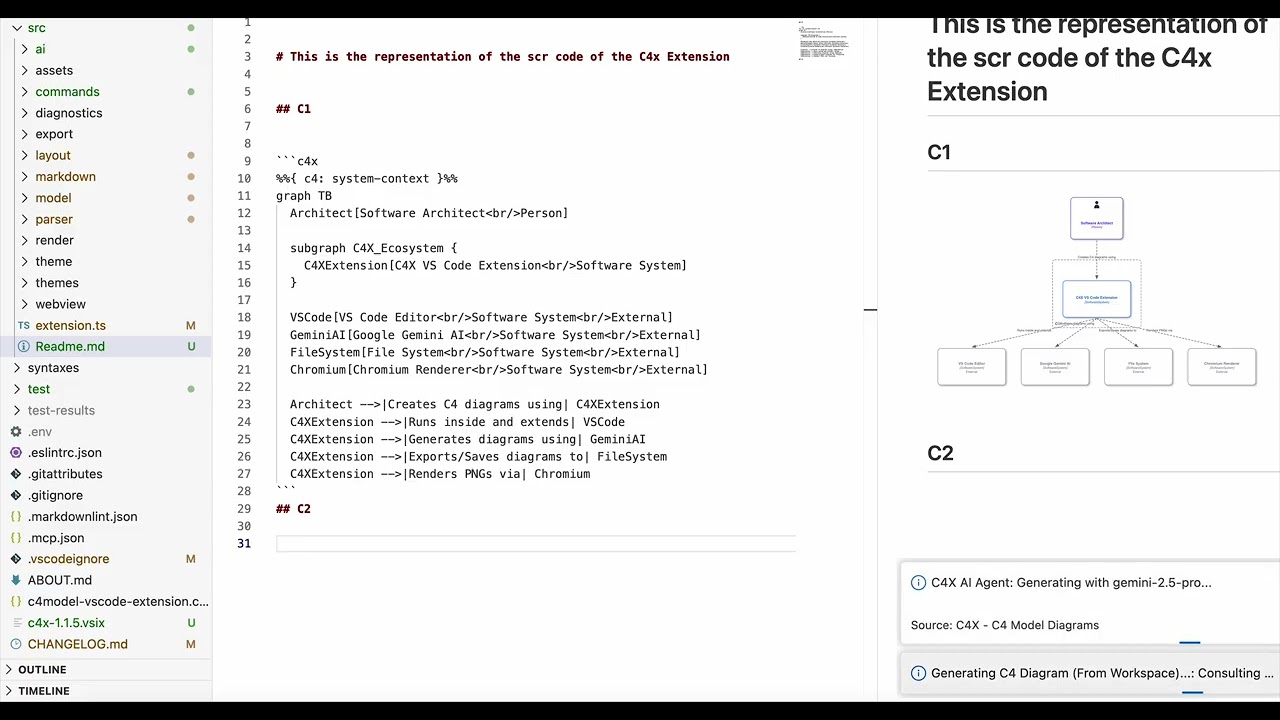

🎥 Watch 30s Demo - Build Diagrams with Gemini AI

🎨 Rich Icon Integration (v1.1.9)

Visualize real-world architectures with AWS, Azure, GCP, and React icons using the simple $sprite syntax.

C4X Icons Example

📘 View Full Icon Guide & Examples

🖼️ Visual Diagram Generation (v1.2.1 Preview)

Generate presentation-ready PNG diagrams directly from text using gemini-3-pro-image-preview - no DSL syntax required!

Generate from Selection: Highlight any text (ASCII art, notes, requirements) and run C4X: Diagram from Selection.
Smart Layouts: Automatically switches between Horizontal (for flows) and Vertical (for hierarchies).
Styles: Enforces official C4 colors and shapes.

PNG Flow diagram from Selection

Example: PNG Flow diagram from Selection - generated from another ASCII graphic

📘 Visual Diagram Guide

🚀 Quick Start

Installation

From VS Code Marketplace (Recommended):

Open VS Code
Press Ctrl+Shift+X (or Cmd+Shift+X on Mac)
Search for "C4X"
Click "Install"

From Command Line:

code --install-extension jpantsjoha.c4x

Usage

Create a C4X file: banking-system.c4x

Write your diagram:

%%{ c4: system-context }%%
graph TB

Customer[Customer<br/>Person]
Banking[Banking System<br/>Software System]
Email[Email System<br/>Software System<br/>External]

Customer -->|Uses| Banking
Banking -->|Sends notifications| Email

Open preview: Press Ctrl+K V (or Cmd+K V on Mac)
See instant results: Your diagram renders in < 50ms!

That's it! No Java, no servers, no configuration needed.

Markdown Integration

You can embed C4X diagrams directly in your markdown files (e.g., README.md, ARCHITECTURE.md).

# My Architecture

Here is the system context:

```c4x
%%{ c4: system-context }%%
graph TB
    User[User<br/>Person]
    System[My System<br/>Software System]
    User -->|Uses| System
```

The extension will automatically render this code block as a visual SVG diagram in the VS Code Markdown Preview.

📚 Learning & Examples

🎓 Rich Example Library (113 Validated Diagrams)

Explore 16 comprehensive sample files in the /samples directory covering real-world production architectures:

📁 /samples/advanced/

Event-Driven Architecture: EventBridge, SQS, async messaging, dead letter queues
Serverless Data Pipeline: Lambda, S3 triggers, Step Functions, DynamoDB
OAuth 2.0 Authentication: PKCE flow, JWT validation, token introspection
Domain-Driven Design: Bounded contexts, aggregates, domain events

📁 /samples/container/

gRPC Microservices: Istio service mesh, Protocol Buffers, Envoy sidecars
Kafka Event Streaming: Producers, consumers, topics, consumer groups
CDC Data Pipeline: Debezium, change data capture, stream processing

📁 /samples/component/

GraphQL API Gateway: DataLoader pattern, N+1 problem solution, federation
REST API Design: Controllers, services, repositories, CQRS pattern

📁 /samples/real-world/

Healthcare Patient Management: HIPAA-compliant, HL7 FHIR, audit logging
E-Commerce Platform: Order processing, inventory, payment integration
Trading Platform: Real-time market data, WebSockets, order matching

📁 /samples/cloud/

AWS Multi-Region: S3, DynamoDB global tables, CloudFront distribution
Azure Microservices: AKS, Service Bus, Cosmos DB, API Management
GCP Serverless: Cloud Run, Pub/Sub, Firestore, Cloud Functions

✅ 100% Validated - All 113 diagrams are syntax-correct and render perfectly!

📖 Documentation & Guides

Example Gallery: Banking, Microservices, AI Agents
Cloud Icons: AWS, Azure, GCP sprites with autocomplete
Visual Diagrams: PNG generation with Nano Banana 2
C4X Generation Guidelines: Advanced AI prompting & best practices
Layout Guide: TB vs LR, spacing control
Syntax Reference: Complete DSL specification

Featured Example: Multi-Agent Marketing System

C1 - System Context: High-level interactions between users, AI agents, and external services

Multi-Agent System Context

C2 - Container Diagram: Internal architecture of the Multi-Agent platform

Multi-Agent Orchestrator

🧠 Gemini AI Architect (Setup)

📘 Full Guide: See docs/GEMINI_GUIDE.md for advanced usage, prompt engineering tips, and troubleshooting.

1. Get an API Key

For Personal Projects: Get a free key from Google AI Studio. (Note: Data may be used for training).
For Enterprise/Work: Create a key in your Google Cloud Console (Vertex AI). (Note: Compliant with GCP data privacy terms).

2. Authentication

Option A (Interactive): Right-click any markdown file -> C4X: Generate Diagram. If no key is found, paste it when prompted.
Option B (Settings): Set "c4x.ai.apiKey": "YOUR_KEY" in VS Code settings.

3. AI Model Configuration (v1.3.0)

C4X defaults to gemini-3.1-pro-preview with smart fallback. You can use any Gemini model your API key supports:

{
  "c4x.ai.model": "gemini-3.1-pro-preview"
}

Model	Use Case	Notes
`gemini-3.1-pro-preview`	Default - Best reasoning, 1M context	Recommended
`gemini-3-flash-preview`	Fast iteration, free tier available	Good for rapid prototyping
`gemini-2.5-pro`	Stable, battle-tested	Sunset June 2026
`gemini-2.5-flash`	Cost-effective	Sunset June 2026

Custom Models: Enter any valid Gemini model ID in settings. New models work immediately without an extension update.

Smart Fallback: If your chosen model fails, C4X automatically tries gemini-3.1-pro-preview (or gemini-3-flash-preview if already on 3.1-pro).

Self-Validation: All AI-generated diagrams are automatically validated using the C4X parser. If syntax errors are detected, the model self-corrects and retries (up to 3 attempts).

4. Image Model Configuration (v1.3.0)

For visual PNG diagram generation (Alt+V), C4X uses Nano Banana 2 by default. You can override with any Gemini image model:

{
  "c4x.ai.imageModel": "gemini-3.1-flash-image-preview"
}

Image Model	Use Case	Features
`gemini-3.1-flash-image-preview`	Default - Nano Banana 2	4K upscaling, better text rendering, $67/1k images ⚡
`gemini-3-pro-image-preview`	Nano Banana Pro	Highest quality, best for production assets
`gemini-2.5-flash-image`	Previous Flash	Legacy model

Benefits of Nano Banana 2:

4K Support: Upscales to 400,000 pixels
Better Text: More accurate text rendering in diagrams
Subject Consistency: Maintains up to 5 characters and 14 objects
Cost Effective: Pro quality at Flash pricing

5. Visual Customization (v1.3.0)

Customize the appearance of PNG diagrams with presets and fine-grained control:

{
  "c4x.ai.visualPreset": "dark",           // Visual style preset
  "c4x.ai.layoutPreference": "spacious",   // Layout spacing
  "c4x.ai.visualGroundingContext": ""      // Custom style override
}

Visual Presets:

Preset	Description	Use Case
`default`	Clean white background, standard C4 colors	Professional documentation
`dark`	Dark background, neon accents, high contrast	Presentations, dark-theme slides
`light`	Bright white, sharp edges	Print-ready, high contrast
`pastel`	Soft colors, rounded corners	Creative, gentle aesthetic
`corporate`	Grey-blue palette, sharp edges	Business presentations

Layout Preferences:

Preference	Description
`balanced`	Standard spacing (default)
`compact`	Tight spacing, fits more elements
`spacious`	Generous padding, maximum readability

Custom Style Override: Use visualGroundingContext for complete control (overrides presets):

{
  "c4x.ai.visualGroundingContext": "Cyberpunk aesthetic, neon purple/cyan, transparent background, glowing edges"
}

C4 Color Palette Enforcement: C4X strictly enforces official C4 Model colors to ensure consistency:

Person: #08427B (Dark Blue)
System: #1168BD (Blue)
External: #999999 (Grey)
Container: #438DD5 (Light Blue)
Component: #85BBF0 (Lighter Blue)

Note: Green/Red/Yellow are reserved for status indicators only.

🔌 C4X MCP Server (Model Context Protocol)

C4X includes a built-in MCP (Model Context Protocol) Server that provides validation and grounding resources for external AI assistants.

🛠️ Available Tools & Resources

validate_c4x Tool:

Validates C4X syntax before writing to files
Identifies syntax errors, invalid element types, structural issues
Returns precise line/column numbers for auto-correction
Ensures C4 Model compliance

MCP Resources:

c4x://guidelines - C4X Generation Guidelines (best practices, patterns)
c4x://examples/event-driven | c4x://examples/serverless | c4x://examples/oauth2 | c4x://examples/healthcare | c4x://examples/graphql | c4x://examples/grpc - Production-ready examples
c4x://syntax - Complete DSL syntax reference

📝 Configuration

Add to your AI Assistant's MCP config (e.g., cline_mcp_settings.json, Claude Desktop claude_desktop_config.json):

{
  "mcpServers": {
    "c4x-validator": {
      "command": "node",
      "args": ["/path/to/c4x-vscode-extension/out/mcp/c4x-mcp-server.js"]
    }
  }
}

Supported Clients: Claude Desktop, Cursor, Windsurf, Cline, any MCP-compatible AI assistant

💡 Use Cases

Pre-validation: AI assistants validate diagrams before writing to files
Grounding: Access to 113 examples and best practices for diagram generation
Self-correction: Automatic syntax error detection and fixing

📖 C4X-DSL Syntax Guide

Elements

ElementID[Label<br/>Type<br/>Tags]

Supported Types:

Person - Users of the system
Software System - High-level software systems
Container - Applications, services, databases
Component - Code-level components

Example:

Admin[Administrator<br/>Person]
API[Payment API<br/>Software System]
DB[User Database<br/>Container<br/>Internal]

Elements with Icons (Function Syntax)

To use the 1500+ built-in icons, use the function-call syntax. IntelliSense will autocomplete icon names when you type $sprite=".

Standard: $sprite="aws-s3-bucket"
Namespace (New): $sprite="c4xicons.aws.s3-bucket" (Auto-resolves to correct icon)

Container(WebApp, "Web App", "React", $sprite="react")
ContainerDb(DB, "Database", "PostgreSQL", $sprite="c4xicons.aws.rds")
Container(S3, "Storage", "AWS S3", $sprite="c4xicons.aws.s3-bucket")

Relationships

%% Uses (Dashed)
FromID -->|Label| ToID
%% Async (Dashed)
FromID -.->|Label| ToID
%% Sync / Strong (Solid)
FromID ==>|Label| ToID

Example:

User[User<br/>Person]
Dashboard[Reporting Dashboard<br/>Container]
API[Reporting API<br/>Container]
Database[Reporting Database<br/>Container]

User -->|Views reports| Dashboard
Dashboard -.->|Fetches data| API
API ==>|Queries| Database

Boundaries / Subgraphs

Group elements into systems or containers using subgraphs.

subgraph BoundaryId {
    Element1[Label<br/>Type]
    Element2[Label<br/>Type]
}

Example:

graph TB
    User[User<br/>Person]

    subgraph BankingSystem {
        WebApp[Web App<br/>Container]
        Database[DB<br/>Container]
    }

    User -->|Uses| WebApp
    WebApp ==>|Reads/Writes| Database

View Types

%% C1 - System Context
%%{ c4: system-context }%%
%% C2 - Container (coming soon)
%%{ c4: container }%%
%% C3 - Component (coming soon)
%%{ c4: component }%%

🎨 Themes

Choose from 5 built-in themes to match your documentation style:

Theme	Description	Use Case
Classic	Official C4 Model colors (Simon Brown spec)	Standard C4 documentation
Modern	Vibrant colors with rounded corners	Presentations, modern docs
Muted	Grayscale minimalist	Professional reports, B&W printing
High Contrast	WCAG AAA compliant (7:1 ratio)	Accessibility, readability
Auto	Adapts to VS Code light/dark theme	Match your editor theme

Change Theme:

Command Palette: C4X: Change Theme
Settings: "c4x.theme": "modern"

📤 Export Diagrams

Export your diagrams to SVG or PNG with theme preservation:

Export Commands:

C4X: Export SVG - Vector format for editing (Figma, Sketch, Adobe Illustrator)
C4X: Export PNG - Raster format for documentation and presentations
C4X: Copy SVG to Clipboard - Quick paste into other applications

Features:

✅ Theme preservation (exported diagrams match your selected theme)
✅ High-quality rendering (no pixelation in SVG)
✅ Design tool compatibility (Figma, Sketch tested)
✅ Small file sizes (~20-50KB for typical diagrams)

📋 Commands

Command	Shortcut	Description
`C4X: Open Preview`	`Ctrl+K V` (Mac: `Cmd+K V`)	Open live preview panel
`C4X: Generate Diagram Here (Gemini)`	-	Generate AI diagram at cursor position
`C4X: Generate from Selection`	`Alt+V`	Generate PNG from text selection
`C4X: Generate from Workspace`	-	Analyze code and create C4 model
`C4X: Export SVG`	-	Export diagram to SVG file
`C4X: Export PNG`	-	Export diagram to PNG file
`C4X: Copy SVG to Clipboard`	-	Copy SVG to clipboard
`C4X: Change Theme`	-	Switch between 5 built-in themes

⚡ Performance

Exceeds all targets by 72-99%:

Metric	Target	Achieved	Status
Activation Time	< 200ms	0.15ms	✅ 99.9% faster
Bundle Size	< 1MB	386KB	✅ 63% under target
C4X Parse	< 50ms	10ms avg	✅ 80% faster
Preview Render	< 250ms	55ms avg	✅ 78% faster
Full Pipeline	< 300ms	55ms avg	✅ 82% faster

Tested with: 30-node diagrams (typical real-world size)

🛠️ Configuration

Settings

Configure C4X in your VS Code settings (Ctrl+, or Cmd+,):

{
  // Choose your preferred theme
  "c4x.theme": "classic",
  // Options: "classic", "modern", "muted", "high-contrast", "auto"
}

File Associations

C4X automatically recognizes these file extensions:

.c4x - C4X-DSL (Mermaid-inspired syntax)

🏗️ Project Status

Phase 1 (M0 - Scaffolding): ✅ Complete (v0.1.0) Phase 2 (M1 - C4X-DSL MVP): ✅ Complete (v0.2.0) Phase 3 (M2 - Themes & Export): ✅ Complete (v0.3.0) Phase 4 (M3 - Structurizr DSL): ⏳ Deferred to v1.2 Phase 5 (M4 - PlantUML C4): ⏳ Deferred to v1.2

See docs/STATUS.md for detailed roadmap.

🗺️ Roadmap

v1.1.8 (December 2025) ✅ Gemini AI Release

🧠 Gemini AI Integration - Text-to-Diagram (Shipped)
- Generate from Code: Workspace scanning (C1/C2/C3 support).
- Sketch-to-Code: Create diagrams from text selections.
- Smart Layouts: Auto-detection of Flow vs Hierarchy.
📐 Advanced Layout Control - Manual positioning overrides.

v1.2.1 (December 2025) ✅ AI Model Upgrade + Visual Generation

🧠 AI Model Upgrade - Upgraded to gemini-3-flash-preview (3x faster)
🎨 Visual Diagram Generation - PNG diagrams via gemini-3-pro-image-preview.
🔄 Self-Validation - Auto-correction for AI-generated diagrams.
📘 Visual Diagram Guide

v1.3.0 (March 2026) ✅ Gemini 3.1 Pro + Custom Model Selection

🧠 Gemini 3.1 Pro - Default model upgraded to gemini-3.1-pro-preview (2x reasoning improvement).
🎛️ Custom Model Selection - Enter any Gemini model ID in settings — no more restrictive dropdown.
🔄 Smart Fallback - Automatic elevation to best available model on failure.
🗑️ Removed sunset models - gemini-3-pro-preview (sunset March 9, 2026) removed from defaults.

v1.4.0 (Q2 2026) 🏗️ Advanced Integrations

⏳ Structurizr DSL Support - Native parsing of .dsl files.
🖼️ Custom Local Icons - Support for $sprite="./assets/logo.png".
🔮 Deployment Diagrams - Visualize infrastructure (Nodes, Pods, Regions).
📦 Workspace Diagnostics - Dedicated panel for architecture health.

v2.0.0 (Q3 2026) 🤖 Multi-Provider AI + Agentic Architecture

🧠 Multi-Provider AI - Support for Claude (Anthropic), OpenAI, and Gemini models.
🧠 Agent Syntax - First-class support for AI_Agent, Memory, Tool.
🛡️ Architecture Analysis - Automated detection of bottlenecks and security risks.
✨ Generative Refactoring - "Suggest improvements" for your architecture.

📚 Documentation

Contributing - Contribution guidelines

🤝 Contributing

Contributions welcome! We'd love your help to make C4X even better.

Ways to contribute:

🐛 Report bugs or suggest features via GitHub Issues
📝 Improve documentation or examples
🎨 Design new themes or icons
🧪 Write tests for edge cases
⚡ Performance optimizations

✅ Validation

To ensure that documentation diagrams are syntactically and semantically correct, use the provided validation script. This checks for parser errors, invalid relationships, and unsupported element types.

# Verify all markdown files in the repository
./scripts/validate_c4x.sh

See CONTRIBUTING.md for detailed guidelines.

👤 More from the Author

Check out my other VS Code extension:

Pine Script™ (v5) - Syntax highlighting, snippets, and linting for TradingView's Pine Script.
- GitHub Repository

📄 License

MIT License - see LICENSE for details.

🙏 Acknowledgments

C4 Model by Simon Brown - The architectural modeling standard
Mermaid.js - Inspiration for C4X-DSL syntax
Dagre.js - Hierarchical graph layout engine

C4X - C4 Model Diagrams

Jaroslav Pantsjoha

C4X - C4 Model Diagrams for VS Code

🎉 What's New in v1.3.0 (March 2026)

🚀 One-Click Diagram Generation

🎨 Visual Customization & Enhanced AI

📚 Rich Example Library (113 Validated Diagrams)

🔌 Developer Experience

✨ Features

🚀 Core Capabilities

🤖 AI-Powered Generation (Gemini 3.1 Pro)

📚 Rich Learning Resources

🎥 Watch 30s Demo - Build Diagrams with Gemini AI

🎨 Rich Icon Integration (v1.1.9)

🖼️ Visual Diagram Generation (v1.2.1 Preview)

🚀 Quick Start

Installation

Usage

Markdown Integration

📚 Learning & Examples

🎓 Rich Example Library (113 Validated Diagrams)

📖 Documentation & Guides

Featured Example: Multi-Agent Marketing System

🧠 Gemini AI Architect (Setup)

🔌 C4X MCP Server (Model Context Protocol)

🛠️ Available Tools & Resources

📝 Configuration

💡 Use Cases

📖 C4X-DSL Syntax Guide

Elements

Elements with Icons (Function Syntax)

Relationships

Boundaries / Subgraphs

View Types

🎨 Themes

📤 Export Diagrams

📋 Commands

⚡ Performance

🛠️ Configuration

Settings

File Associations

🏗️ Project Status

🗺️ Roadmap

v1.1.8 (December 2025) ✅ Gemini AI Release

v1.2.1 (December 2025) ✅ AI Model Upgrade + Visual Generation

v1.3.0 (March 2026) ✅ Gemini 3.1 Pro + Custom Model Selection

v1.4.0 (Q2 2026) 🏗️ Advanced Integrations

v2.0.0 (Q3 2026) 🤖 Multi-Provider AI + Agentic Architecture

📚 Documentation

🤝 Contributing

✅ Validation

👤 More from the Author

📄 License

🙏 Acknowledgments
