DAB Visualize (Data API Builder)

DAB Visualize (Data API Builder)

Developer Experiences

|
6,118 installs
| (1) | Free
Visualize DAB configurations as Mermaid diagram.
Installation
Launch VS Code Quick Open (Ctrl+P), paste the following command, and press enter.
Copied to clipboard
More Info

Data API Builder (Visualize)

A Visual Studio Code extension that visualizes Data API Builder (DAB) configurations as Mermaid diagrams for better understanding and analysis.

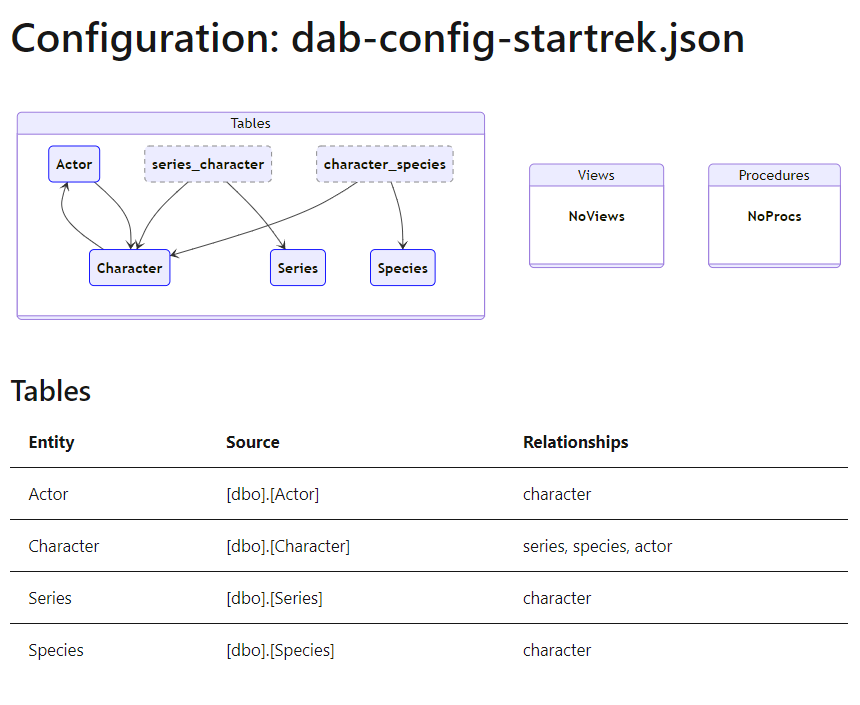

Simple diagram example

Features

  • Adds a context menu to right-click on DAB configuration files (dab-config.json or staticwebapp.database.config.json).
  • Automatically generates Mermaid diagrams to represent tables, views, procedures, and their relationships.
  • Highlights phantom entities for linking objects not explicitly defined as tables.
  • Supports standalone nodes for tables, views, and procedures without relationships.

Requirements

  • Ensure that the Mermaid Markdown extension is installed. This should be automatically installed with this extension.
  • Valid DAB configuration files must be present in the workspace.

Release Notes

0.0.1

  • Initial release: Visualizes DAB configurations with Mermaid diagrams.
  • Supports tables, views, procedures, and unnamed linking entities.
  • Handles standalone nodes and composite states for organized grouping.

How to Use

  1. Install the extension from the Visual Studio Code marketplace.
  2. Open a folder containing your DAB configuration file.
  3. Right-click on a configuration file (dab-config.json or staticwebapp.database.config.json).
  4. Select Visualize DAB from the context menu.
  5. View the generated Mermaid diagram.

Contribution

Contributions are welcome! Open a pull request or issue in the GitHub repository.
