Codagrams

Codagrams renders Mermaid code blocks directly inside your editor, so diagrams stay next to the text you write.

Why Codagrams

• Works in your normal writing flow without switching to a separate preview.
• Automatically renders Mermaid blocks when you open, switch to, or save a file.
• Reuses cached diagrams for fast updates.
• Shows a clear inline hint if a Mermaid block cannot be rendered.

Mermaid Example

Input in your file

```mermaid
graph TD
  A[Open file] --> B[Scan Mermaid block]
  B --> C[Render or load from cache]
  C --> D[Show diagram inline]
```

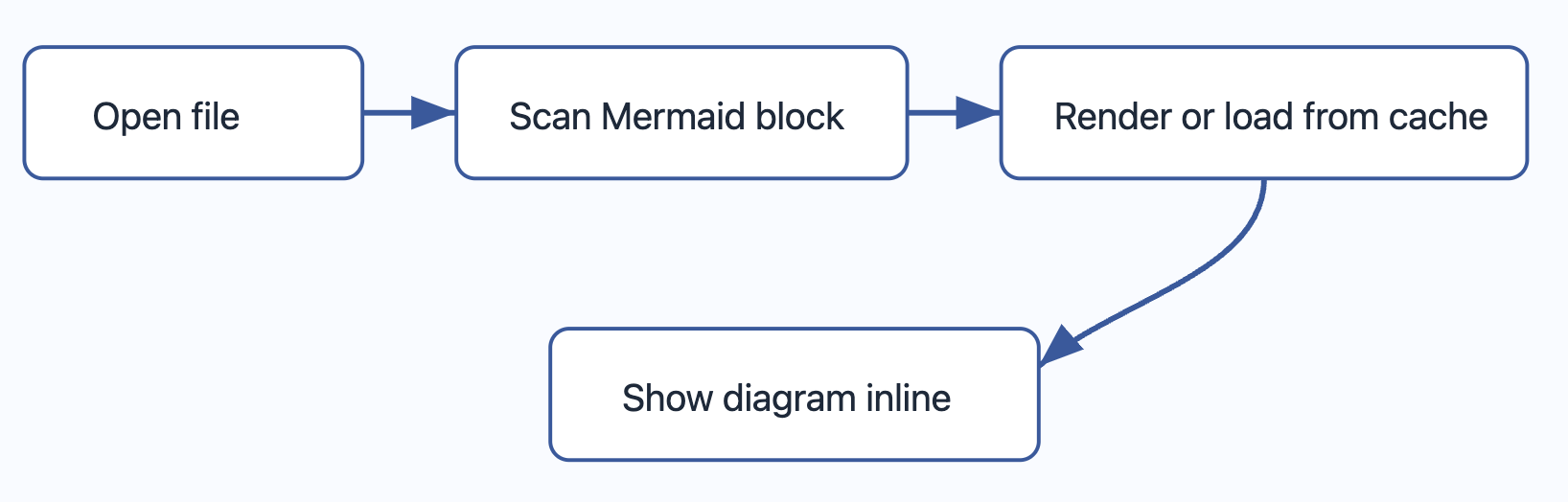

Rendered result (example)

Quick Start

1. Install Codagrams.
2. Open any text-based file (for example JavaScript, Python or Markdown).
3. Add a Mermaid fenced block.
4. Save the file.
5. The diagram appears inline below the block.

Display Options

• codagrams.showDiagrams: Show or hide inline diagrams.

• codagrams.renderFormat: Select svg or png rendering.

• codagrams.imageWidth: Configure inline diagram width in pixels.

• codagrams.debugLogs: Enable detailed diagnostic logs (off by default).

• Quick toggle in status bar: click Codagrams (eye / eye-closed) to show or hide all inline diagrams.

• Hover any rendered diagram and click Open rendered diagram in split pane to open it in a separate tab with image controls (zoom, etc.).

• Codagrams: Toggle Diagrams

• Codagrams: Show Diagrams

• Codagrams: Hide Diagrams

Notes for Users

• Rendering happens locally on your machine.
• If a Mermaid block is invalid, Codagrams shows an inline warning with a link to Mermaid syntax docs.
