Stream Code

Show the code you're writing on stream, clean, instead of capturing VS Code.

Questions, ideas or problems? Join the Discord for support.

Why this exists

I wanted viewers to see what I was working on, so I put my VS Code window into my stream overlay. It looked terrible: a captured window with tabs, sidebars, minimap, squiggles and tiny text, half see-through over the game. I looked around for anything that does this properly, an extension or an OBS plugin that puts the code on the overlay as rendered text instead of a screen capture, and couldn't find anything at all. So this is it.

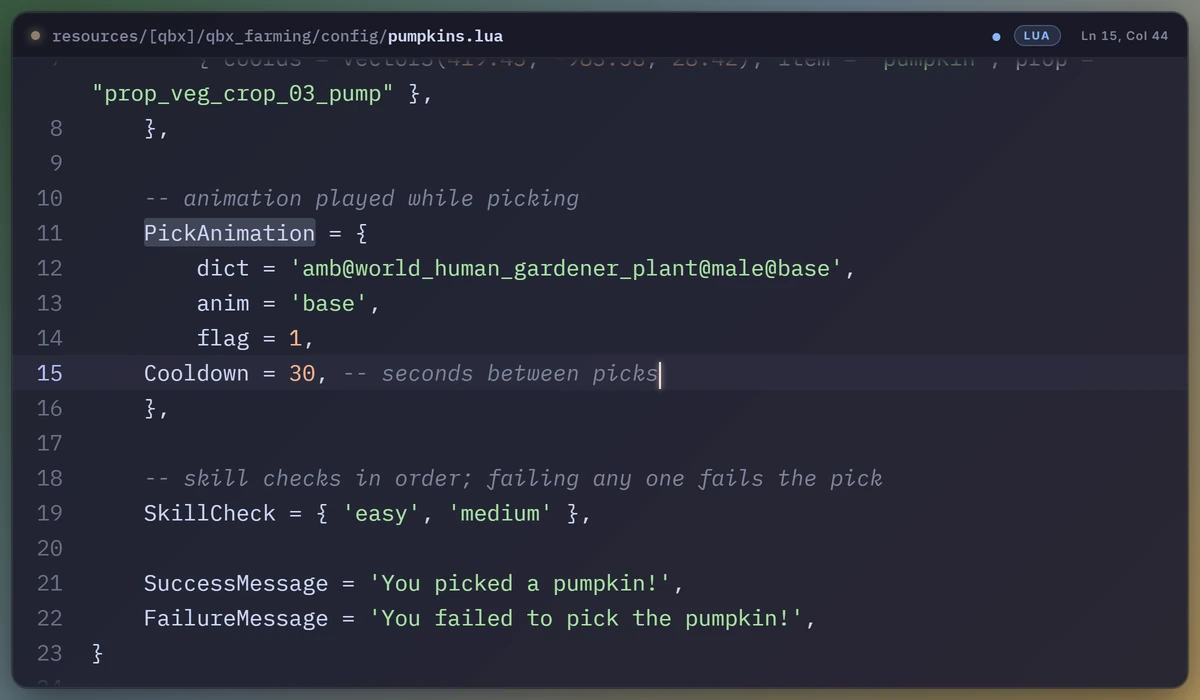

Stream Code mirrors the editor you're typing in to a small web page that you add to OBS (or Meld, or anything with a browser source). It's the real code, re-rendered: your font, your colours, big and readable, following the cursor, and nothing else.

What it does

• Live mirror of the active editor. File name, language, the lines around the cursor, the cursor itself and your selection, updated as you type, with smooth scrolling.

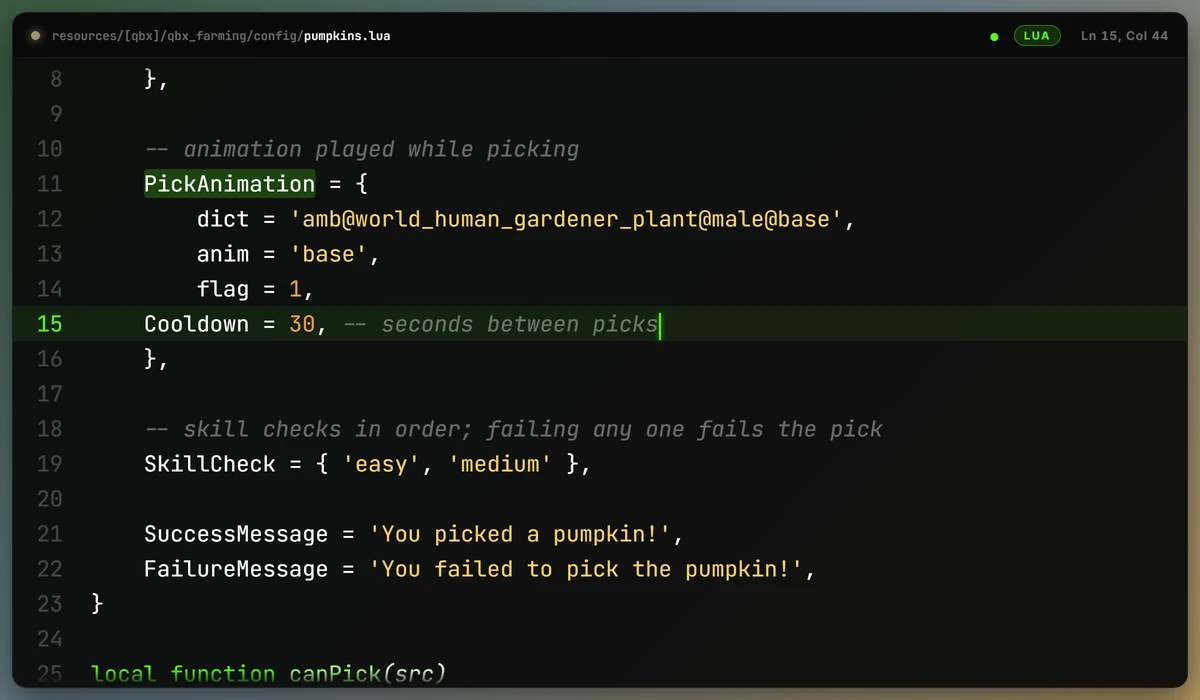

• Twelve themes, from a Catppuccin panel that matches the editor to a Kick-green one, a phosphor CRT terminal, a light paper card, frosted glass, synthwave neon, a macOS window, Nord, Dracula, Gruvbox, and a bare "just the code" look.

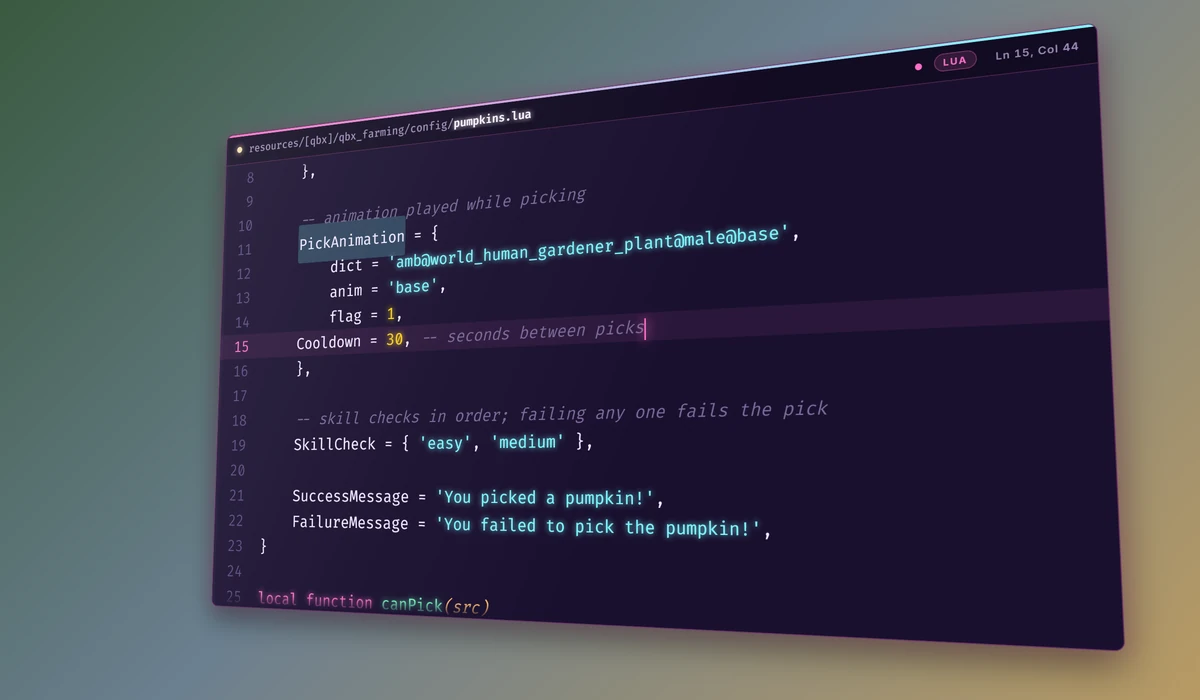

• 3D looks: tilt, turn, rotate, perspective, scale, a fake thickness so an angled panel reads as a solid slab, a slow float, and opacity.
• Zoom on what you point at. Rest the mouse on some code and the overlay zooms in on it, either the whole view like a camera or a magnifier lens. While you type it follows the text cursor instead.
• Everything is a VS Code setting. Theme, header, background, line numbers, word wrap, font size, line height and the 3D controls. Change a setting and the overlay changes. There is also a gallery page with every theme side by side, sliders for the 3D look, and a live preview; clicking there writes the settings for you.

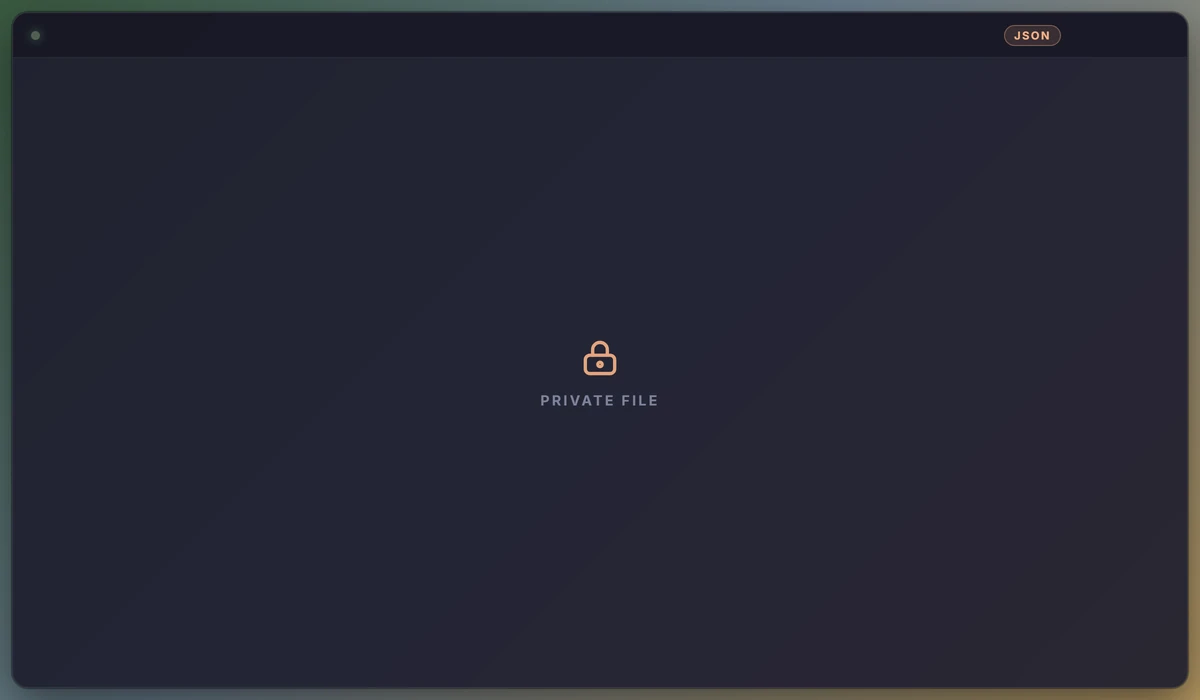

• Privacy guard. Files matching patterns like .env*, *secret*, *credential*, *token*, *.pem or *.key are never sent; the overlay shows a lock card instead. A status-bar button pauses broadcasting entirely.
• Several windows are fine: the first one owns the port, the others hand over their state while they're focused, so the overlay always shows the window you're typing in.
• Your code never leaves your PC. The extension only listens on 127.0.0.1, and only the overlay on this PC may connect: other websites you have open can't read your code or put anything on your stream.

Setup

1. Install the extension (Stream Code appears at the right of the status bar).
2. In OBS add a Browser source with the URL http://127.0.0.1:7331/ and whatever size you want the panel to take. Leave "Shutdown source when not visible" off.
3. Open a file and type.

Pick a look with Ctrl+Shift+P → Stream Code: Pick a theme, or open the settings page with Stream Code: Settings, or open the gallery with Stream Code: Open the theme gallery / control panel.

Themes

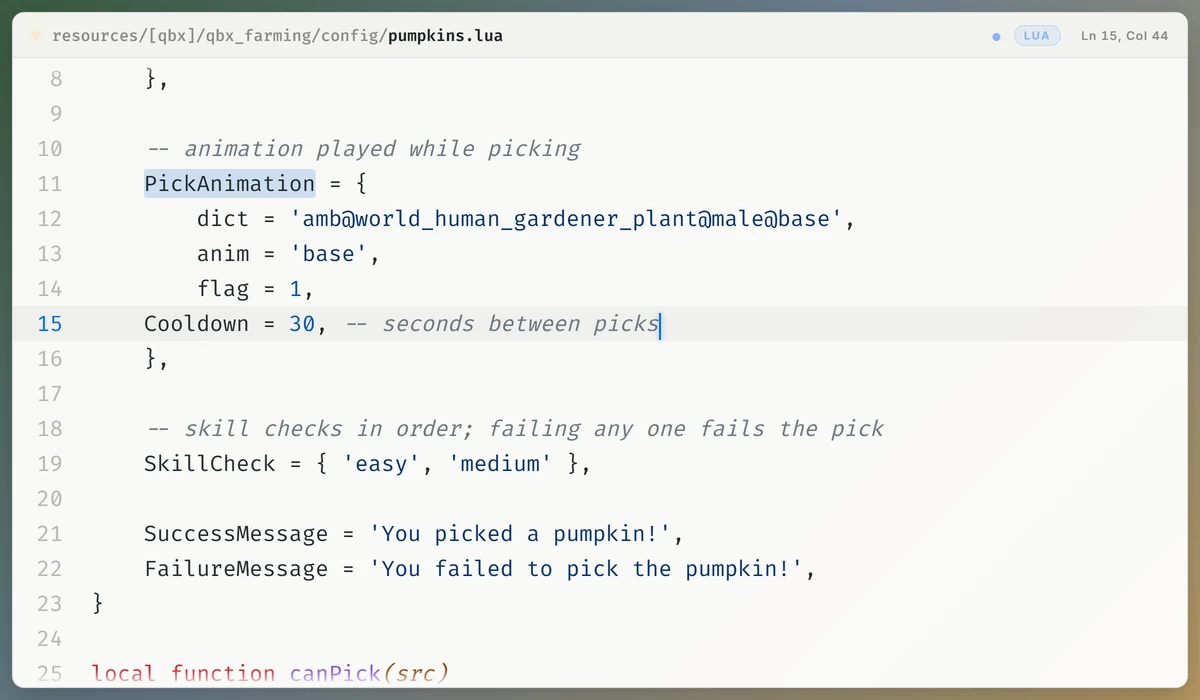

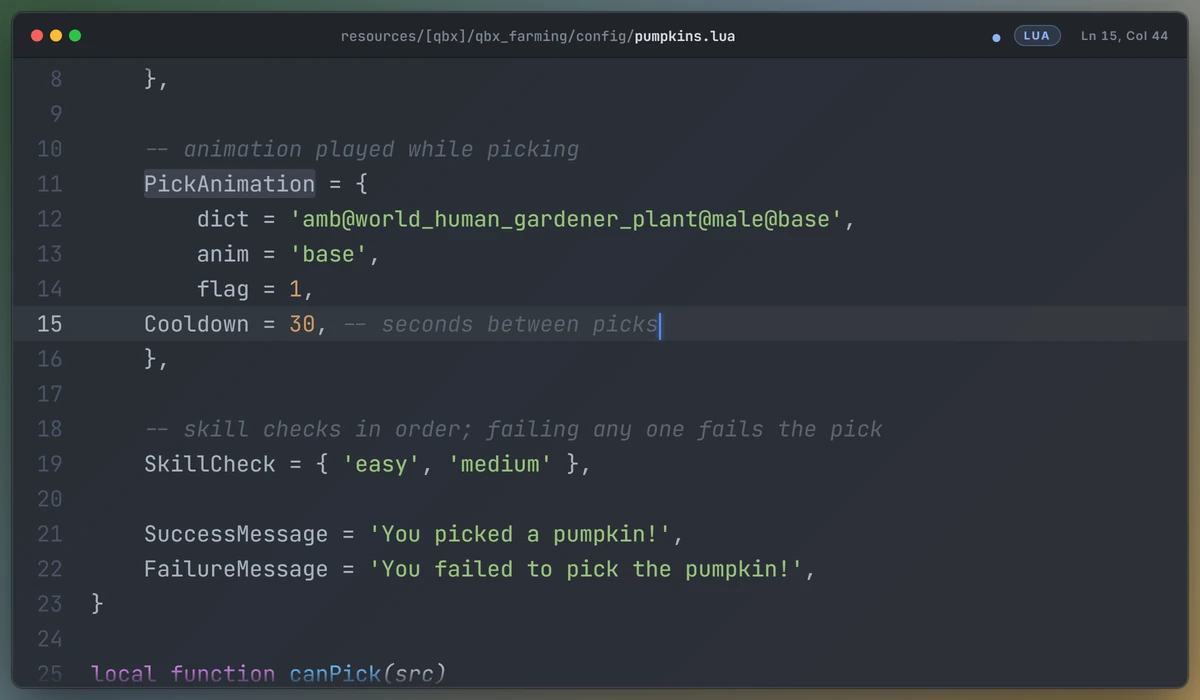

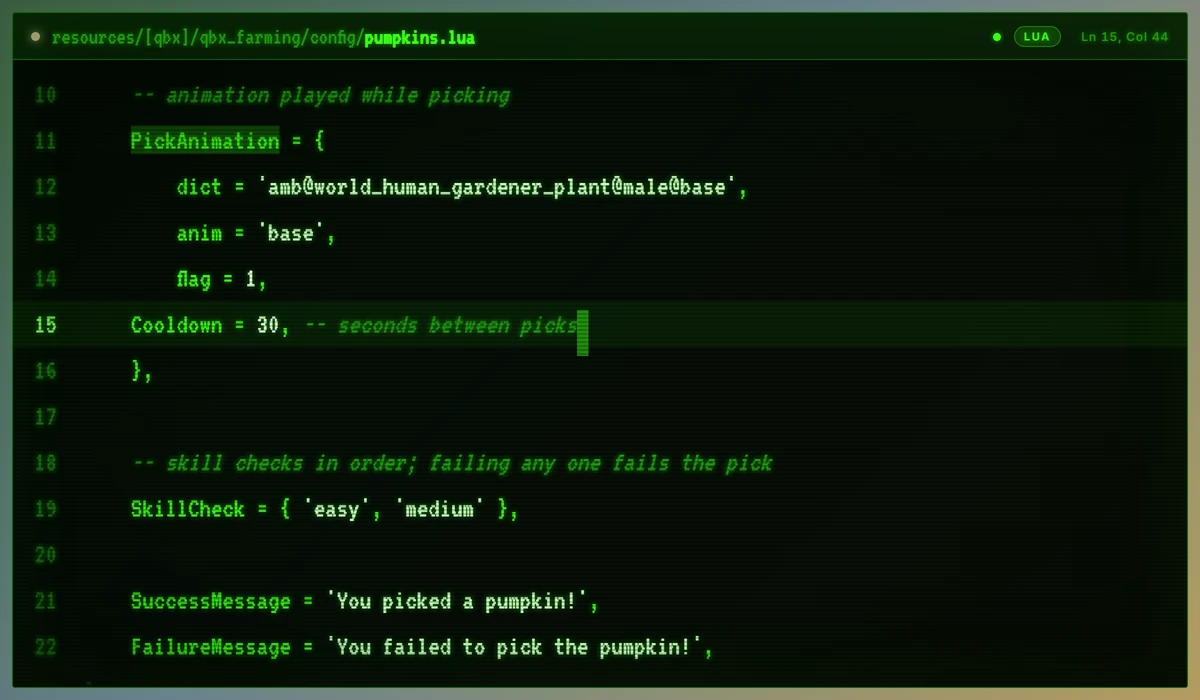

Mocha, Kick, Twitch, Terminal, Paper, Glass, Neon, Mac, Nord, Dracula, Gruvbox and Minimal.

3D

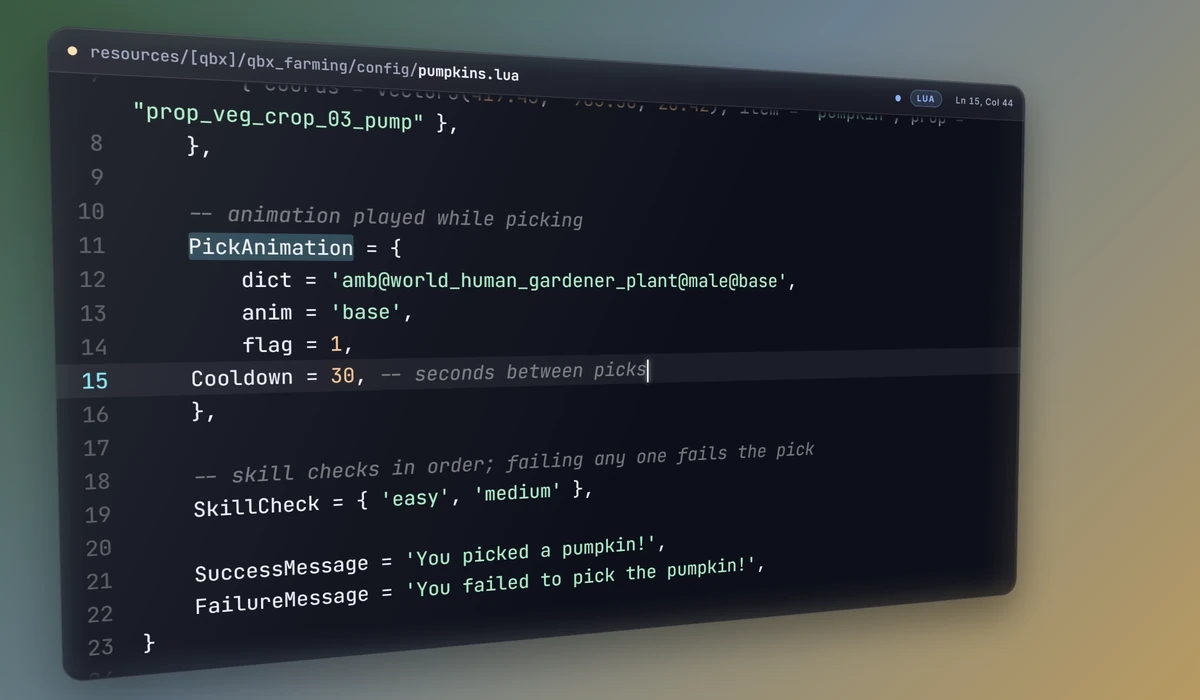

Tilt X / Tilt Y / Rotate in degrees, perspective distance, scale, depth (the thickness and sheen), float and opacity. Something like tilt Y −22, tilt X 6, depth 14, scale 0.9 gives a game-HUD look.

Zoom

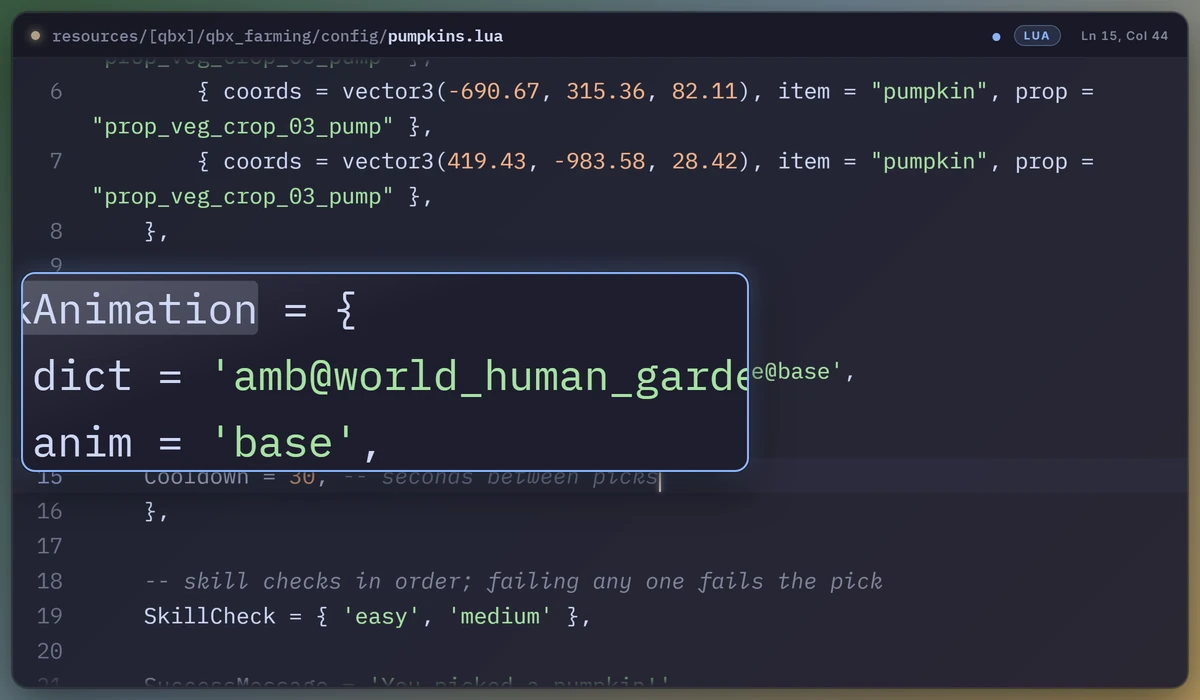

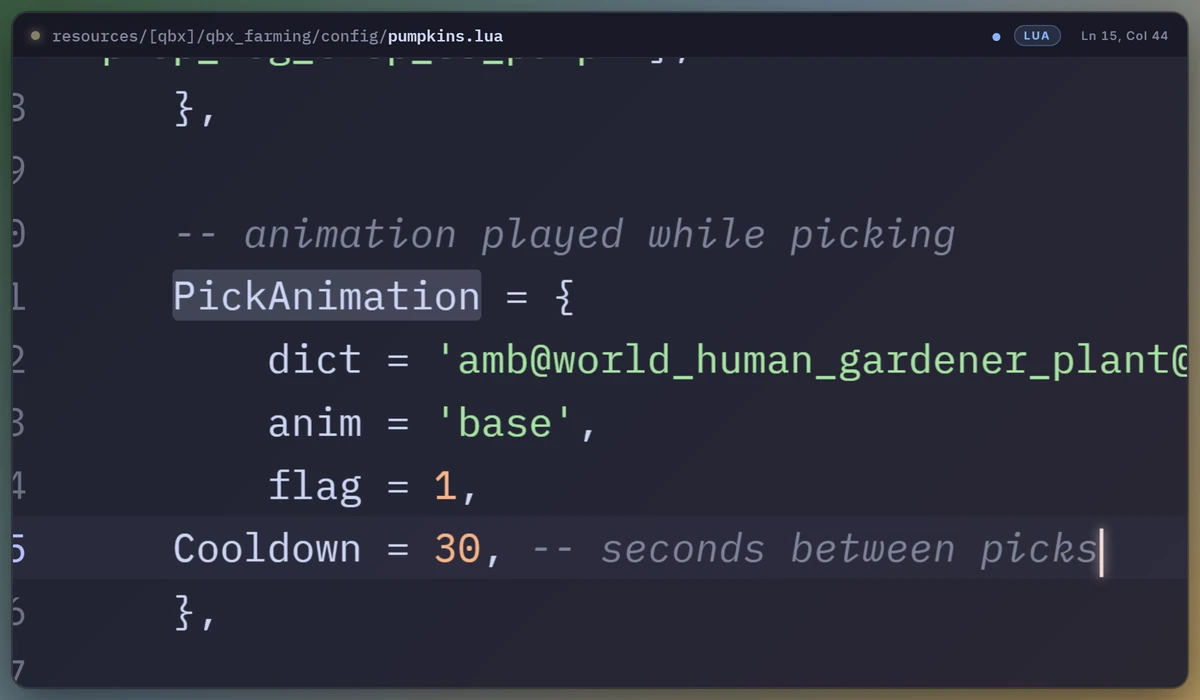

Point at a line with the mouse to show viewers exactly what you mean. Lens puts a magnifier over the spot and leaves the rest of the view as it is. Camera zooms the whole view in and pans to follow. By default the zoom follows whichever moved last, the mouse or the text cursor, so it is on the line you are typing as soon as you type again. Zoom out after eases back to the full view after a few quiet seconds, so the zoom only appears while something is happening.

VS Code doesn't tell extensions where the mouse is, so "the mouse" means the spot where it last rested over code (the moment a hover tooltip would appear) or clicked. It never adds a tooltip of its own. If you turned editor.hover.enabled off, only clicks count.

Just the code

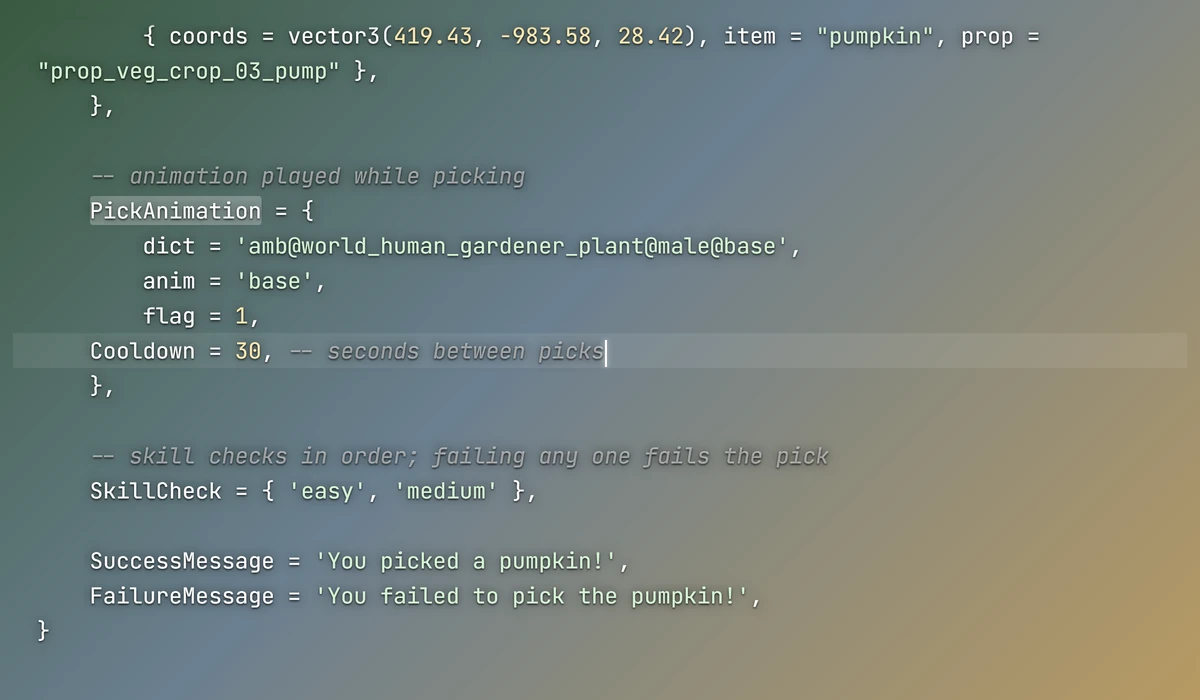

The Minimal theme, or the Show background / Show header / Show line numbers settings turned off on any theme, leaves only the code floating over the game with a soft shadow for legibility. Turn Edge fade up (around 25) and the code dissolves into the game at the top and bottom instead of being cut off.

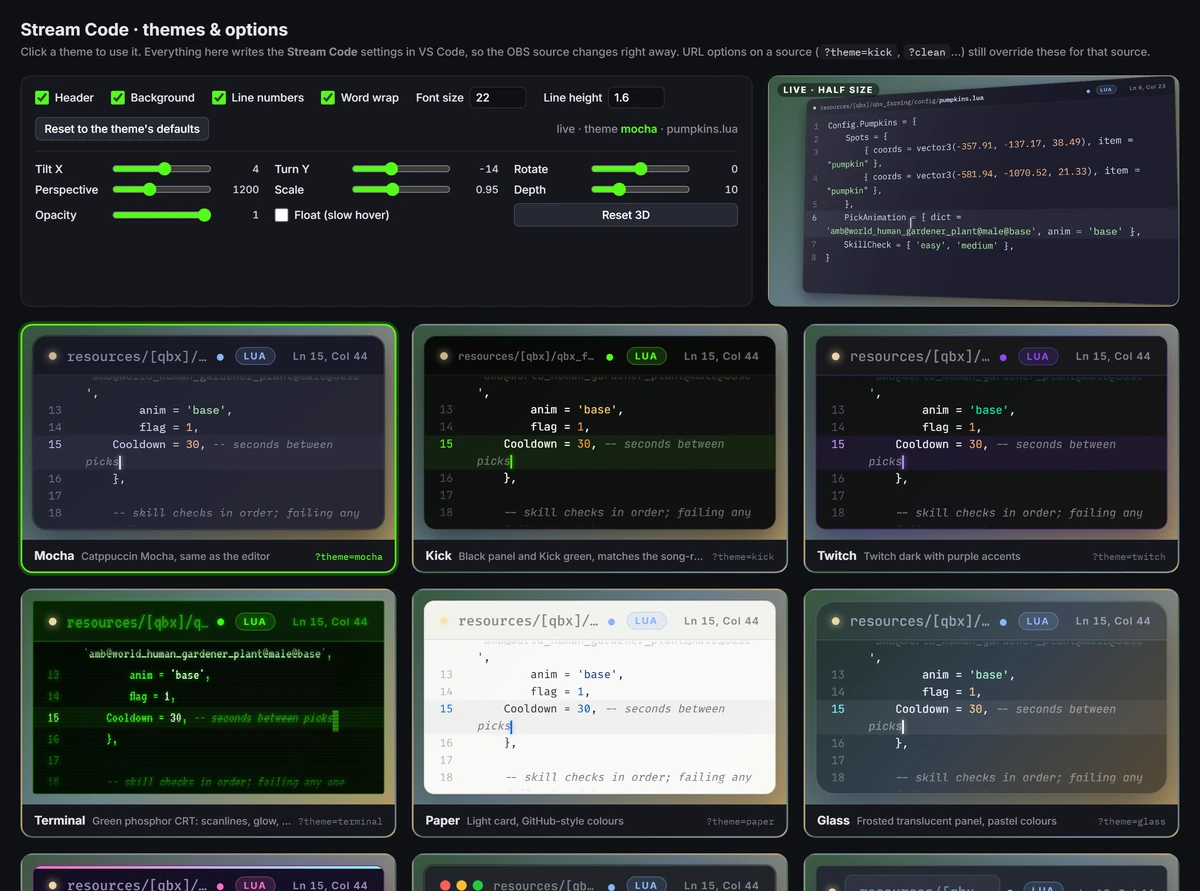

The gallery / control panel

http://127.0.0.1:7331/?gallery: every theme on the same code, the option toggles, the 3D sliders, the zoom controls and a half-size live preview of the real overlay. Everything on that page writes the VS Code settings through the extension.

Private files

Files matching streamCode.hideFiles never leave VS Code: the overlay shows a lock card instead of their contents.

Settings

URL options on the browser source (?theme=kick, ?clean, ?size=26, ?tilty=-20, ?zoom=lens...) override the settings for that one source, so two scenes can use two looks.

How it works

The extension hosts a tiny HTTP server on 127.0.0.1:7331 and streams the editor state over Server-Sent Events to overlay.html, a single self-contained page it also serves. Syntax colours come from highlight.js; fonts from Google Fonts (IBM Plex Mono, JetBrains Mono, Fira Code, VT323, Inter), with Consolas as the offline fallback, so the overlay page fetches those from public CDNs; your code itself is never sent anywhere but your own machine. There is no telemetry.

Support

Need help, found a bug, or want a feature? Join the Discord: discord.gg/8wwfPxfMWA

Made by heyjeay for the FiveM dev streams on Kick and Twitch.

License

Copyright (C) 2026 heyjeay. Stream Code is free software: you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation, either version 3 of the License, or (at your option) any later version. See LICENSE.
