Hatchet VSCode Extension

This is an extension for Hatchet which allows visualization of Hatchet DAGs. This works with Hatchet's Python, Typescript, Go and Ruby SDKs.

Usage

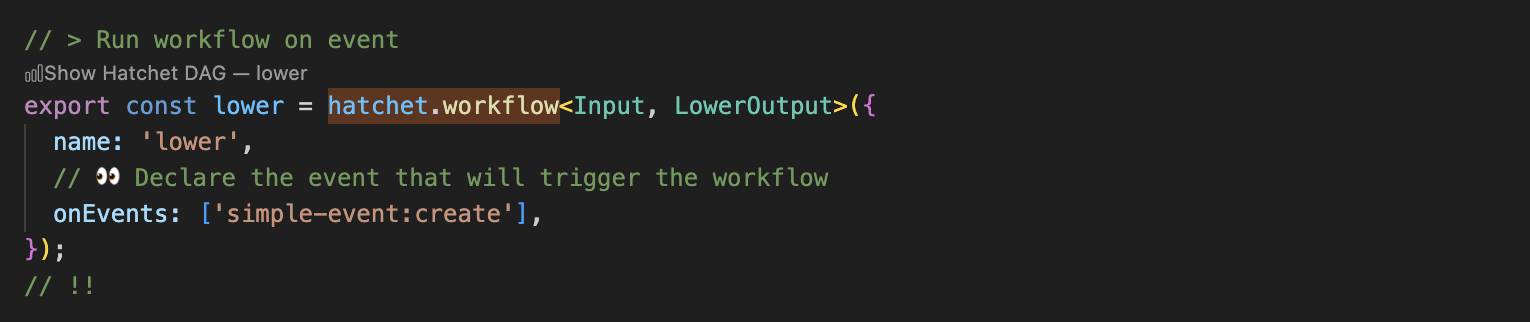

After installation, each Hatchet DAG definition will show a button Show Hatchet DAG:

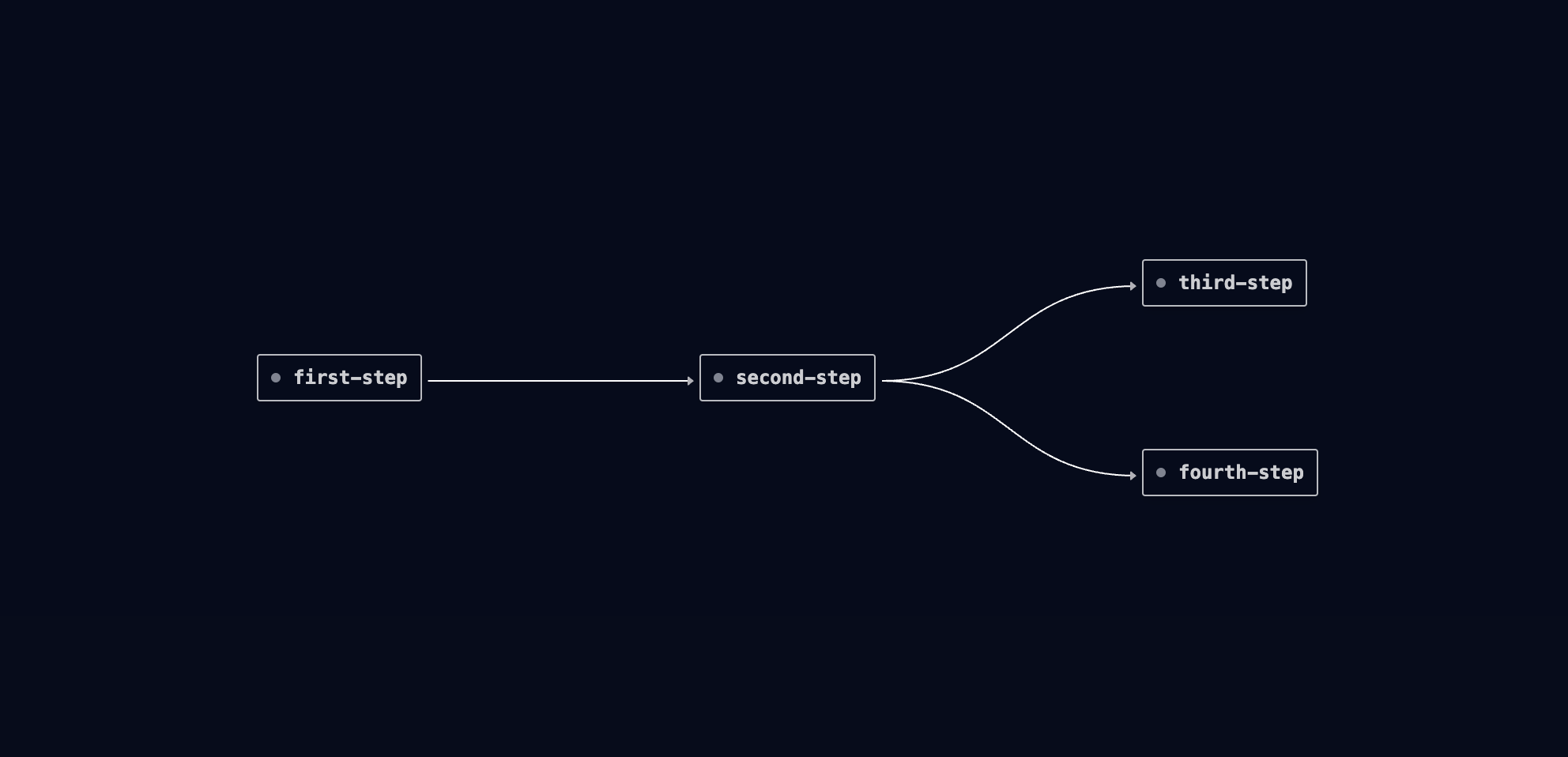

This will then open a webview showing the DAG definition. As you update your definition, the webview will automatically stay up to date:

Custom workflow wrappers

If your codebase wraps the Hatchet workflow builder, annotate your factory function with @hatchet-workflow so the extension can detect variables it creates:

/**
 * @hatchet-workflow
 * @hatchet-task-method task
 * @hatchet-task-parents parents
 */
export function createWorkflowBuilder(options) { ... }

The extension scans your workspace for annotated functions on startup and places a Show Hatchet DAG CodeLens above every variable created by one. Two optional tags let you match your wrapper's API:

Both wf.task('name', { parents }) and wf.task({ name, parents }) call signatures are supported automatically.

Reporting issues

You can report issues in our Github issues.

Changelog

0.2.1

• Fix memory leak — workspace annotation scanning now reads files via vscode.workspace.fs.readFile instead of openTextDocument, preventing Monaco text models from being created for every .ts/.tsx file in the workspace.

0.2.0

• Custom wrapper support — annotate any factory function with @hatchet-workflow to get DAG visualization for variables it creates, with no other config required. Use @hatchet-task-method and @hatchet-task-parents to match your wrapper's API when it differs from the Hatchet defaults.
• Both positional-name (wf.task('name', opts)) and options-object (wf.task({ name, parents })) task call signatures are now supported.
• Cross-file task resolution via LSP now honours custom method and parents property names.

0.1.2

• Initial release with DAG visualization for TypeScript, Python, Go, and Ruby workflows.
