xlflow for Visual Studio Code

English | 日本語

xlflow for Visual Studio Code is an extension that enhances usability of the Excel VBA macro development support tool xlflow within VSCode. It enables developers to:

• Ability to check the status of xlflow projects
• Implemented import/export functionality for VBA modules
• Features session management capabilities for performing various operations quickly

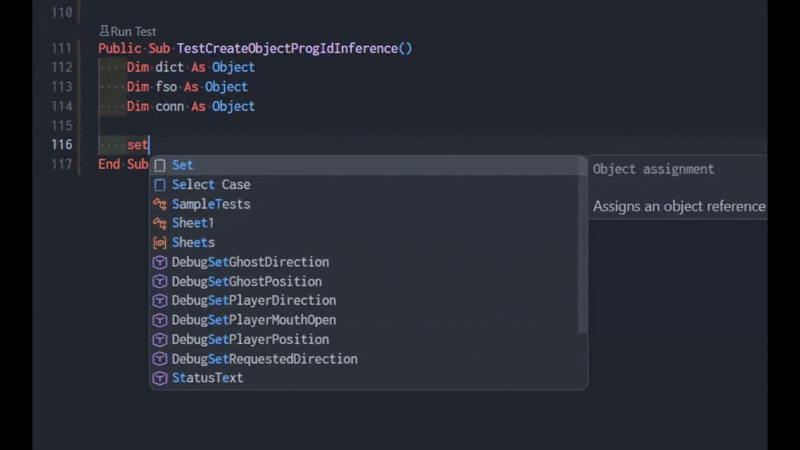

• LSP integration enables VSCode users to access VBA-specific features including code completion, diagnostics, and symbol analysis
• Direct execution of various commands from within VSCode itself

This makes Excel VBA macro development more secure while simplifying integration with Git version control systems and AI agents.

What is xlflow?

xlflow is a development support CLI tool originally created to enable AI agents to autonomously develop Excel VBA macros. It extracts VBA code from Excel workbooks as individual files (such as .bas, .cls, and .frm), allows them to be managed via Git, and then reapplied back to the workbook after editing. Additionally, it supports running VBA macro execution, testing, linting, formatting, and static analysis directly from the CLI, making it equally suitable for both human development and AI agent-assisted Excel VBA development. In xlflow for VSCode, we GUI-ify these functionalities while also providing a Language Server Protocol (LSP) server to deliver an exceptionally streamlined development experience for humans.

System Requirements

• This extension is only compatible with Windows operating systems.
• You must install xlflow beforehand.
• Either add xlflow to your system path or set the VS Code setting xlflow.path to the full path to the executable file.

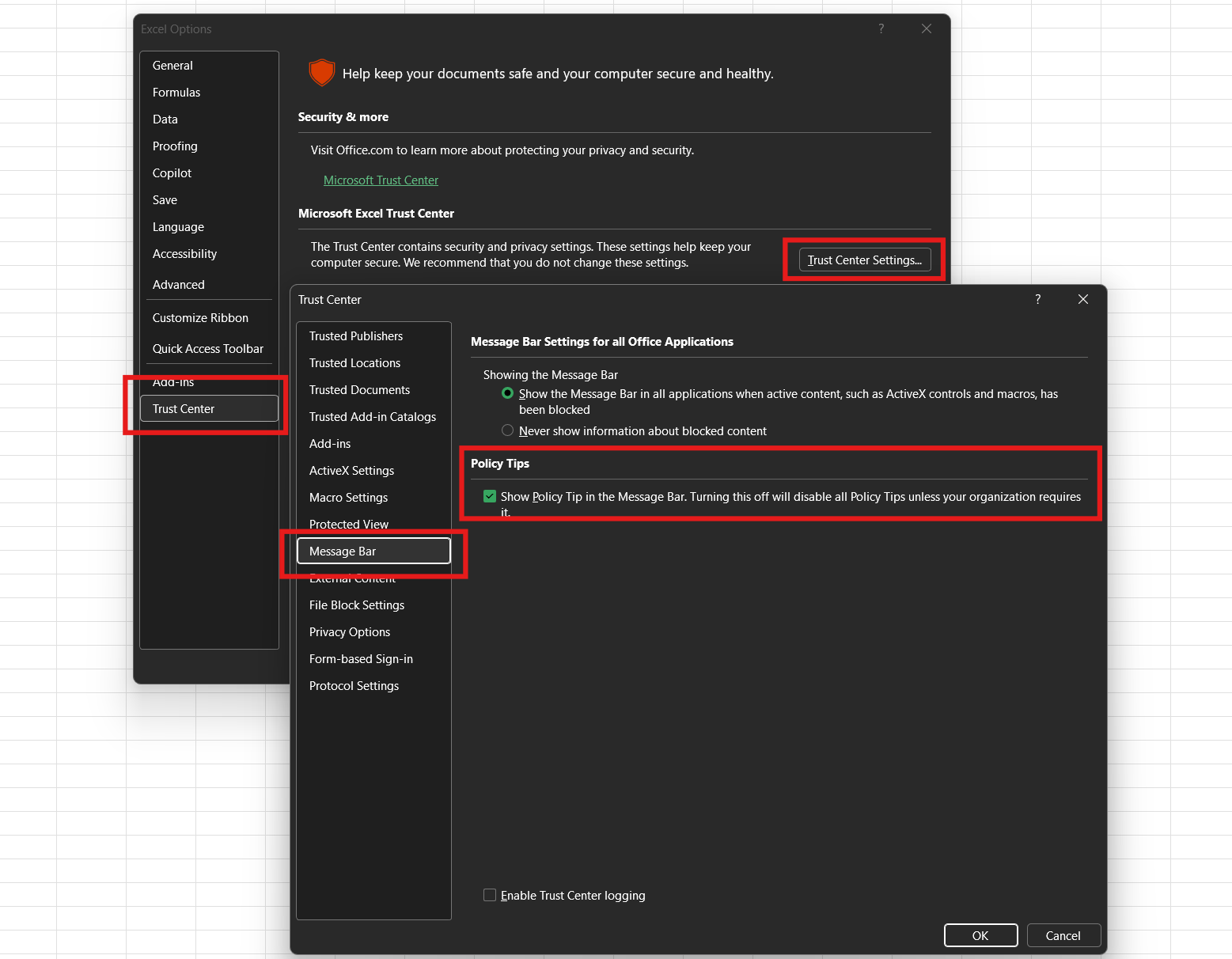

• In Excel settings, enable "Trust access to the VBA Project Object Model".

Installation Commands for xlflow Proper

• Quick Install

  irm https://harumiweb.github.io/xlflow/install.ps1 | iex


• Using WinGet

  winget install HarumiWeb.Xlflow


• Via Scoop

  scoop bucket add harumiweb https://github.com/harumiWeb/scoop-bucket
  scoop install xlflow


• For WSL installation (note that separate installation on Windows is also required):

  curl -fsSL https://harumiweb.github.io/xlflow/install.sh | sh


Features of This Extension

With xlflow for Visual Studio Code, you can perform all core operations of the xlflow CLI directly from VSCode. The main features include:

• Displays project status for xlflow projects
• Project recognition based on xlflow.toml configuration
• Imports VBA modules from Excel workbooks
• Applies edited VBA modules back to Excel workbooks
• Starts and stops xlflow sessions
• Runs automated tests

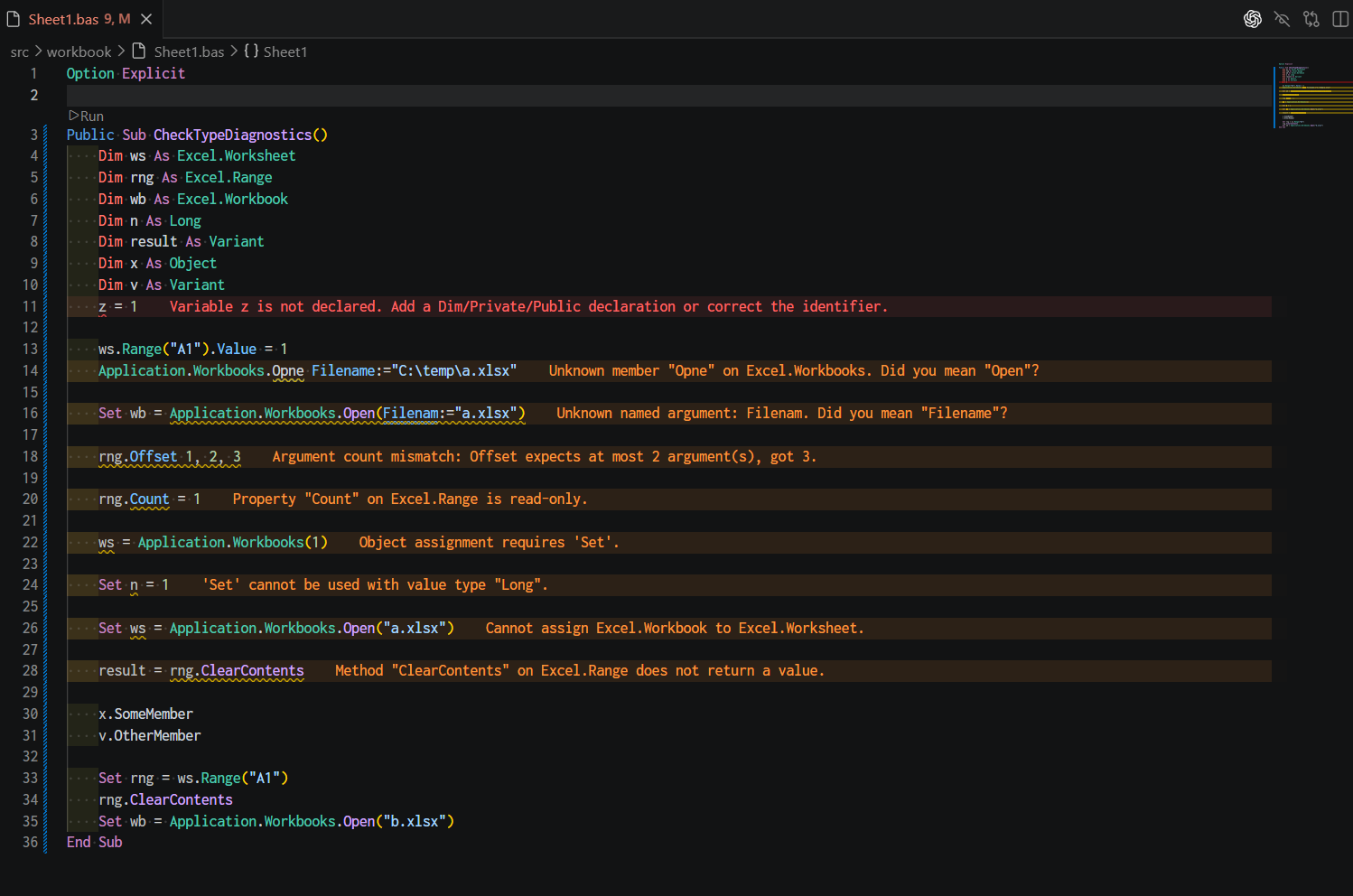

• Provides input completion and real-time diagnostics via LSP
• Offers AST-based static analysis and formatter capabilities
• Lists standard modules, class modules, and other project components
• Allows execution of xlflow commands from the command palette
• Includes auxiliary features for VBA development

Target Use Cases

This extension is designed for Excel VBA development scenarios such as:

• Managing Excel VBA macros with Git version control
• Editing VBA code in VSCode rather than the VBE environment
• Safely maintaining existing Excel macro assets
• Implementing lint and formatting tools for VBA as well
• Delegating Excel VBA development to AI agents
• Performing synchronized operations between Excel workbooks and source code through a GUI interface
• Integrating Excel VBA with WSL or CLI-based development workflows

Quick Start Guide

Project Setup

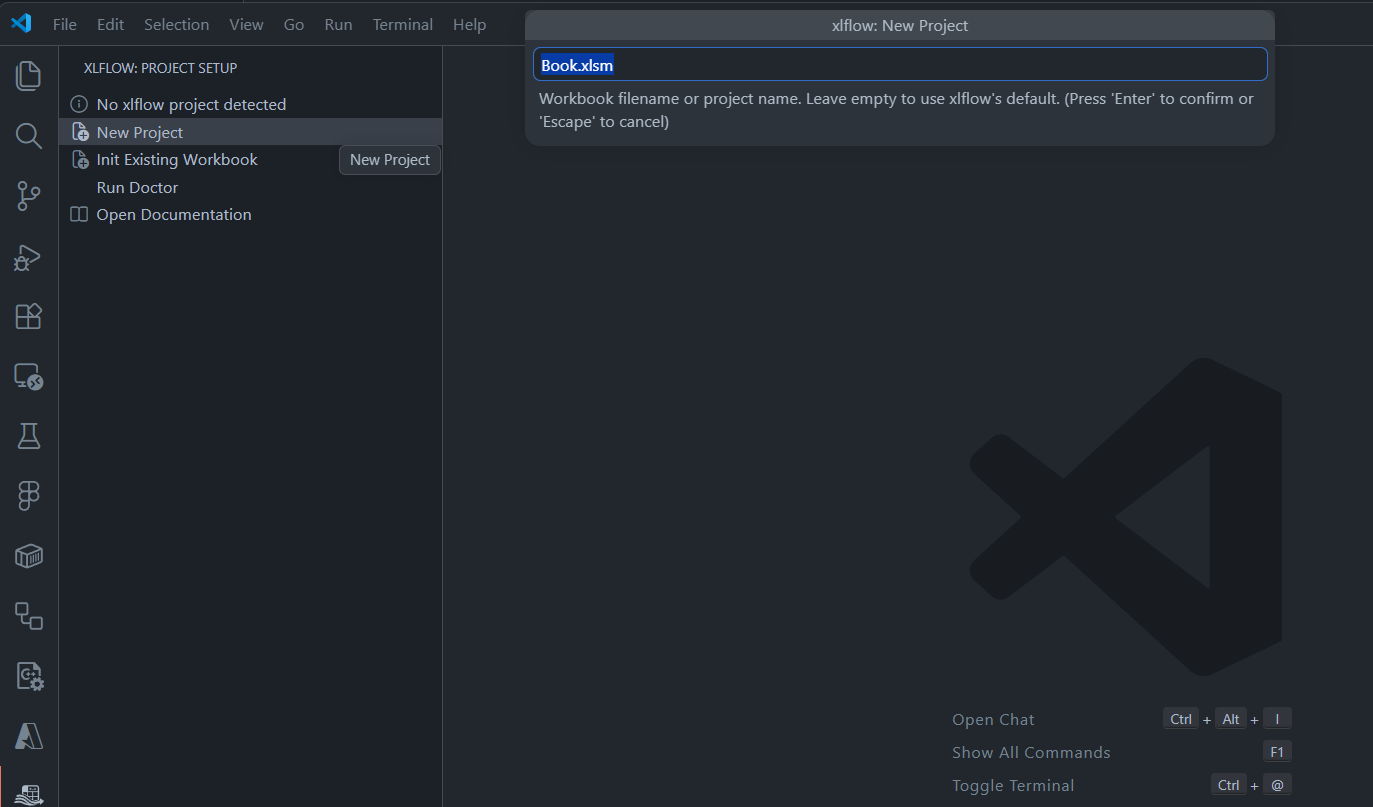

• To create a new xlflow project, click New Project from the extension sidebar, enter a file name, and press Enter.

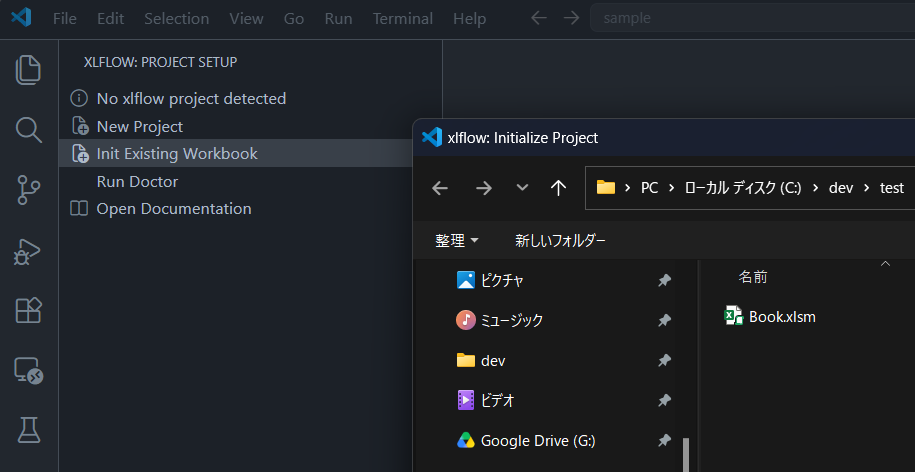

• To convert an existing macro workbook into an xlflow project, click Init Existing Workbook from the extension sidebar and select the macro book.

Workflow Operations

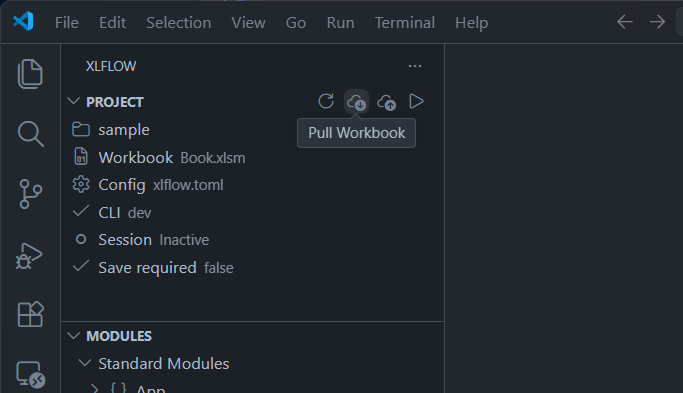

• For importing source code from workbooks, execute the Pull Workbook button.

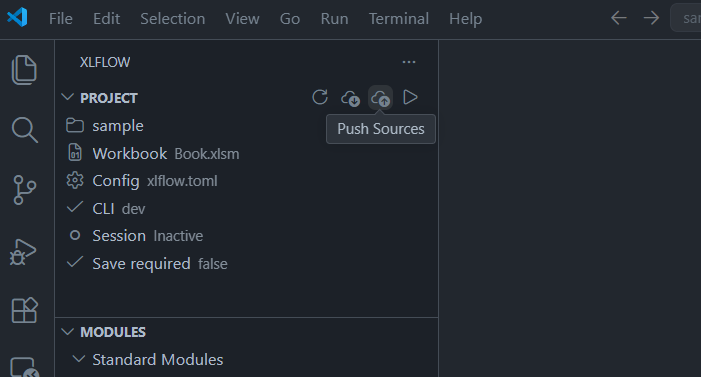

• For applying source code changes to workbooks, run the Push Sources button.

Configuration Settings

To specify the executable path when xlflow isn't in the system PATH:

{
  "xlflow.path": "C:\\path\\to\\xlflow.exe"
}

Common configuration options include:

• xlflow.lsp.enabled: Launches xlflow lsp --stdio for VBA files.
• xlflow.lsp.logFile: Specifies the log file to pass to the language server. The default value is .xlflow/lsp.log.
• xlflow.lsp.trace.server: Sets the verbosity level for the trace output channel of the language server.
• xlflow.codeLens.enabled: Displays xlflow CodeLens actions above executable VBA procedures.
• xlflow.codeLens.runProcedure: Shows a "Run" action above executable VBA procedures.
• xlflow.codeLens.runTests: Displays a "Run Test" action above VBA test procedures.
• xlflow.codeLens.userFormEvents: Shows a "Run" action above event handlers in UserForms.
• xlflow.run.saveBeforeRun: Saves modified VBA documents before executing procedures via CodeLens.
• xlflow.completion.triggerSuggestInStatements: Triggers VS Code suggestion functionality in contexts where VBA statements are likely to be written.
• xlflow.completion.progIdsInStrings: Triggers VS Code suggestion functionality within strings containing CreateObject("...") and GetObject("...") syntax.
• xlflow.testing.autoDiscover: Automatically discovers VBA tests when the xlflow workspace is opened.

About the Command

The command palette includes the following features:

Integration with AI Agents

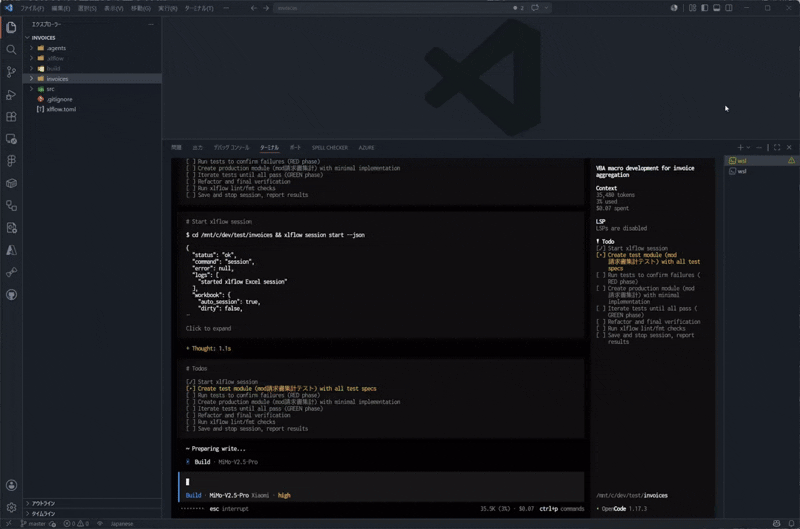

xlflow is a tool specifically designed to enable AI agents to develop Excel VBA macros, featuring CLI-based operation and AI-friendly structured output. From your terminal:

xlflow skill install

or through the VSCode command palette using:

xlflow: Install Agent Skill

you can install the Agent Skill for AI agents, which helps coding assistants like Codex / Claude Code / GitHub Copilot / Cursor better understand how to interact with xlflow. This enables autonomous macro implementation, testing, and modification processes for VBA scripts in Excel. As a result, it becomes easier to incorporate test-driven development and automated correction workflows into Excel VBA development.

WSL Integration Notes

xlflow supports workflows that connect Excel on Windows with development environments running in WSL (Windows Subsystem for Linux). You can edit VBA code from editors or AI agents running on WSL, then import, apply, and execute changes directly on Excel on Windows. When using WSL integration, please note the following requirements:

• You must install xlflow on both the Windows and WSL sides
• Your target project files must be located in a shared directory accessible from both Windows and WSL, such as /mnt/c/...
• Access to Microsoft Excel on Windows is required for working with Excel workbooks For detailed instructions, refer to the official xlflow documentation.

Troubleshooting

"Cannot Find xlflow Command" Error

Please verify that the xlflow CLI is installed. In the terminal, execute:

xlflow version

Either add xlflow to your system PATH or specify the absolute path to the executable in VSCode settings under xlflow.path.

Project Not Being Recognized

Check whether an xlflow.toml file exists either at the root of your workspace or within the target folder:

my-project/
  xlflow.toml

If the xlflow.toml file is missing, run project initialization through the command palette or via the dedicated sidebar interface:

xlflow: Initialize Project

Failure in Excel Workbook Operations

Excel workbook operations require Microsoft Excel installed on Windows. Please verify the following:

• Whether Microsoft Excel is installed
• Whether the target workbook can be opened
• Whether access to VBA projects is allowed
• Whether the workbook is not protected
• Whether another Excel process has locked the workbook

Operation Issues from WSL

When using WSL integration, the project must be located in a directory accessible from both Windows and WSL environments. Recommended deployment structure:

/mnt/c/dev/my-xlflow-project

Additionally, ensure that both Windows and WSL instances can execute xlflow successfully.

Known Limitations

• This extension does not install or bundle xlflow itself.
• Macro selection functionality currently does not support interactive operations. Running xlflow: Run Macro will execute the configured default macro. Standalone Sub procedures without arguments can be invoked via CodeLens.
• Both xlflow: New Project and xlflow: Initialize Project only display basic CLI workflows and do not provide a picker for selecting options like --with-skill, --with-module, --agent, or --json.
• This extension itself does not implement VBA code analysis, diagnostics, formatting, suggestion displays, or symbol analysis. These functionalities are delegated to the xlflow CLI and xlflow-lsp components.

Documentation

For detailed usage instructions, please refer to the following documentation: xlflow Documentation GitHub Repository

Feedback and Issue Reporting

Please report bugs, feature requests, and questions via GitHub Issues. Issues When reporting issues, please include the following information whenever possible:

• Operating system version
• VSCode version
• xlflow version
• Version of this extension
• Command executed
• Error message
• Reproduction steps

Development Notes

Please use Node.js 22 or later. The extension's test runner utilizes @vscode/test-electron 3.x. From this directory:

pnpm install
pnpm compile

To launch the extension in VS Code's development mode, open this folder and run the Extension Host from the [Run and Debug] view after compilation is complete.

License

MIT License
