GDB RTOS Views

An RTOS view for embedded debugging, driven by GDR (GDB enhance for RTOS) CLI. For discover task/timer/IPC/heap status, resource usage, corruption and potential bug.

How it works

Layers

Four layers sit between the panel and the target. Each one does one job, and only GDR knows anything about the RTOS:

The data flow is: VS Code panel → debug adapter → GDB/GDR → halted target; GDR returns a versioned JSON envelope through GDB, and the panel renders that response.

flowchart TB
    ext["VS Code panel (this extension)<br/>session lifecycle, transport, rendering"]
    da["Debug Adapter<br/>cortex-debug, cppdbg, gdbtarget, ..."]
    subgraph gdbproc["GDB"]
        gdb["GDB<br/>symbols, DWARF, memory, run/halt"]
        gdr["GDR (gdr.py, embedded Python)<br/>RTOS decoding, checks, envelope"]
        gdb <-->|"Python API"| gdr
    end
    target["Target<br/>halted while anything is read"]

    ext -->|"DAP evaluate request"| da
    da -.->|"JSON envelope (text or file)"| ext
    da <-->|"GDB/MI"| gdb
    gdb <-->|"remote protocol (OpenOCD, J-Link, pyOCD, QEMU gdbstub, ...)"| target

• GDB is the debugger itself. It owns the connection to the target, the ELF symbols and DWARF types, memory reads, and run/halt control. It also hosts the Python interpreter that GDR runs in, which is why the session's GDB must be built with Python.
• The debug adapter is the extension you already debug with (see Supported debug adapters). It starts GDB, translates VS Code's Debug Adapter Protocol (DAP) into GDB/MI commands, and drives continue/step/breakpoints. This extension does not replace it. It only adds the GDR loader to the adapter's launch-time command hooks, and it asks questions through the adapter's DAP evaluate request, the same path a watch expression takes. The adapter's stop and run events reach the extension through the tracker extension.
• GDR could be used as a independent CLI (source gdr.py at the GDB prompt). It is the only layer that understands kernel structures: it walks the RTOS's task lists, objects and heap through GDB, checks them for consistency, and returns the result as a versioned JSON envelope through the $gdr_json convenience function. The text commands and the envelope are built from the same collectors, so a view can never disagree with what a command such as rtt threads prints at the GDB prompt.
• This extension is a client of that envelope. It runs the session lifecycle (check Python, load GDR, probe, initialize), carries the envelope back (inline evaluate results reassembled from chunks, or a temporary file when the adapter cannot return the payload), refuses a bundled runtime whose envelope schema it was not built for, and renders the result in the panel. It decodes no kernel structure and reads no target memory of its own; everything it shows comes from a field GDR returned.

Session lifecycle

1. At launch it checks that GDB has Python, then sources the bundled gdr.py. Without Python the session still starts; an error notification explains why GDR could not start.
2. At the first stop it asks GDR which RTOS and version this target is ($gdr_json("probe")) and initializes that adapter.
3. At every later stop the panel asks for one snapshot, which runs the same collectors as the commands at the GDB prompt.

Stop snapshot

Nothing is read while the target runs: GDR answers only at a stop, and the extension marks the snapshot on screen as stale as soon as the target resumes. Neither GDR nor the extension writes target memory or calls a function in the firmware (a GDB inferior call), because an inferior call resumes the target and could change the very state the snapshot is meant to capture. Running the target stays entirely under the firmware's and your control.

Supported RTOS

See GDR readme

Supported debug adapters

GDR is loaded into the session's own GDB through the launch key that adapter actually reads, so the key is listed per adapter rather than assumed.

A session GDR cannot host still gets a tab stating that reason, instead of failing later with an empty panel.

The session's GDB must have Python. xPack ships both variants: arm-none-eabi-gdb has none, arm-none-eabi-gdb-py3 does — point the adapter's GDB setting (the third column above) at the -py3 binary. The extension names the setting to use instead of showing an empty panel.

Why the tracker extension depends

mcu-debug.debug-tracker-vscode is a declared extensionDependencies entry, because VS Code's own debug API exposes neither the adapter's stopped/running events nor the stack frame it stopped in. The plugin subscribes to the tracker's v1 API for exactly four things:

• started — the session gets its tab before GDR has answered anything;
• first-stack-trace — the stop, carrying the frame id every evaluate read needs, which is what makes the panel refresh per stop instead of per poll;
• running — the snapshot on screen is marked stale instead of refreshed;
• terminated — the launch's temporary scripts are removed, the tab closes.

Every other event the tracker sends (capabilities, protocol-event, initializing) is ignored. GDR itself is never driven while the target runs, so a tracker that is missing or answers with a shape this client does not know produces a startup error notification rather than silently leaving the panel without data or reading a moving target.

The GDR panel

The GDR panel appears there once a debug session GDR can drive starts, and stays out of the way otherwise (no standing activity-bar icon). GDR: Open RTOS Views focuses it from the Command Palette; the refresh button in its title bar re-reads the target on demand. Startup failures are reported even before the webview is opened: runtime/Python/transport failures are errors, while missing RTOS/version selection or an unsupported adapter is a warning. Notifications include the session name and cause, with repeated causes suppressed per session; details remain in the Output Channel and Debug Console.

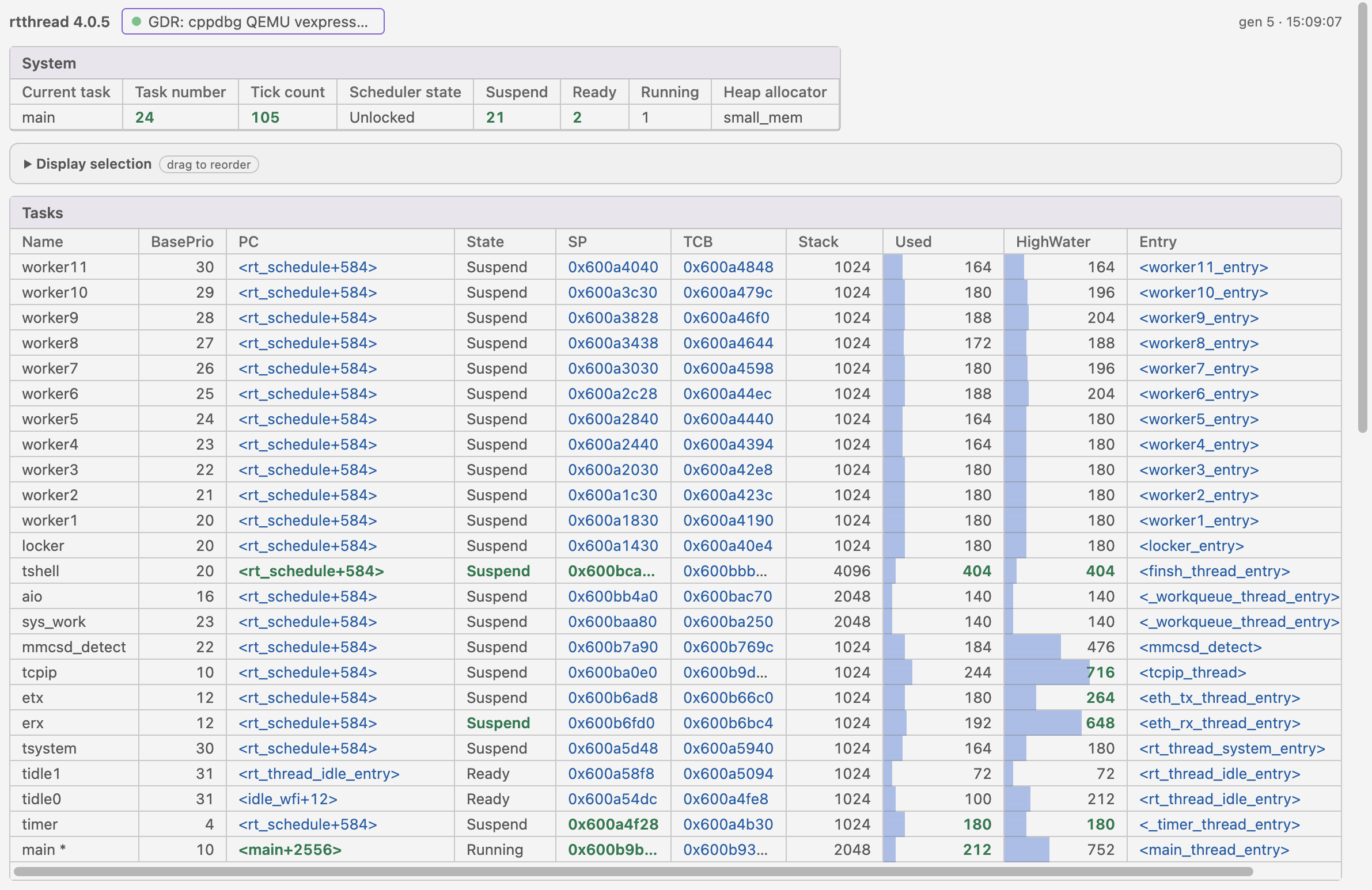

One tab per debug session. Each tab shows the snapshot GDR took at the last stop, in this order:

• System: one header row and one value row, the same shape as the task table. It shows the current task, the tick, the scheduler state (Unlocked, Locked (nest N) or In ISR (nest N), omitted when the target cannot read it). Per-kind object counts and the heap used/total/status fields are omitted; heap counters live in the Heap card.
• Tables: one card per object kind (tasks, timers, heap, semaphores, mutexes, events, mailboxes, message queues, memory pools). Numeric columns are right-aligned, stack usage is a bar, waiters collapse, and addresses are clickable. Diagnostic columns are the consistency checks of that kind.
• Heap: the basics in one header row and one value row, with the heap's consistency checks as diagnostic columns. There is no separate Checks card. Draw heap map draws the block layout on a canvas: free blocks are grey, each owner has a colour, and hovering a block reads owner:<name>, size: <n> B. The collapsible map refreshes at each stop once you have asked for it; block details appear only in the floating pointer tooltip.
• Hint bars: the warnings and capability gaps GDR reports, verbatim.

The Display selection list above the cards ticks which tables and which columns are drawn. A table whose data is missing (no heap, a kind the target cannot enumerate) is greyed out. Each table's column group starts collapsed; checkbox changes keep the groups open and preserve the current scroll position. Drag a card's title to change the table order, drag a column header to reorder columns, and drag its edge to resize it. Checkbox parents and children follow the same table/column order, including hidden columns in their saved positions. Drag a parent row in Display selection to reorder tables, or a child column chip to reorder that table's columns; hidden tables and columns can also be reordered without enabling them. Heap basics and checks reorder within their respective tables. Drag handles, drop outlines and diagnostic badges distinguish reordering from checkbox selection. The layout is saved per workspace.

A value that changed since the previous stop is drawn in the theme's number colour, so a changed value is distinct from a link. The first stop has nothing to compare with and shows no change.

Settings

The probe answers with its evidence and its confidence (exact, range, undetected); the extension initializes automatically only for an unambiguous exact result, and otherwise asks — with the evidence attached. A resolved answer is cached per launch configuration, so a reflash in place does not ask again.

Versioning

The extension version tracks GDR's own year.serial release (the __version__ in gdr/__init__.py), with the semver patch left free for extension-only fixes: GDR 2026.4 ships as extension 2026.4.0, and a packaging or UI fix may publish 2026.4.1 against the same runtime. ci/check-vendored-schema.py fails when the two disagree, so a bundle never claims a runtime it was not built from.

Development

npm install
npm run vendor        # generate resources/gdr from this repository's runtime
npm run check-types
npm test              # units, plus a real QEMU/GDB session check when fixtures exist
npm run build         # emit dist/extension.js
npm run package       # vendor + build + gdb-rtos-views.vsix (installable)

resources/gdr is generated and ignored by git; src/runtime.ts refuses to run when the bundled manifest's envelope schema differs from the schema this client was built for, so an old extension never mis-renders a newer GDR.

Shipping

npm run package produces gdb-rtos-views.vsix (the vendored GDR runtime and the compiled client included). CI builds the same VSIX on every push and keeps it as a build artifact / commit attachment for verification only: a maintainer compares it with a local build and then publishes to the Marketplace by hand. CI never publishes, because Marketplace versions are immutable and the credentials would be a leak in the open-lane config.

ci/check-vendored-schema.py checks the generated bundle's version and schema against the source checkout, and enforces the version rule (GDR x.y ships as extension x.y.0).

Known limits

• The file route needs the extension to read the filesystem GDB writes to. GDR picks that route by itself when evaluate cannot carry a payload (every Cortex-Debug or ST-LINK session, see the gdr.snapshotTransport row above), so a GDB in a separate filesystem namespace (for example WSL) cannot use Cortex-Debug at all; the panel reports the failed bypass instead of showing nothing.
• The probe reads versions from DWARF. A build without -g3 exports no version macro, so the extension asks the user instead of guessing.
