fabriqa.ai markdown editor

Official website: https://fabriqa.ai

An Obsidian-like markdown editor extension for Visual Studio Code with three editing modes:

• Live Preview: Cursor-based syntax revealing (markdown syntax appears only on the line with the cursor)
• Source Mode: Full markdown source with all syntax visible
• Reading Mode: Pure HTML preview (read-only)

Screenshots

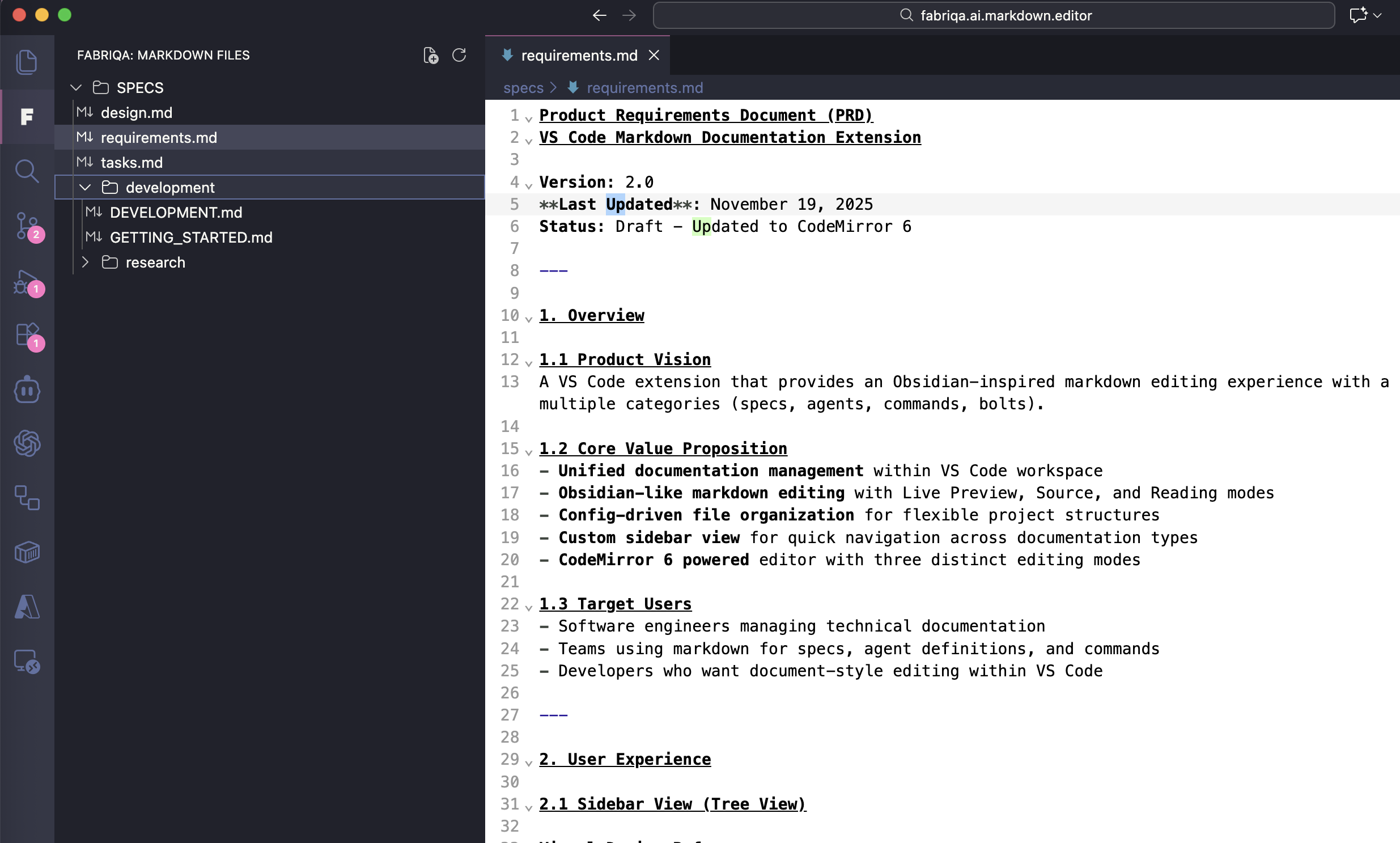

Organized Sidebar & Live Preview Mode

The extension provides a custom sidebar to organize your markdown files by sections using glob patterns. Files are automatically discovered and grouped based on your configuration.

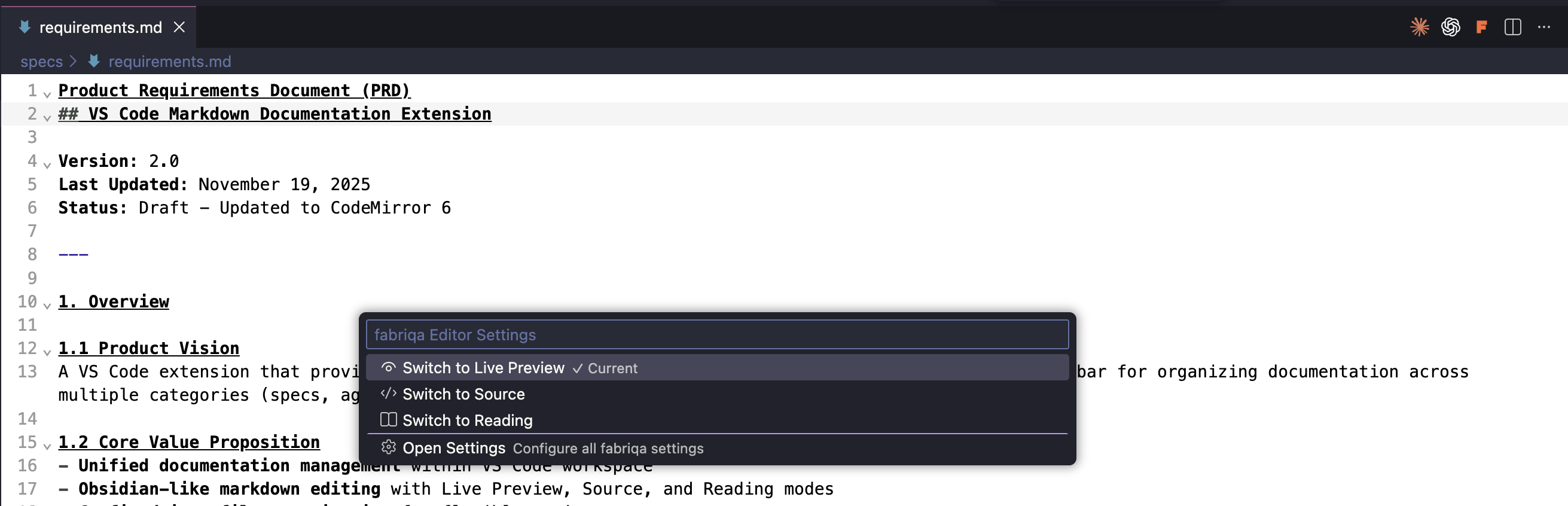

Mode Switching Menu

Quickly switch between editing modes using the settings menu in the editor toolbar, or use keyboard shortcuts for faster navigation.

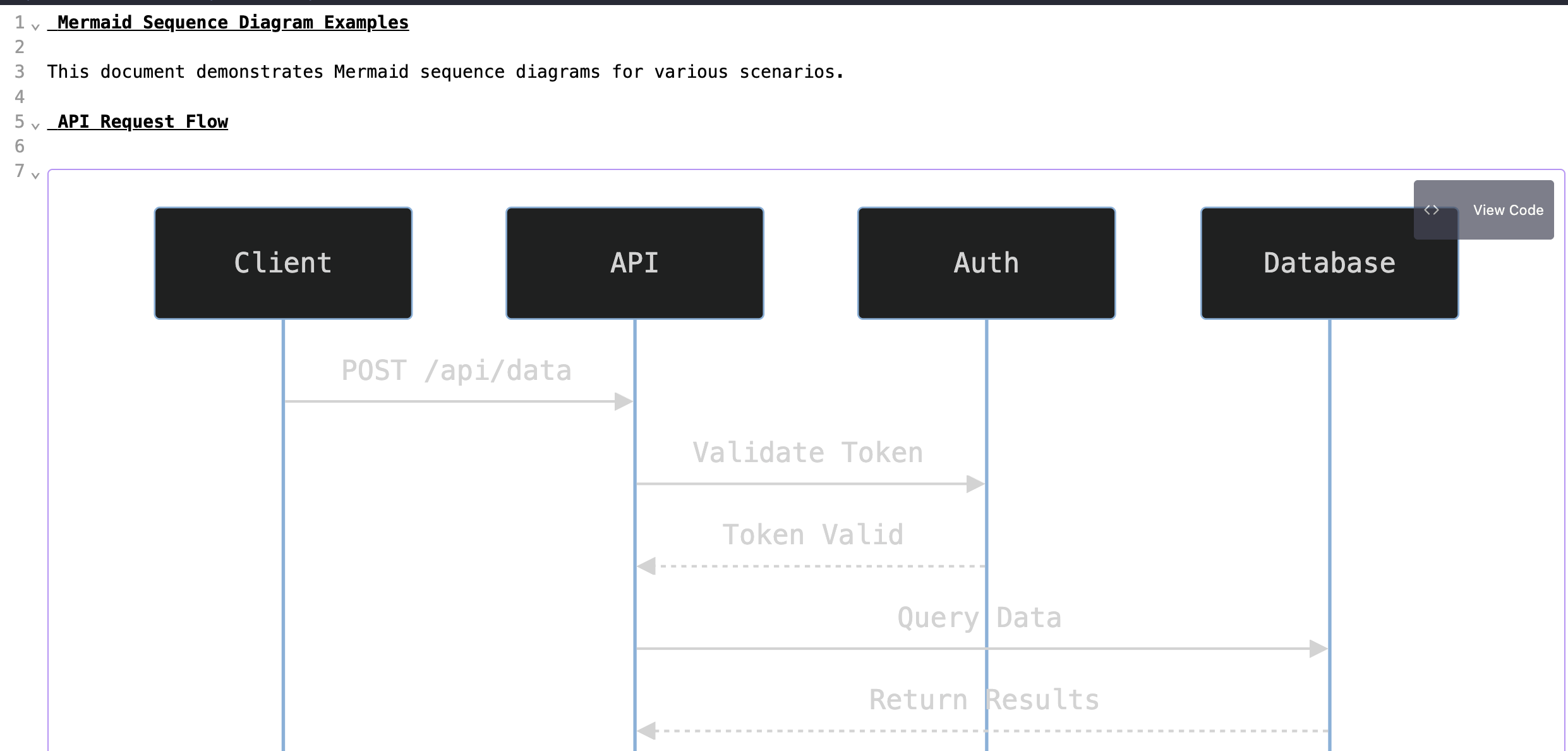

Mermaid Diagram Support

Create beautiful diagrams using Mermaid syntax. In Live Preview mode, diagrams are rendered automatically with a "View Code" button to toggle back to source. Supports all Mermaid diagram types: flowcharts, sequence diagrams, class diagrams, state diagrams, ER diagrams, Gantt charts, pie charts, and more.

Features

• 📝 Three Editing Modes: Switch seamlessly between Live Preview, Source, and Reading modes
• 📊 Mermaid Diagrams: Full support for all Mermaid diagram types with live rendering and "View Code" toggle
• 📋 Advanced Table Editing: Create, edit, and navigate markdown tables with intuitive keyboard shortcuts
• 🎯 Config-Driven Sidebar: Organize markdown files by sections using .vscode/fabriqa-markdown-editor-config.json
• 🔍 Integrated Search: Native VS Code find (Cmd+F) with smart content reveal in diagrams and hidden elements
• ✅ Interactive Checkboxes: Click to toggle task list items directly in Live Preview mode
• 🎨 VS Code Theme Integration: Automatically adapts to your VS Code theme
• ⚡ CodeMirror 6: Powered by the modern CodeMirror 6 editor
• 🔒 Secure: Content Security Policy and DOMPurify sanitization
• 📁 File Operations: Create, rename, and delete files directly from the sidebar

Getting Started

1. (Optional) Create Configuration File

To organize your markdown files into custom sections in the sidebar, create a .vscode/fabriqa-markdown-editor-config.json file in your workspace:

{
  "sections": [
    {
      "id": "specs",
      "title": "SPECS",
      "collapsed": false,
      "filePatterns": [
        "specs/**/*.md"
      ],
      "description": "Build complex features with structured planning"
    },
    {
      "id": "notes",
      "title": "NOTES",
      "collapsed": false,
      "filePatterns": [
        "notes/**/*.md"
      ],
      "description": "Personal notes and ideas"
    }
  ]
}

Note: Use filePatterns with glob patterns for automatic file discovery. Files are discovered automatically - no need to list them individually!

2. Open Markdown Files

• Click on any file in the fabriqa sidebar to open it with the custom editor
• Or right-click a .md file and select "Open with fabriqa Editor"

3. Switch Modes

Use the toolbar buttons at the top of the editor:

• 👁️ Live Preview: Interactive editing with syntax hiding
• </> Source: Full markdown source
• 📖 Reading: HTML preview

Configuration

Configure the extension in VS Code settings (Cmd/Ctrl + ,):

• fabriqa.theme: Editor theme - light, dark, or auto to follow VS Code's theme (default: light)
• fabriqa.defaultMode: Default editing mode (livePreview, source, or reading)
• fabriqa.fontSize: Font size for the editor (default: 14)
• fabriqa.lineHeight: Line height multiplier (default: 1.6)
• fabriqa.enableDebugLogging: Enable debug logging for troubleshooting

Note: Sidebar sections are configured via .vscode/fabriqa-markdown-editor-config.json (see Getting Started section above).

Table Editing

The fabriqa Markdown Editor provides comprehensive table editing support with intuitive keyboard shortcuts:

Creating Tables

• Press Cmd+Shift+T / Ctrl+Shift+T to insert a new 3x3 table at the cursor position
• Tables are automatically formatted with proper markdown syntax

Navigating Tables

• Tab: Move to the next cell (automatically adds a new row when at the end of the table)
• Shift+Tab: Move to the previous cell
• Navigation is smart and wraps around rows appropriately

Adding Rows and Columns

• Cmd+Shift+↑ / Ctrl+Shift+↑ - Insert row above current row
• Cmd+Shift+↓ / Ctrl+Shift+↓ - Insert row below current row
• Cmd+Shift+← / Ctrl+Shift+← - Insert column to the left
• Cmd+Shift+→ / Ctrl+Shift+→ - Insert column to the right

Deleting Rows and Columns

• Cmd+Shift+Backspace / Ctrl+Shift+Backspace - Delete current row
• Cmd+Shift+Delete / Ctrl+Shift+Delete - Delete current column

Formatting Tables

• Cmd+Alt+F / Ctrl+Alt+F - Format table (aligns all columns for better readability)

Table Editing Features

• Automatically preserves column alignment settings (left, center, right)
• Smart detection of table boundaries
• Protects header and separator rows from deletion
• Prevents deletion of the last column or row (maintains table structure)

Search & Find

The fabriqa Markdown Editor includes powerful search capabilities that integrate seamlessly with VS Code's native find experience:

In-Document Search

• Quick Find: Press Cmd+F / Ctrl+F to search within the current document
• Search from Cursor: Searches start from your current cursor position and wrap around to the beginning if needed
• Search History: Your last search term is automatically remembered and pre-filled when you open find again
• Smart Navigation: Both Cmd+F + Enter and F3 behave identically - use whichever feels more natural
• Find Previous: Use Shift+F3 to search backward
• Clear Search: Press Escape to clear search highlights

Intuitive Search Workflow

The search behavior is designed to feel natural and efficient:

1. First Search: Press Cmd+F, type "keyword", press Enter → finds first match after cursor
2. Quick Next: Press Cmd+F again → your search term is pre-filled, just press Enter to find next
3. Or Use F3: Alternatively, press F3 directly for the same "find next" behavior

This unified approach means both Cmd+F + Enter and F3 do the exact same thing, giving you flexibility in your workflow.

Global Search (Cmd+Shift+F)

When using VS Code's global search (Cmd+Shift+F / Ctrl+Shift+F):

• Search results in markdown files automatically open with the fabriqa editor
• Note: Due to VS Code's Custom Editor API limitations, the editor cannot automatically jump to the specific search result location
• Workaround: After the file opens, use in-document search (Cmd+F) to find your search term
• This is a known limitation of VS Code's Custom Editor API that affects all custom editors

Smart Content Reveal

Search intelligently reveals hidden content:

• Mermaid Diagrams: Searching text inside a diagram automatically reveals the source code
• Collapsed Sections: Hidden markdown syntax becomes visible when found
• Live Preview Mode: Maintains the live preview experience while showing search matches

Keyboard Shortcuts

Mode Switching

• Cmd+Shift+P / Ctrl+Shift+P - Switch to Live Preview
• Cmd+Shift+S / Ctrl+Shift+S - Switch to Source Mode
• Cmd+Shift+R / Ctrl+Shift+R - Switch to Reading Mode

Search & Navigation

• Cmd+F / Ctrl+F - Find in document
• F3 - Find next
• Shift+F3 - Find previous
• Escape - Clear search
• Cmd+Shift+F / Ctrl+Shift+F - Global search (VS Code native)

Markdown Formatting (Cmd+Option on Mac, Ctrl+Alt on Windows/Linux)

• Cmd+Option+B / Ctrl+Alt+B - Bold
• Cmd+Option+I / Ctrl+Alt+I - Italic
• Cmd+Option+X / Ctrl+Alt+X - Strikethrough
• Cmd+Option+C / Ctrl+Alt+C - Inline code
• Cmd+Option+E / Ctrl+Alt+E - Code block
• Cmd+Option+K / Ctrl+Alt+K - Insert link
• Cmd+Option+H / Ctrl+Alt+H - Toggle heading (cycles H1-H6)
• Cmd+Option+8 / Ctrl+Alt+8 - Bullet list
• Cmd+Option+7 / Ctrl+Alt+7 - Numbered list
• Cmd+Option+Q / Ctrl+Alt+Q - Blockquote
• Cmd+Option+T / Ctrl+Alt+T - Toggle checkbox

Table Editing

• Cmd+Shift+T / Ctrl+Shift+T - Insert new table (3x3)
• Tab - Navigate to next cell (auto-creates row at end)
• Shift+Tab - Navigate to previous cell
• Cmd+Shift+↑ / Ctrl+Shift+↑ - Insert row above
• Cmd+Shift+↓ / Ctrl+Shift+↓ - Insert row below
• Cmd+Shift+← / Ctrl+Shift+← - Insert column left
• Cmd+Shift+→ / Ctrl+Shift+→ - Insert column right
• Cmd+Shift+Backspace / Ctrl+Shift+Backspace - Delete row
• Cmd+Shift+Delete / Ctrl+Shift+Delete - Delete column
• Cmd+Option+F / Ctrl+Alt+F - Format table

Code Editing (CodeMirror Standard Shortcuts)

• Option+Up / Alt+Up - Move line up
• Option+Down / Alt+Down - Move line down
• Option+Shift+Up / Alt+Shift+Up - Duplicate line above
• Option+Shift+Down / Alt+Shift+Down - Duplicate line below
• Cmd+Shift+K / Ctrl+Shift+K - Delete current line
• Cmd+Enter / Ctrl+Enter - Insert line below
• Cmd+Shift+Enter / Ctrl+Shift+Enter - Insert line above
• Cmd+D / Ctrl+D - Select next occurrence
• Cmd+U / Ctrl+U - Undo last cursor operation
• Cmd+/ / Ctrl+/ - Toggle line comment
• Cmd+[ / Ctrl+[ - Decrease indent
• Cmd+] / Ctrl+] - Increase indent

History

• Cmd+Z / Ctrl+Z - Undo
• Cmd+Shift+Z / Ctrl+Shift+Z - Redo
• Cmd+Y / Ctrl+Y - Redo (alternative)

Commands

• fabriqa: Open with fabriqa Editor - Open markdown file with custom editor
• fabriqa: Switch to Live Preview Mode - Switch to live preview
• fabriqa: Switch to Source Mode - Switch to source mode
• fabriqa: Switch to Reading Mode - Switch to reading mode
• fabriqa: Create New File - Create new markdown file
• fabriqa: Delete File - Delete selected file
• fabriqa: Rename File - Rename selected file
• fabriqa: Refresh Tree View - Refresh sidebar

License

MIT

Credits

Inspired by Obsidian markdown editor.
