embeddedflow — LVGL UI design in VS Code

Design touch UIs for embedded devices without leaving your editor. embeddedflow lets you lay out screens in a visual preview, wire navigation and interactions, and export ready-to-build C code for LVGL.

Introduction

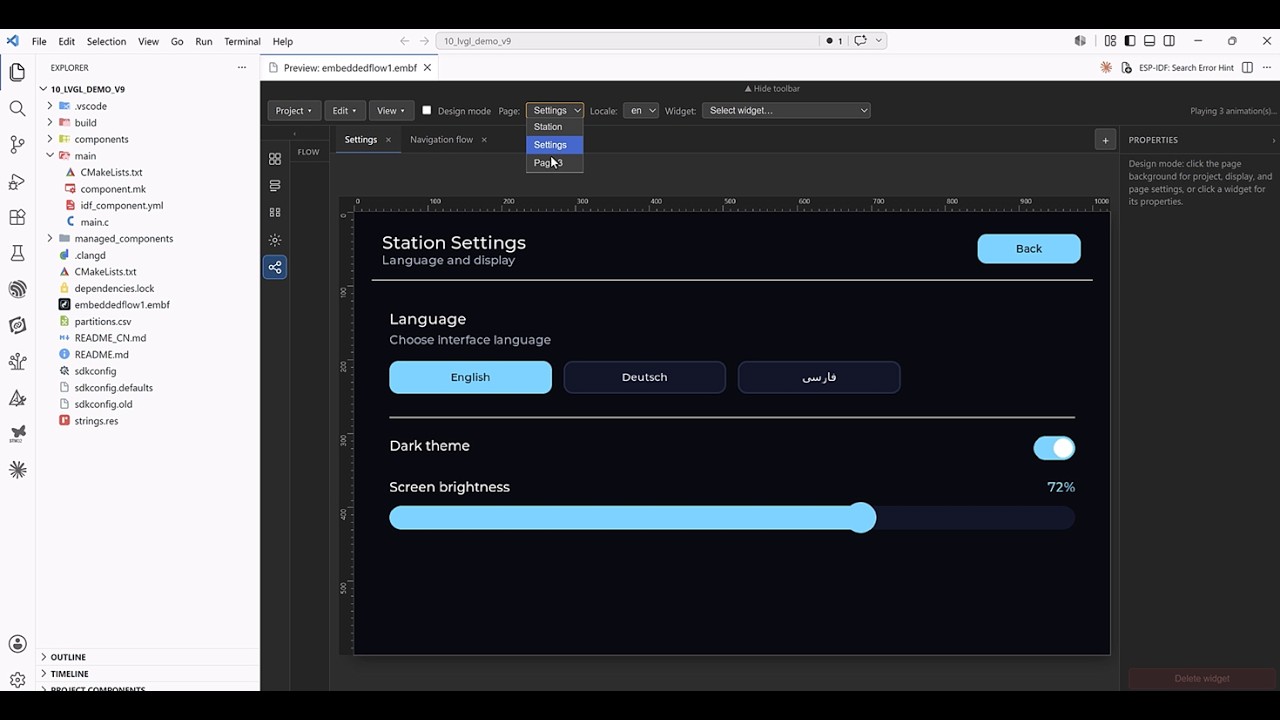

▶ Watch on YouTube

Design visually in VS Code, preview with real LVGL, and generate firmware-ready C code.

What's new in v1.4.0

Install the latest .vsix (embf-lvgl-1.4.0.vsix) or update from the Marketplace.

• Exclusive button groups — flow action select_button_group for preset/language toggles (preview + firmware); design default applied at page init.
• Play animations — flow action play_animations to restart widget animations from a button.
• Station sample — Cool/Mild/Hot, humidity modes, and language buttons with working highlight; Play anims (toolbar) wired.
• Firmware codegen — static helpers forward-declared at top of each ui_page_*.c (fixes ui_anim_opa_cb undeclared on ESP-IDF).

What's new in v1.3.0

• String resources — strings.res with a table editor (embeddedflow: Open String Resources); widget text references keys; set_locale action and generated ui_set_locale() / ui_refresh_localized_text().
• RTL + mixed scripts — Persian/Arabic/Hebrew locales with BiDi codegen; German umlauts and Persian on the same UI via Montserrat → Latin-1 → DejaVu font fallbacks (embf_font_latin1_*.c + ui_rtl_fonts.c).
• Sample — sample/temperature_humidity_station_1024x600_lvgl9.embf (1024×600, en/de/fa, settings page).

What's new in v1.2.x (pre-release)

• Navigation flow diagram — page graph with draggable nodes, transition editing, + Add connection, bidirectional connectors.
• Workspace tabs — closable page tabs plus Navigation flow tab.
• Toolbar — Project / Edit / View menus; preview auto-fit and loading improvements.

What's new in v1.1.x

v1.1.x improves preview fit-to-window zoom, settings/navigation in the station sample, reliable LV_SCR_LOAD_ANIM_* codegen, and VSIX packaging so EmbeddedFlow: Open Preview registers correctly.

What's new in v1.0.0

v1.0.0 is the first feature-complete release for day-to-day LVGL UI design in VS Code: edit named styles, data fields, bindings, and animations in the Properties panel, generate matching C, and use the new knob widget.

• Knob widget — rotary control in the palette; codegen emits a styled lv_arc with sensible defaults.
• Data model & bindings — declare fields once; bind labels with {{field_id}} and numeric widgets (slider, bar, arc, knob) with Value bound to. Generated ui_bindings_apply() keeps UI in sync.
• Named styles & animations — reusable project.styles[], per-widget styleRefs, and animations[] with full inspector editors and ui_styles.c / lv_anim_t codegen.
• Fonts — Add Font to Project; optional TTF/OTF → .c via lv_font_conv when installed.
• Sidebar — Tree (widget hierarchy with drag-reparent) and Settings (project, display, codegen) panels work from the left rail.
• Theme — toolbar light/dark toggle writes project.theme.dark to your .embf so the preview stays consistent while you edit widgets.

Earlier highlights (still included): grouped widgets, canvas rulers & pan, page flows, ui_fonts codegen, image assets, undo/redo, and live WASM preview for LVGL 8/9.

If you installed an older Marketplace build and see "command not found", install v0.3.3 or newer and reload the window.

Why embeddedflow?

Building LVGL interfaces by hand means juggling object trees, styles, screen loads, and event callbacks in C. embeddedflow keeps your UI in a single .embf project file: edit visually or in JSON, see the result in a live LVGL preview, then generate firmware sources that match your display and LVGL version.

You get:

• Faster iteration — change layout, save, preview updates
• Fewer wiring mistakes — navigation and flows are defined declaratively
• One source of truth — the same project drives preview and generated C

No separate designer app. No cloud account. Everything runs inside VS Code or Cursor.

Features (detailed)

Project format (.embf)

• JSON project file with schema validation and editor autocomplete
• Project metadata — name, LVGL version (8.4.0 or 9.x), optional output path
• Display — width, height, orientation, bit depth, color format, optional round display clip in preview
• Theme — light/dark colors used by preview and codegen
• Pages — multiple screens, each with its own widget tree
• Images — register PNG/JPEG/BMP assets by id; reference from image widgets
• String resources — optional strings.res (project.stringsPath); locales, default language, per-locale text direction; keys referenced from widget text
• Component library — save reusable groups; insert them from the palette

Visual design & live preview

Open embeddedflow: Open UI Preview on any .embf file. The preview runs LVGL in a WebAssembly panel so widgets, styles, and page transitions behave close to on-device behavior.

Preview toolbar

• Workspace tabs — closable tabs for each page preview and Navigation flow
• Page selector and page list sidebar (add, rename, remove pages)
• Design toggle
• Zoom — auto-fit or fixed scale (10%–400%)
• Widget dropdown — quick selection of widgets on the active page
• Undo / Redo — design edits with history preserved across reloads when supported by the host
• New Project — create a starter .embf without leaving the preview

Canvas interaction (design mode)

• Click to select; Shift add to selection; Ctrl/Cmd toggle selection
• Rubber-band marquee on empty canvas (with same modifiers)
• Drag to move selection; magnetic snap to edges and centers of other widgets
• Multi-select inspector — align, distribute, match size, combine into group
• Delete / Backspace removes selected widget(s)
• Escape clears selection; in group-edit mode, exits back to the whole group

Widget palette

Add widgets from the sidebar: label, button, slider, switch, bar, arc, knob, checkbox, dropdown, roller, textarea, line, image, container, panel, spinner.

Property inspector

• Position, size, hidden flag
• Type-specific fields (text, ranges, options, etc.)
• Appearances — styles/events where applicable
• Images — asset id combobox, browse to register files into project.images[]
• Page inspector — page name, display, theme, codegen path; named styles and data fields lists
• Widget inspector — styleRefs, numeric bindings, and animations where applicable

Groups (container / panel)

• Combine into group — merge multi-selected siblings into one container
• Ungroup — lift children to the parent level
• Save to library — reuse the group on other pages/projects
• United selection — one click selects the whole group
• Edit contents — edit children independently (double-click or inspector); orange outline shows group bounds while editing

Flows & navigation

Define behavior declaratively in the project JSON and edit from the Navigation flow workspace tab (or the Flow icon in the left rail):

• Flow diagram — pages as draggable nodes; connection lines show widget clicks and swipe transitions; bidirectional pairs use one double-headed connector
• Page inspector (flow) — select a node to list, add, edit, or remove transitions for that page
• Widget events — e.g. button click → navigate, set_locale, select_button_group (exclusive highlight), play_animations, set theme, or other actions
• Page navigation — target page, animation (slide, fade, etc.), duration
• Swipe gestures — swipe left/right/top/bottom to open a page with the same transition options
• Preview — run mode follows navigation stack; back navigation where configured

Generated C includes navigation and event wiring aligned with your flows (LVGL 8 and 9).

C code generation

embeddedflow: Generate C Code writes firmware-oriented sources (default ui_output next to the .embf, or project.outputPath / workspace setting):

• ui.c / ui.h — application entry
• Per-page screen sources
• Event handlers and navigation stubs matching flows
• Respects LVGL version and include path from the project
• With strings.res: ui_strings.c/h, per-locale .def files, ui_strings_refresh.c, and (when RTL locales exist) ui_rtl_fonts.c/h plus embf_font_latin1_*.c — add those sources to your firmware CMakeLists.txt / build (codegen does not emit CMake)

Optional: embeddedflow.liveGenerateOnSave regenerates on save (skips when parse/semantic errors exist).

Configure in .embf:

• project.lvglVersion — 8.4.0, 9.2.2, 9.3.0, 9.4.0, 9.5.0
• project.lvglInclude — e.g. lvgl.h vs lvgl/lvgl.h for ESP-IDF

Editor integration

• Language — .embf with JSON schema validation (embf.schema.json)
• Commands on editor title bar when a .embf file is active
• Explorer — New Project, Open Preview, Generate Code on folders/files
• Sample — sample/demo.embf included in the extension package
• Output log — embeddedflow: Show Output Log for codegen and diagnostics

Workspace settings

Commands

Getting started

1. Install from the Marketplace or install the latest .vsix and reload.
2. Run embeddedflow: New Project or open sample/demo.embf.
3. Click Open UI Preview (editor toolbar or Command Palette).
4. Enable Design to add and arrange widgets; disable it to test interactions.
5. Run embeddedflow: Generate C Code and copy output into your firmware tree.

Who is this for?

• Firmware developers using LVGL on microcontrollers
• Teams who want a repeatable UI workflow in the same repo as application code
• Anyone prototyping embedded touch UIs before committing to full C layout code

Requirements

• VS Code 1.85+ or Cursor
• For firmware: your LVGL / ESP-IDF / SDK project to compile generated C

Feedback & source

• Issues & feature requests: GitHub Issues
• Repository: github.com/alitaroosheh/EmbeddedFlow

License

GPL-3.0-or-later — see LICENSE. You may use, modify, and distribute this extension under the terms of the GNU General Public License v3 (or any later version). LVGL remains under its own license where bundled for the preview runtime.
