CLAMPS – Audio-aware Lisp IDE

A Common Lisp IDE for VS Code with tools for spectral analysis, DSP and computer music.

CLAMPS for VS Code brings Common Lisp development, interactive evaluation and audio work into one editor. Alongside the usual SLIME-style tooling — completion, autodoc, macroexpansion, debugger, XREF — it adds a set of views built for working with sound: a frequency scope, a live spectrogram, a waveform display, an ATS partial browser, a sample browser and a MIDI monitor.

It is designed for use with CLAMPS and Incudine.

Independent, unaffiliated, unsupported. This extension is an independent third-party project. It is not developed, endorsed or supported by Orm Finnendahl, the author of CLAMPS, nor by Tito Latini, the author of Incudine. Neither of them is involved in it, and neither should be asked for help with it. CLAMPS itself is designed for Emacs with Sly; this extension takes a different route and is maintained separately. Please report problems with the extension in its own issue tracker — not to the CLAMPS or Incudine projects.

Audio views

These are what distinguish this extension from a general-purpose Lisp environment. Each analyses in the Lisp image and transfers only what is drawn, so a long recording or a dense stream costs the same as a short one.

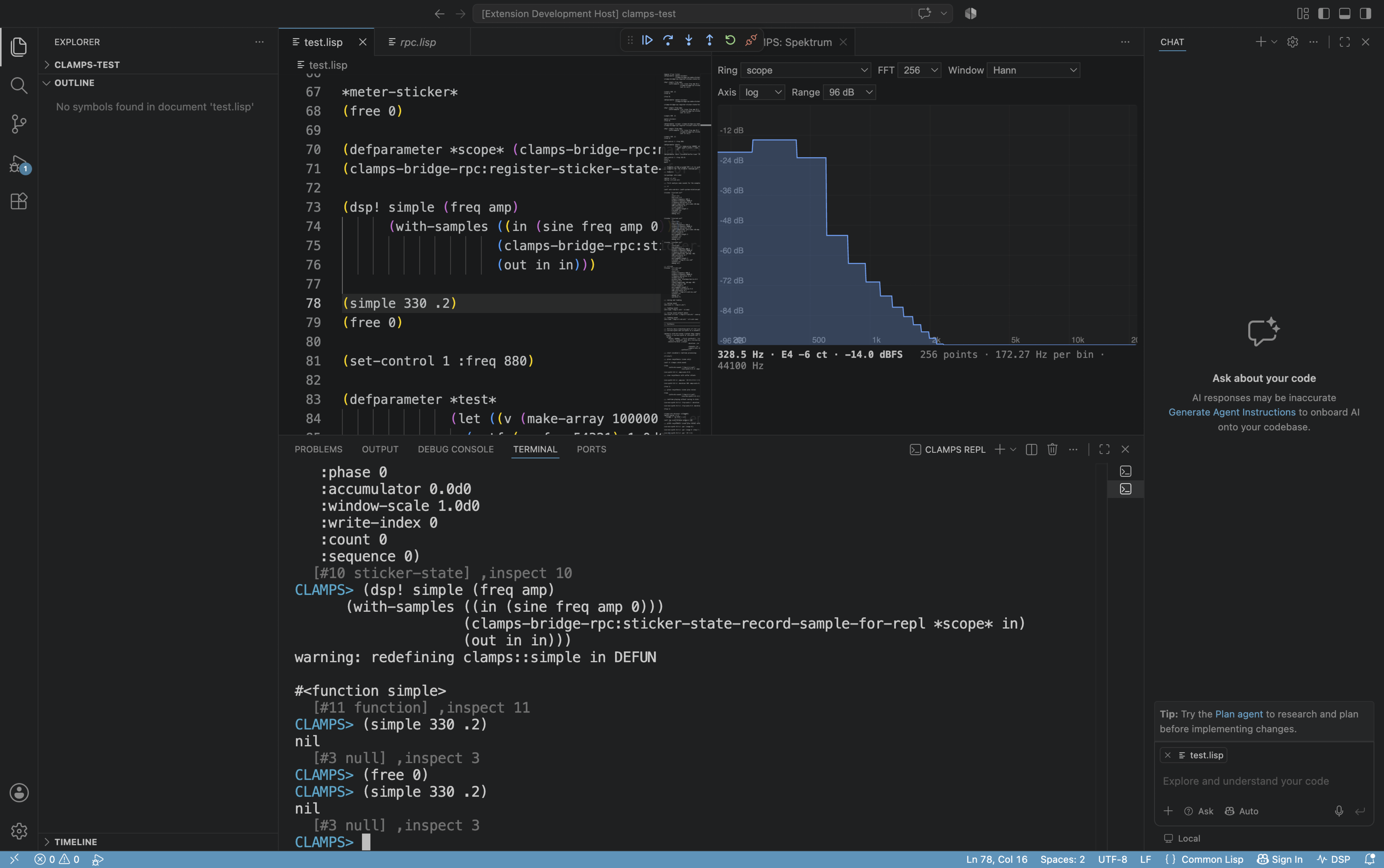

Frequency scope

CLAMPS: Show Spectrum — a real-time spectrum of a sticker ring, with a logarithmic or linear frequency axis, peak hold, and a cursor readout in hertz with the nearest note name and cent deviation. The peak is interpolated across neighbouring bins, so a partial between two bins is reported at its true frequency and level rather than snapped to the analysis grid.

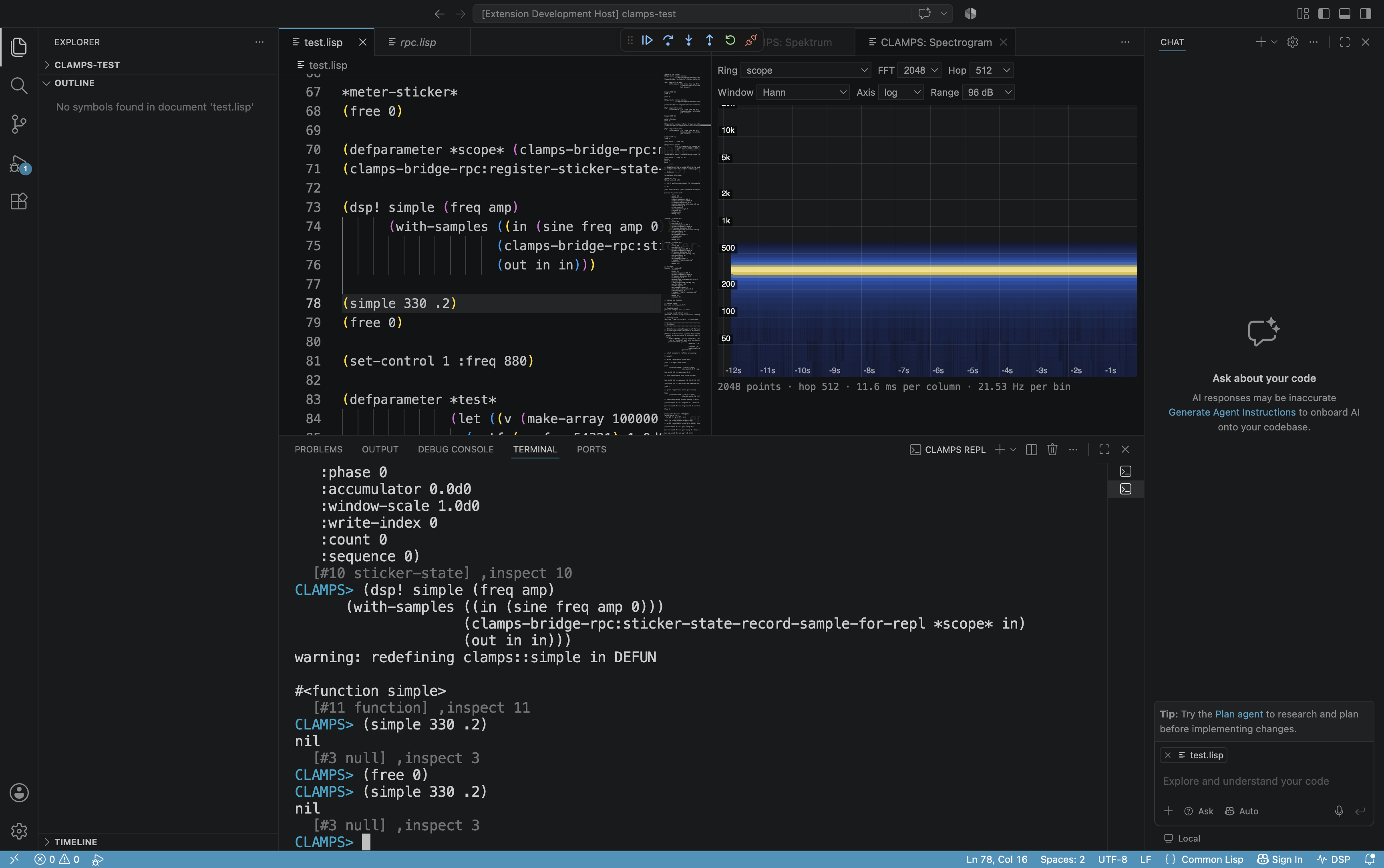

Live spectrogram

CLAMPS: Show Spectrogram — frequency vertically, time scrolling to the left, level as colour, with labelled axes in hertz and seconds. The analysis frames sit on an absolute grid, so one column is exactly one hop of samples and the time axis carries a unit; frames that could not be delivered are reported rather than leaving an invisible gap.

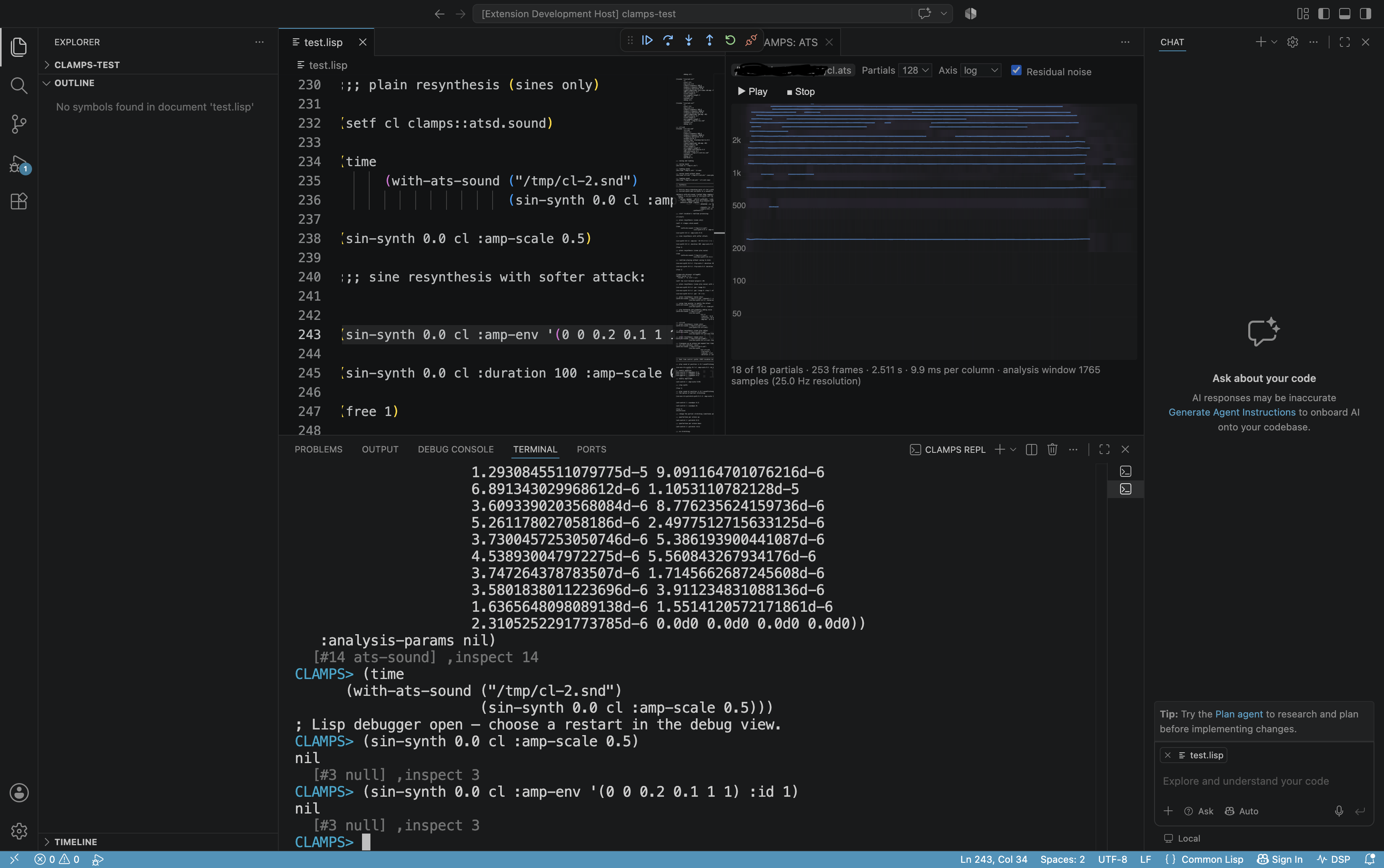

ATS browser

CLAMPS: Show ATS Analysis — the tracked partials of an ATS analysis over time, each as its own line, with residual noise in its critical bands underneath. Hovering singles out the nearest partial and gives its number, frequency, note name and level. The analysis can be played back through the image's resynthesis.

Where a spectrogram shows a grid of bins and leaves the partials to the eye, an ATS file already knows them — so a single partial can be followed and read off. A gap in a partial stays a gap: where the tracker had none, no line is drawn.

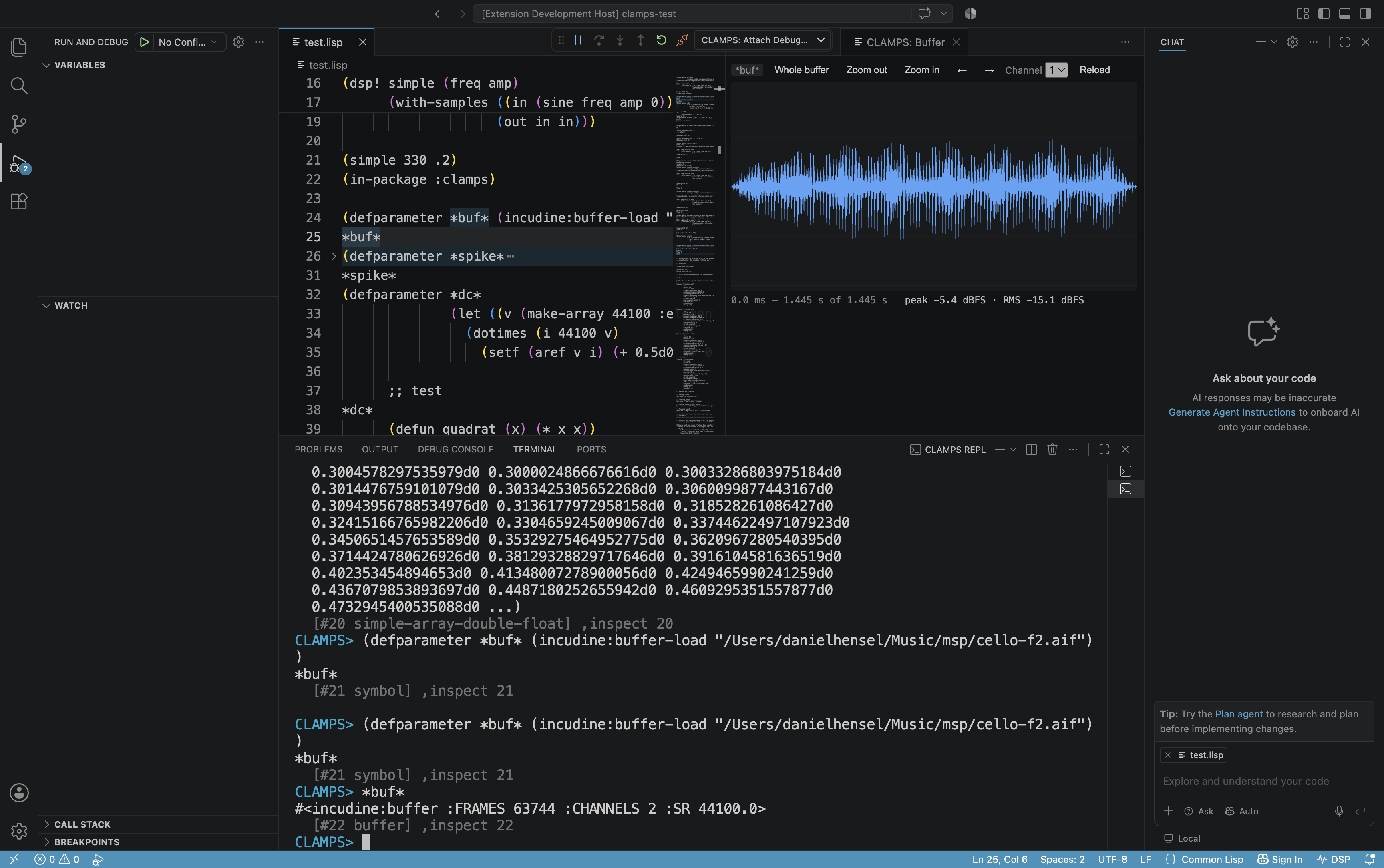

Buffer waveform

CLAMPS: Show Buffer Waveform — the waveform of an Incudine buffer with zoom, scroll and per-channel display. Each column carries minimum, maximum and RMS, so clipping and DC offset stay visible and the gap between envelope and body shows the dynamic range. Every sample is examined rather than stepped over, so a single clipped sample among millions is not lost.

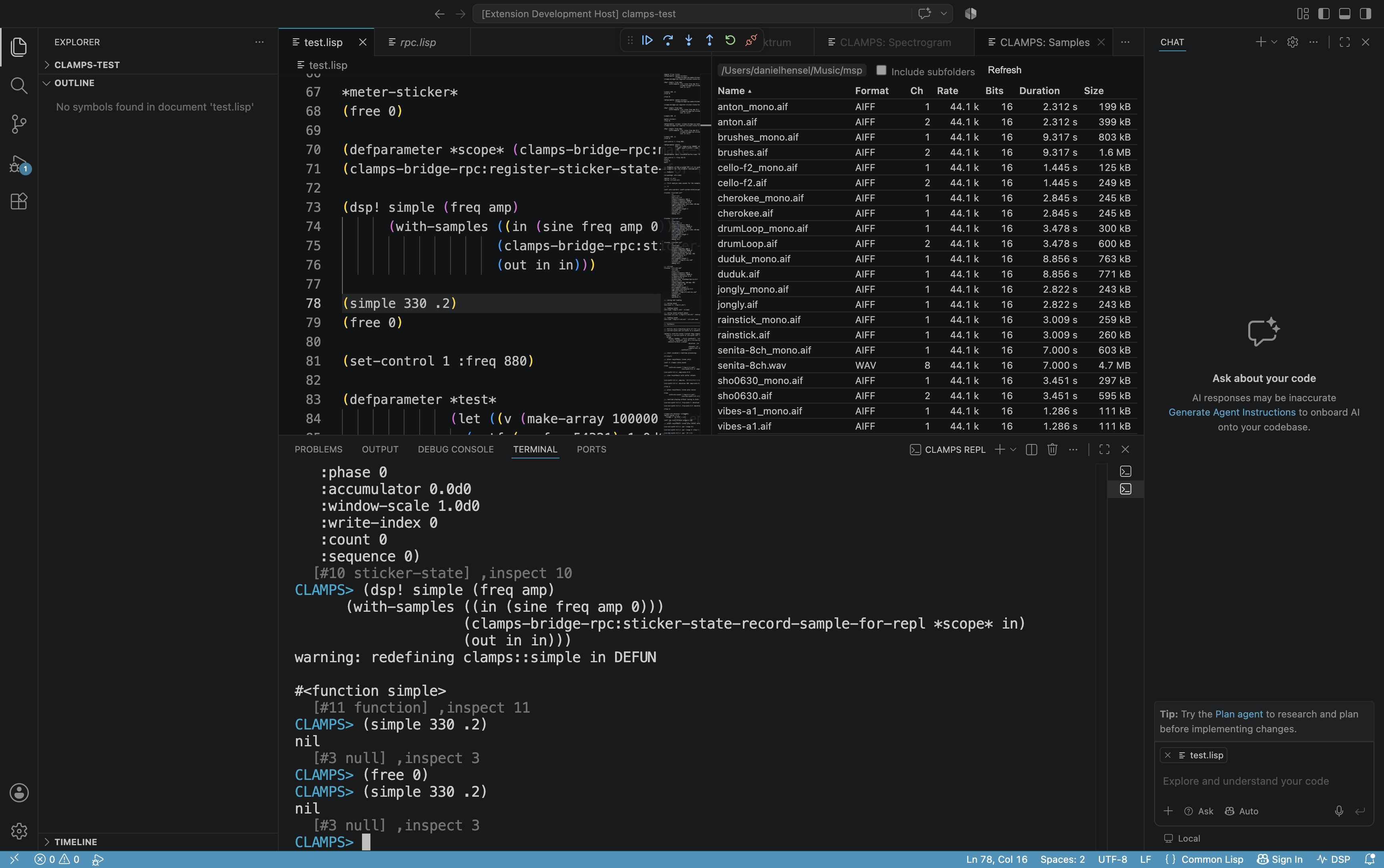

Sample browser

CLAMPS: Browse Samples — the sound files of a folder with format, channels, sample rate, bit depth, duration and size, sortable by any column. A click opens the waveform. Only headers are read, so a folder of gigabytes opens instantly. WAV and AIFF are read exactly, including AIFF's 80-bit extended sample rate.

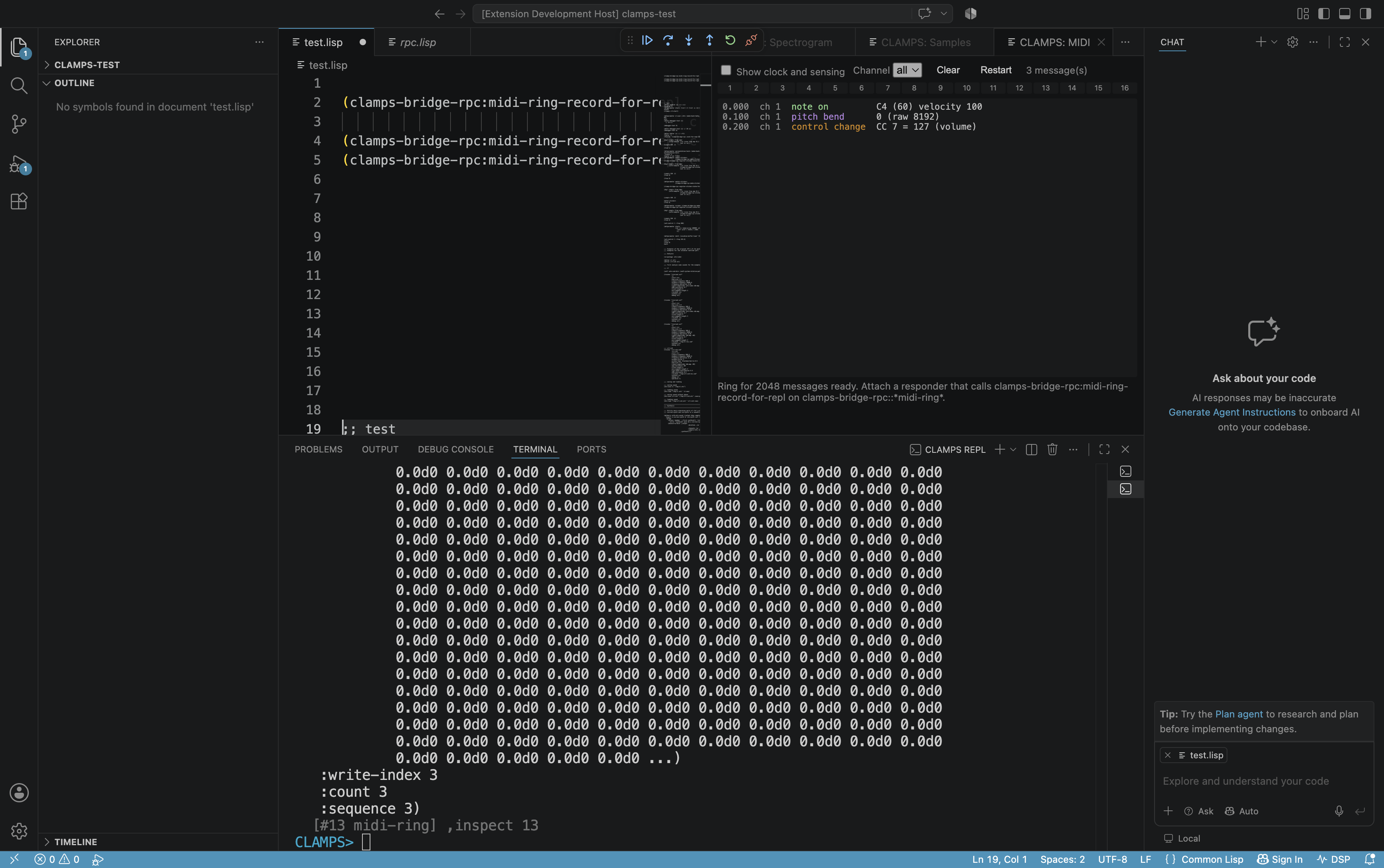

MIDI monitor

CLAMPS: Show MIDI Monitor — incoming messages decoded, with timestamps, a per-channel activity strip and a filter for clock and active sensing. It attaches to Incudine's raw reception, so it sees pitch bend, program change and system messages as well as notes and controllers. Registered cl-midictl controllers are unaffected.

OSC monitor

CLAMPS: Show OSC Monitor — incoming OSC messages with address, type tag and values, each value shown with its own type, plus an address filter and a settable port. The types matter: an integer 1 and a float 1.0 print alike and are not alike, and a receiver expecting one that gets the other fails silently.

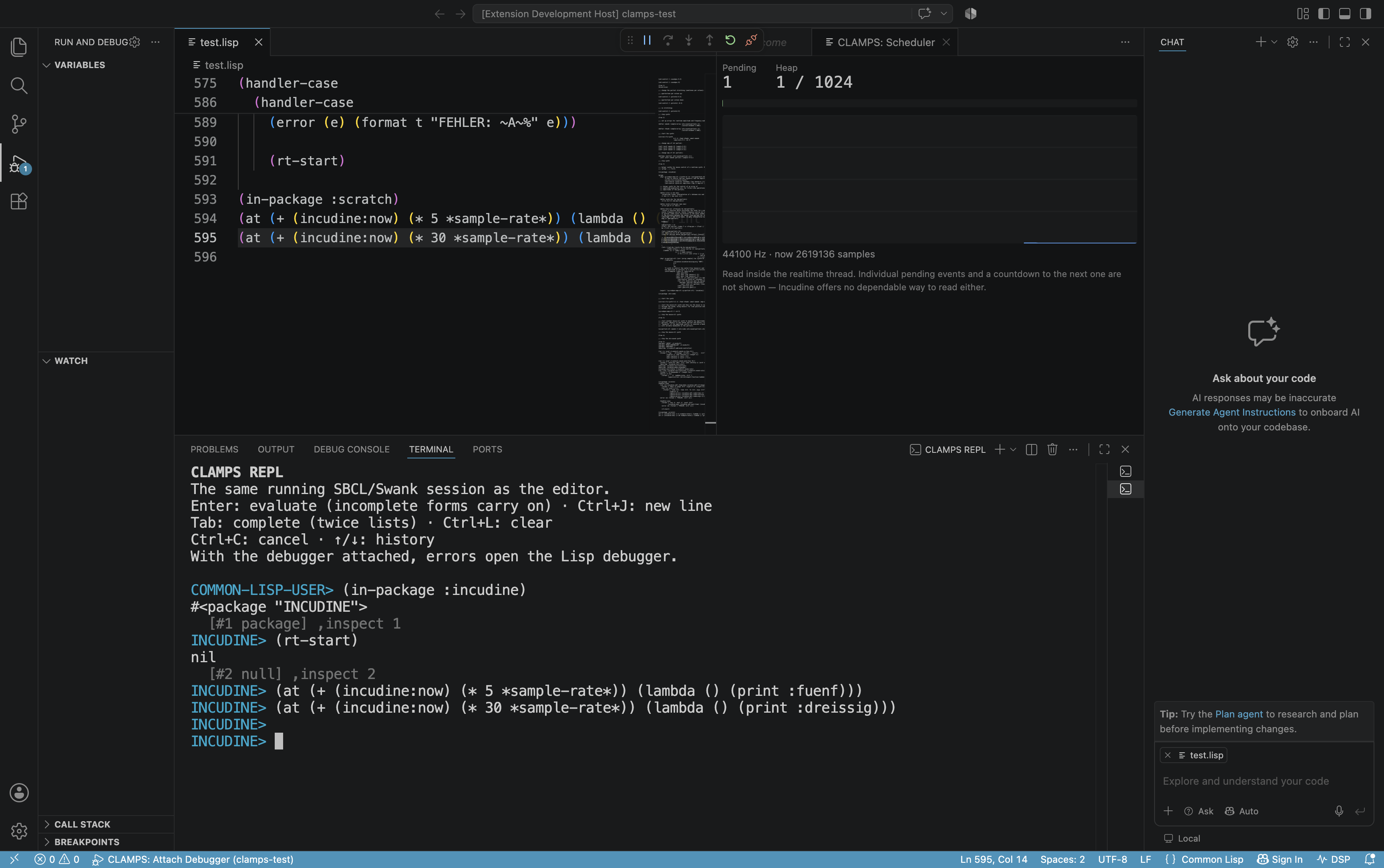

Scheduler status

CLAMPS: Show Scheduler Status — how many events are pending and how full the EDF heap is, with the queue depth plotted over time. The heap figure decides whether a piece can be scheduled at all: a score with more events than the heap holds fails silently.

Level meters and node browser

Real-time levels in dBFS from allocation-free rings written by the audio thread, and a read-only view of the Incudine node tree with DSP status in the status bar.

Lisp tooling

• Start, stop and restart an SBCL/CLAMPS session from the editor
• Integrated REPL with multi-line input, history and tab completion
• Evaluation of selections, files, top-level forms and the preceding expression
• Completion with fuzzy matching, lexical scope and &key parameters of the enclosing form
• Autodoc: the lambda list as signature help while typing, with the active parameter marked
• Debugger with conditions, restarts, stack navigation, variable inspection and inline values
• Object inspector with a browsable history and recursive expansion
• XREF for definitions, callers, callees, references, bindings, setters and macroexpansions, with jump history
• Macroexpansion, disassembly, tracing and function breakpoints
• Structural editing: slurp, barf, raise, splice, wrap, and paren balancing
• Indentation rules read from the running image
• Compiler diagnostics in the problems view on save
• Browsers for packages, classes, threads and traced functions

Requirements

• Visual Studio Code 1.85 or newer
• SBCL
• A working CLAMPS installation for the CLAMPS-specific workflow
• Incudine and its native audio dependencies for the audio views

Platform-specific audio backends and native libraries must be installed according to the CLAMPS and Incudine documentation.

Getting started

1. Open a Common Lisp or ASDF project in VS Code.
2. Run CLAMPS: Start from the Command Palette.
3. Open the REPL with CLAMPS: Open REPL.
4. Evaluate the current selection or line with CLAMPS: Evaluate Selection or Line.

The CLAMPS activity-bar view exposes XREF results, Incudine nodes, packages, classes, threads and tracing tools.

Using the audio views

The frequency scope, spectrogram and level meters read from a sticker ring — an allocation-free buffer the audio thread writes into. Create one and record into it unconditionally in the DSP body:

(defparameter *scope*
  (clamps-bridge-rpc:make-sticker-sample-state-for-repl 8192 1))
(clamps-bridge-rpc:register-sticker-state-for-repl "scope" *scope*)

(dsp! simple (freq amp)
  (with-samples ((in (sine freq amp 0)))
    (clamps-bridge-rpc:sticker-state-record-sample-for-repl *scope* in)
    (out in in)))

The ring must be undecimated and hold at least the FFT length — twice that for the spectrogram. Rings that cannot carry a spectrum are marked with the reason in the selector.

The buffer waveform, sample browser, ATS browser and MIDI monitor need no setup.

Building from source

npm ci
npm run compile
npm run gates

npm run gates runs the full check: TypeScript compilation, the JavaScript test suite, and Lisp tests executed against a real SBCL.

License

GPL-3.0-or-later. See LICENSE.
