GitHub Actions Embedded Syntax Highlighting

This VS Code extension injects embedded syntax highlighting into GitHub Actions YAML.

It supports:

• JavaScript highlighting for actions/github-script with.script blocks
• run: block syntax highlighting based on an explicit step shell: value (for common shells/languages), when shell appears before run in the same step

Requirements

• VS Code 1.85.0 or newer
• A YAML grammar that exposes the standard scopes VS Code uses for YAML and embedded TextMate injections
• Best results when used alongside github.vscode-github-actions

Installation

Install from the VS Code Marketplace:

• Search for GitHub Actions Embedded Syntax Highlighting
• Or install from the command line:

code --install-extension dncrews.vscode-github-actions-embedded-syntax

If you want to test a local package instead:

npm install
npm run package
code --install-extension vscode-github-actions-embedded-syntax-0.0.1.vsix

To try the latest build from main before a Marketplace release:

1. Download the .vsix from the Nightly release.
2. In VS Code, run Extensions: Install from VSIX....
3. Select the downloaded .vsix file.

The Nightly prerelease is overwritten on each push to main and is intended for testing the latest unreleased build.

Recommended companion extension

For the best overall GitHub Actions editing experience (language mode, schemas, and validations), use this alongside the GitHub Actions extension: github.vscode-github-actions.

What it does

• Detects YAML step entries like uses: actions/github-script@...
• Looks for a nested with: block
• Treats the script: block scalar as embedded JavaScript
• Detects explicit step shell: values before run:
• Treats run: block scalars as embedded shell/language code for common shells

run + shell support (experimental heuristic)

Supported explicit shell: values:

• bash, sh -> shell script highlighting
• pwsh, powershell -> PowerShell highlighting
• cmd -> Windows batch highlighting
• python -> Python highlighting
• node -> JavaScript highlighting

Limitations

• shell must appear before run in the same step
• Best support is for block scalars (run: | / run: >)
• Dynamic expressions or custom shell templates are not detected
• Behavior depends on the installed YAML grammar because this extension works by TextMate grammar injection

Before / After

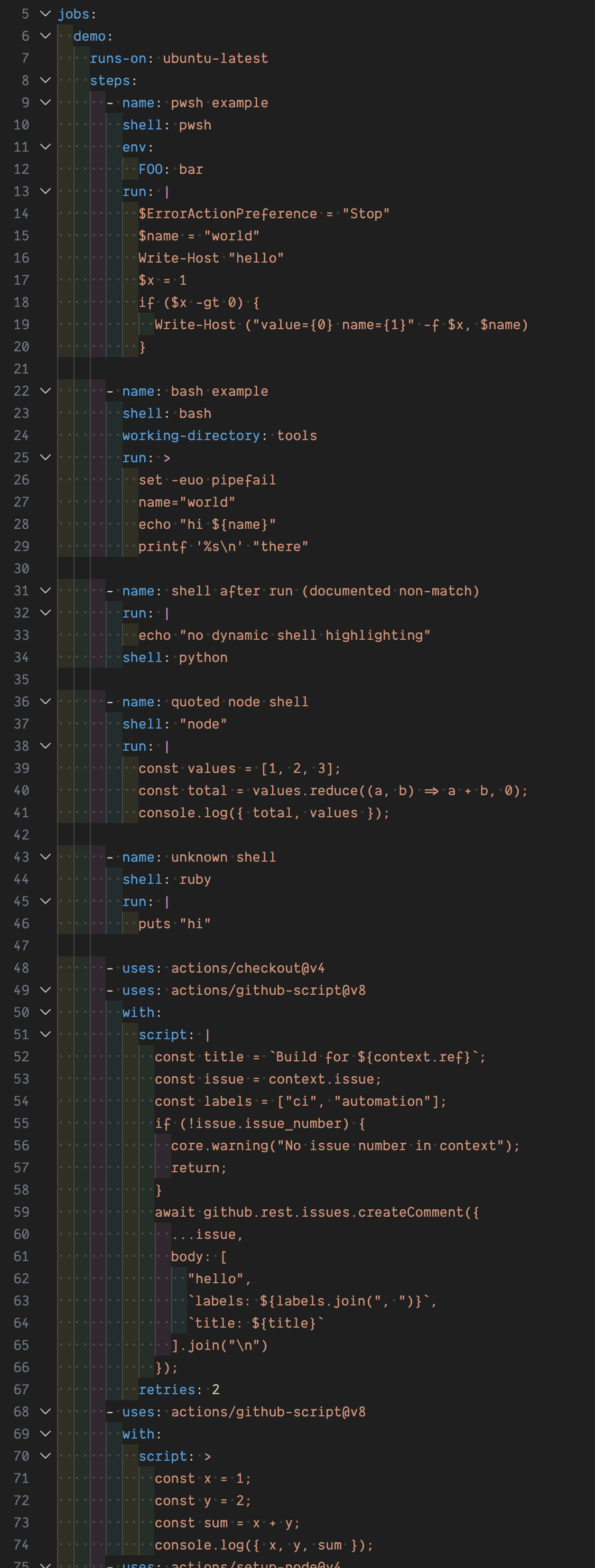

Without this extension, embedded script content in workflow files is treated like plain YAML text:

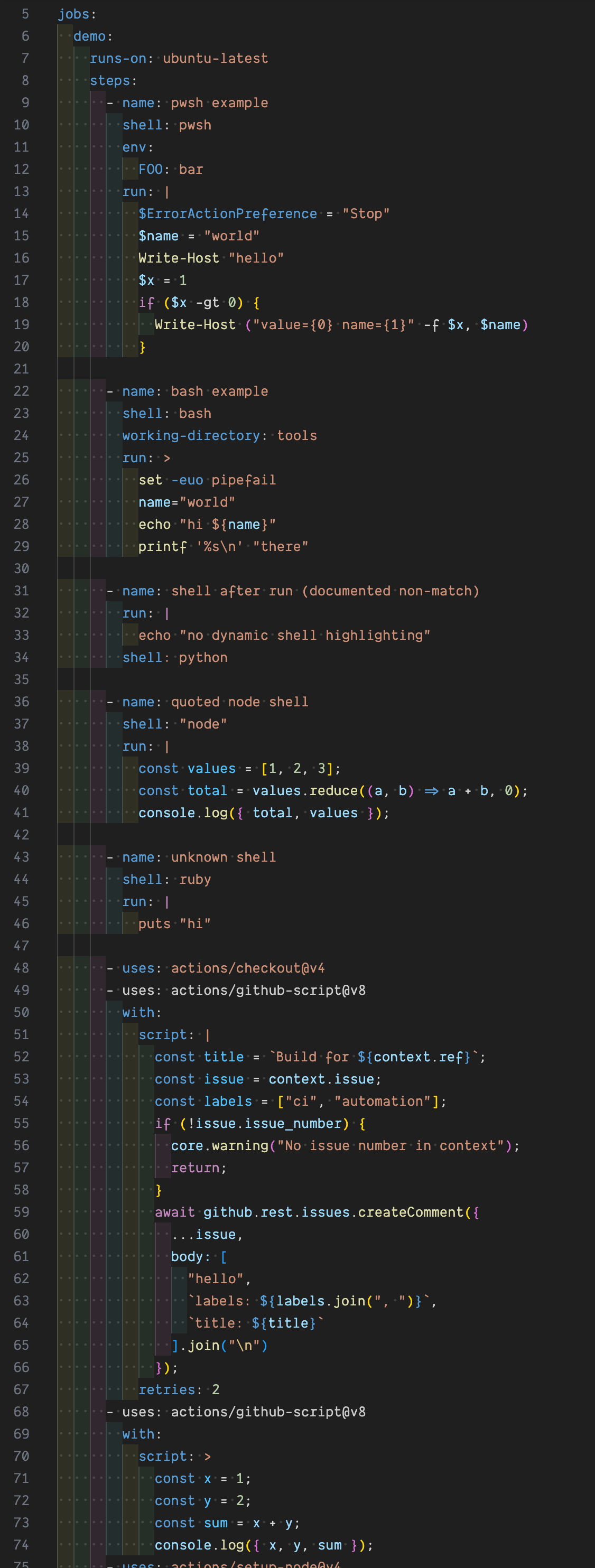

With this extension, actions/github-script and supported run + shell blocks get embedded language highlighting:

Notes

• This is a TextMate grammar injection, so behavior depends on the installed YAML grammar in VS Code.
• The current heuristic targets source.yaml and GitHub Actions-style step structure.

Development

npm install
npm test
npm run package

The packaged .vsix can be installed locally in VS Code for manual validation.

Publishing

This repository includes GitHub Actions release automation. For local publishing, authenticate vsce with a Visual Studio Marketplace personal access token and then run:

npm install
npm run publish:extension

For GitHub Actions publishing, add these repository secrets:

• RELEASE_PLEASE_TOKEN for the token used by release-please to open/update release PRs and create the final release tag
• VSCE_PAT for publishing the extension to the Visual Studio Marketplace

Tagged releases will package the extension, upload the .vsix as an artifact, and publish to the Marketplace when that secret is available. Pushes to main also update a GitHub prerelease named Nightly with the latest .vsix attached for manual testing.

Versioned releases are managed by release-please from conventional commits on main. The release-please.yml workflow opens or updates a release PR with the generated changelog and version bumps. When that PR is merged, release-please creates the v* tag and your existing release workflow publishes the extension from that tag.

Release Process

flowchart LR
  A["Conventional commits merged to main"] --> B["Release Please workflow runs"]
  B --> C["Release PR updates package.json, package-lock.json, and CHANGELOG.md"]
  C --> D["Release PR is reviewed and merged"]
  D --> E["release-please creates v* tag"]
  E --> F["Release workflow packages VSIX and publishes release"]
  D --> G["Push to main updates Nightly prerelease"]

In practice:

1. Merge conventional commits into main.
2. Review the release PR opened or updated by release-please.
3. Merge that PR when the proposed version and changelog look correct.
4. Let the tag-triggered release workflow publish the extension.

Support

Issues and feature requests: GitHub issues
