WmfEmfViewer

A Visual Studio Code extension for previewing WMF (Windows Metafile), EMF (Enhanced Metafile) and EMF+ images directly in the editor.

Try it online (no install): https://congduan.github.io/WmfEmfViewer/ — drag & drop a .wmf / .emf file, everything runs locally in your browser.

Use the engine in your code: npm install wmf-emf-renderer — the same parser/renderer as a zero-dependency library for Node.js and browsers (details).

Features

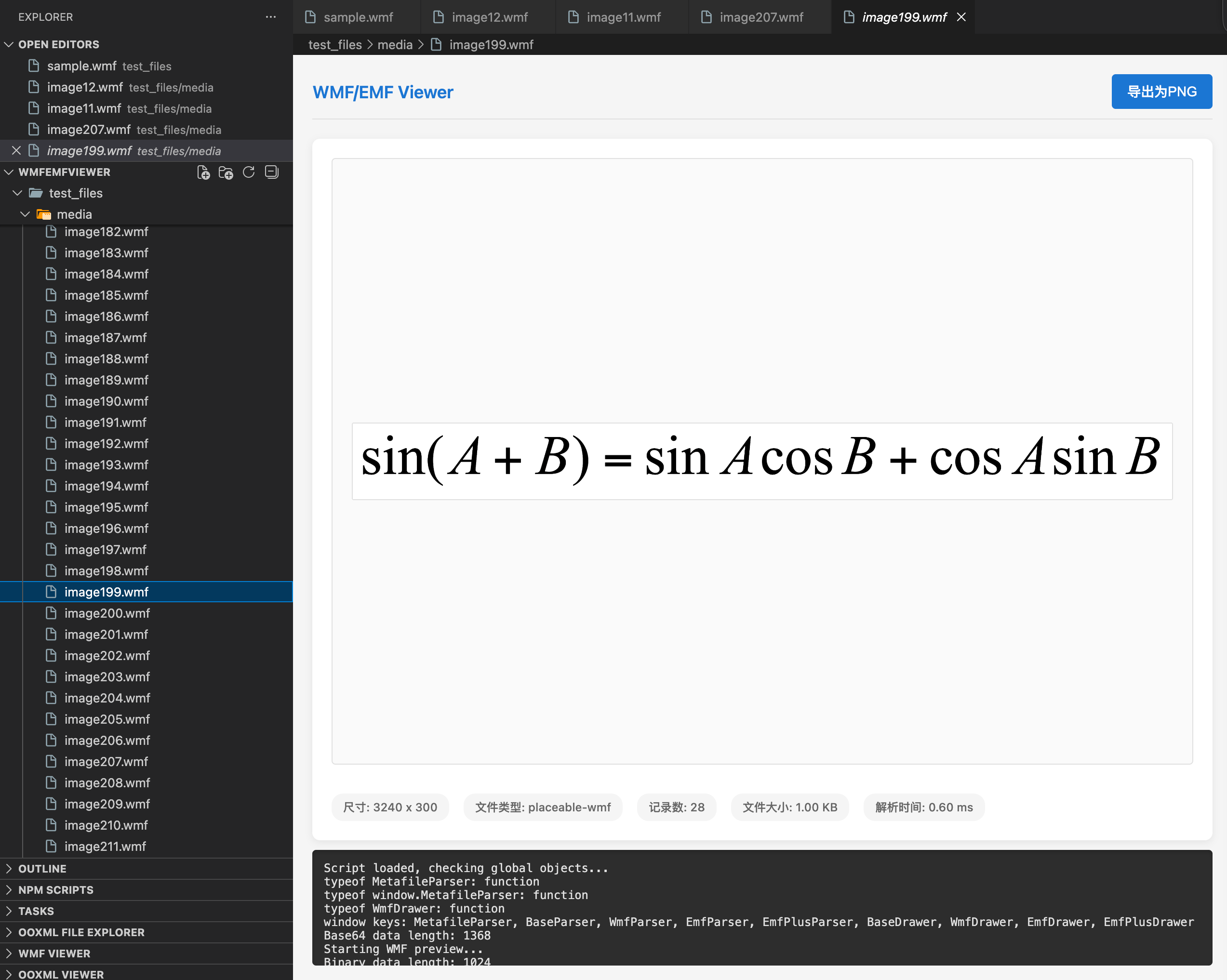

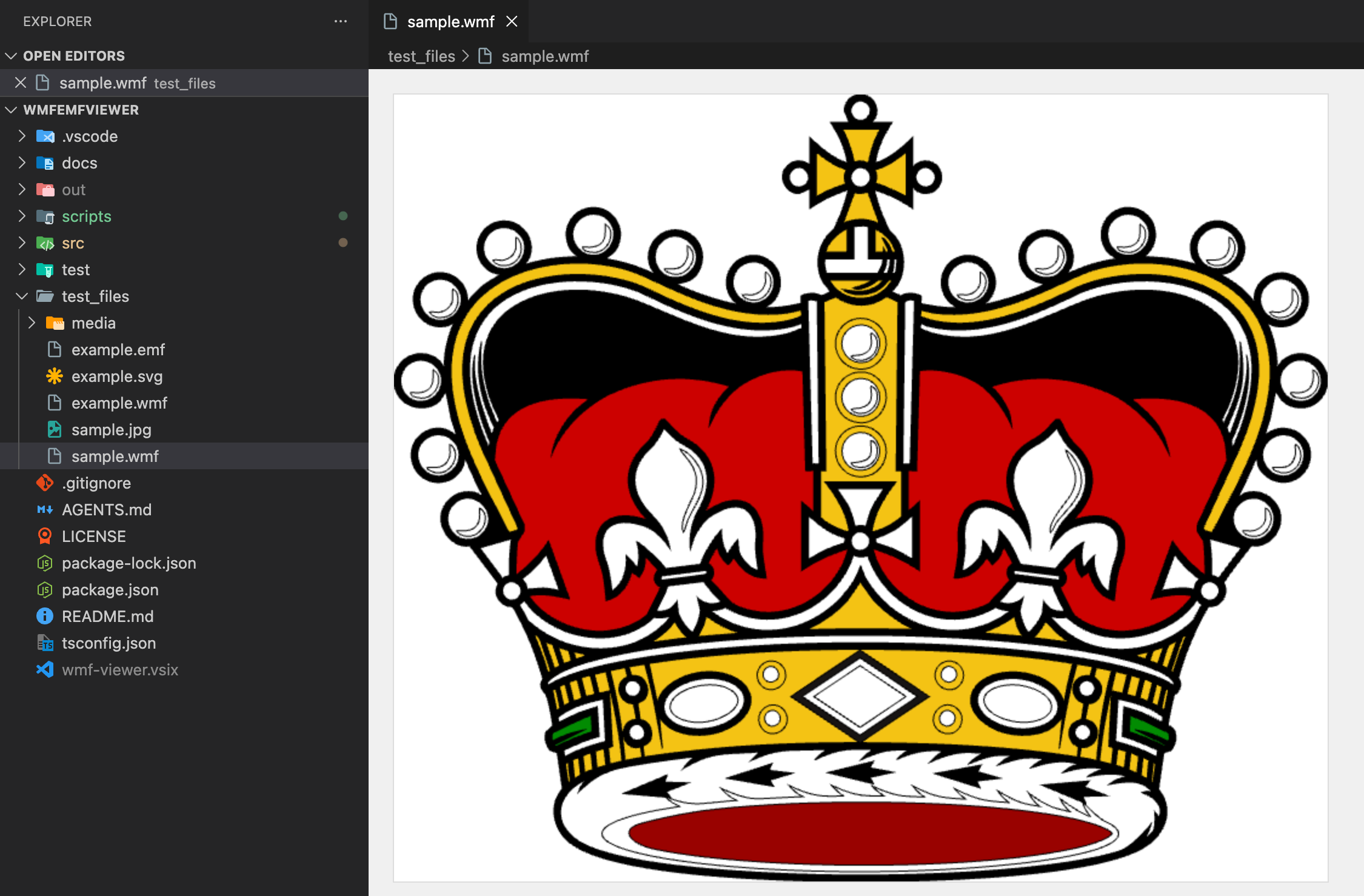

• Open .wmf / .emf files in a custom editor with built-in preview
• Automatic detection of WMF, Placeable WMF, EMF and EMF+
• High-quality Canvas 2D rendering of vector graphics, text and GDI objects
• Explorer context menu integration
• Zero runtime dependencies

Supported Functionality

Formats

Coordinate systems & transforms

• Window/Viewport mapping with all SetMapMode units (MM_TEXT, MM_LO/HIMETRIC, MM_LO/HIENGLISH, MM_TWIPS, MM_ISOTROPIC, MM_ANISOTROPIC)
• World transform (SetWorldTransform / ModifyWorldTransform with MWT_IDENTITY, MWT_LEFTMULTIPLY, MWT_RIGHTMULTIPLY, MWT_SET), plus EMF+ world/container transforms (translate / rotate / scale / multiply / reset)
• DC state stack (SaveDC / RestoreDC), clipping via IntersectClipRect / ExcludeClipRect / OffsetClipRgn / SelectClipPath and EMF+ clip rect/path/region

Drawing primitives (WMF + EMF)

• Lines & curves: MoveToEx, LineTo, Polyline(To), Bezier(To), PolyDraw, Arc, ArcTo, AngleArc, Chord, Pie (all in 16-bit and 32-bit variants where applicable)
• Shapes: Rectangle, RoundRect, Ellipse, Polygon, PolyPolygon, PolyPolyline
• Paths: BeginPath / EndPath, FillPath, StrokePath, StrokeAndFillPath, FlattenPath, WidenPath, AbortPath
• Fills: ExtFloodFill, SetPixelV, poly-fill mode (ALTERNATE / WINDING), ROP2 background/foreground mix, arc direction

GDI objects

• Pens: CreatePen, ExtCreatePen (cosmetic/geometric, dash styles), brushes: CreateBrushIndirect (solid / null / hatched), CreateMonoBrush, palettes (CreatePalette, SetPaletteEntries, ResizePalette, RealizePalette), fonts: ExtCreateFontIndirectW
• Object handles stored by handle map (producer-assigned, reusable after delete); text attributes (SetTextColor, SetBkColor, SetBkMode, SetTextAlign, SetMiterLimit, SetMapperFlags, color adjustment)

Raster operations / bitmaps

• BitBlt, StretchBlt, StretchDIBits, AlphaBlend, TransparentBlt
• DIB decoding: 1/4/8/16/24/32 bpp, BI_RGB / BI_RLE8 / BI_RLE4, top-down and bottom-up, color-key transparency and alpha channels

Text

• TextOut, ExtTextOutA/W, EMR_SMALLTEXTOUT, EMR_TEXT (with offDx inter-character spacing), EMF+ DrawString / DrawDriverString

EMF+ objects & properties (GDI+ surface style)

• Pens, brushes (solid / texture / hatch / path-gradient / linear-gradient), images, fonts, string formats, regions
• Rendering properties: anti-alias, text rendering hint, compositing mode/quality, interpolation mode, pixel offset mode, page transform, containers (Begin/EndContainer), save/restore

Known limitations

• Records embedded as EMF+ inside EMR_GDI_COMMENT of a pure-EMF file are only partially rendered
• Some region records (EMR_FILLRGN / EMR_FRAMERGN) and advanced region clipping fall back to approximations
• Font metrics are approximated (no system font matching); text may deviate slightly in layout-sensitive metafiles

Quick Start

npm install        # install dependencies
npm run build      # build browser bundle + npm package + compile TypeScript

Press F5 in VS Code to launch the Extension Development Host, then open a .wmf or .emf file from test_files/.

Static Website (Online Viewer)

The same rendering engine also ships as a standalone static website — drag & drop a .wmf / .emf file and preview it directly in the browser. All parsing and rendering happen locally; files are never uploaded.

Online: https://congduan.github.io/WmfEmfViewer/ (GitHub Pages)

npm run build:bundle          # generates website/metafileParser.browser.js
npx serve website             # or: python3 -m http.server 8000 --directory website

Then open http://localhost:3000 (or the port shown). Features:

• Drag & drop or click to open WMF / Placeable WMF / EMF / EMF+
• Built-in sample files (shape demo, MathType formula, small icon) — try it without any file at hand
• Canvas / SVG rendering modes, zoom controls (buttons or Ctrl + wheel)
• Export to PNG / SVG / PDF

Deploy to GitHub Pages

The deploy-website.yml workflow builds and publishes website/ automatically on every push to master. One-time setup: Settings → Pages → Source: GitHub Actions.

npm Library (wmf-emf-renderer)

The core parsing/rendering engine is extracted into a standalone module, published as a zero-dependency npm package. It shares the same source code as the extension (packages/wmf-emf-renderer is built from src/modules + src/utils) and can be used in any Node.js or browser project.

Full API documentation: packages/wmf-emf-renderer/README.md

Install

npm install wmf-emf-renderer

Usage

Render to SVG (headless, works in Node.js without any DOM):

import { renderToSvg } from 'wmf-emf-renderer';
import { readFileSync, writeFileSync } from 'fs';

const svg = renderToSvg(readFileSync('drawing.wmf'), { viewWidth: 1024 });
writeFileSync('drawing.svg', svg);

Render to a browser canvas:

import { renderToContext } from 'wmf-emf-renderer';

const data = new Uint8Array(await file.arrayBuffer());
const ctx = document.querySelector('canvas').getContext('2d');
const info = renderToContext(data, ctx, { viewWidth: 800, viewHeight: 600 });
console.log(`Rendered ${info.fileType} at ${info.width}x${info.height}`);

Render with node-canvas (server-side PNG export):

const { createCanvas } = require('canvas');
const { renderToContext } = require('wmf-emf-renderer');

const canvas = createCanvas(800, 600);
renderToContext(fs.readFileSync('chart.emf'), canvas.getContext('2d'));
fs.writeFileSync('chart.png', canvas.toBuffer('image/png'));

Parse only (inspect records without rendering):

import { parseMetafile } from 'wmf-emf-renderer';

const { fileType, records, error } = parseMetafile(bytes);
console.log(fileType, records.length, 'records');

API Overview

data accepts Uint8Array, ArrayBuffer, or number[]; options: { viewWidth = 800, viewHeight = 600 } (image is fit inside while preserving aspect ratio). Low-level classes (WmfParser, EmfParser, EmfPlusParser, SvgContext, etc.) are also exported — see the package README.

Module Development

cd packages/wmf-emf-renderer
npm run build      # rebuild index.js / index.mjs / index.d.ts from ../../src
npm test           # smoke test: parse + render sample files

Development Commands

Project Structure

packages/
└── wmf-emf-renderer/    # Standalone npm library extracted from src/
scripts/
└── build-bundles.js     # esbuild: browser IIFE bundle + npm CJS bundle
src/
├── commands/            # VSCode command implementations
├── modules/             # Core logic
│   ├── parsers/        # WMF / EMF / EMF+ binary parsers
│   ├── drawers/        # Canvas 2D renderers
│   └── svgContext.js   # Canvas2D-compatible SVG-emitting context
├── providers/           # VSCode custom editor provider
├── resources/           # Webview HTML template, extension icon
├── utils/               # Constants, coordinate transforms, GDI object manager, etc.
├── browser.js           # Browser bundle entry point
└── extension.ts         # Extension entry point

See docs/PROJECT_STRUCTURE.md for the full architecture documentation.

Architecture

• Separation of concerns: TypeScript extension layer, JavaScript parsing/rendering layer
• Format-specific modules: each format has a dedicated parser and drawer
• Shared base classes: BaseParser / BaseDrawer provide common functionality
• Browser bundling: scripts/build-bundles.js (esbuild) produces a single-file browser bundle for the webview and a CommonJS bundle for the npm package

Testing

• test/runTest.js — smoke tests against the built browser bundle
• test/snapshot-test.js — full-corpus snapshot regression against src/
• test_files/ — sample WMF/EMF corpus

Format Specifications

• [MS-WMF] Windows Metafile Format — docs/[MS-WMF].pdf
• [MS-EMF] Enhanced Metafile Format — docs/[MS-EMF].pdf
• [MS-EMFPLUS] Enhanced Metafile Plus Format — docs/[MS-EMFPLUS].pdf

Publishing

The Marketplace detail page uses MARKETPLACE.md, configured via the package / publish scripts in package.json.
