Panel Pin

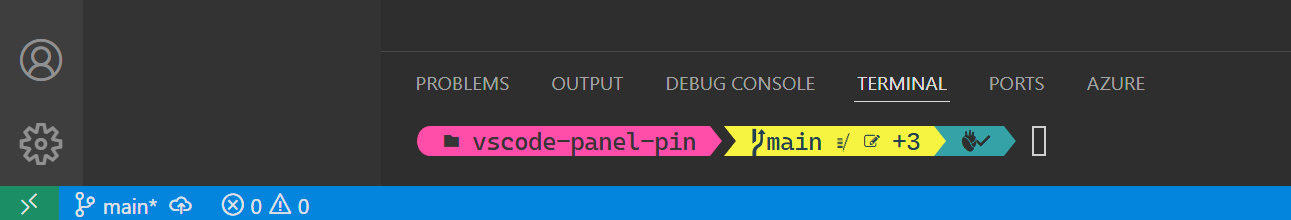

This convenient extension automatically moves the bottom panel (Problems, Output, Debug Console, Terminal etc) out the way automatically to increase editor height whilst keeping the panel handily in reach.

Usage

Adds a pin icon to collapse the bottom panel when a code editor window gets focus.

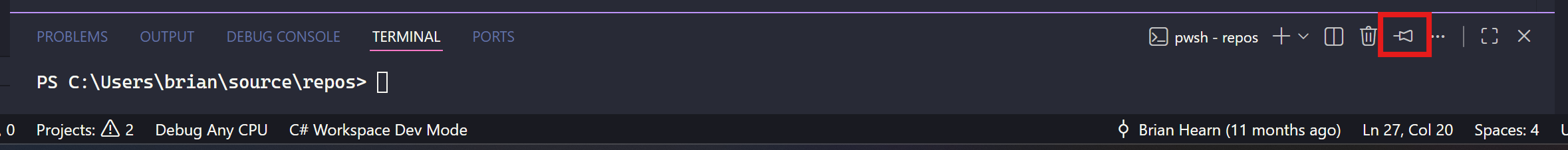

By default, Panel Pin shows both a status bar button and title-bar buttons on a configurable list of panel views. The button icon switches between pinned and unpinned states.

When unpinned automatically resizes the bottom panel to its smallest size when the code editor gets focus without toggling its visibility.

The panel must be resized manually to restore its height.

When pinned the panel remains at its set height.

Button Placement

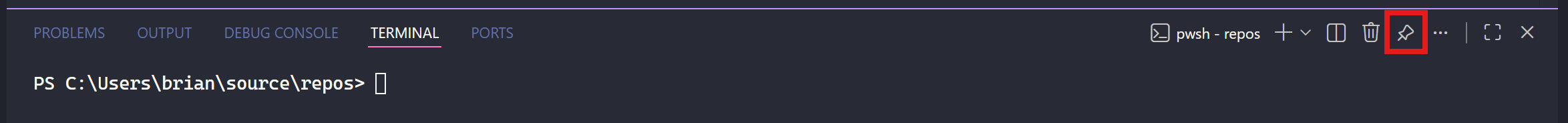

The title-bar buttons are contributed to panel views through view/title. They are right-aligned in VS Code's navigation group, which is the closest supported placement to the built-in view controls.

The default view list is:

• Problems (workbench.panel.markers.view)
• Output (workbench.panel.output)
• Debug Console (workbench.panel.repl.view)
• Ports (~remote.forwardedPorts)
• Terminal (terminal)

You can add other view ids in panelPin.titleBarViewIds if you want the button to appear elsewhere.

To discover a panel or view id:

1. Run Developer: Toggle Developer Tools.
2. Open the Console tab.
3. Run Developer: Inspect Context Keys.
4. Click the panel or view title area you want to inspect.
5. Inspect the logged object in the console and look for keys such as view, focusedView, or activePanel.

VS Code does not expose a supported extension API for iterating every currently available view id and auto-injecting buttons into them.

Settings

Command Pallete: Preferences: Open User Settings and fiter to panelpin

• panelPin.showStatusBarPinButton: controls the status bar button. Default: true.
• panelPin.showPanelTitlePinButton: controls the built-in panel view title buttons. Default: true.
• panelPin.titleBarViewIds: list of view ids that should show the title-bar button. Default: Problems, Output, Debug Console, Ports, and Terminal.
