Unity Shader Language Support

🎨 Professional Unity and Unreal Engine Shader development support for Visual Studio Code

English | Simplified Chinese

Provides complete Unity and Unreal Engine Shader language support for VS Code, including syntax highlighting, intelligent completion, symbol navigation, semantic analysis, and more. Supports file types such as .shader, .cginc, .hlsl, .compute, .usf, .ush.

✨ Main Features

• ✨ Syntax Highlighting - Support for ShaderLab and HLSL/CG syntax highlighting
• 💡 Intelligent Completion - Built-in HLSL functions, Unity/URP built-in variables and function completion
• 📝 Hover Documentation - Displays function signatures and documentation (supports both Chinese and English)
• 🔍 Symbol Navigation - Outline view, go to definition, find references (supports cross-file)
• ⚡ Semantic Analysis - Variable type inference, unused variable detection, Shader variant analysis
• 📱 Mobile Optimization - Detection of mobile platform features, half precision suggestions, complexity scoring
• 🔧 Code Refactoring - Rename symbols, code formatting (supports cross-file)
• 📁 Code Folding - Supports {} brackets, preprocessor, code block folding
• 🎮 Unreal Support - Supports .usf/.ush files and Unreal function completion

📸 Feature Showcase

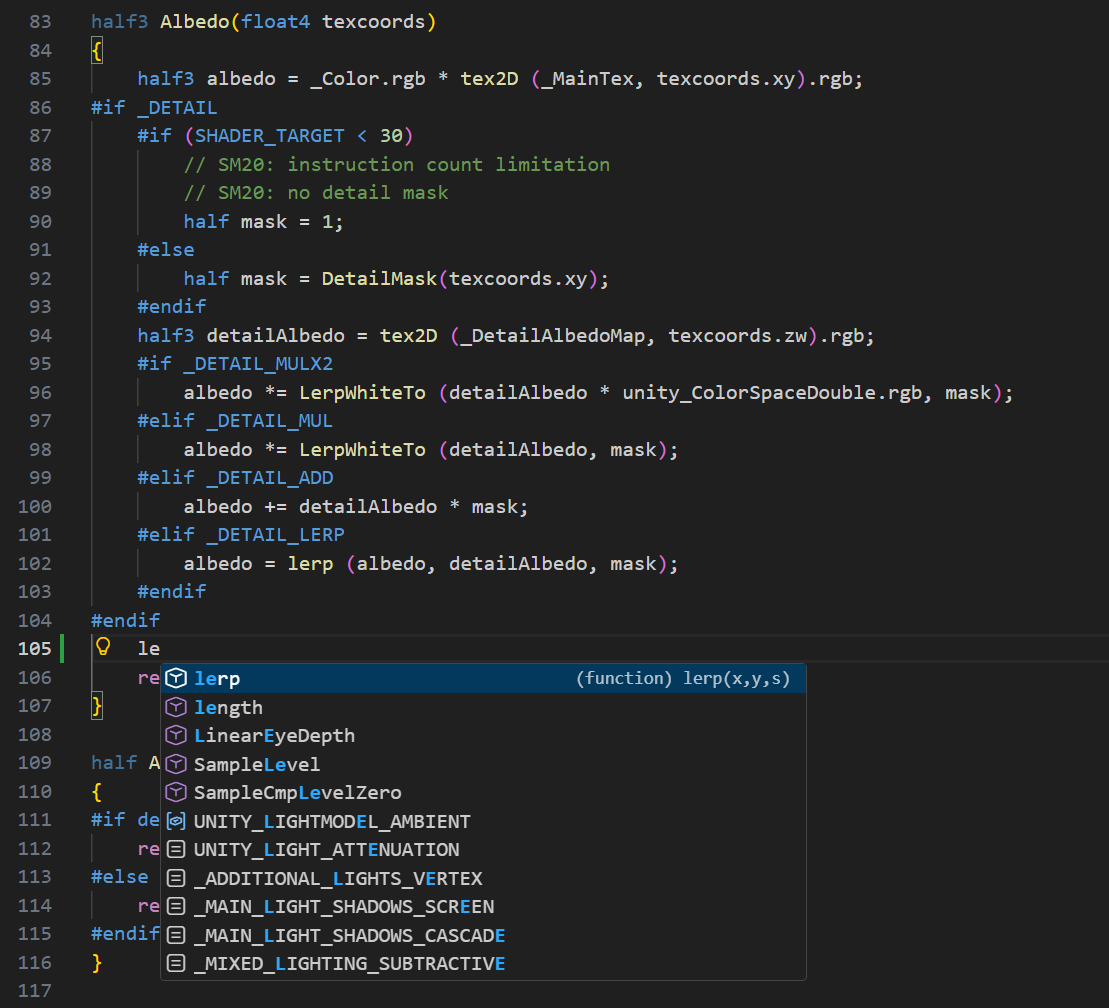

Intelligent Code Completion

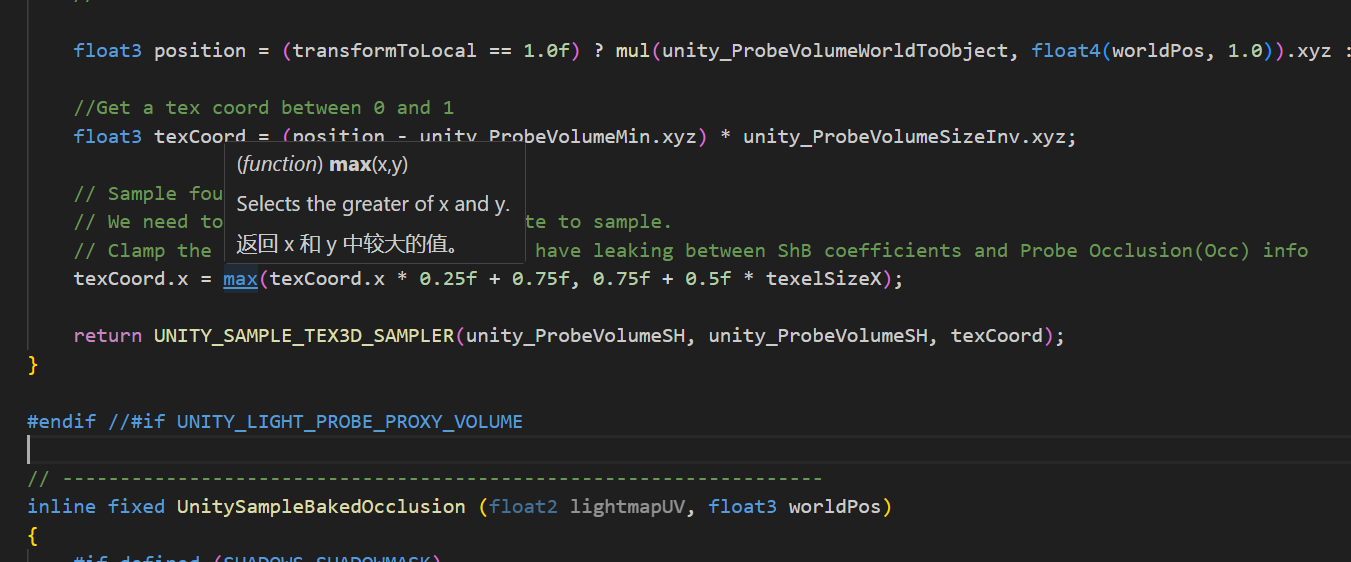

Hover Documentation Tips

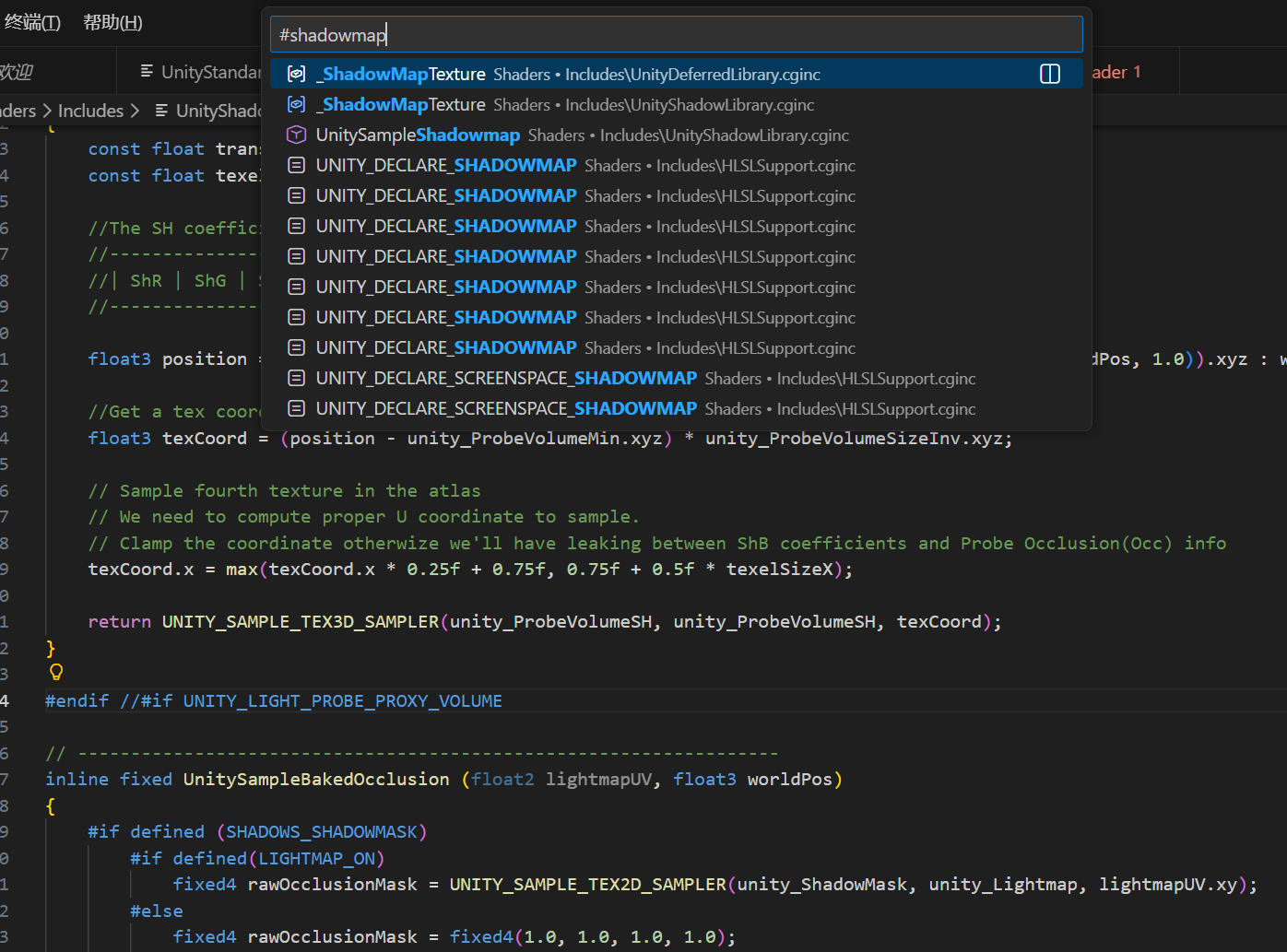

Go to Workspace Symbol

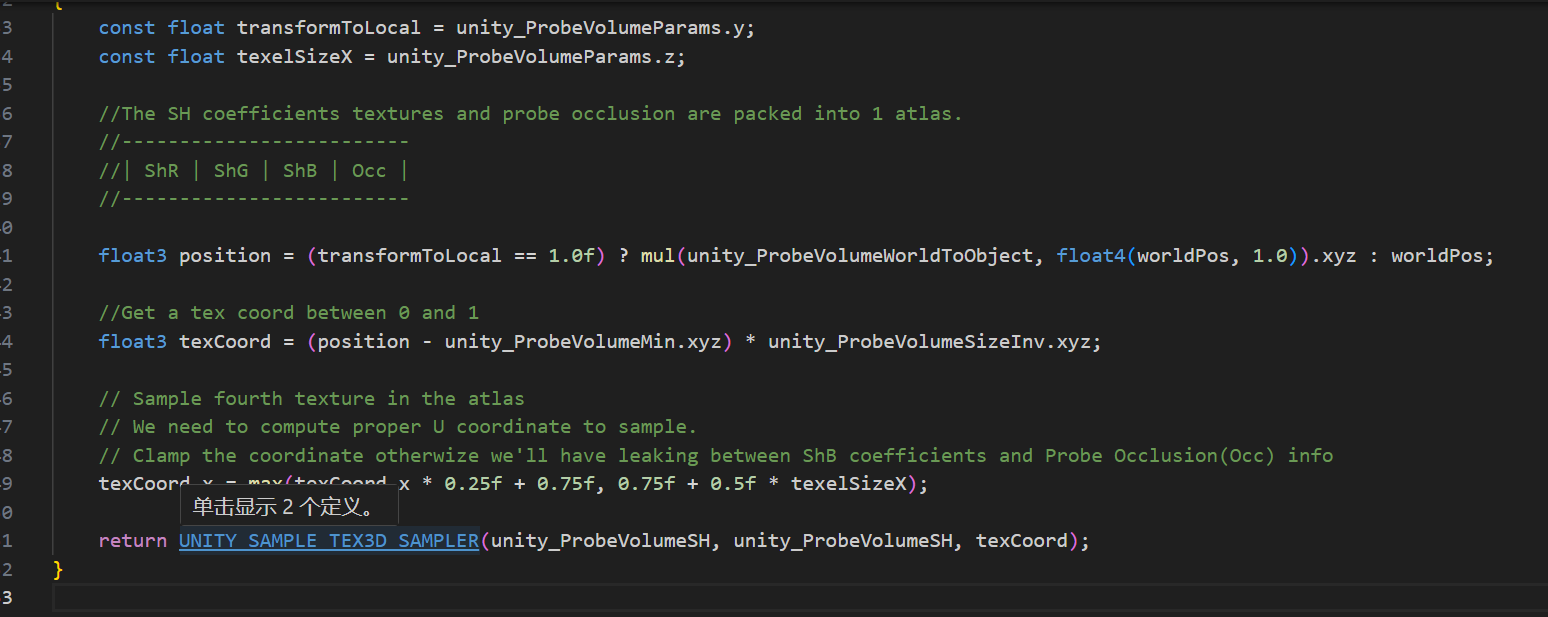

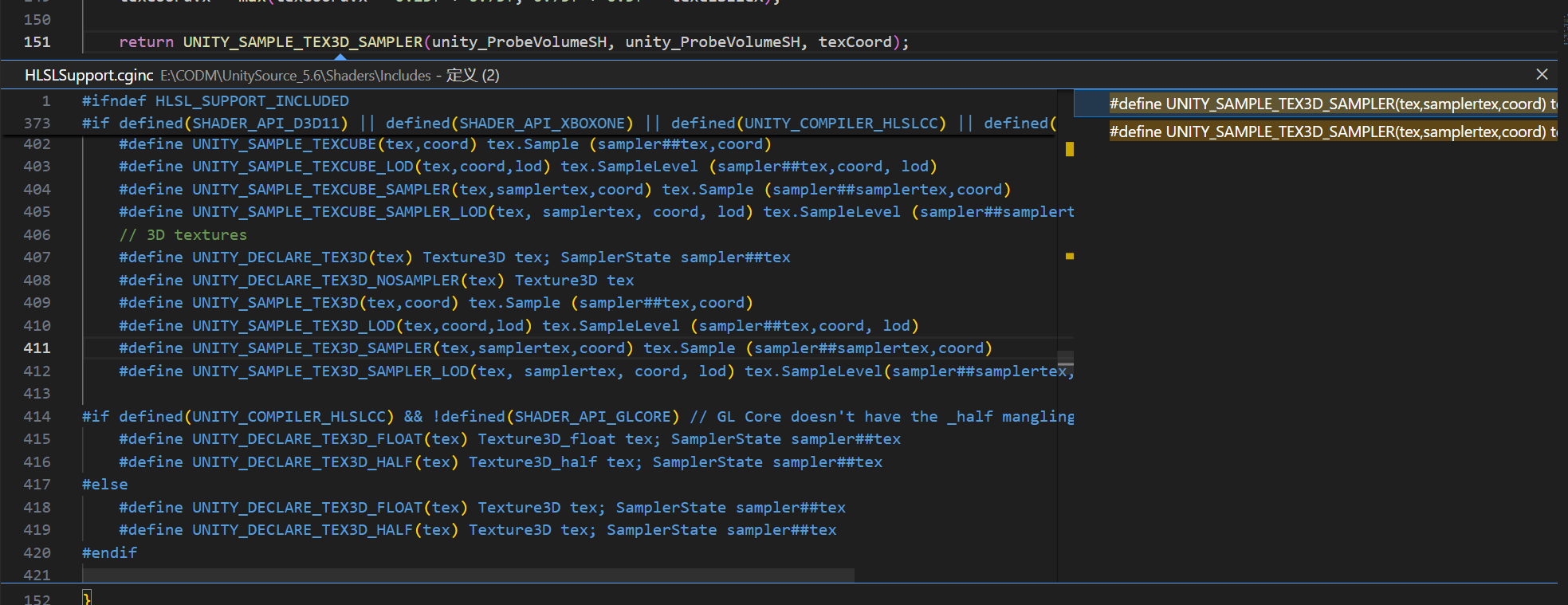

Go to Definition

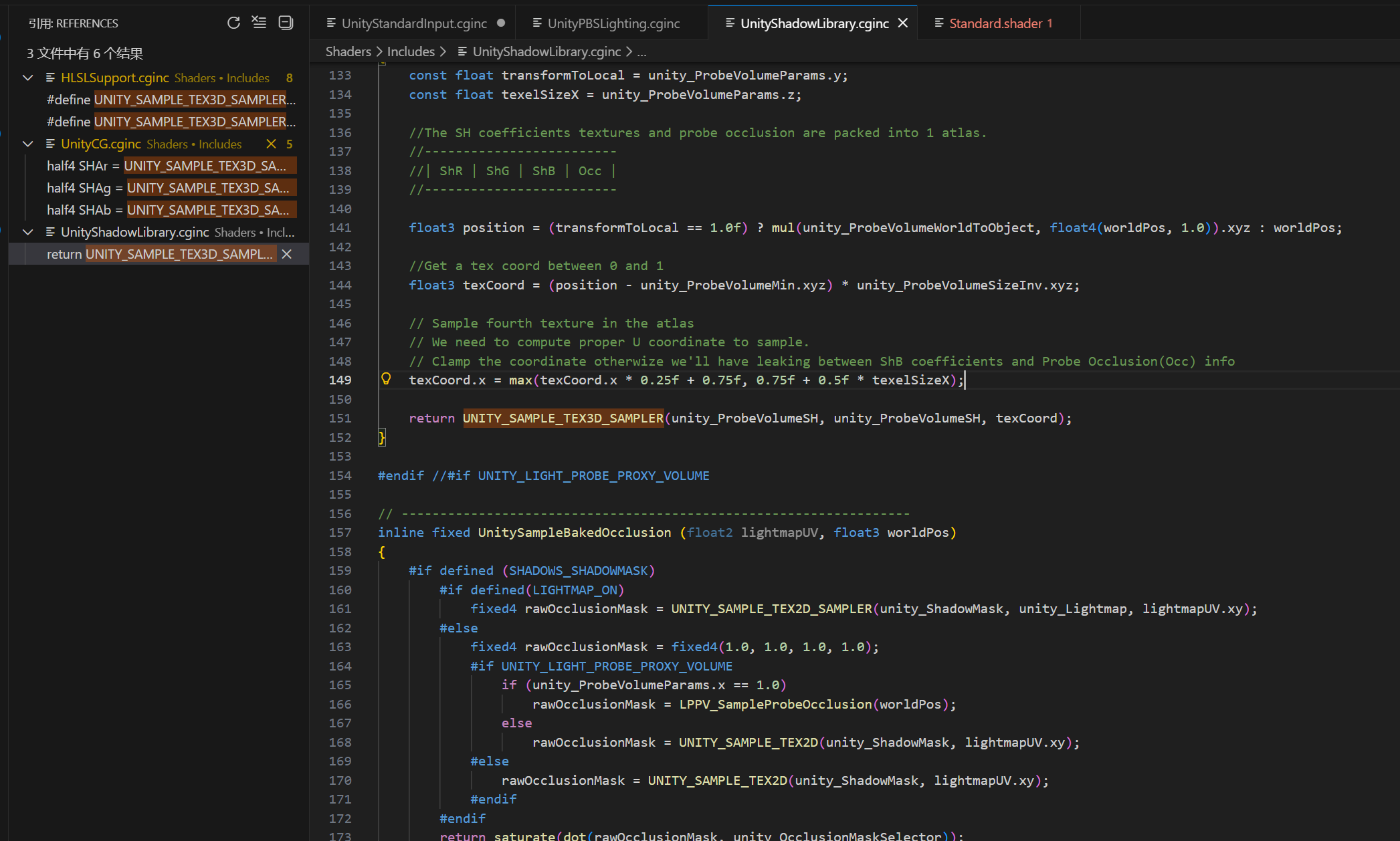

Find All References

🚀 Quick Start

Installation

Method 1: Install from VS Code Marketplace (Recommended)

1. Open VS Code
2. Press Ctrl+Shift+X (Windows/Linux) or Cmd+Shift+X (Mac) to open the extensions view
3. Search for "Unity Shader"
4. Click "Install"

Method 2: Install from VSIX file

code --install-extension UnityShader-1.0.1.vsix

Usage

1. Open a Shader File
   Open any .shader, .cginc, .hlsl, or .compute file, and the plugin will activate automatically.

2. Start Coding

   • Type HLSL function names (e.g., lerp) to see intelligent completion
   • Hover over functions to view documentation
   • Hold Ctrl/Cmd and click symbols to jump to definitions
   • Right-click and select "Rename Symbol" to rename across files

💡 Feature Details

Intelligent Code Completion

Relevant suggestions are automatically displayed while typing code:

• Built-in HLSL Functions: Over 200 functions such as lerp, saturate, dot, cross, etc.
• Unity Built-in Variables: _Time, _WorldSpaceCameraPos, unity_ObjectToWorld, etc.
• Unity Built-in Functions: UnityObjectToClipPos, UNITY_MATRIX_MVP, etc.
• URP Functions: TransformObjectToHClip, GetMainLight, etc.
• Semantic Tags: POSITION, TEXCOORD0, SV_Target, etc.

// Example: Type "lerp" to trigger completion
fixed4 result = lerp(colorA, colorB, t);

Hover Documentation Tips

Hover the mouse over functions or variables to view detailed documentation:

• Function signatures and parameter descriptions
• Return value types
• Usage examples
• Supports documentation in both Chinese and English

Symbol Navigation

Go to Definition

• Hold Ctrl/Cmd and click the symbol to jump to its definition
• Supports cross-file jumps (to .cginc files)
• Supports macro definition jumps
• Supports #include file jumps
• Supports FallBack Shader jumps

Find All References

• Right-click and select "Find All References"
• Displays all usage locations of the symbol in the project
• Supports cross-file searches

Rename Symbol

• Right-click and select "Rename Symbol"
• Supports bulk renaming across files
• Shows preview and allows undo

Semantic Analysis

• Variable Type Inference: Automatically infers variable types
• Unused Variable Detection: Marks unused variables
• Shader Variant Analysis: Analyzes #pragma multi_compile variants

Mobile Optimization Analysis

• Performance Suggestions: Detects performance issues and provides optimization recommendations
• Precision Suggestions: Recommends using half instead of float for better mobile performance
• Compatibility Checks: Detects unsupported features on mobile platforms
• Complexity Scoring: Evaluates Shader complexity

📁 Supported File Types

⚙️ Configuration Options

Search for unityshader in VS Code settings to find all configuration items.

Code Completion Settings

Analysis Settings

Example Configuration

Add the following to settings.json:

{
  "unityshader.suggest.basic": true,
  "unityshader.suggest.unity": true,
  "unityshader.suggest.urp": true,
  "unityshader.mobile.enabled": true,
  "unityshader.analysis.semanticAnalysis": true
}

🛠️ Development

Environment Requirements

• Node.js >= 14.x
• npm >= 6.x
• VS Code >= 1.87.0

Build and Package

This project provides automatic version management and packaging scripts:

# Daily fix packaging (patch version: 1.0.0 → 1.0.1)
npm run build

# New feature release (minor version: 1.0.0 → 1.1.0)
npm run build:minor

# Major update (major version: 1.0.0 → 2.0.0)
npm run build:major

For details, please refer to BUILD_GUIDE.md

Development Scripts

# Install dependencies
npm install

# Development mode (watch for file changes and auto-compile)
npm run watch

# Compile TypeScript
npm run compile

# Type checking
npm run check-types

# Code checking and auto-fix
npm run lint
npm run lint -- --fix

Project Structure

vscode-unitylabshader/
├── src/                    # TypeScript source code
│   ├── hlsl/              # HLSL language support
│   │   ├── completionProvider.ts
│   │   ├── hoverProvider.ts
│   │   ├── definitionProvider.ts
│   │   └── ...
│   ├── data/              # Data files (function definitions, documentation, etc.)
│   └── extension.ts       # Plugin entry point
├── syntaxes/              # Syntax highlighting definitions
├── snippets/              # Code snippets
├── out/                   # Compilation output
└── package.json           # Plugin configuration

📚 Documentation

• Feature Documentation - Complete feature descriptions and usage examples
• Technical Specification - Architecture design and technical details
• Build Guide - Build and packaging instructions
• Change Log - Version history and change records
• Task List - Development progress and plans

🤝 Contribution

Contributions, bug reports, and suggestions are welcome!

Reporting Issues

If you find a bug or have a feature suggestion, please submit it to GitHub Issues.

Contributing Code

1. Fork this repository
2. Create your feature branch (git checkout -b feature/AmazingFeature)
3. Commit your changes (git commit -m 'Add some AmazingFeature')
4. Push to the branch (git push origin feature/AmazingFeature)
5. Open a Pull Request

📝 License

This project is licensed under the MIT License - see LICENSE.md for details.

🙏 Acknowledgments

Thanks to the following projects and resources:

• Visual Studio Code - Excellent code editor
• HLSL Tools for Visual Studio - HLSL language support reference
• Unity Documentation - Unity Shader documentation
• Unreal Engine Documentation - Unreal Shader documentation

📮 Contact

• Issue Feedback: GitHub Issues
• Feature Suggestions: GitHub Discussions
