Apollo Workbench for VS Code
The Apollo Workbench extension lets you design your schemas using Apollo Federation and Schema Definition Language (SDL). This extension exposes the functionality of rover
for GraphOS in a friendly VS Code way.
For more detailed documentation, visit our GitHub docs page.
Required Installations
rover - This extension requires the GraphOS CLI rover
to be installed. Most of the functionality in the extension is based on various rover
commands (like rover supergraph compose
). There are simple installation instructions for various platforms to install rover
.
Getting Started
Logging into GraphOS
- Head to your personal settings in Apollo Studio and create a user API key
- Click the login row or run the GraphOS: Login command form the VS Code command Pallete
- Paste your API key and hit 'Enter'. You should see a list of your graphs show up
Creating a new design from GraphOS
You must login to GraphOS to create designs from the schema registry
- Find the graph you want to create a design from. You can right click the design and go through a wizard to select with environment (variant) to start from or expand the graph and right click on the environment:
- Provide a name for your new design:
A new design should be displayed that is a copy from GraphOS. You should see a local .yaml
file created that can be used with rover supergraph compose
(assuming you are logged in with rover
). Here is an example of the yaml
that was output from the screenshot above:
subgraphs:
users:
routing_url: https://hts-users-production.up.railway.app/
schema:
graphref: hack-the-e-commerce@main
subgraph: users
shipping:
routing_url: https://hts-shipping-production.up.railway.app/
schema:
graphref: hack-the-e-commerce@main
subgraph: shipping
reviews:
routing_url: https://hts-reviews-production.up.railway.app/
schema:
graphref: hack-the-e-commerce@main
subgraph: reviews
products:
routing_url: https://hts-products-production.up.railway.app/
schema:
graphref: hack-the-e-commerce@main
subgraph: products
orders:
routing_url: https://hts-orders-production.up.railway.app/
schema:
graphref: hack-the-e-commerce@main
subgraph: orders
operations: {}
federation_version: '=2.7.2'
Creating a design from scratch
If you don't already have a schema in GraphOS or just want to play around, click the + button in the local supergraph designs section to create a blank .yaml
file locally:
Changing the federation version for a design
Since each design is just the yaml
configuration required for rover supergraph compose
, you can change the version in the file directly:
federation_version: '=2.3.5'
Editing a subgraph schema
Depending on what you have in your yaml
configuration, rover
could be fetching the schema from a remote source or a local schema file (see rover
docs for details on sources). All remote data sources are initially read-only until you switch them to a local design:
Once the schema has been selected to be changed, a local file will be created with that schema and a workbench_design
will be added to your yaml
. Having workbench_design
present in the schema configuraiton will begin using the local file for rover supergraph compose
:
Composing changes to designs
Once you save a schema file, workbench will run rover supergraph compose

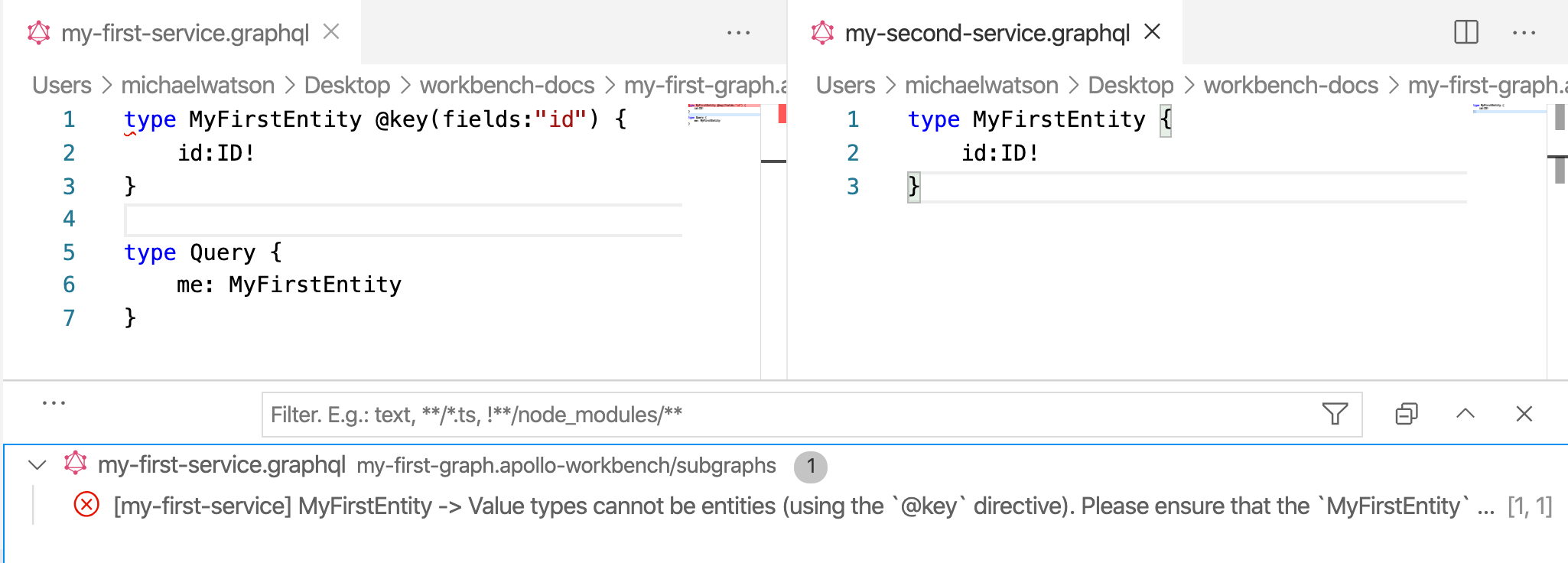

across your designs and display any errors into the problems panel:
Running designs locally with rover dev
You can start any design (that doesn't have composition errors) by pressing the "Play" icon when hovering over the subgraphs row. This will manage the rover dev
session in VS Code terminal windows and open Sandbox in VS Code. You can also navigate to http://localhost:3000
in your browser; VS Code webview is sometimes a little weird with the embedded UIs.
You can stop the design at anytime by pressing the "Stop" icon when hovering over the subgraphs row. Only one design can be running at a time.

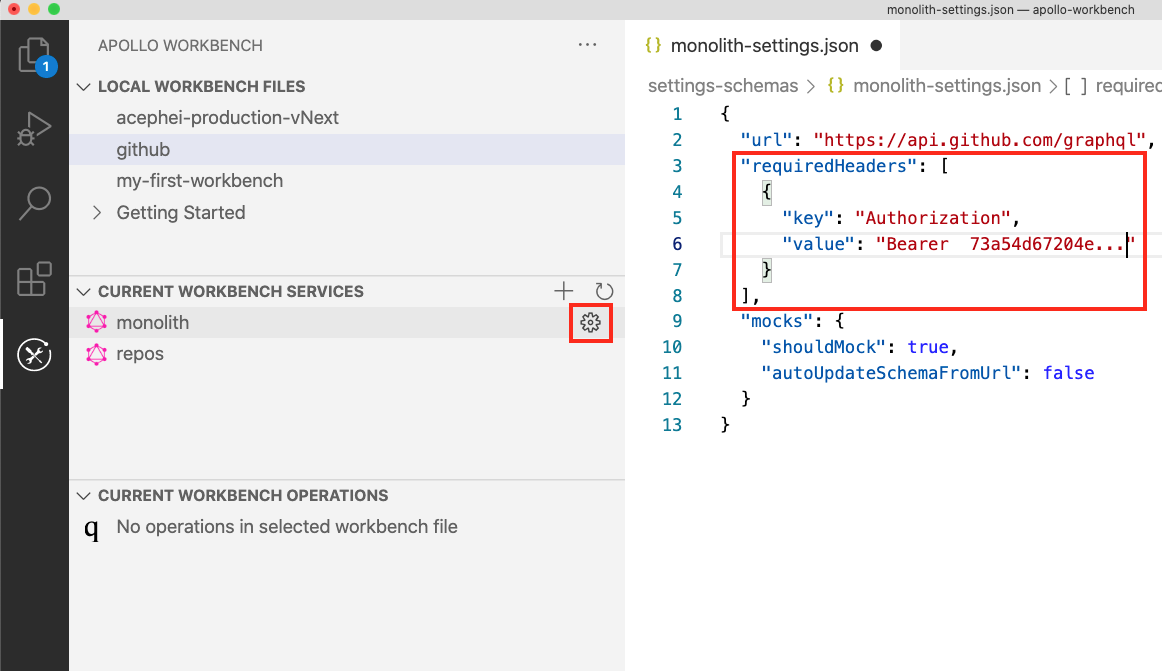

Mocking designs locally
By default, designs running locally will route traffic to the routing_url
defined in the yaml

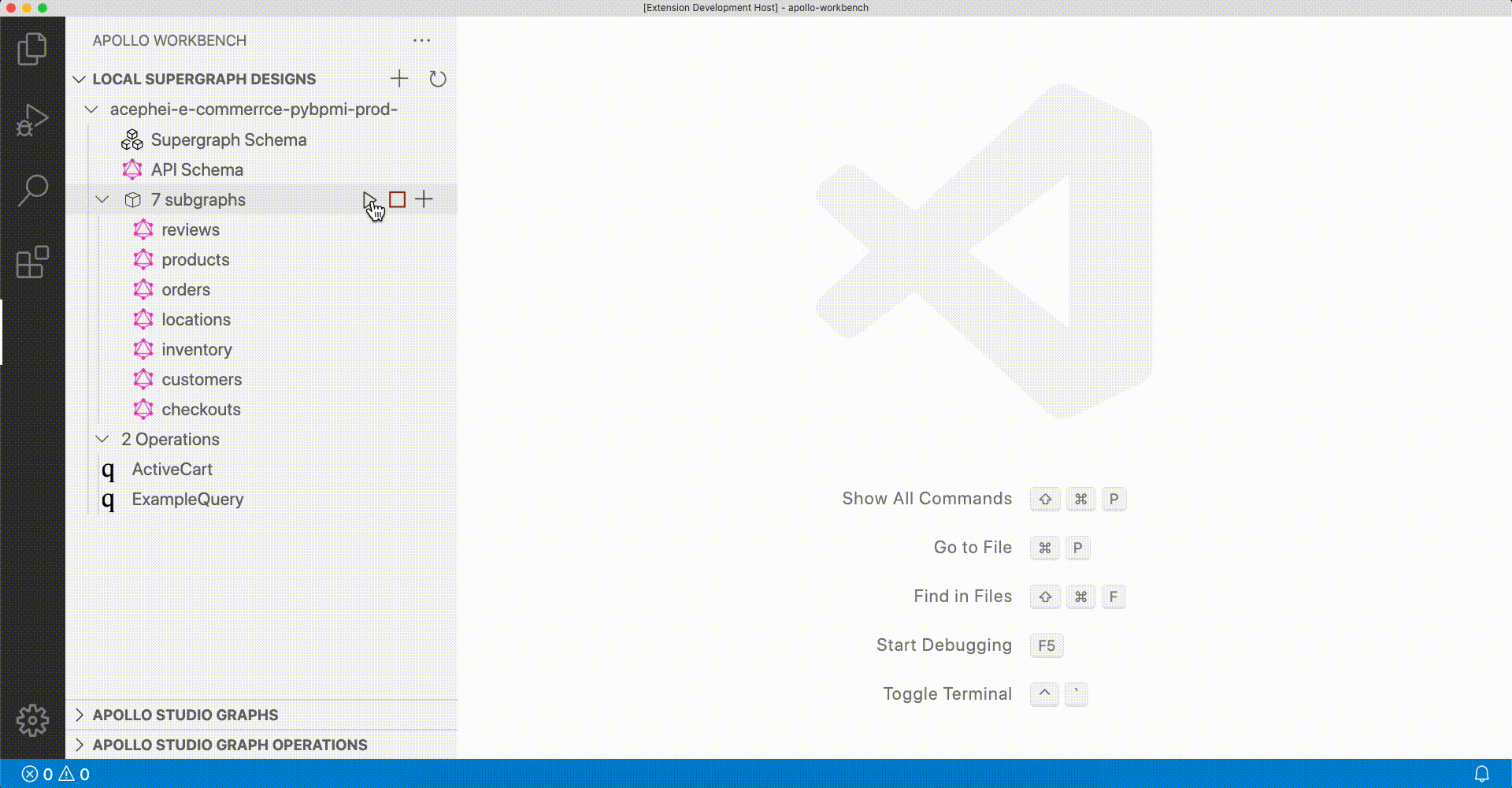

. If you want to mock any schema, you can right click that schema and select "Mock Subgraph in Design":
This will add a file
property to your schema in the yaml
file. If there isn't already a local workbench_design
or a file
already defined, a copy of the schema file will be created locally for that reference. Sometimes you may have both a file
and workbench_design
defined; for these cases you should always have them pointing at the same schema file.
The following configuration has a local design file being used for composition and to be mocked locally.
subgraphs:
users:
routing_url: https://hts-users-production.up.railway.app/
schema:
graphref: hack-the-e-commerce@main
subgraph: users
workbench_design: >-
/Users/michaelwatson/Documents/Apollo/devrel/question-of-the-week/wb-docs/users.graphql
file: >-
/Users/michaelwatson/Documents/Apollo/devrel/question-of-the-week/wb-docs/users.graphql
How the mocking works: Workbench runs an @apollo/server
instance locally for every subgraph schema you have mocked. A local schema file is required as part of this process to use graphql-tools

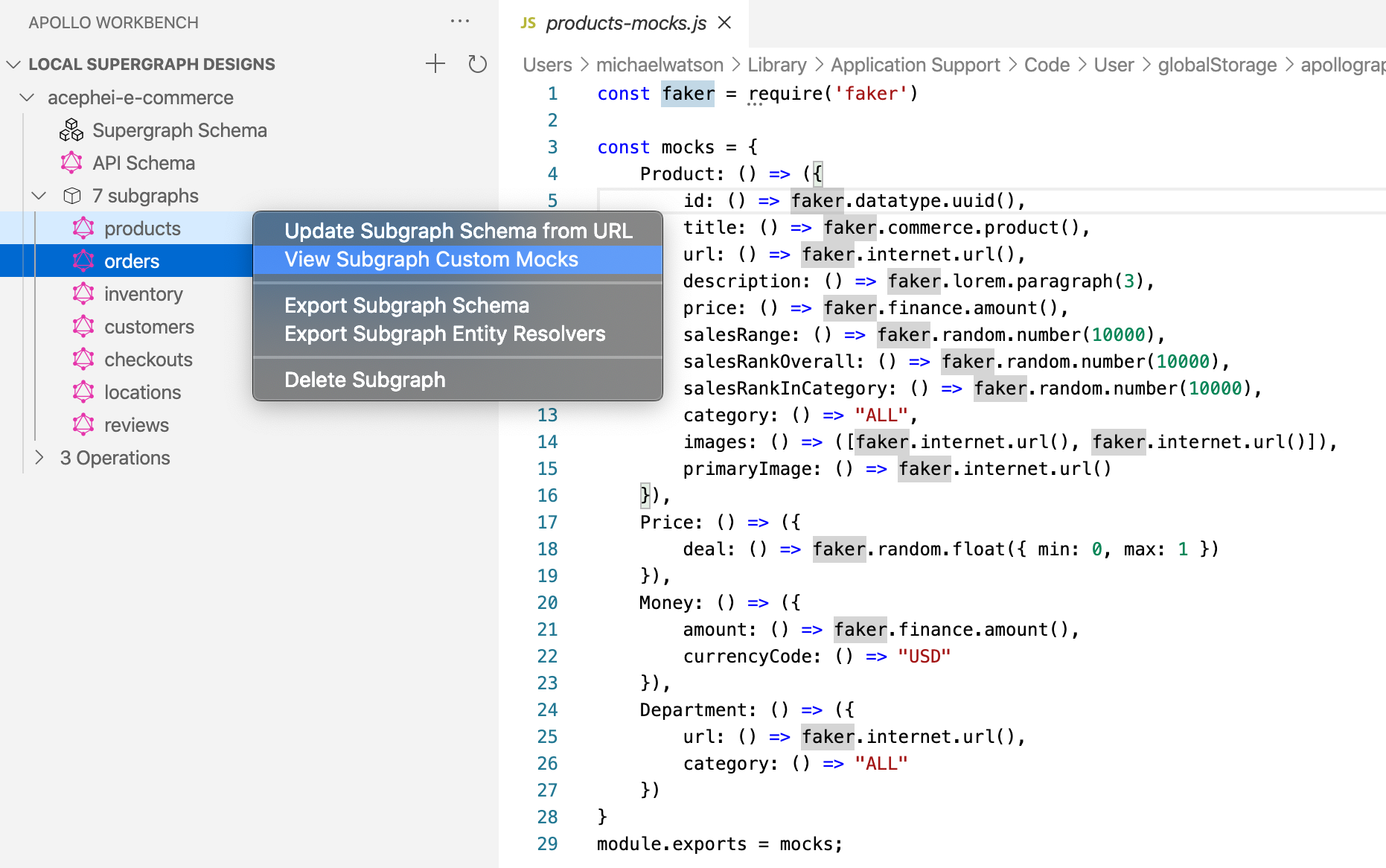

to apply mocks locally. In this current beta there is no support for custom mocks, but that could change in the future.
Checking subgraph schema changes
You can right click any subgraph schema and select "Check Subgraph Schema". This will run a wizard to get the necessary information to run rover subgraph check
(docs) and report the results. Once complete, VS Code will prompty you to open the check report directly in Apollo Studio, the web interface for GraphOS.
Associating an operation design with the Design

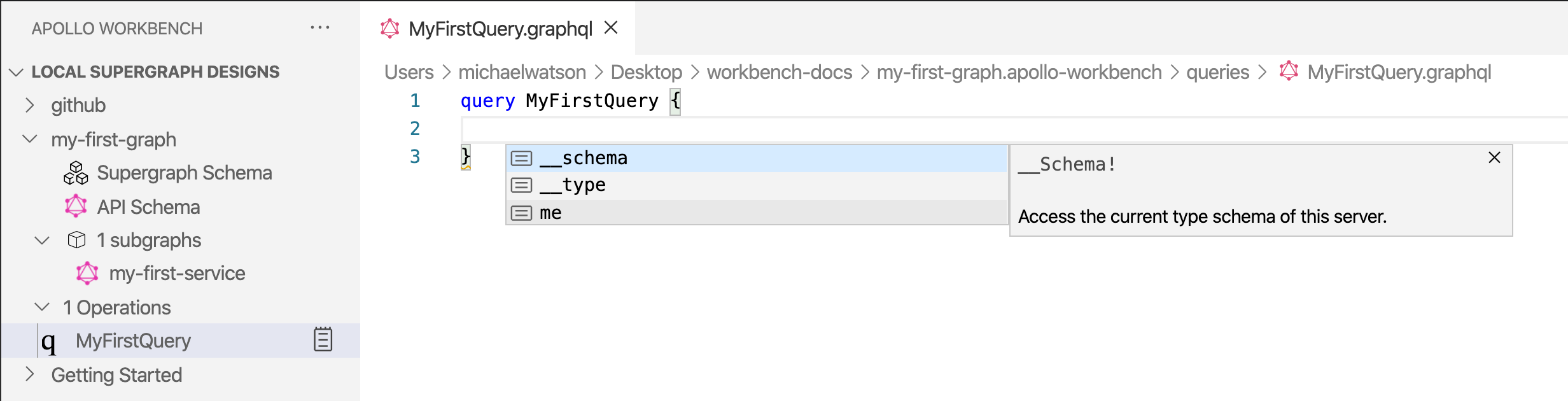

You can add operations to any design by pressing the "+" button on the operations row:
You can associate an image with your design now. Local files and urls are both supported. This enables you to pull up a query and what it's design looks like side by side.
Adding an operation from GraphOS into the design

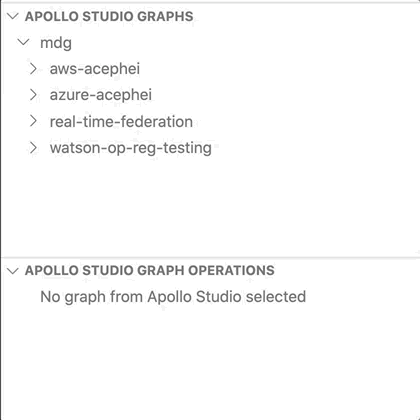

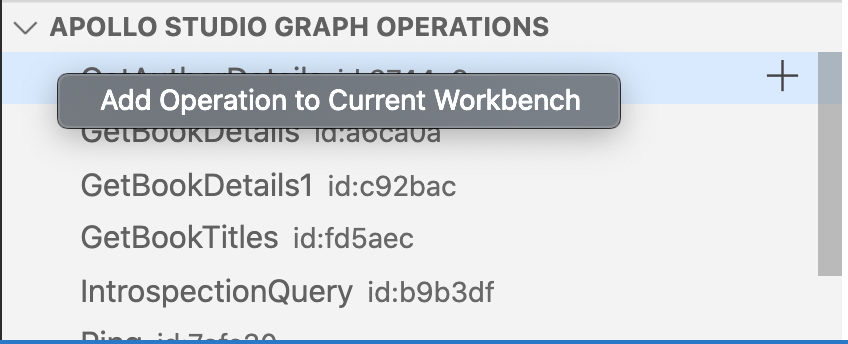

You can load operations from GraphOS by clicking on any graph in the "GRAPHOS SUPERGRAPHS" section of the extension. Then you can select the "+" button for that operation in "GRAPHOS OPERATIONS" and select which design to add it to.
Opening a design in Apollo Explorer

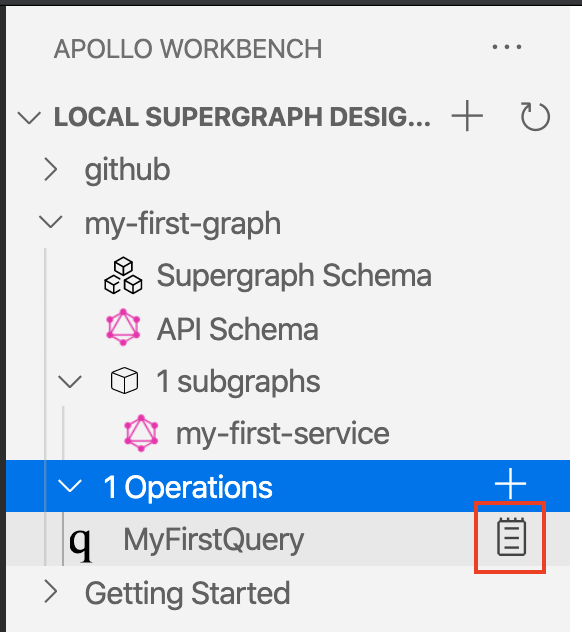

There is a "Play" button for every defined operaiton. This will ensure the design is running locally and open Apollo Explorer embedded in VS Code with the given operation loaded in. After executing the operation once, you should be able to view the query plan.
VS Code extension output
You might be seeing some strange behavior. In these cases, you should check the extension output:
